Model # RKS394 Official Caloric gas range with microwave

Here are the diagrams and repair parts for Official Caloric RKS394 gas range with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

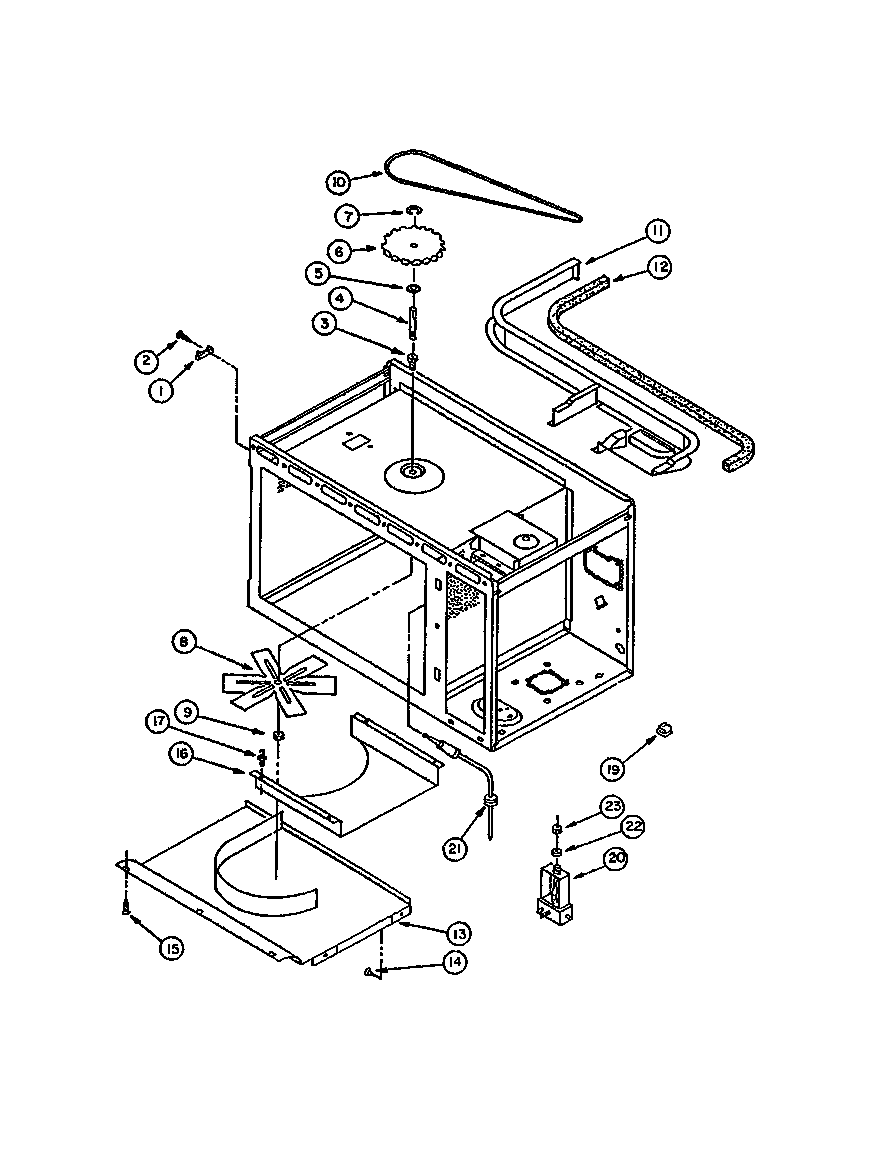

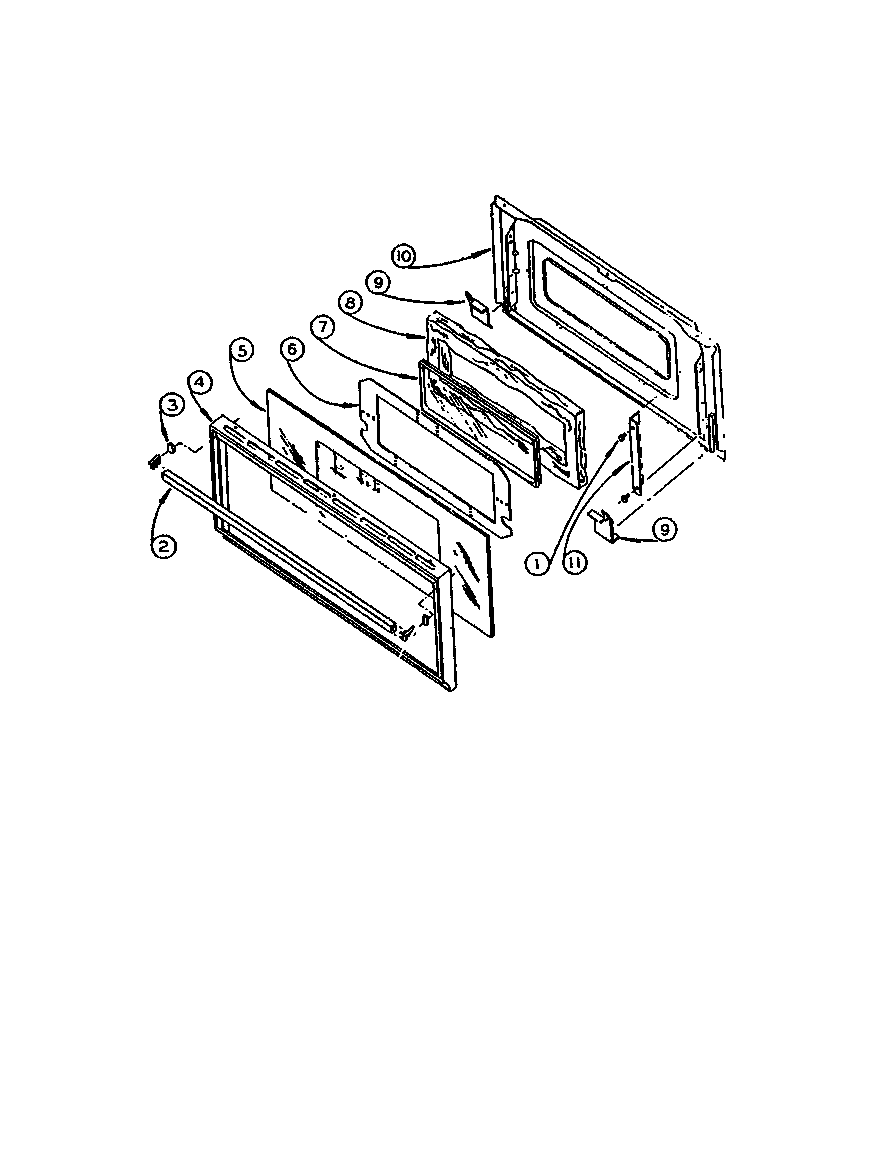

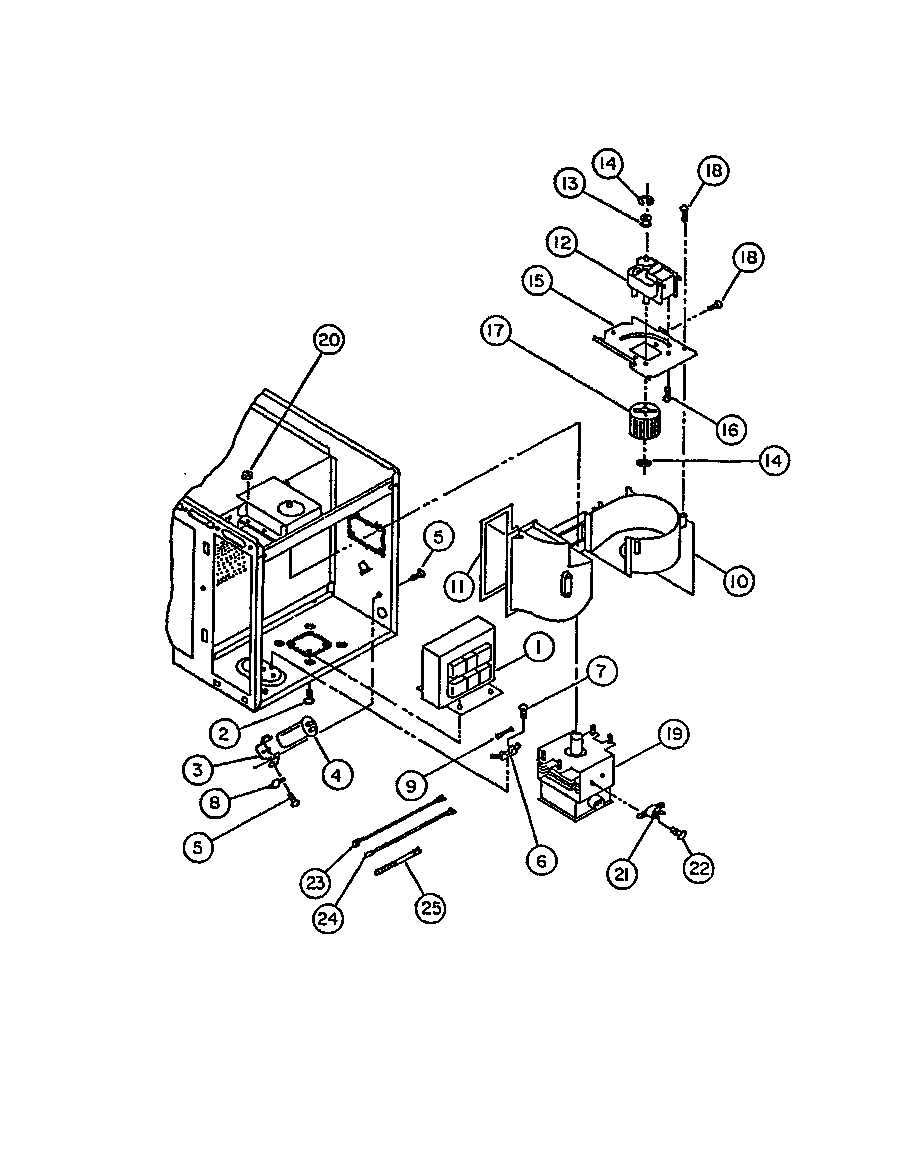

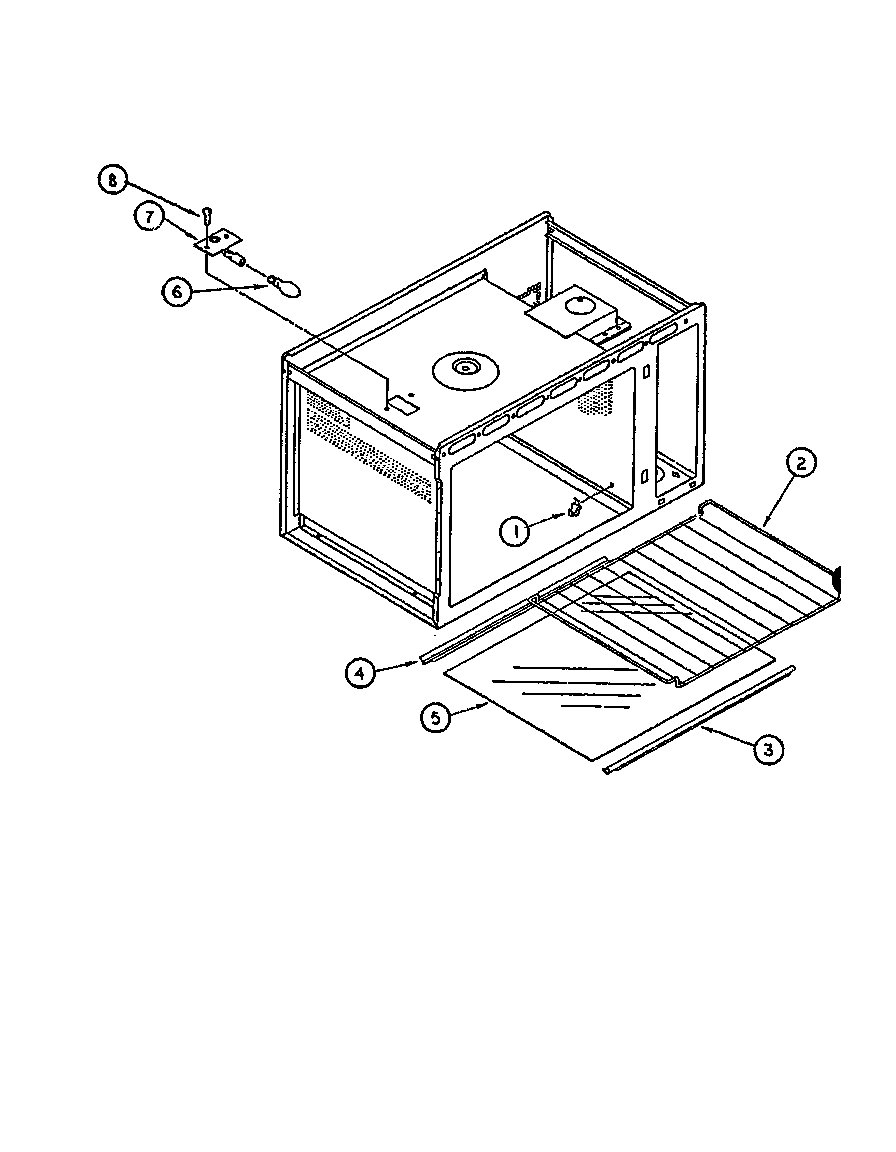

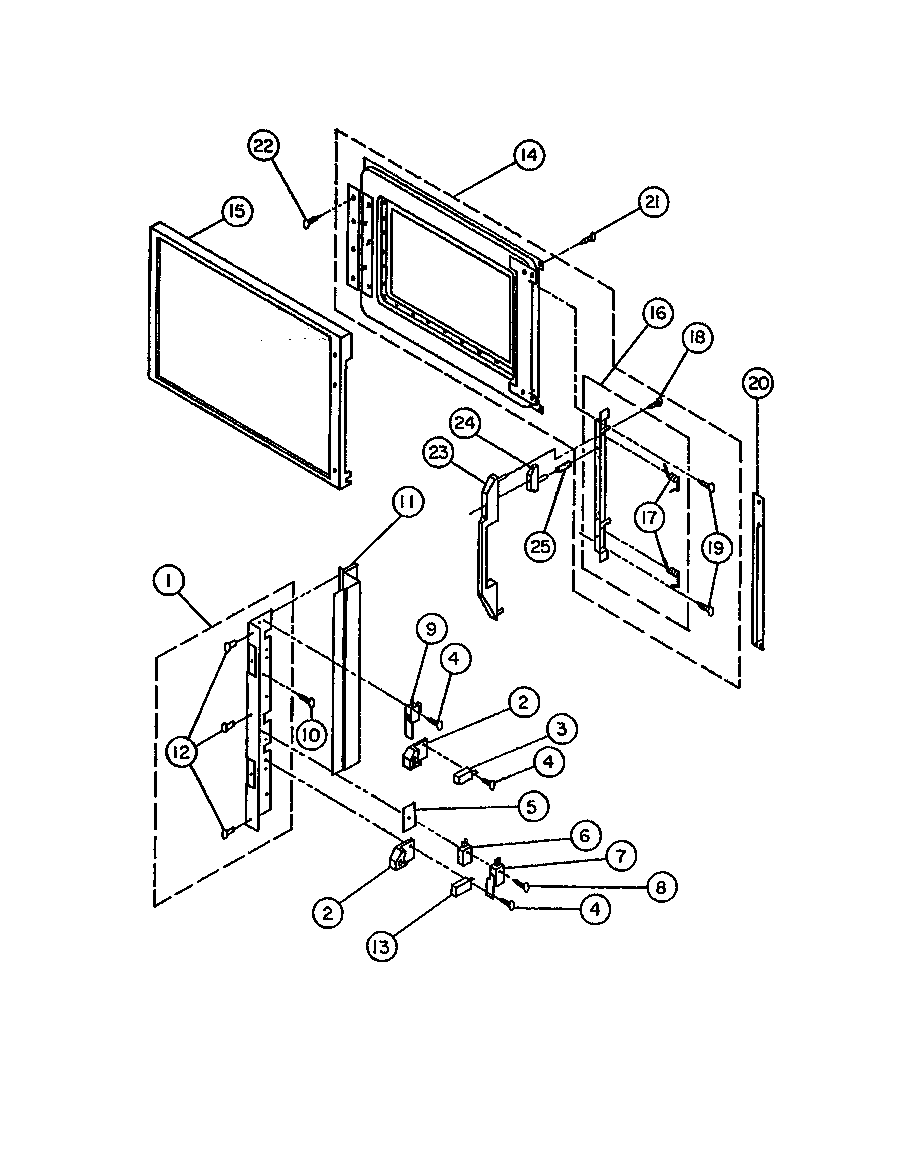

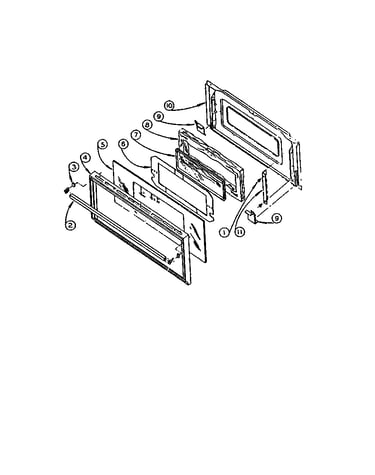

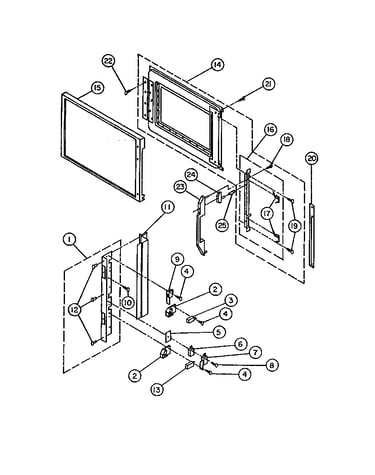

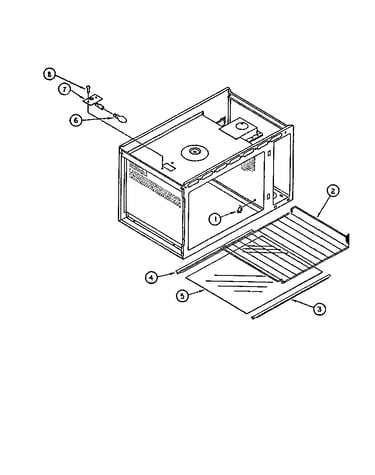

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |
Bake Element 0059552
#11

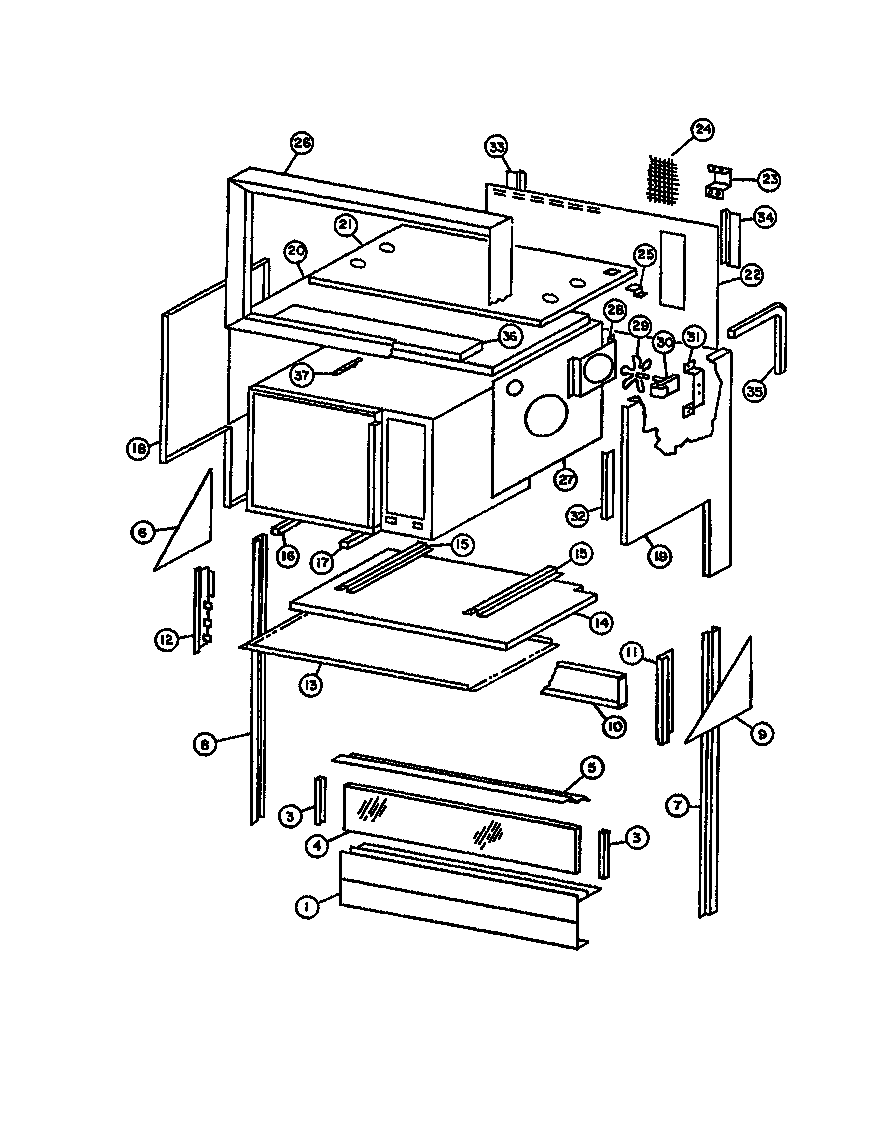

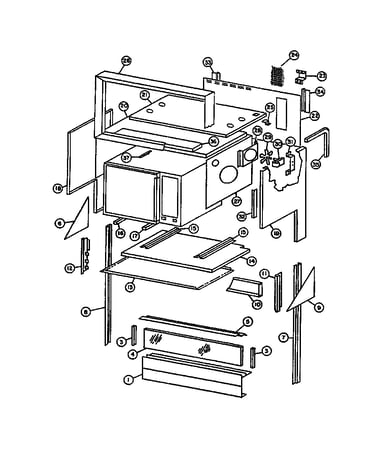

Upper oven parts diagram

Bake element

Part #0059552

Replaced by #WP77001094

?
Manufacturer substitution
This part replaces 0059552. Substitute parts can look different from the original.
$28.19 |
18% OFF Phone Price : $34.19
In Stock
Spark Switch 0089068
#13

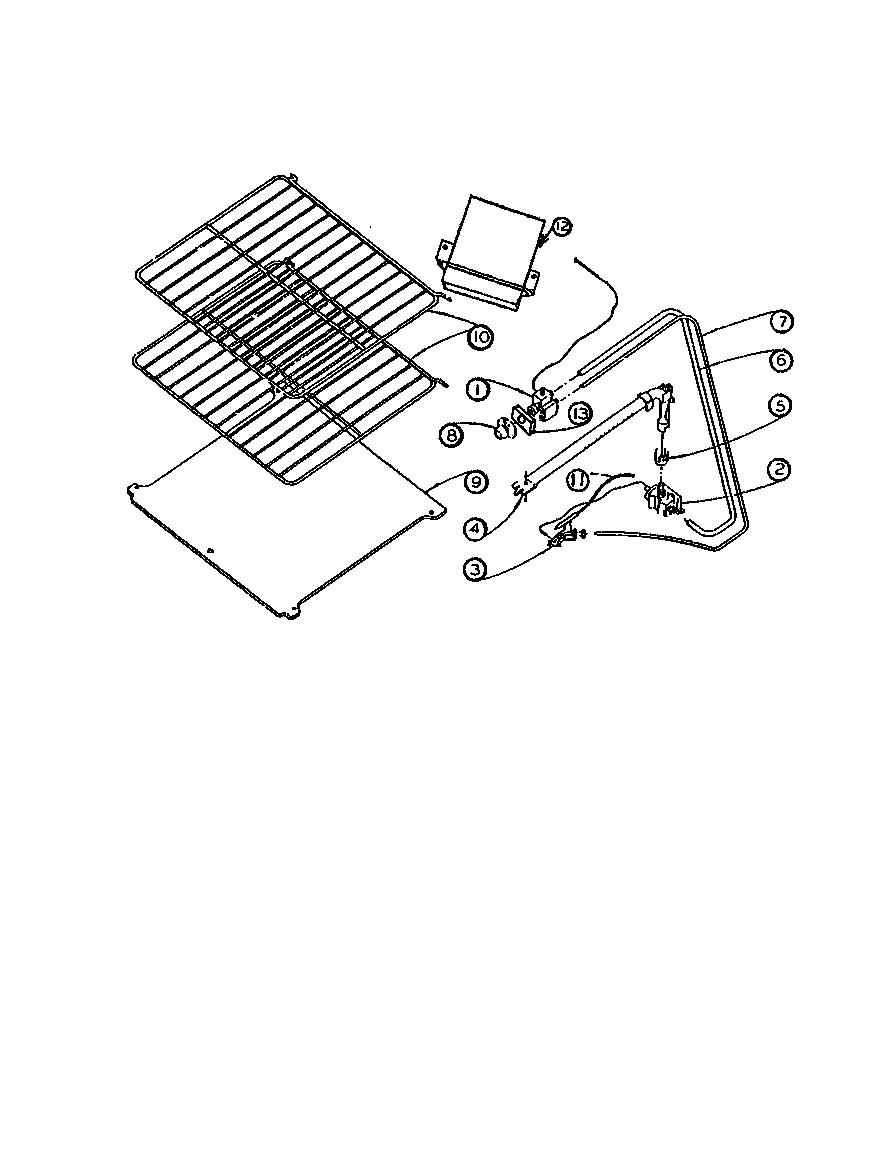

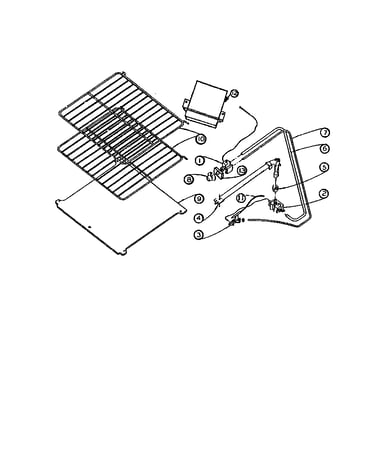

Lower oven components diagram

Spark switch

Part #0089068

Replaced by #WP878009

?
Manufacturer substitution
This part replaces 0089068. Substitute parts can look different from the original.
$43.51
In Stock
Oven Broiler Griddle 87723CG
#9

Lower broiler components diagram

Oven broiler griddle

Part #87723CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 87723CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Oven Broiler Pan 87722CG
#8

Lower broiler components diagram

Oven broiler pan

Part #87722CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 87722CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Spark Switch 0088874
#11

Top/burner w/spark ignition diagram

Spark switch

Part #0088874

Replaced by #WP4157180

?
Manufacturer substitution
This part replaces 0088874. Substitute parts can look different from the original.
$47.09 |
11% OFF Phone Price : $53.09
In Stock
Fluorescent Lamp 0056142
#6

Upper electrical components diagram

Fluorescent lamp

Part #0056142

Replaced by #WP95292

?
Manufacturer substitution
This part replaces 0056142. Substitute parts can look different from the original.
$60.36
In Stock
Sub 56090, S 0088626
#25

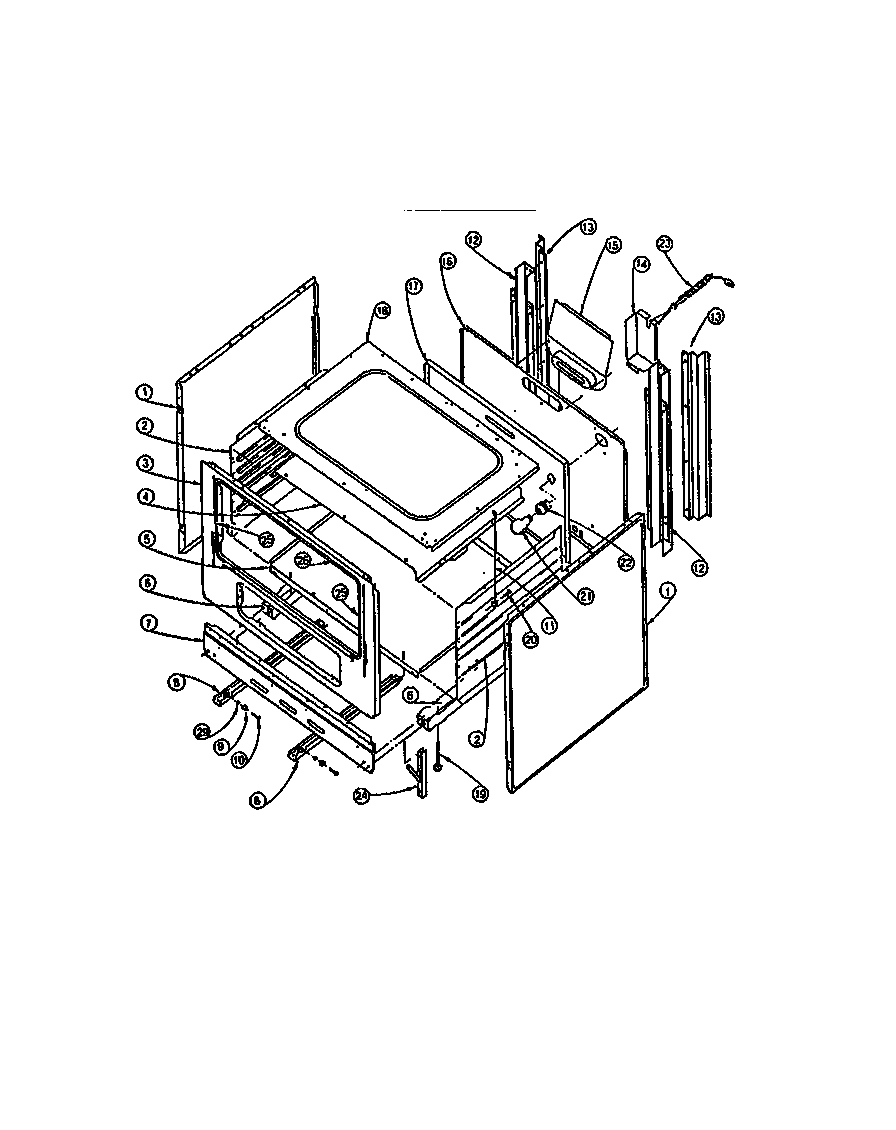

Lower oven cabinet parts - rks 394 diagram

Sub 56090, s

Part #0088626

The manufacturer no longer makes this part, and there's no substitute part

Bolt, T'stat 0056114
#9999

Lower oven components diagram

Bolt, t'stat

Part #0056114

The manufacturer no longer makes this part, and there's no substitute part

Sub 311003n, Side Panel 088652L
#1

Lower oven cabinet parts - rks 394 diagram

Sub 311003n, side panel

Part #088652L

The manufacturer no longer makes this part, and there's no substitute part

Motor Switch, Internal Mounted 59895
#15

Upper oven parts diagram

Motor switch, internal mounted

Part #59895

The manufacturer no longer makes this part, and there's no substitute part
