Coffee Grinder

Model # 4KPCG100ER1 Official KitchenAid coffee grinder

Here are the diagrams and repair parts for Official KitchenAid 4KPCG100ER1 coffee grinder, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
4KPCG100ER1 Coffee Grinder
Coffee Grinder Grind Control Knob 4176718
#6

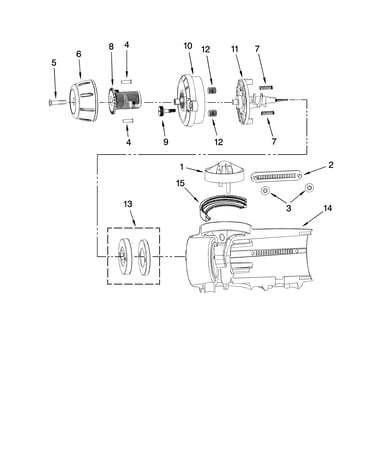

Motor housing and burr assembly parts diagram

Coffee grinder grind control knob

Part #4176718

$32.11
16% OFF Phone Price : $38.11
In Stock
Coffee Grinder Ground Coffee Jar 4176728
#9

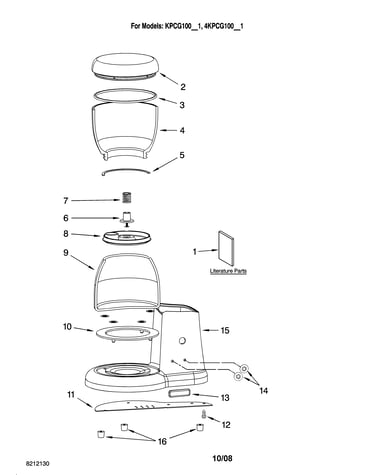

Pedestal jar assembly parts diagram

Coffee grinder ground coffee jar

Part #4176728

Replaced by #WP4176728

?
Manufacturer substitution
This part replaces 4176728. Substitute parts can look different from the original.
$56.97
10% OFF Phone Price : $62.97
In Stock
Spring 8212394
#7

Motor housing and burr assembly parts diagram

Spring

Part #8212394

$22.79
21% OFF Phone Price : $28.79
In Stock
Socket Screw 4176712
#12

Motor housing and burr assembly parts diagram

Socket screw

Part #4176712

In Stock
Seal 4176731
#3

Pedestal jar assembly parts diagram

Seal

Part #4176731

In Stock
Coffee Grinder Nozzle Cover 4176721
#8

Pedestal jar assembly parts diagram

Coffee grinder nozzle cover

Part #4176721

$25.09
19% OFF Phone Price : $31.09
In Stock
Power Cord 4176757
#9

Motor and control parts diagram

Power cord

Part #4176757

In Stock
Spring, Housing 4176715
#7

Pedestal jar assembly parts diagram

Spring, housing

Part #4176715

In Stock
Support 4176694
#11

Motor housing and burr assembly parts diagram

Support

Part #4176694

$54.85
10% OFF Phone Price : $60.85
In Stock
Scoop 4176764
#NI

Motor and control parts diagram

Scoop

Part #4176764

In Stock
