Model # RBC321 Official Makita string trimmer

Here are the diagrams and repair parts for Official Makita RBC321 string trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |

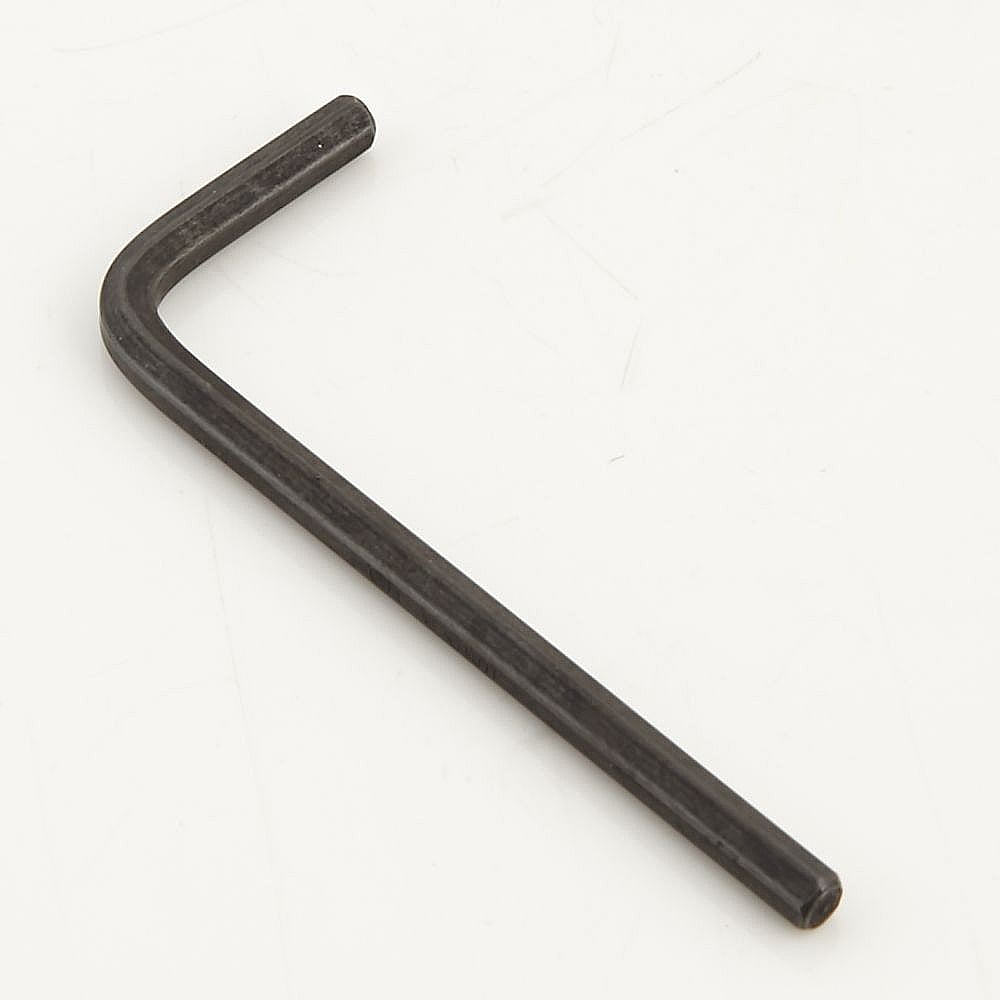

Hex Wrench 783202-0
#404

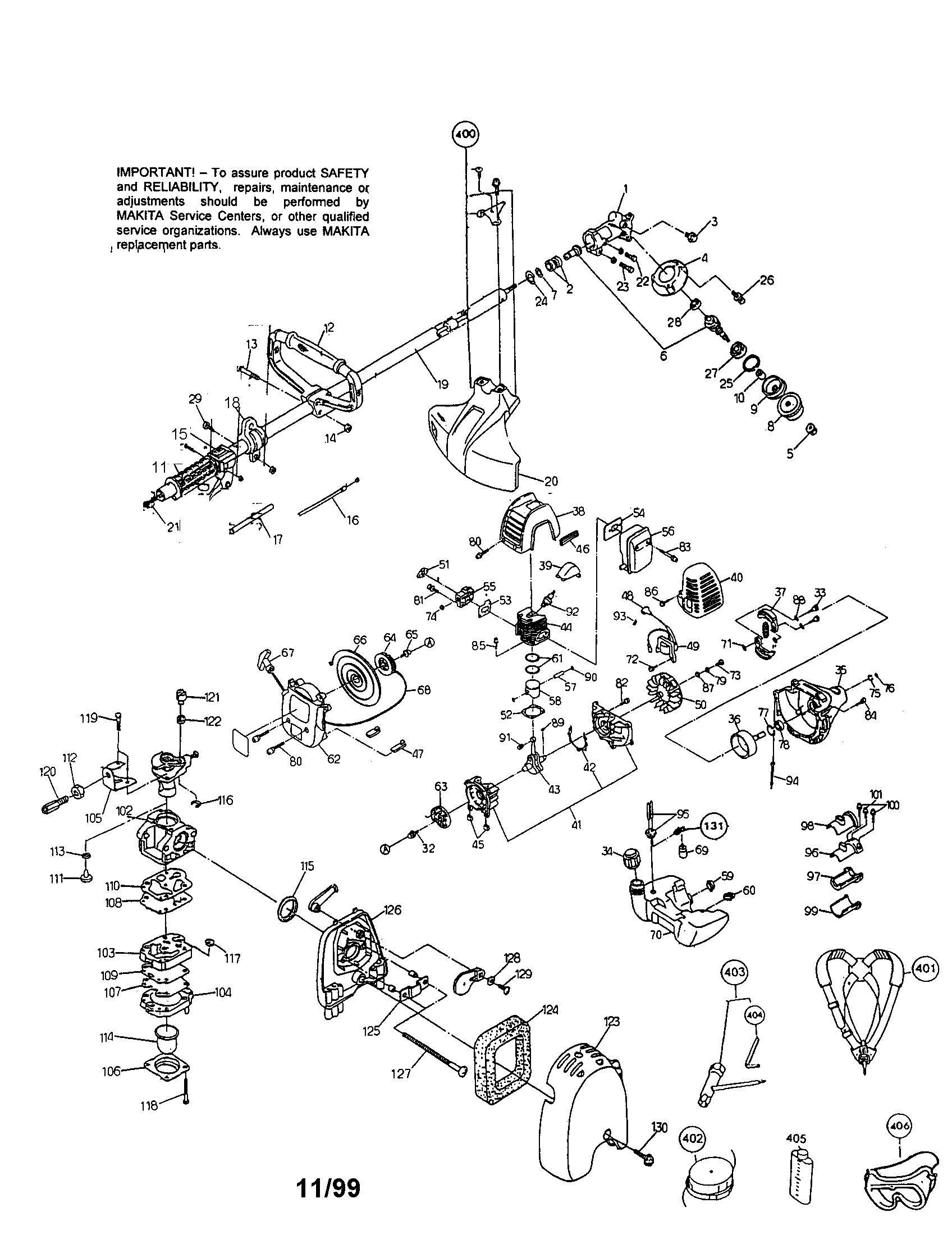

String trimmer diagram

Hex wrench

Part #783202-0

The manufacturer no longer makes this part, and there's no substitute part

Piston Ring (2) 598-25002-00
#61

String trimmer diagram

Piston ring (2)

Part #598-25002-00

The manufacturer no longer makes this part, and there's no substitute part

Jet 503-60020-10
#111

String trimmer diagram

Jet

Part #503-60020-10

The manufacturer no longer makes this part, and there's no substitute part

Plate 503-65003-00
#60

String trimmer diagram

Plate

Part #503-65003-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 523-60520-30
#122

String trimmer diagram

Washer

Part #523-60520-30

The manufacturer no longer makes this part, and there's no substitute part

Spark Plug 065-01498-10
#92

String trimmer diagram

Spark plug

Part #065-01498-10

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Engine Oil 181115-A
#405

String trimmer diagram

Line trimmer engine oil

Part #181115-A

The manufacturer no longer makes this part, and there's no substitute part

Starter Knob 521-50021-10
#67

String trimmer diagram

Starter knob

Part #521-50021-10

The manufacturer no longer makes this part, and there's no substitute part

Washer M8 (2) 020-00899-10
#88

String trimmer diagram

Washer m8 (2)

Part #020-00899-10

The manufacturer no longer makes this part, and there's no substitute part

Pipe Damper 1 627-15001-03
#96

String trimmer diagram

Pipe damper 1

Part #627-15001-03

The manufacturer no longer makes this part, and there's no substitute part
