Frigidaire
Microwave/Hood Combo

Model # CGLMV168KB1 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire CGLMV168KB1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

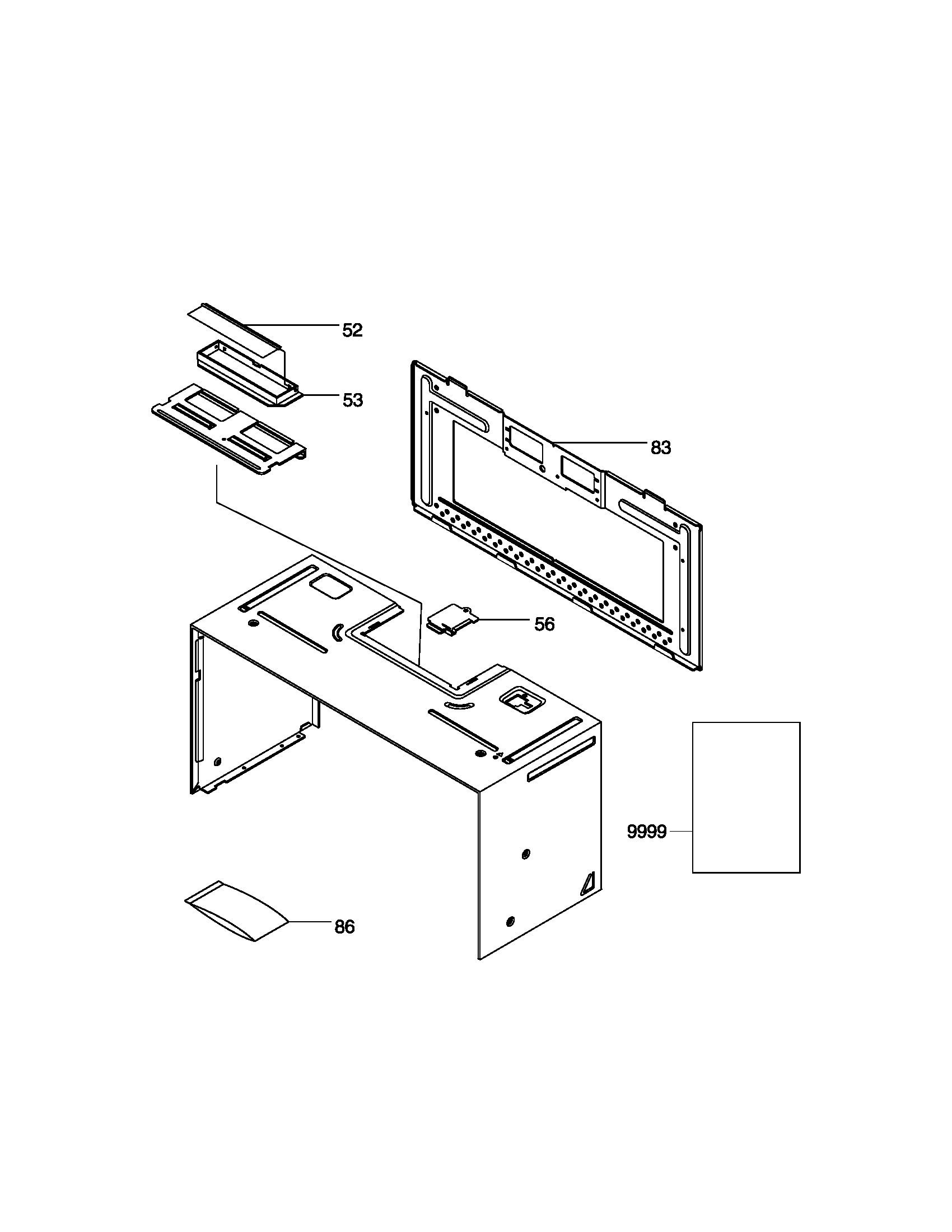

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Microwave High-voltage Diode 5304417430
#50

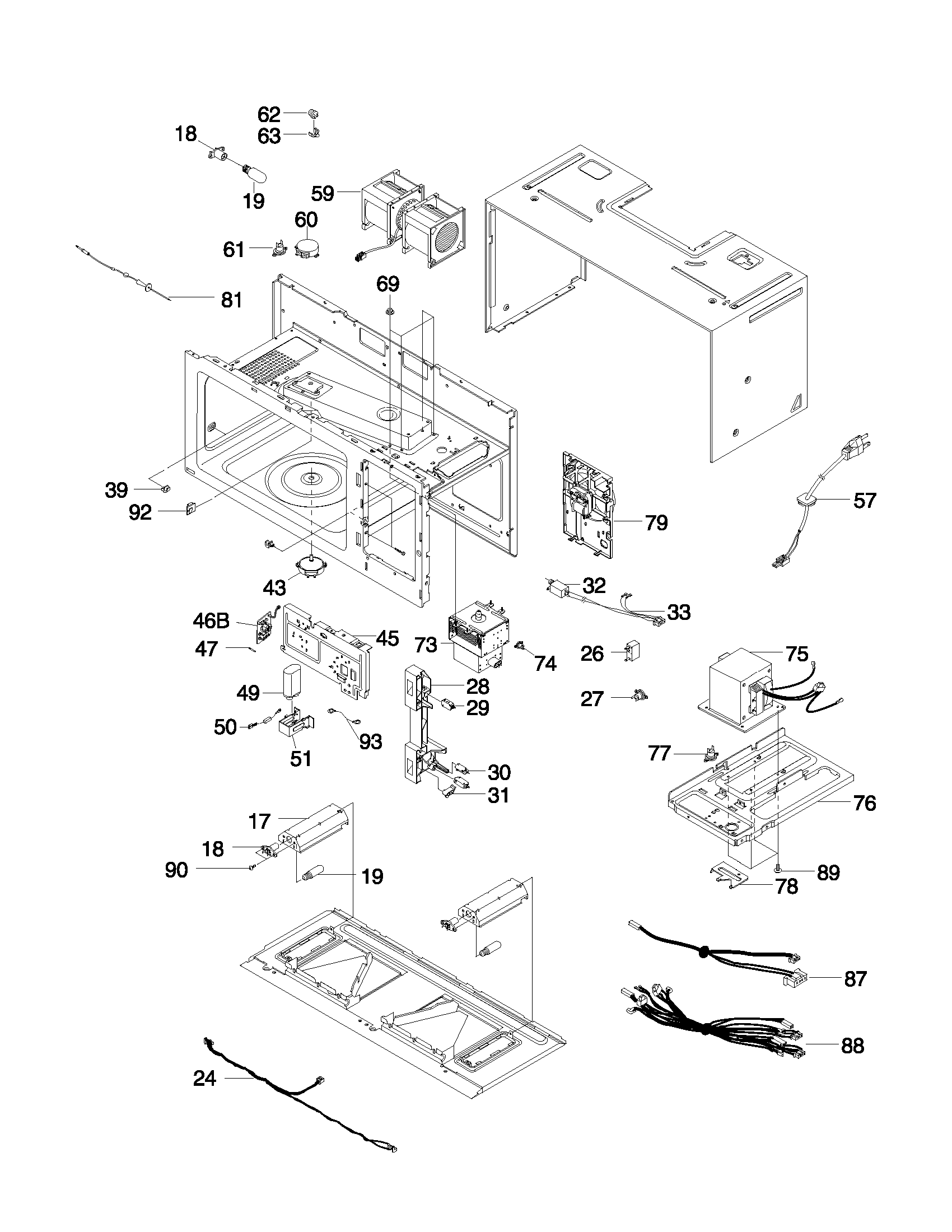

Functional parts diagram

Microwave high-voltage diode

Part #5304417430

$28.95
In Stock
Glass 5304423435
#2

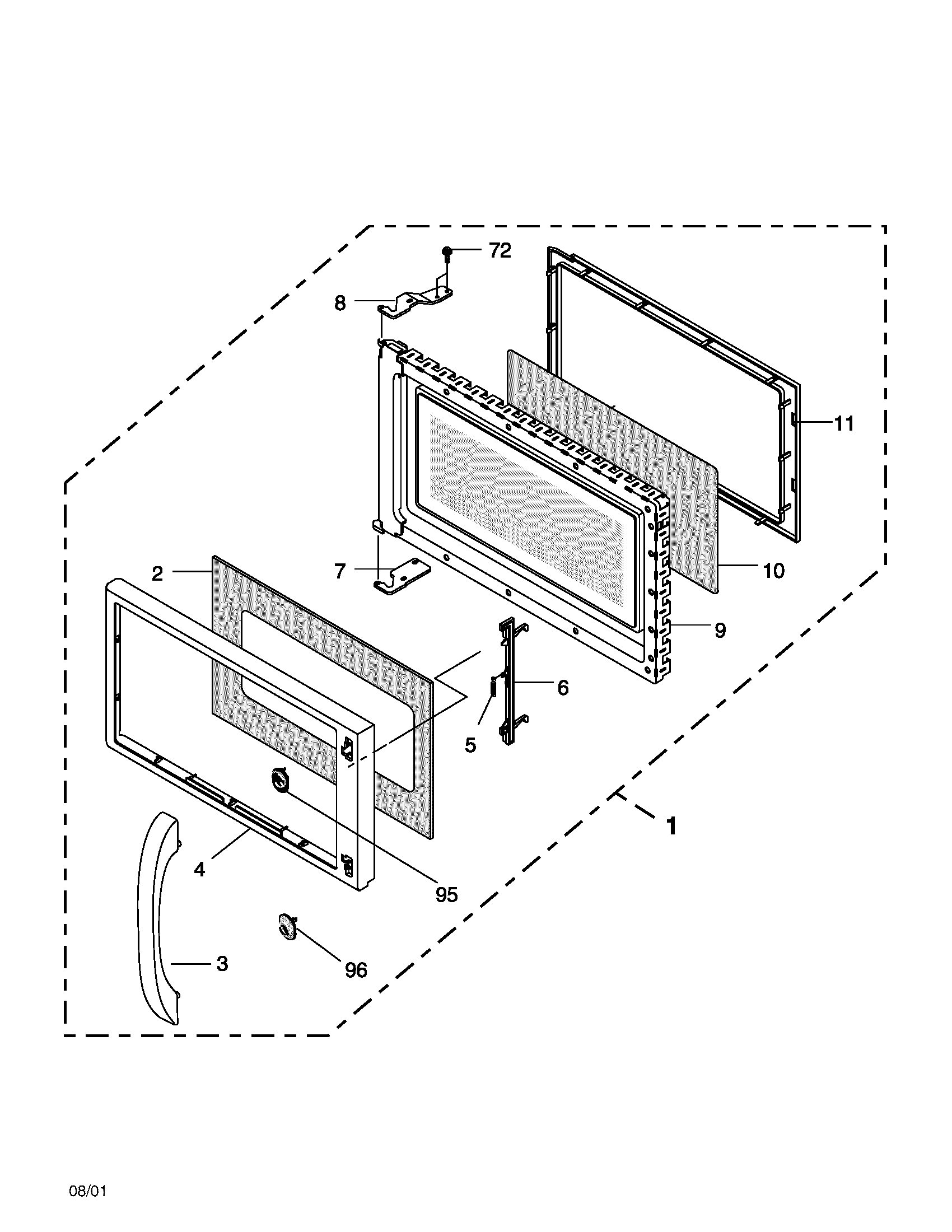

Door diagram

Glass

Part #5304423435

$130.74
In Stock
Bracket-cook 5304408973
#23

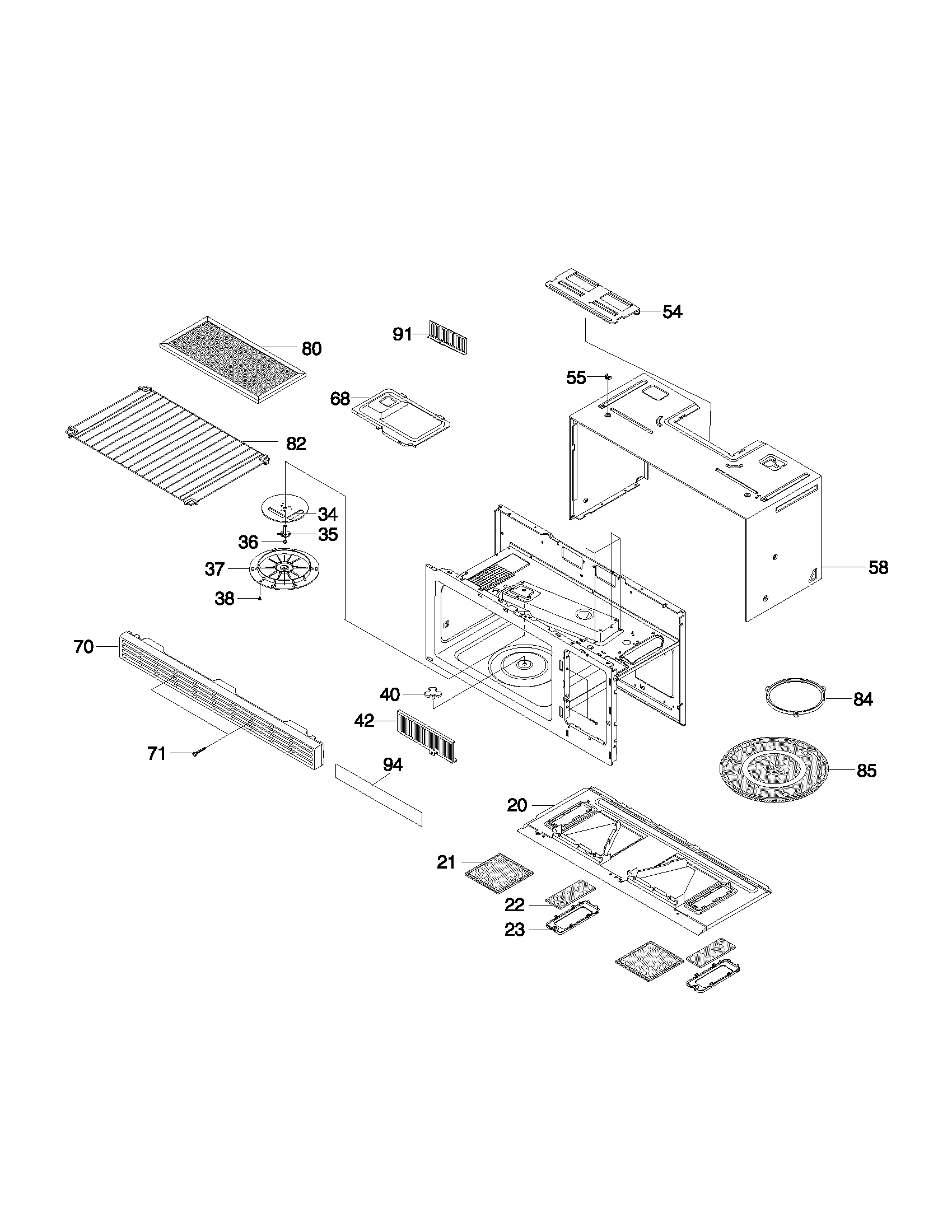

Body diagram

Bracket-cook

Part #5304408973

$84.98
In Stock
Mounting Bracket 5304423465
#13

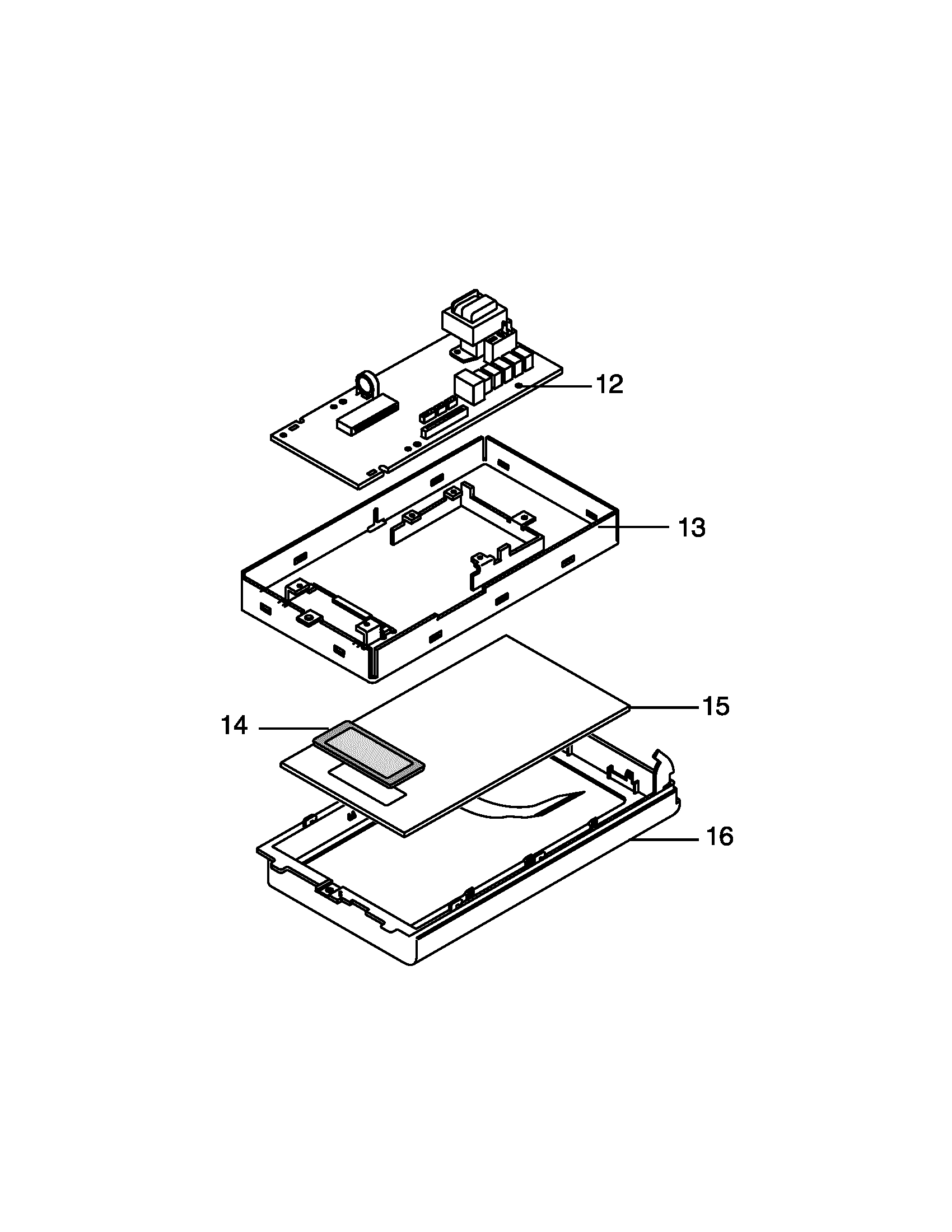

Control panel diagram

Mounting bracket

Part #5304423465

$50.16
In Stock
Harness 5304423388
#88

Functional parts diagram

Harness

Part #5304423388

$123.72
In Stock
Housing 5304423466
#13

Control panel diagram

Housing

Part #5304423466

$82.44
In Stock
Base 5304423416
#20

Body diagram

Base

Part #5304423416

$120.50
In Stock
Screw 5304417413
#71

Body diagram

Screw

Part #5304417413

$14.31
In Stock
Casing 5304423506
#58

Body diagram

Casing

Part #5304423506

$128.75
In Stock
Microwave/hood Grille 5304423514
#70

Body diagram

Microwave/hood grille

Part #5304423514

$106.40
In Stock
