Model # 48DU042060300 Official Carrier package unit

Here are the diagrams and repair parts for Official Carrier 48DU042060300 package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

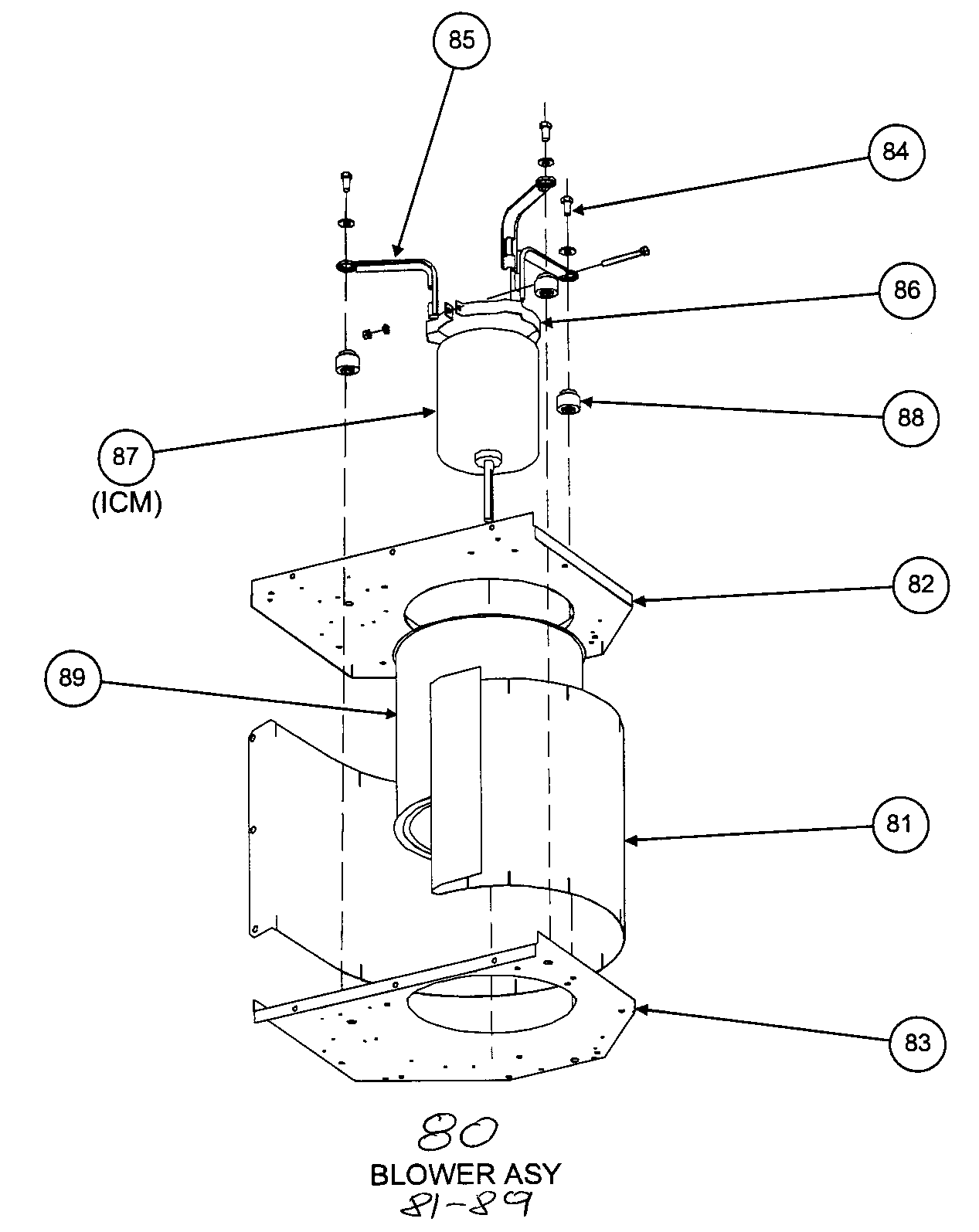

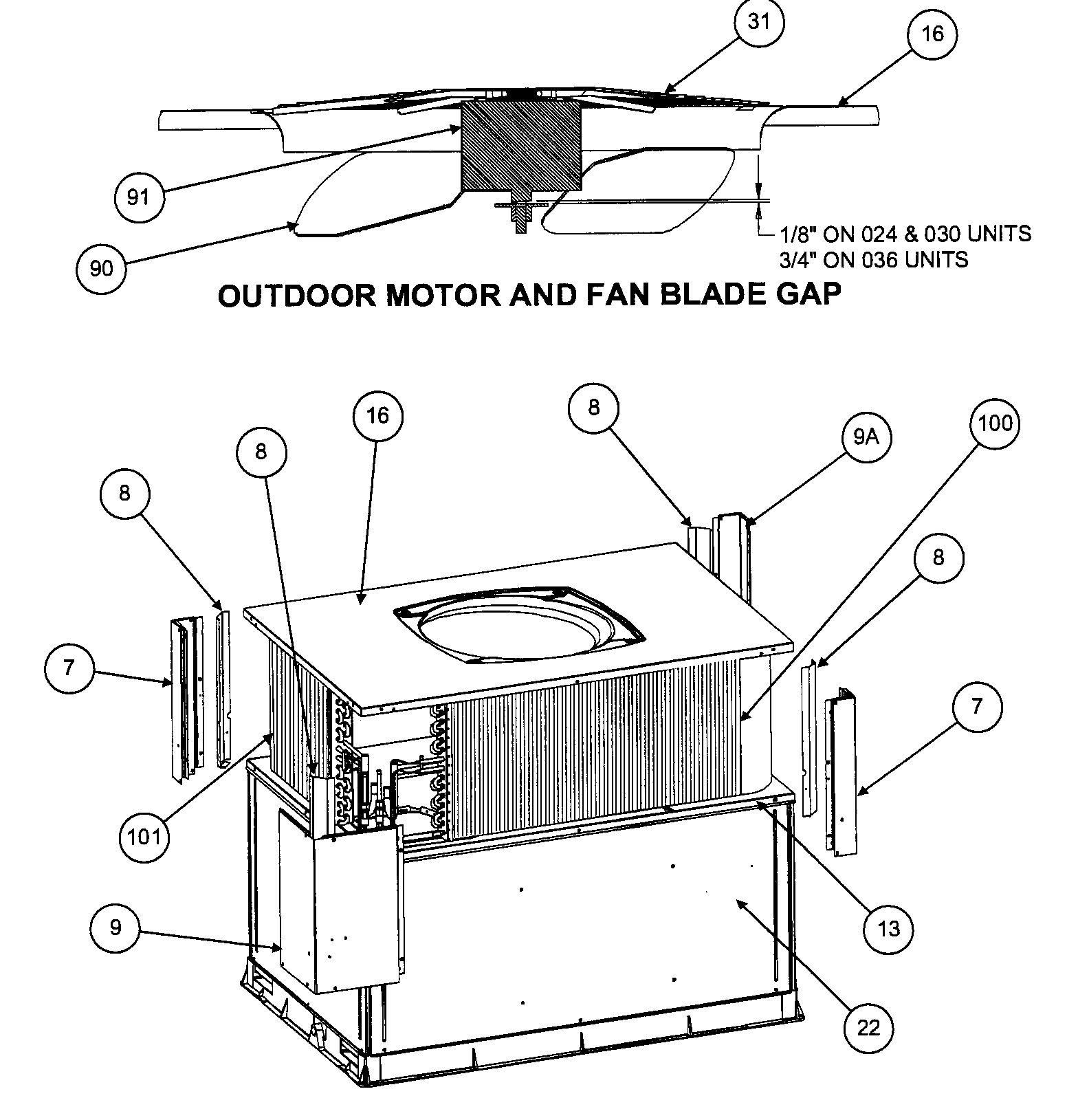

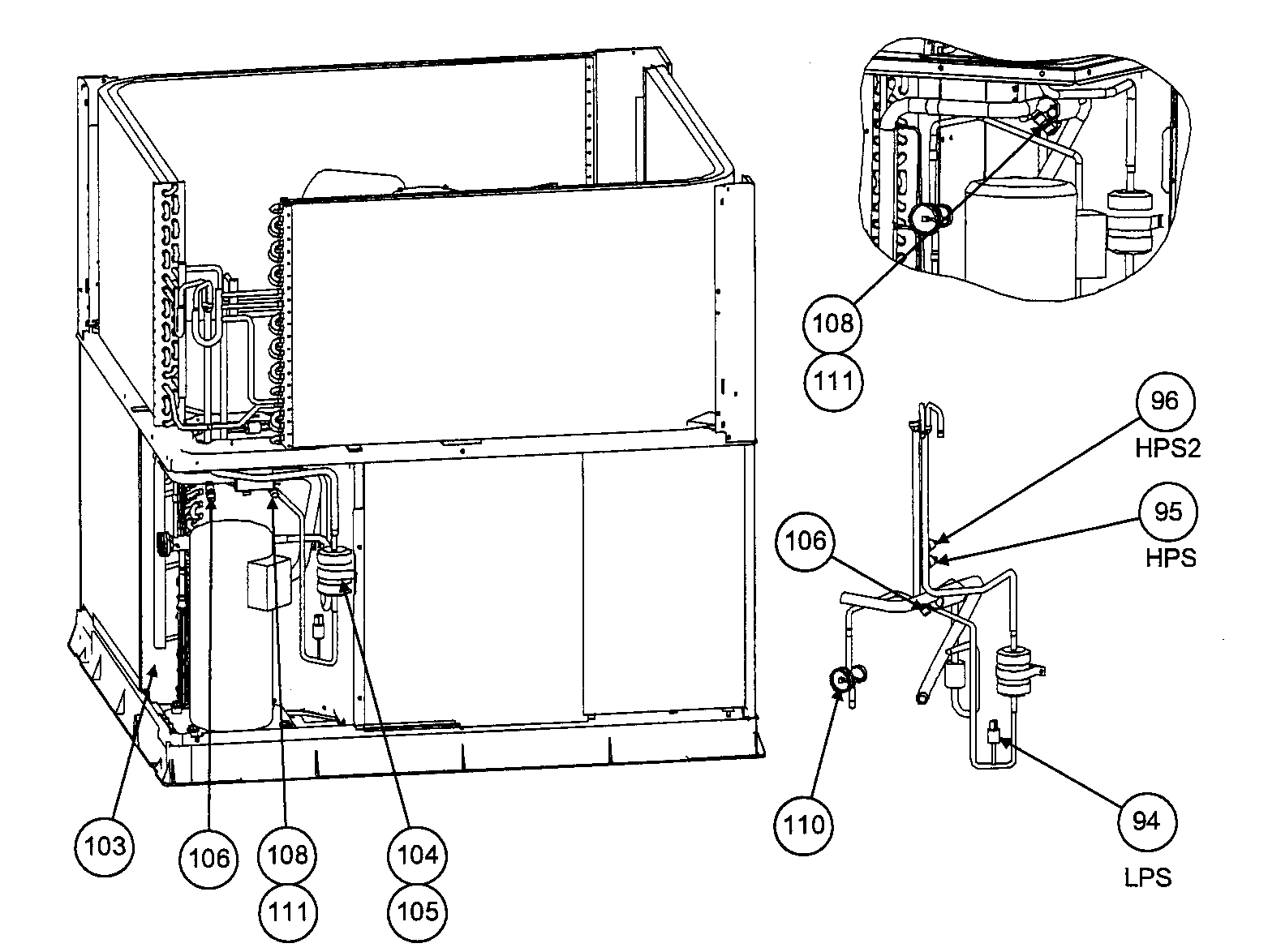

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Contactor HN51KB024
#63

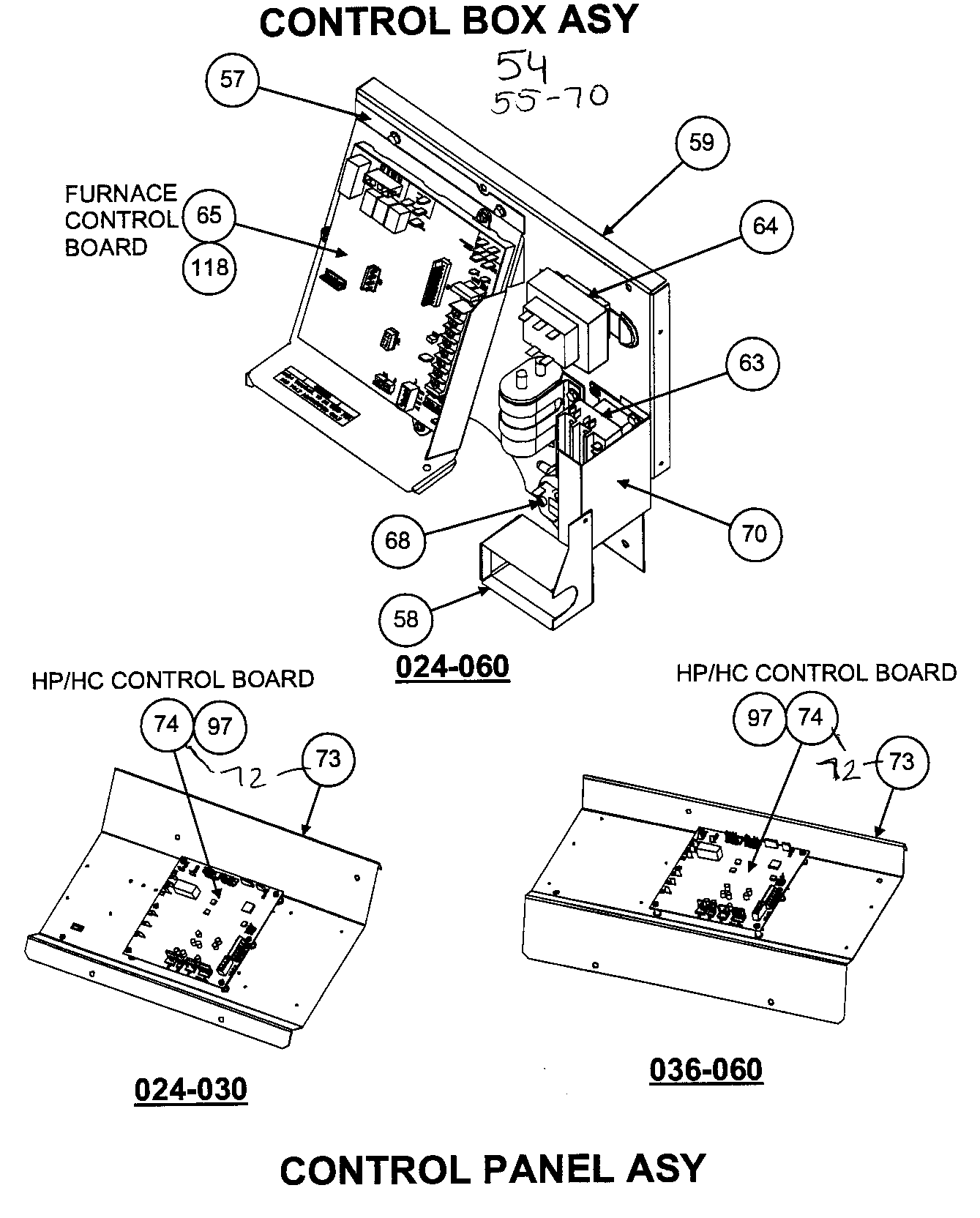

Control box/control panel assy diagram

Contactor

Part #HN51KB024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51KB024. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Pcb Assembly HK38EA008
#74

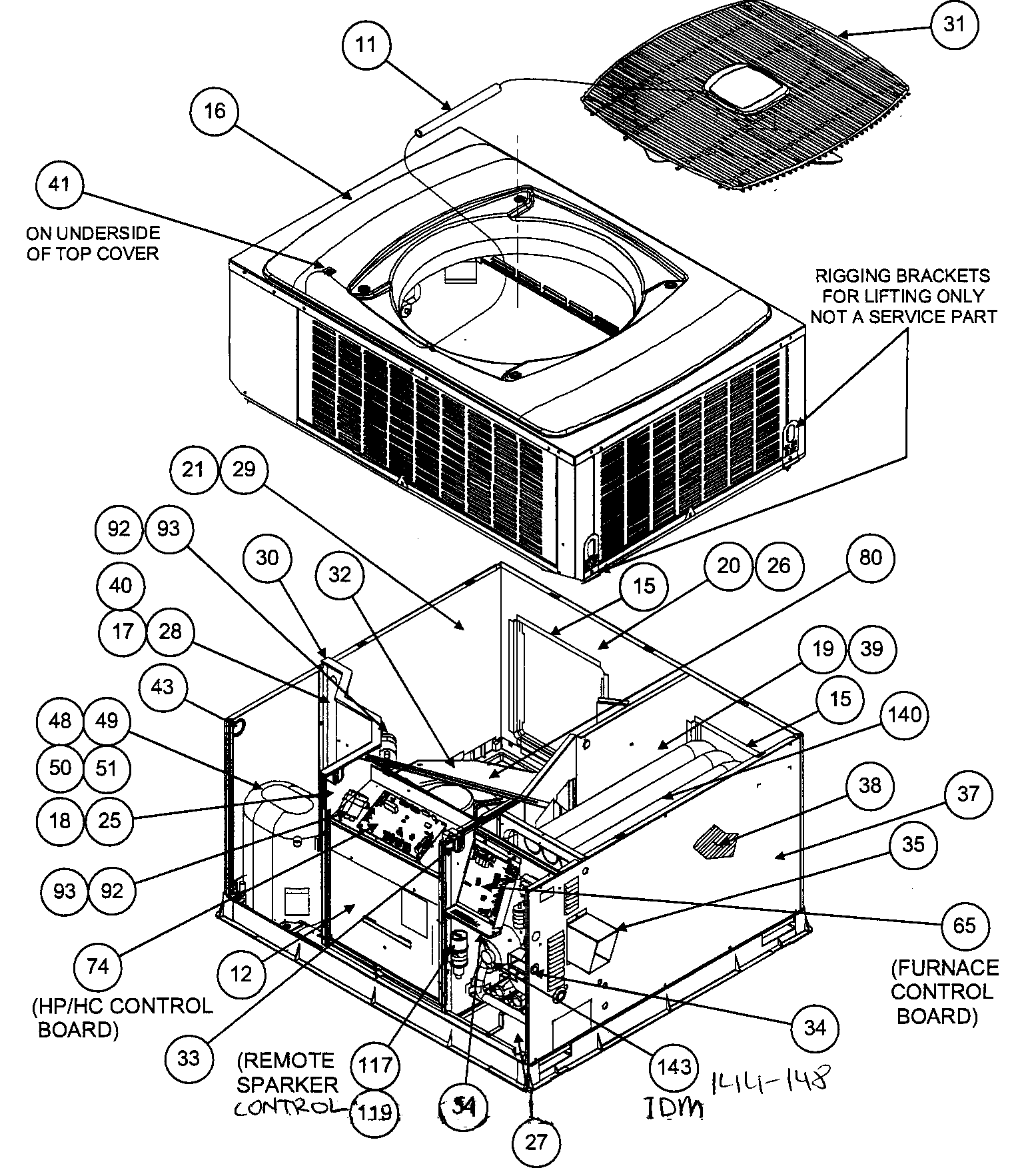

Inside view diagram

Pcb assembly

Part #HK38EA008

Replaced by #HK38EA023

?
Manufacturer substitution
This part replaces HK38EA008. Substitute parts can look different from the original.
$971.19 |
$12.00 OFF Phone Price : $983.19
In Stock
Control Board HK42FZ024
#65

Inside view diagram

Control board

Part #HK42FZ024

Replaced by #HK42FZ035

?
Manufacturer substitution
This part replaces HK42FZ024. Substitute parts can look different from the original.
$809.30 |
$12.00 OFF Phone Price : $821.30
In Stock
Strap Cap P281-0028
#93

Inside view diagram

Strap cap

Part #P281-0028

$18.83
In Stock
Insulation 48SS500601
#140A

Inside view diagram

Insulation

Part #48SS500601

$39.82
In Stock
Bracket 48GS500186
#131

Burner assy diagram

Bracket

Part #48GS500186

$24.46
In Stock
Spud LH32RF086
#138

Burner assy diagram

Spud

Part #LH32RF086

$18.54
In Stock
Switch,tem HH18HA545
#123

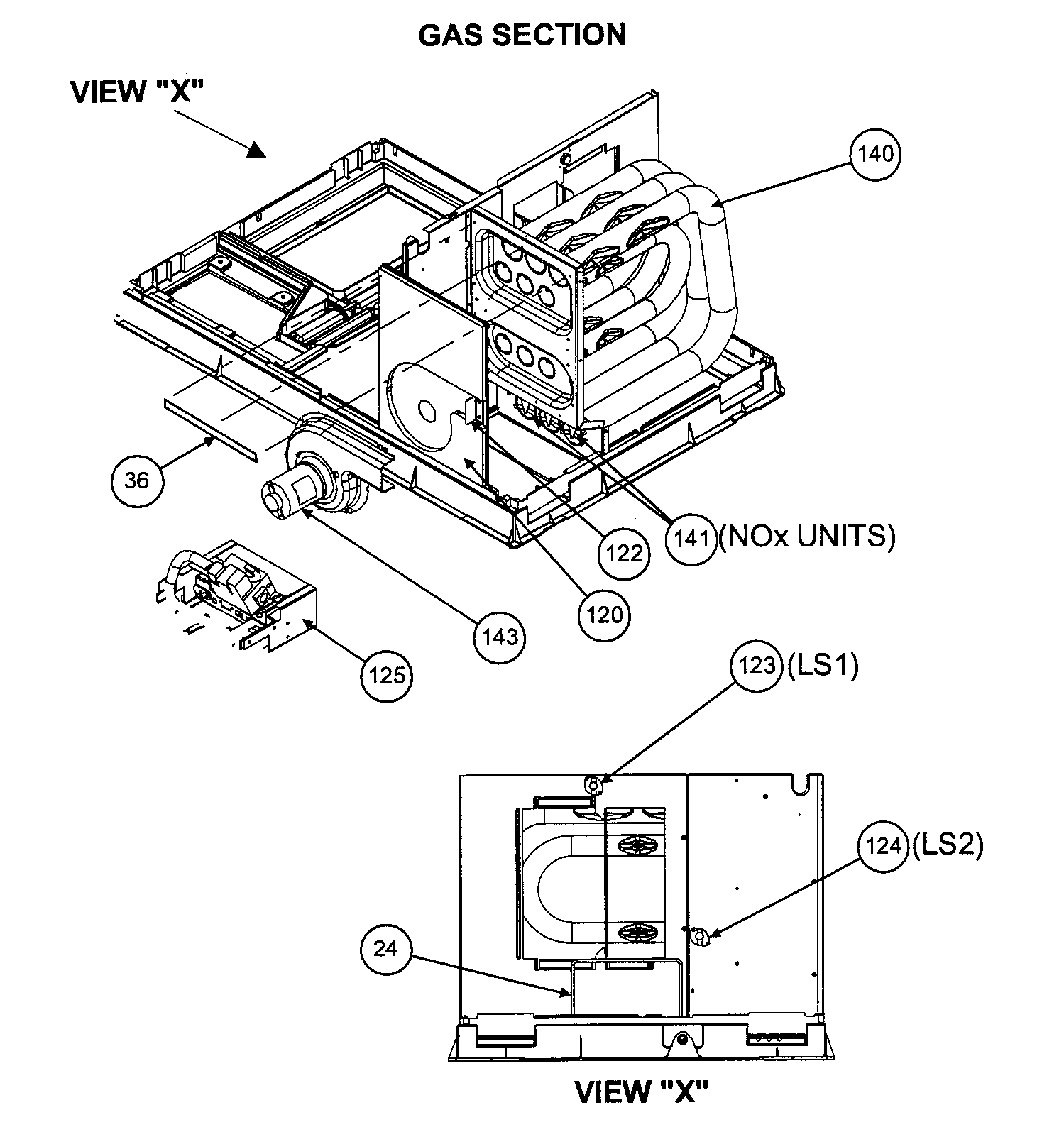

Gas section diagram

Switch,tem

Part #HH18HA545

$44.98
In Stock
Transformer HT01BD209
#64

Control box/control panel assy diagram

Transformer

Part #HT01BD209

$74.42
In Stock
Furnace Burner 50DK407030
#132

Burner assy diagram

Furnace burner

Part #50DK407030

$39.89
In Stock
