Front-Engine Lawn Tractor

Model # 917275044 Official Craftsman lawn tractor

Here are the diagrams and repair parts for Official Craftsman 917275044 lawn tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

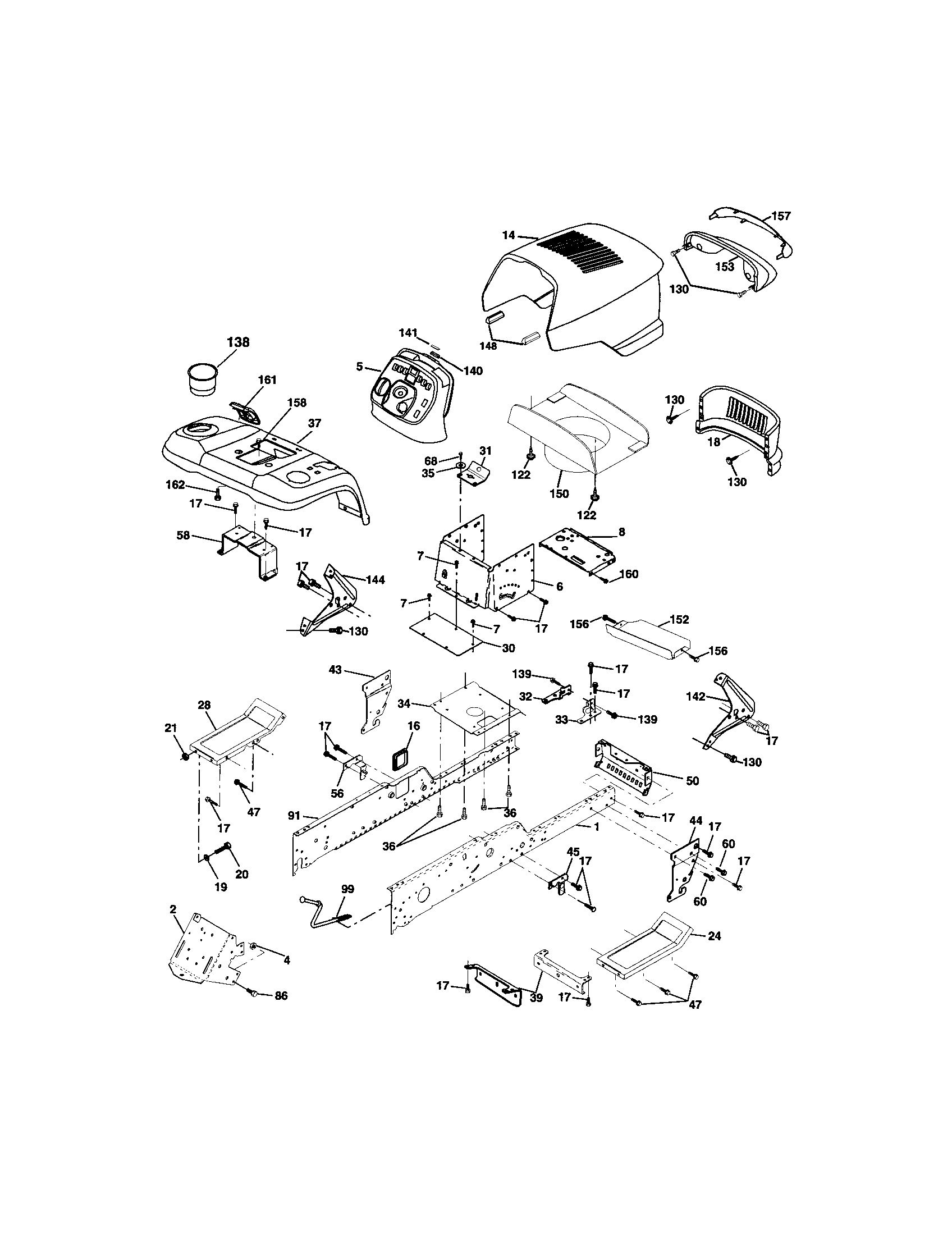

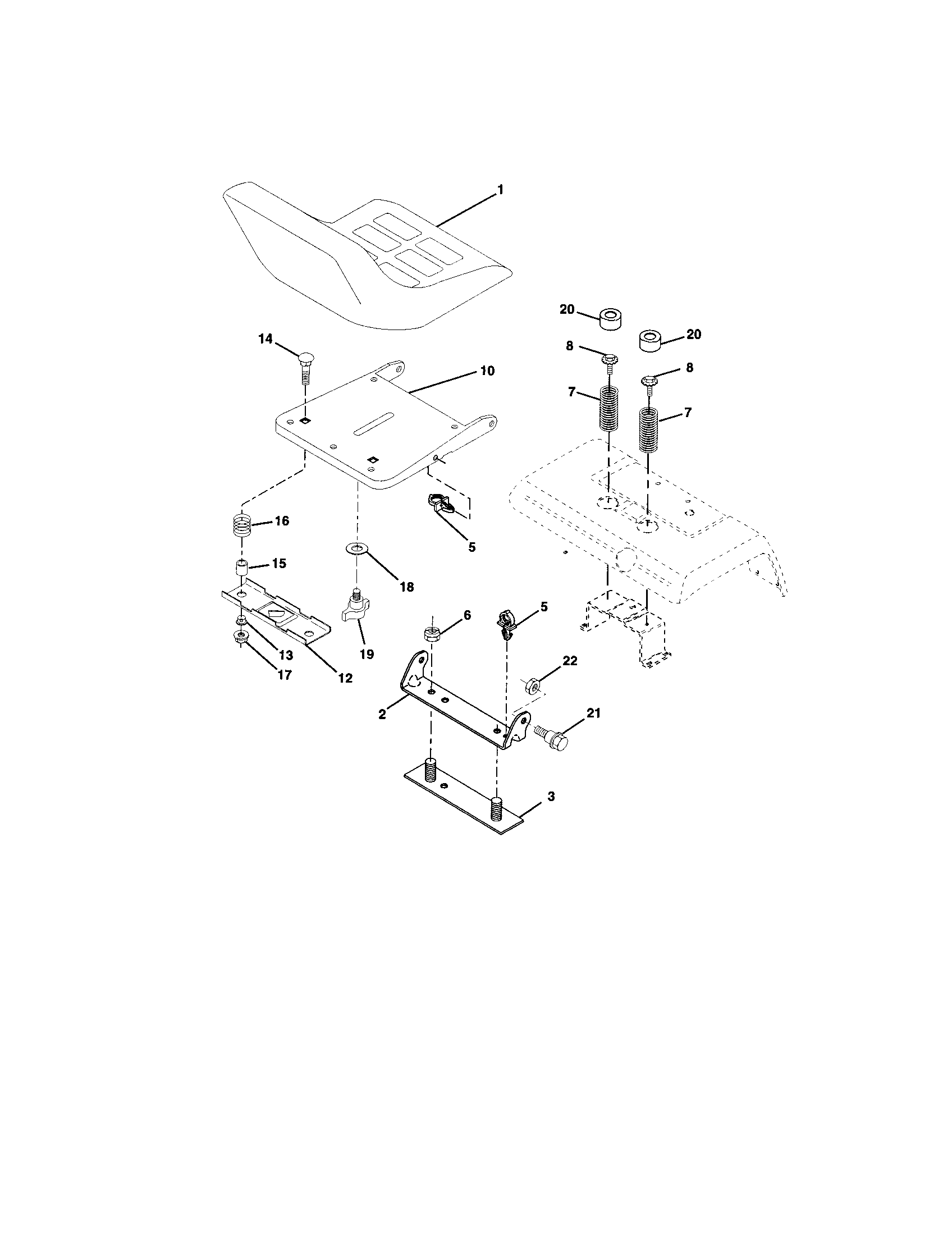

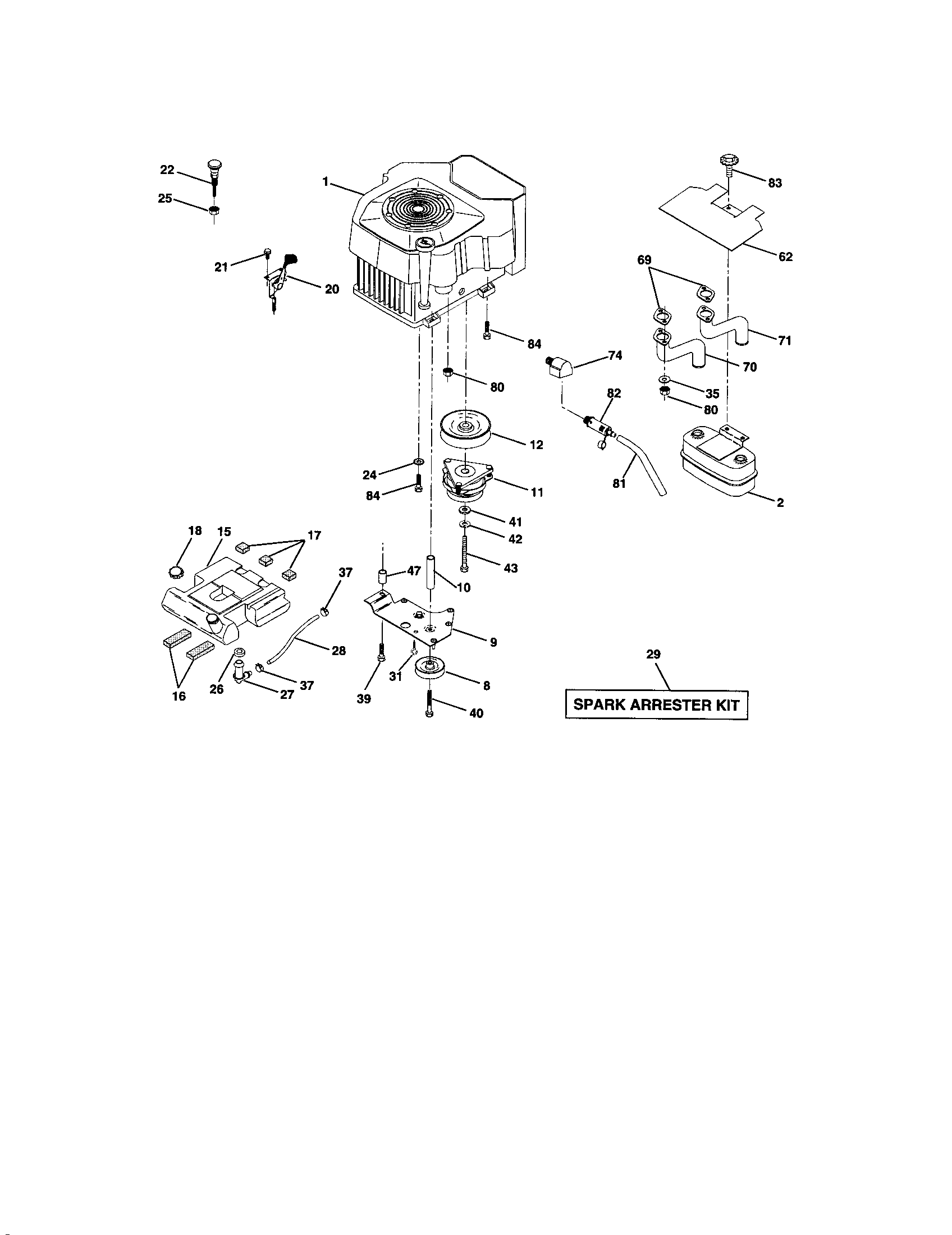

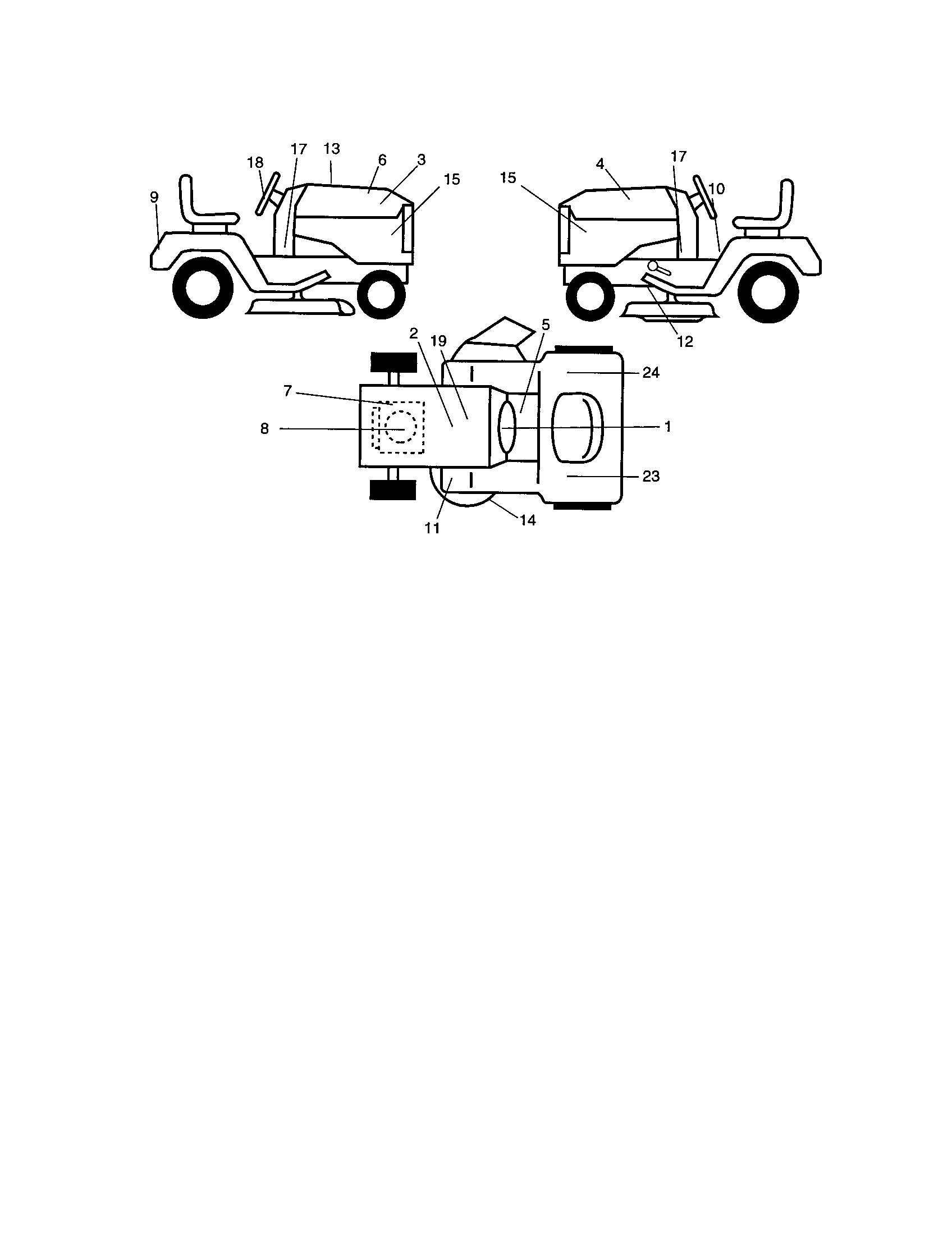

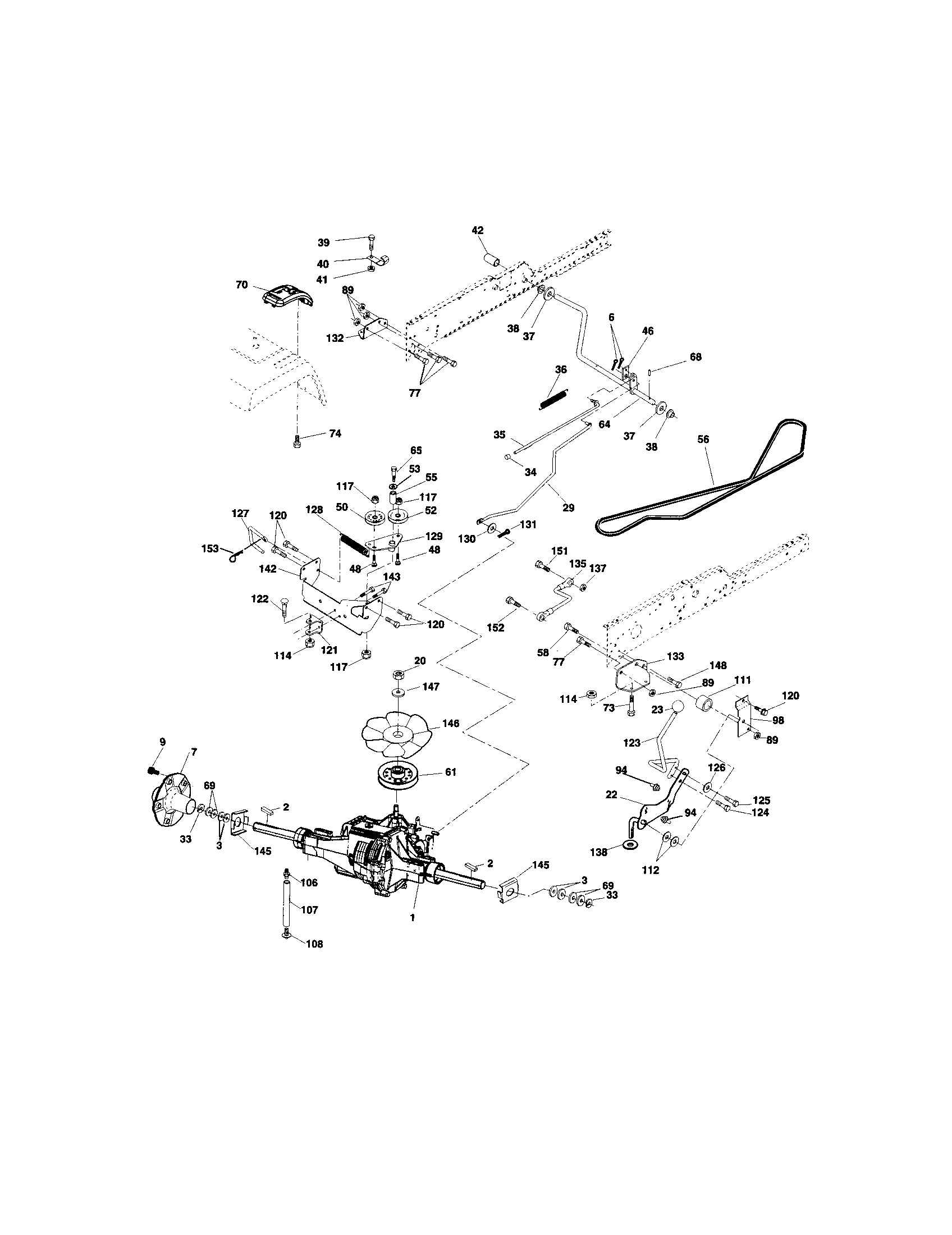

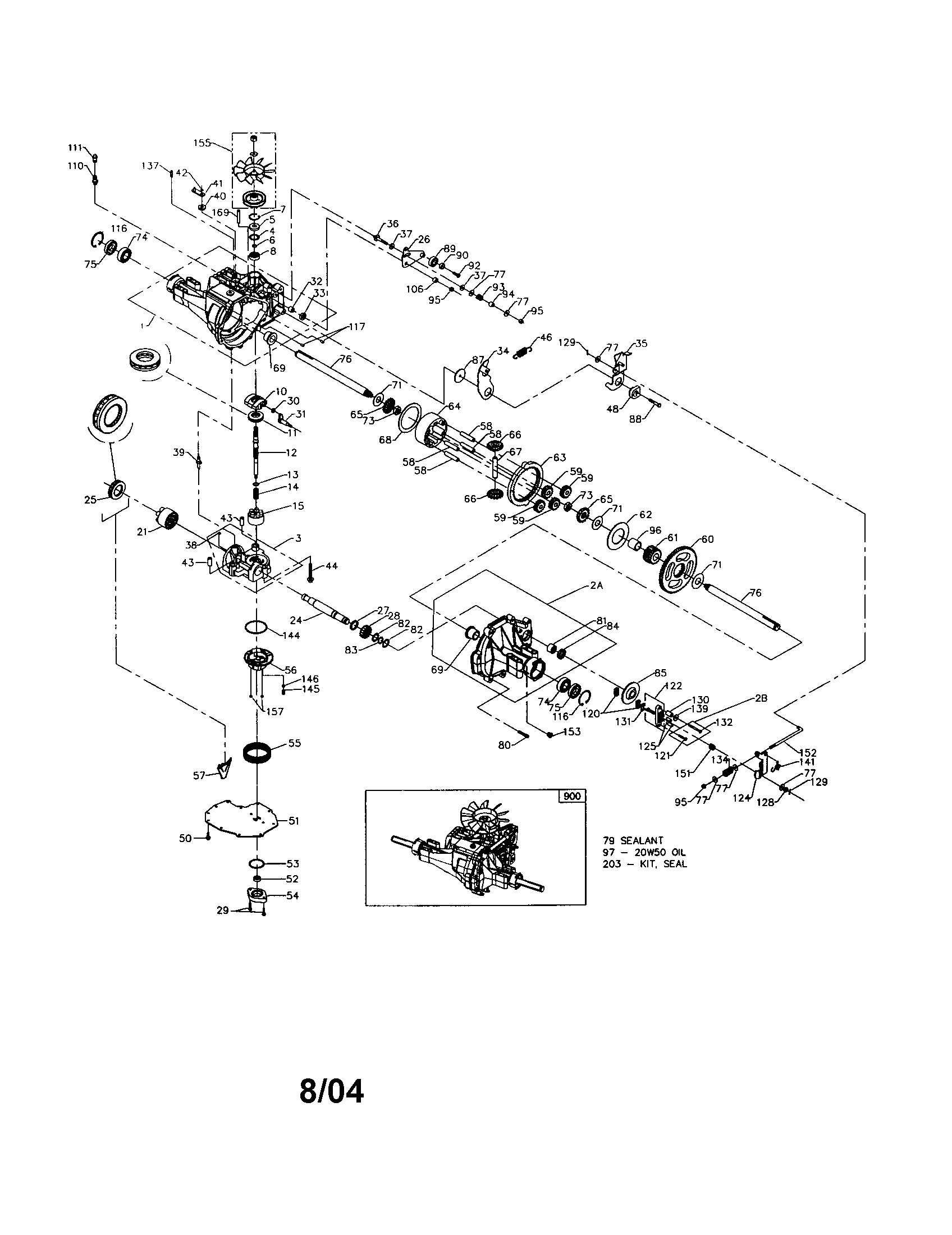

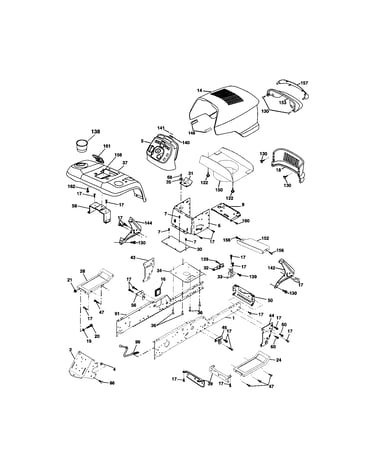

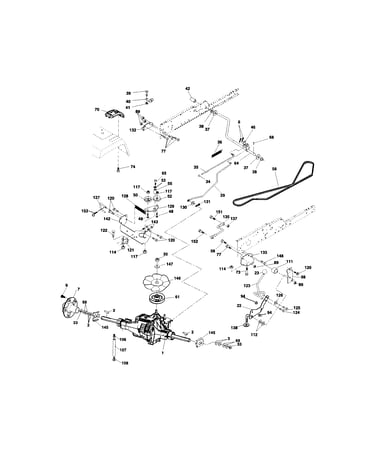

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 605 parts  |
Lawn Tractor V-belt 144959
#55

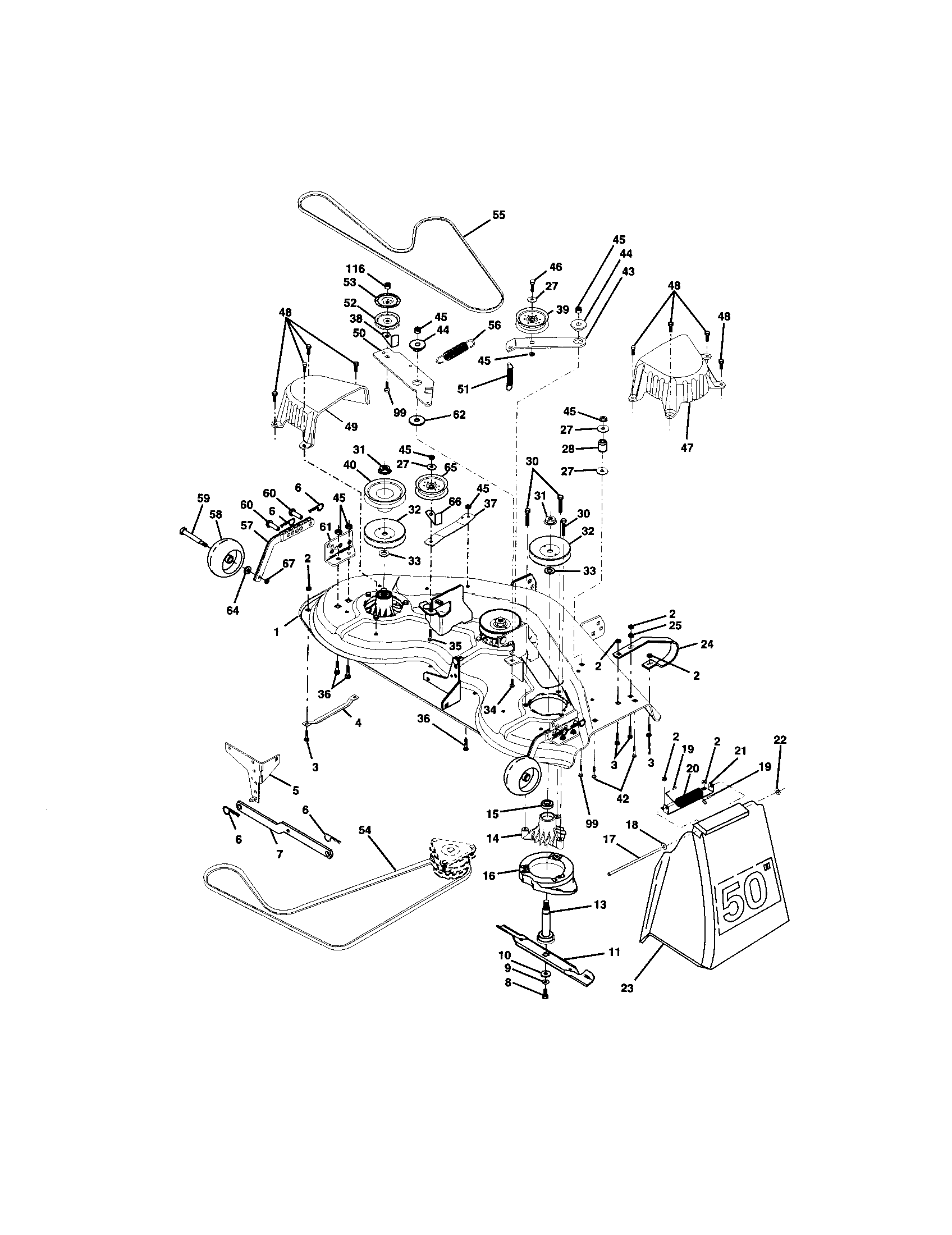

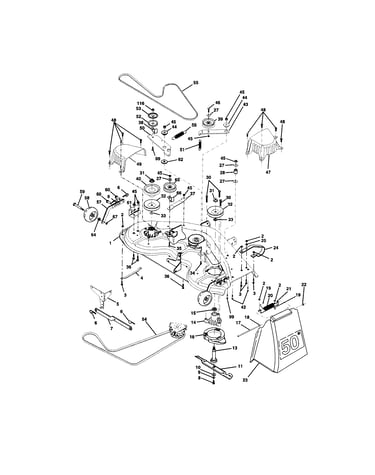

Mower deck diagram

Lawn tractor v-belt

Part #144959

Replaced by #532144959

?
Manufacturer substitution
This part replaces 144959. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$36.74 |
14% OFF Phone Price : $42.74
In Stock
Lawn Tractor Axle Cap 104757X428
#8

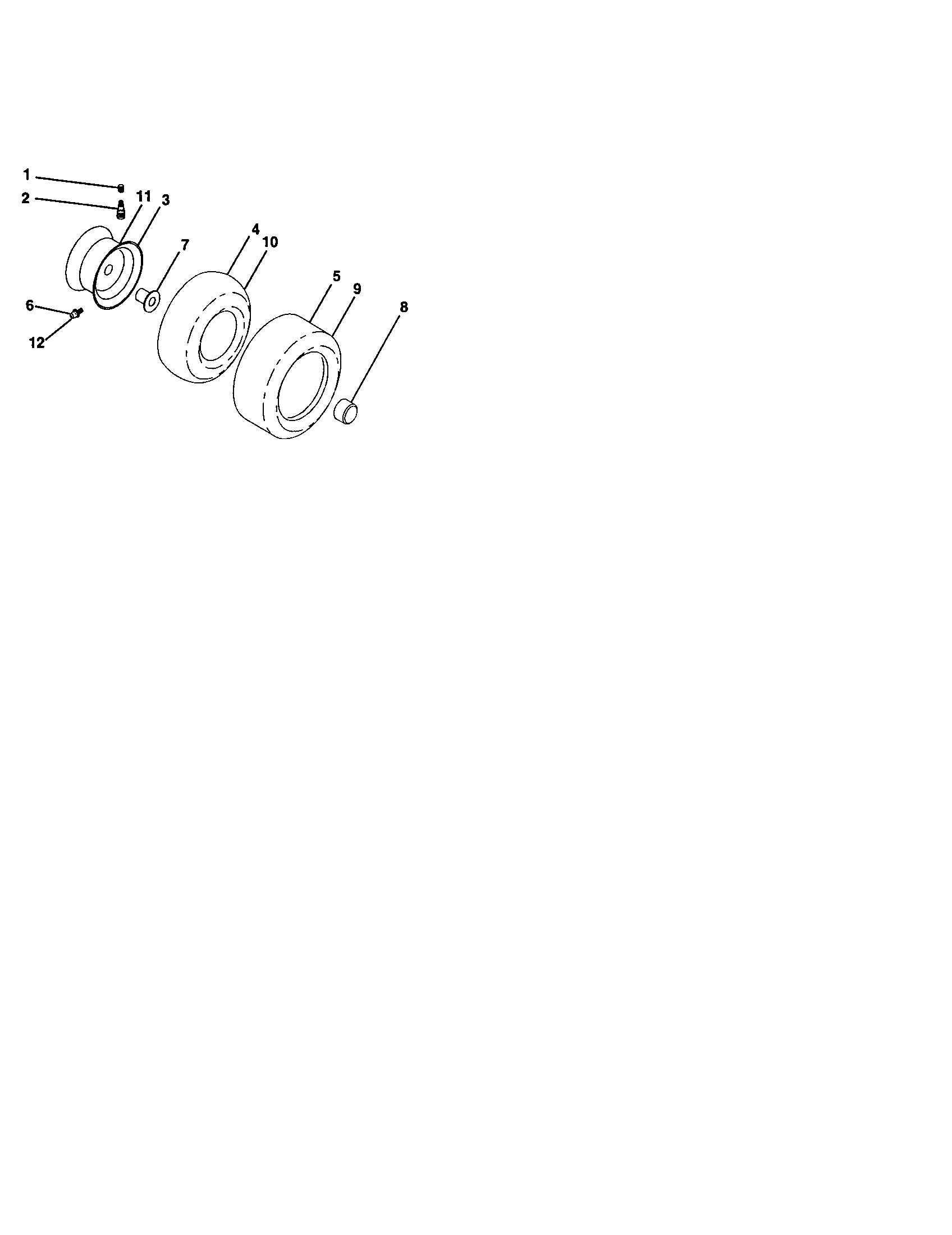

Wheels and tires diagram

Lawn tractor axle cap

Part #104757X428

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Bolt 173984
#30

Mower deck diagram

Lawn tractor bolt

Part #173984

Replaced by #584953901

?
Manufacturer substitution
This part replaces 173984. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Molded Ignition Key 140403
#33

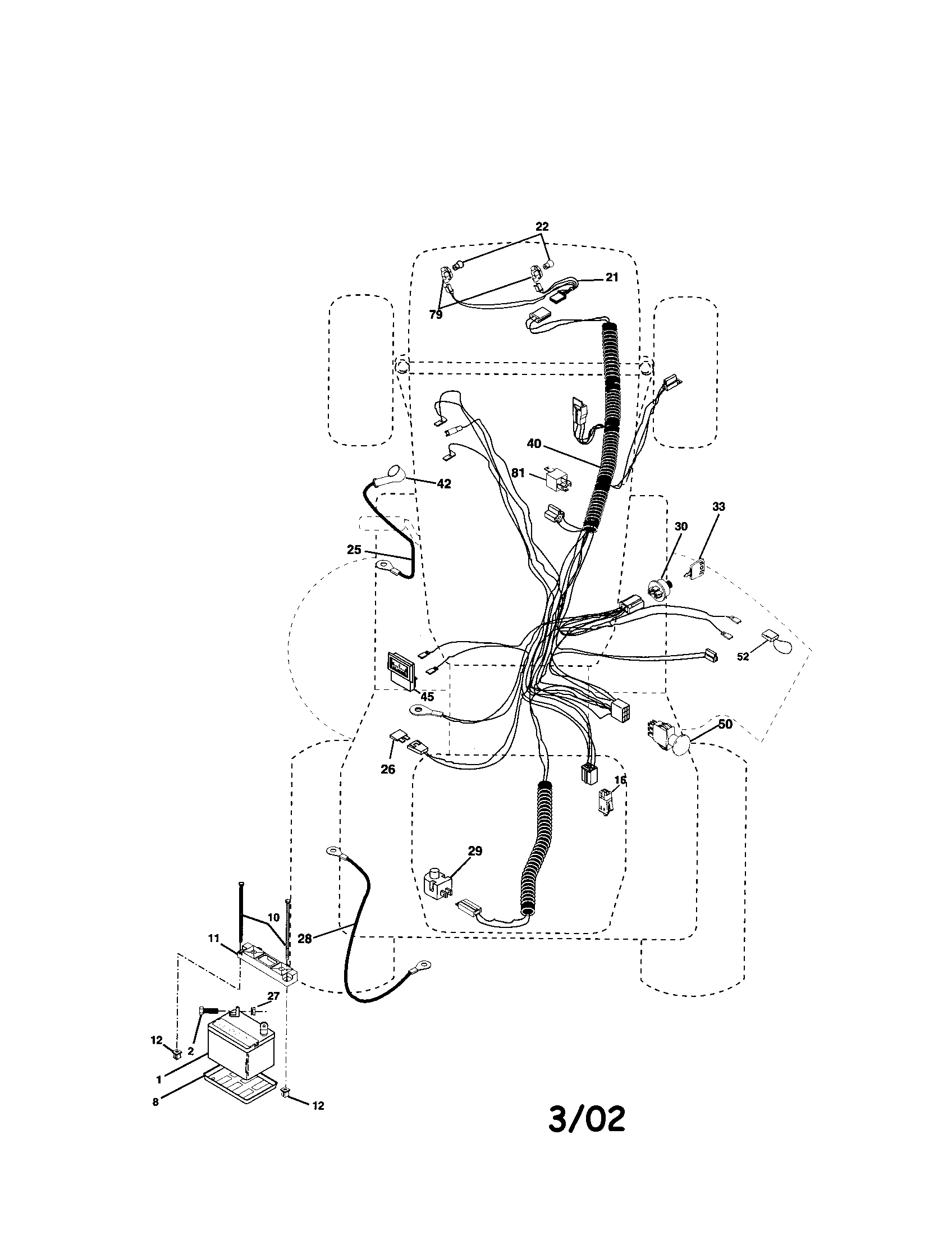

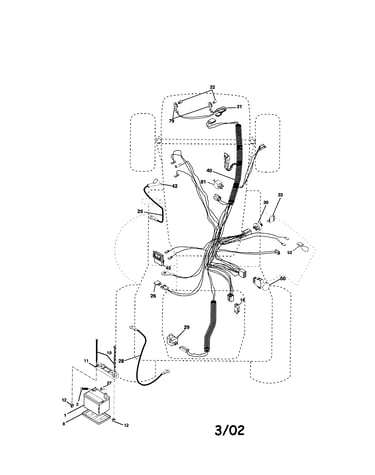

Electrical diagram

Molded ignition key

Part #140403

Replaced by #532140403

?
Manufacturer substitution
This part replaces 140403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Shoulder Bolt 137644
#59

Mower deck diagram

Shoulder bolt

Part #137644

Replaced by #596434404

?
Manufacturer substitution
This part replaces 137644. Substitute parts can look different from the original.
BEST SELLER
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Tower Lawn Tractor Ignition Switch (replaces 163968, 189687, 5321755-66, 5321896-87, 539107541) 175566
#30

Electrical diagram

Tower lawn tractor ignition switch (replaces 163968, 189687, 5321755-66, 5321896-87, 539107541)

Part #175566

BEST SELLER
$28.29 |
17% OFF Phone Price : $34.29
In Stock
Washer 19121414
#64

Mower deck diagram

Washer

Part #19121414

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19121414. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Lawn Tractor Bearing 3366R
#27

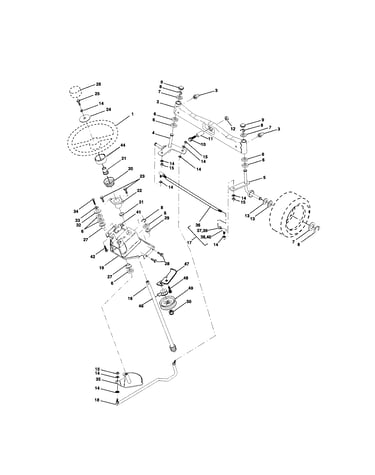

Steering diagram

Lawn tractor bearing

Part #3366R

Replaced by #532003366

?
Manufacturer substitution
This part replaces 3366R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Zinc Retainer Spring 163552
#12

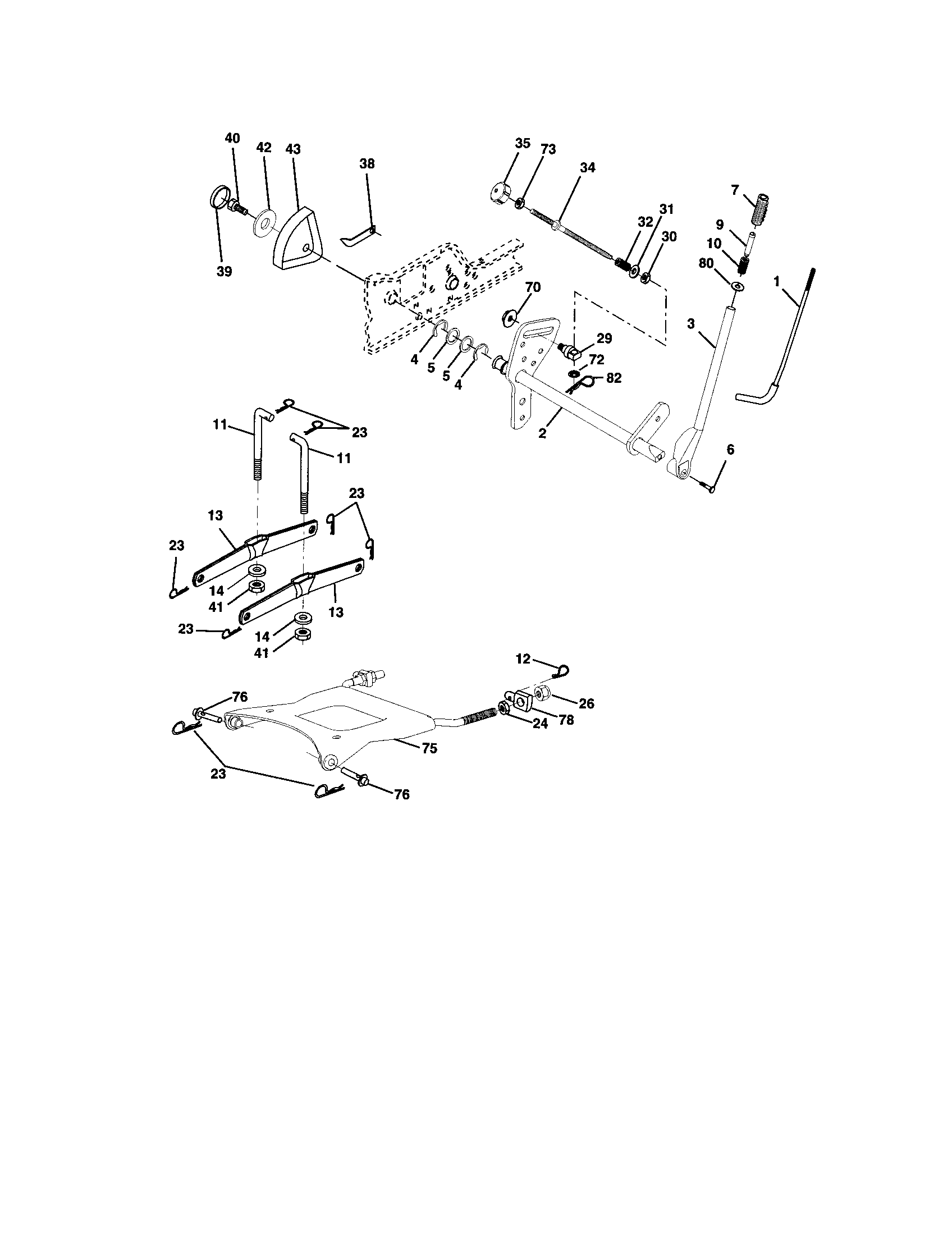

Lift assembly diagram

Zinc retainer spring

Part #163552

Replaced by #532003146

?
Manufacturer substitution
This part replaces 163552. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Lawn Tractor Steering Wheel Shaft Flange Bearing 104239X
#29

Steering diagram

Lawn tractor steering wheel shaft flange bearing

Part #104239X

Replaced by #532104239

?
Manufacturer substitution
This part replaces 104239X. Substitute parts can look different from the original.
BEST SELLER
$13.31 |
13% OFF Phone Price : $15.31
In Stock
