GE
Side-By-Side Refrigerator

Model # BIS42CKC Official GE refrigerator

Here are the diagrams and repair parts for Official GE BIS42CKC refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

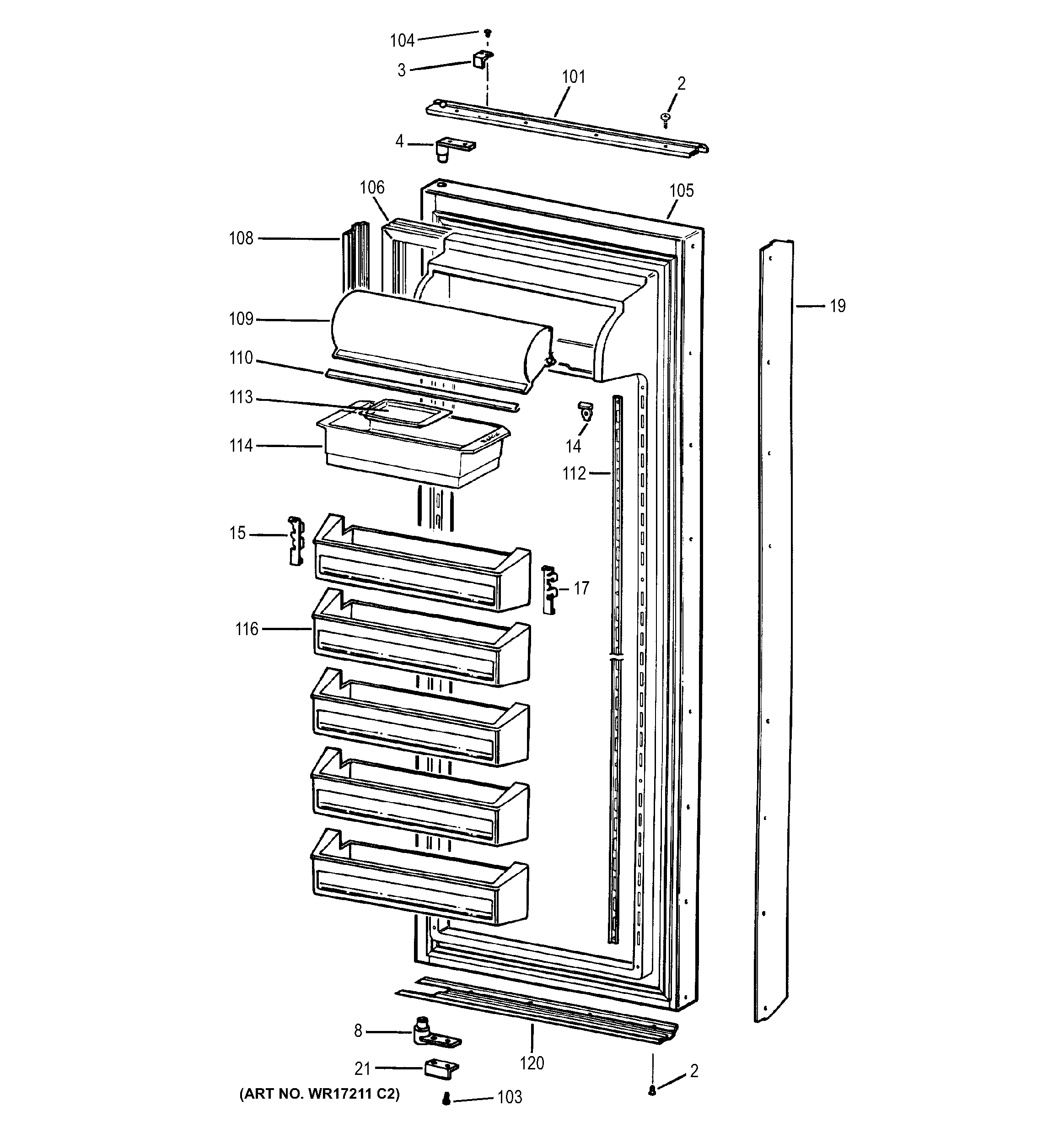

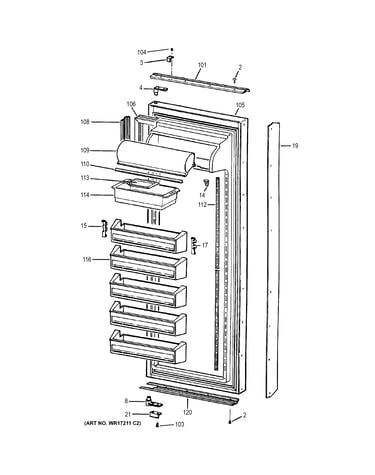

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Dryer Assembly WR86X0086
#535

Unit assembly diagram

Dryer assembly

Part #WR86X0086

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0086. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Drain Pan WR17X6312
#516

Unit assembly diagram

Refrigerator drain pan

Part #WR17X6312

Replaced by #WR49X10021

?
Manufacturer substitution
This part replaces WR17X6312. Substitute parts can look different from the original.
BEST SELLER
$356.77 |
$12.00 OFF Phone Price : $368.77
In Stock
Refrigerator Light Switch WR23X5155
Refrigerator light switch

Part #WR23X5155

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X5155. Substitute parts can look different from the original.
$8.11
In Stock
Refrigerator Power Cord WR23X5177
#539

Unit assembly diagram

Refrigerator power cord

Part #WR23X5177

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X5177. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Ice Bucket WR30X5112
#41

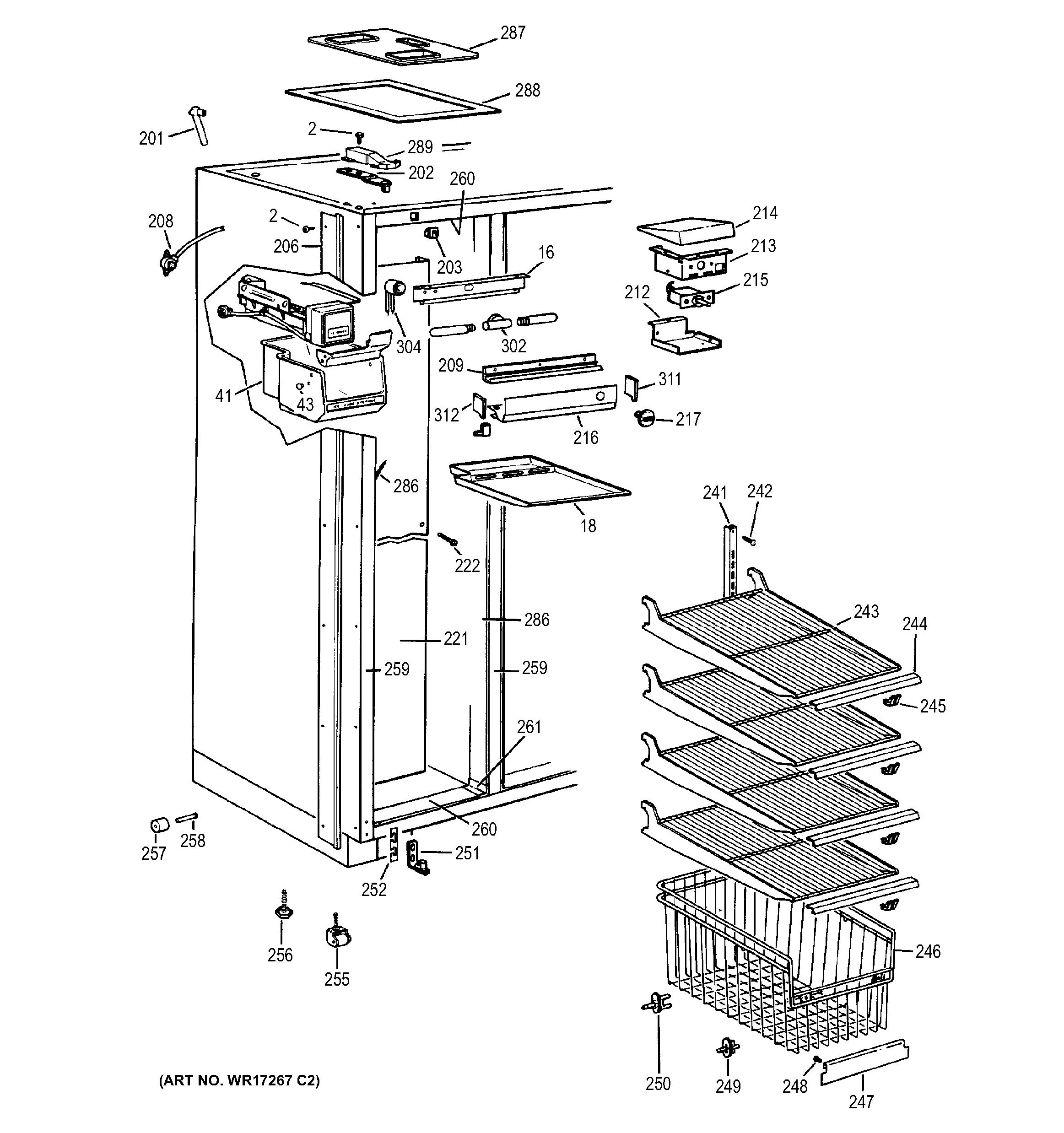

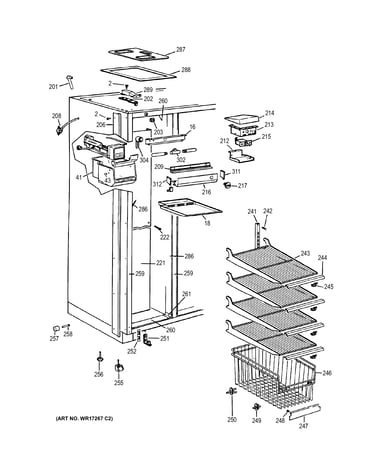

Freezer section diagram

Refrigerator ice bucket

Part #WR30X5112

Replaced by #WR30X10154

?
Manufacturer substitution
This part replaces WR30X5112. Substitute parts can look different from the original.
This item is not returnable
$24.96 |
19% OFF Phone Price : $30.96
In Stock
Refrigerator Wheel WR02X3594
#257

Freezer section diagram

Refrigerator wheel

Part #WR02X3594

Replaced by #WR2X3594

?
Manufacturer substitution
This part replaces WR02X3594. Substitute parts can look different from the original.
This item is not returnable
$21.62 |
22% OFF Phone Price : $27.62
In Stock
Use & Care Z 49-6607
#9999

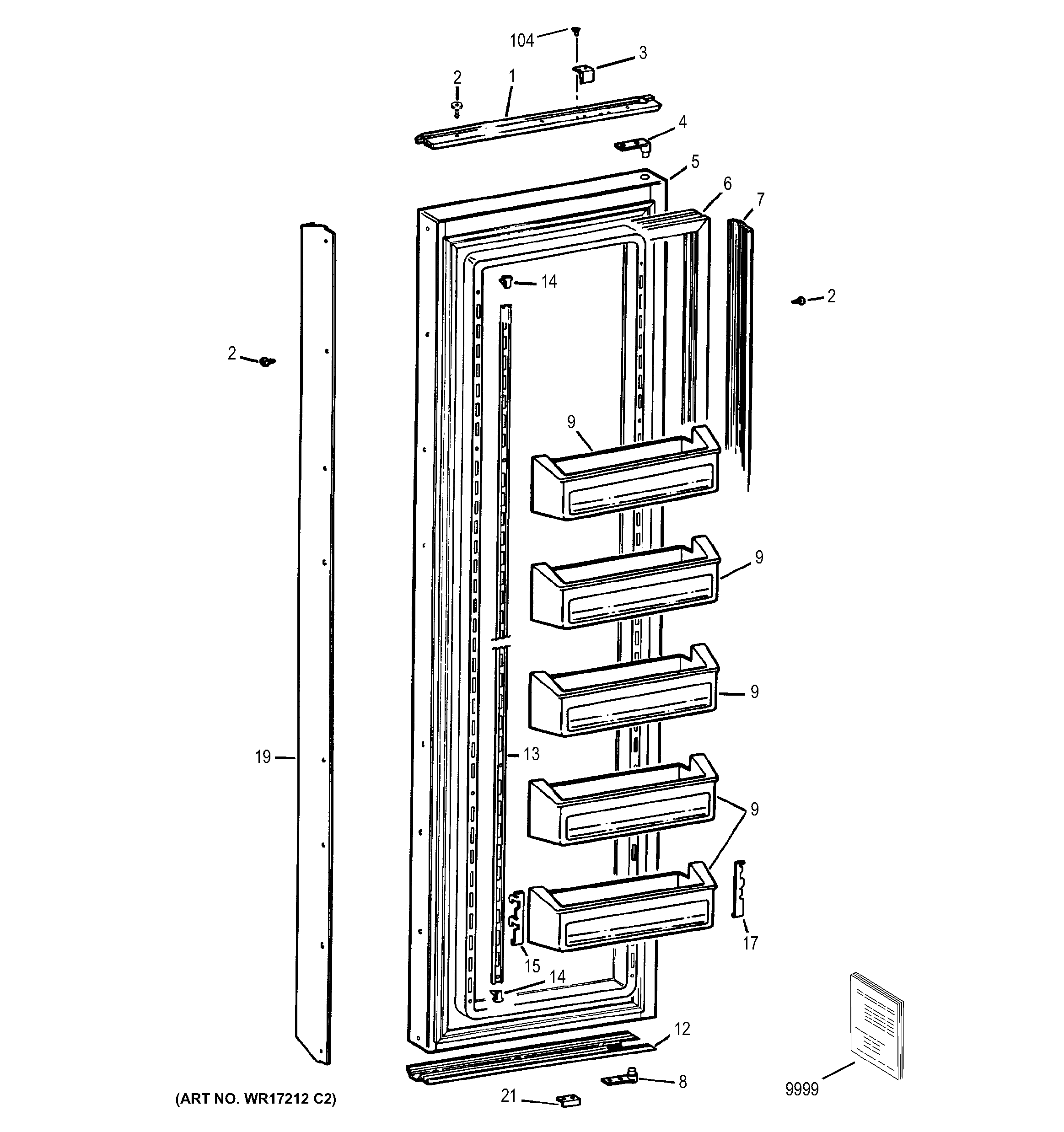

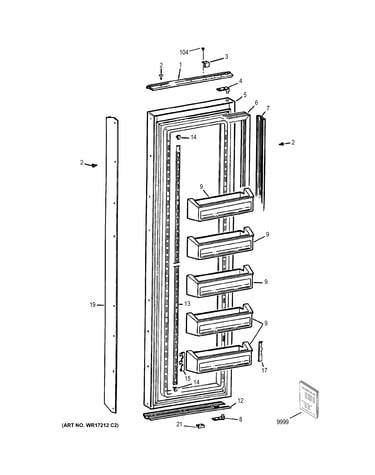

Freezer door diagram

Use & care z

Part #49-6607

$8.49
In Stock
Refrigerator Door Hinge WR13X5222
#320

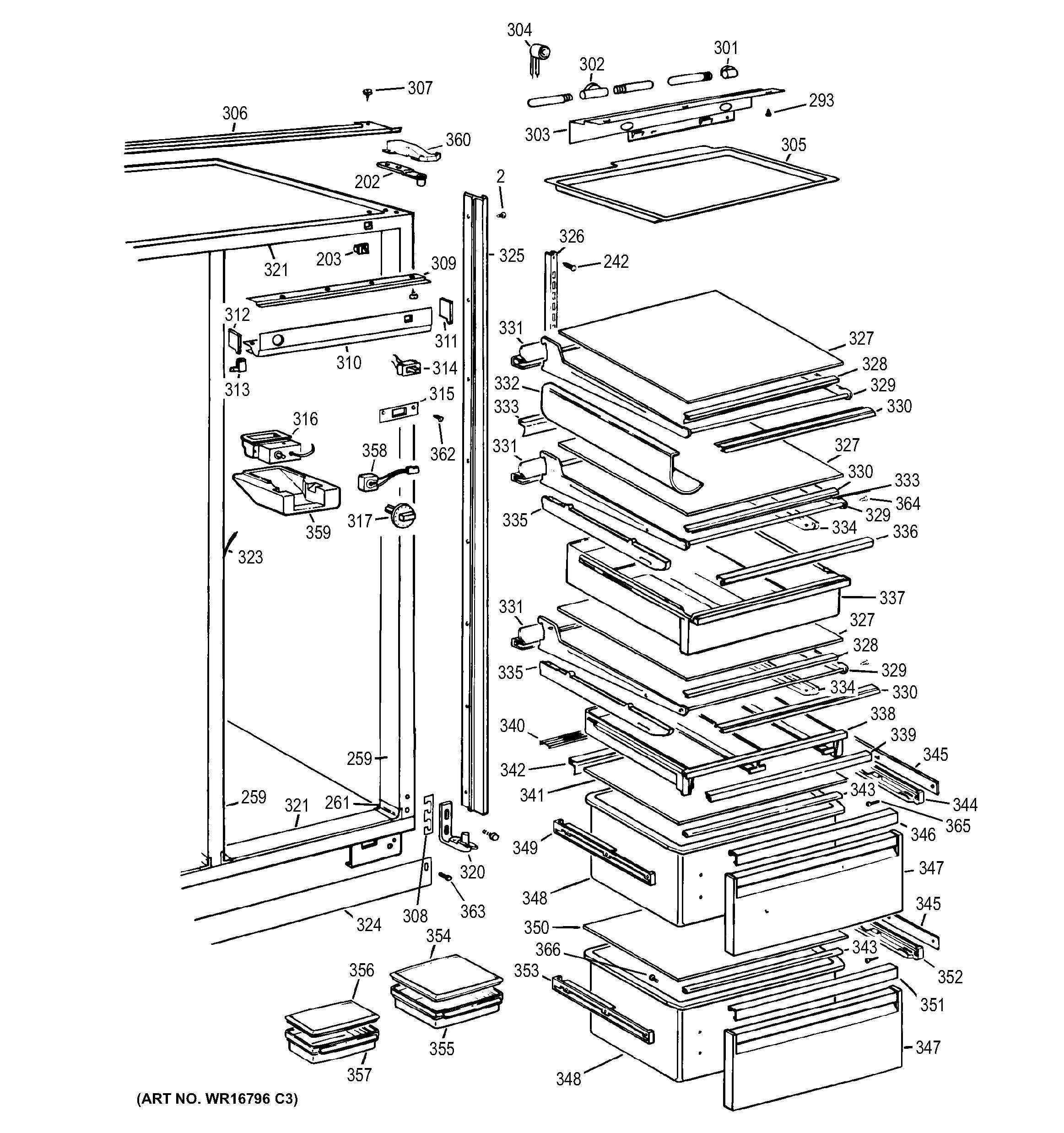

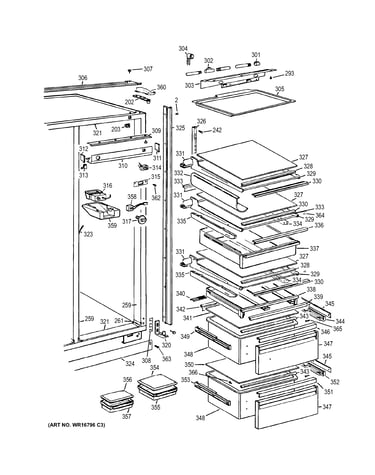

Fresh food section diagram

Refrigerator door hinge

Part #WR13X5222

$139.59 |
8% OFF Phone Price : $151.59
In Stock
Refrigerator Water Line WR17X2049
#503

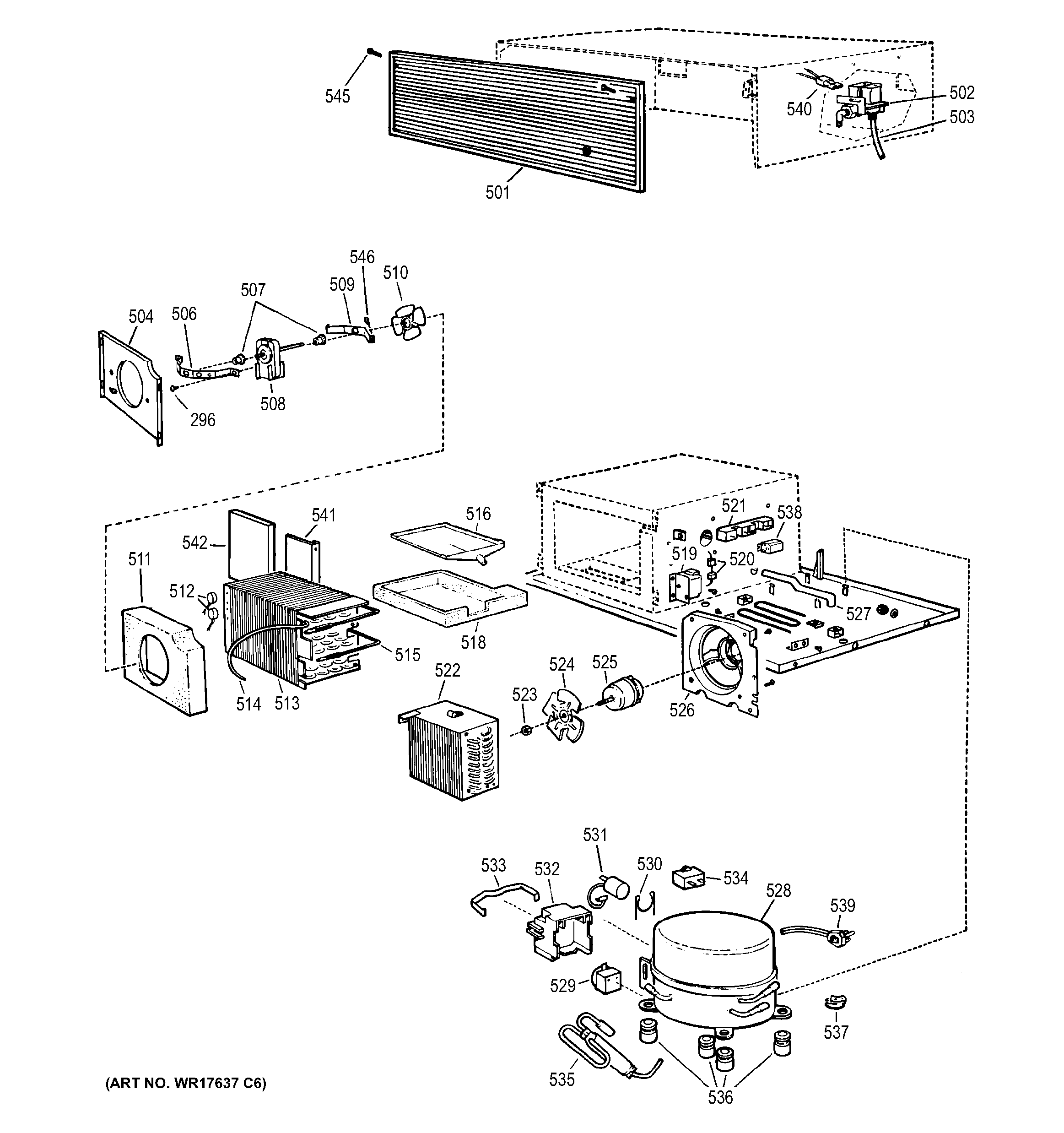

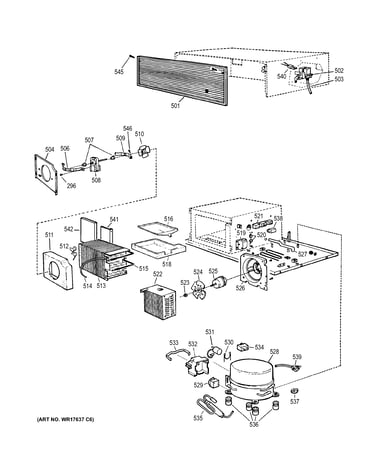

Unit assembly diagram

Refrigerator water line

Part #WR17X2049

Replaced by #WR17X11349

?
Manufacturer substitution
This part replaces WR17X2049. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Defrost Control WR09X0413
#519

Unit assembly diagram

Refrigerator defrost control

Part #WR09X0413

Replaced by #WR9X483

?
Manufacturer substitution
This part replaces WR09X0413. Substitute parts can look different from the original.
$42.02 |
12% OFF Phone Price : $48.02
In Stock
