Edgestar
Wine & Beverage Cooler

Model # CWR531SZ Official Edgestar wine cooler

Here are the diagrams and repair parts for Official Edgestar CWR531SZ wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Edgestar Owner's Manual OM-CWR531SZ
#NI

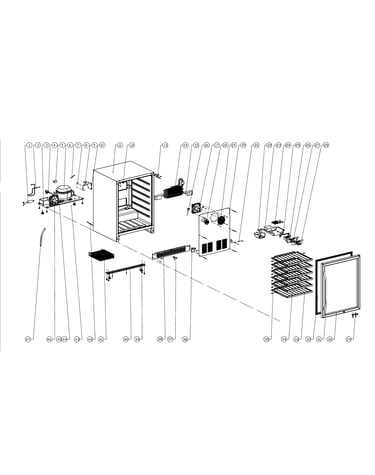

Cooler assy diagram

Edgestar owner's manual

Part #OM-CWR531SZ

The manufacturer no longer makes this part, and there's no substitute part

Air-cut Board DG22-126.1
#20

Cooler assy diagram

Air-cut board

Part #DG22-126.1

The manufacturer no longer makes this part, and there's no substitute part

Door DG23-1078.6-B
#30

Cooler assy diagram

Door

Part #DG23-1078.6-B

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Foam DG18-1007
#15

Cooler assy diagram

Evaporator foam

Part #DG18-1007

The manufacturer no longer makes this part, and there's no substitute part

Wine Cooler Carbon Air Filter DG13-1063
#18

Cooler assy diagram

Wine cooler carbon air filter

Part #DG13-1063

The manufacturer no longer makes this part, and there's no substitute part

Wooden Front Trim DG15-1070
#33

Cooler assy diagram

Wooden front trim

Part #DG15-1070

The manufacturer no longer makes this part, and there's no substitute part

Button DG13-50
#28

Cooler assy diagram

Button

Part #DG13-50

The manufacturer no longer makes this part, and there's no substitute part

Compressor DG1-71
#6

Cooler assy diagram

Compressor

Part #DG1-71

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Fan DG7-3.1-R
#17

Cooler assy diagram

Evaporator fan

Part #DG7-3.1-R

The manufacturer no longer makes this part, and there's no substitute part

Wire Shelf DG15-1069
#34

Cooler assy diagram

Wire shelf

Part #DG15-1069

The manufacturer no longer makes this part, and there's no substitute part
