KitchenAid
Top-Mount Refrigerator

Model # KTRC22KKBL01 Official KitchenAid top-mount refrigerator

Here are the diagrams and repair parts for Official KitchenAid KTRC22KKBL01 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

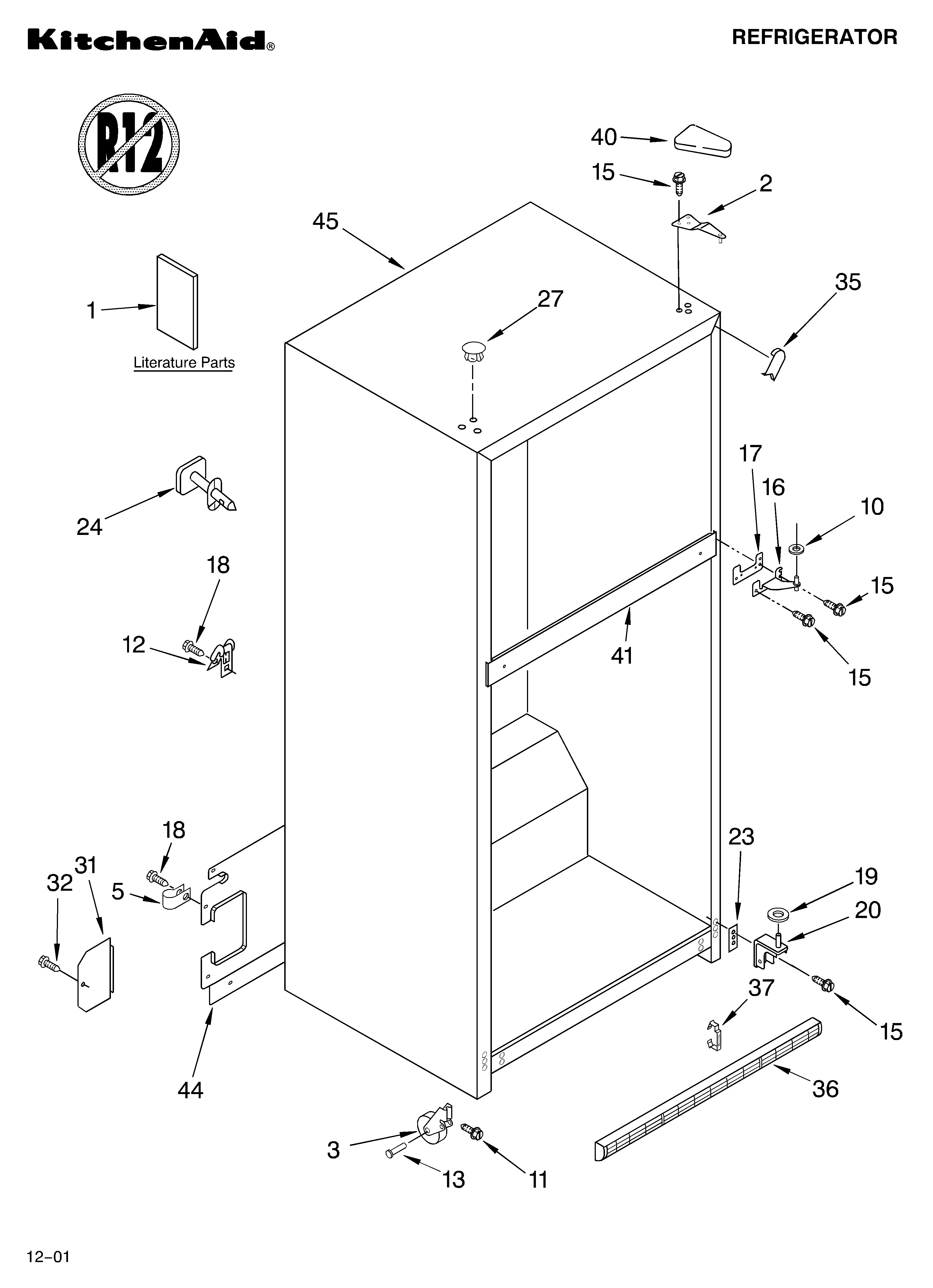

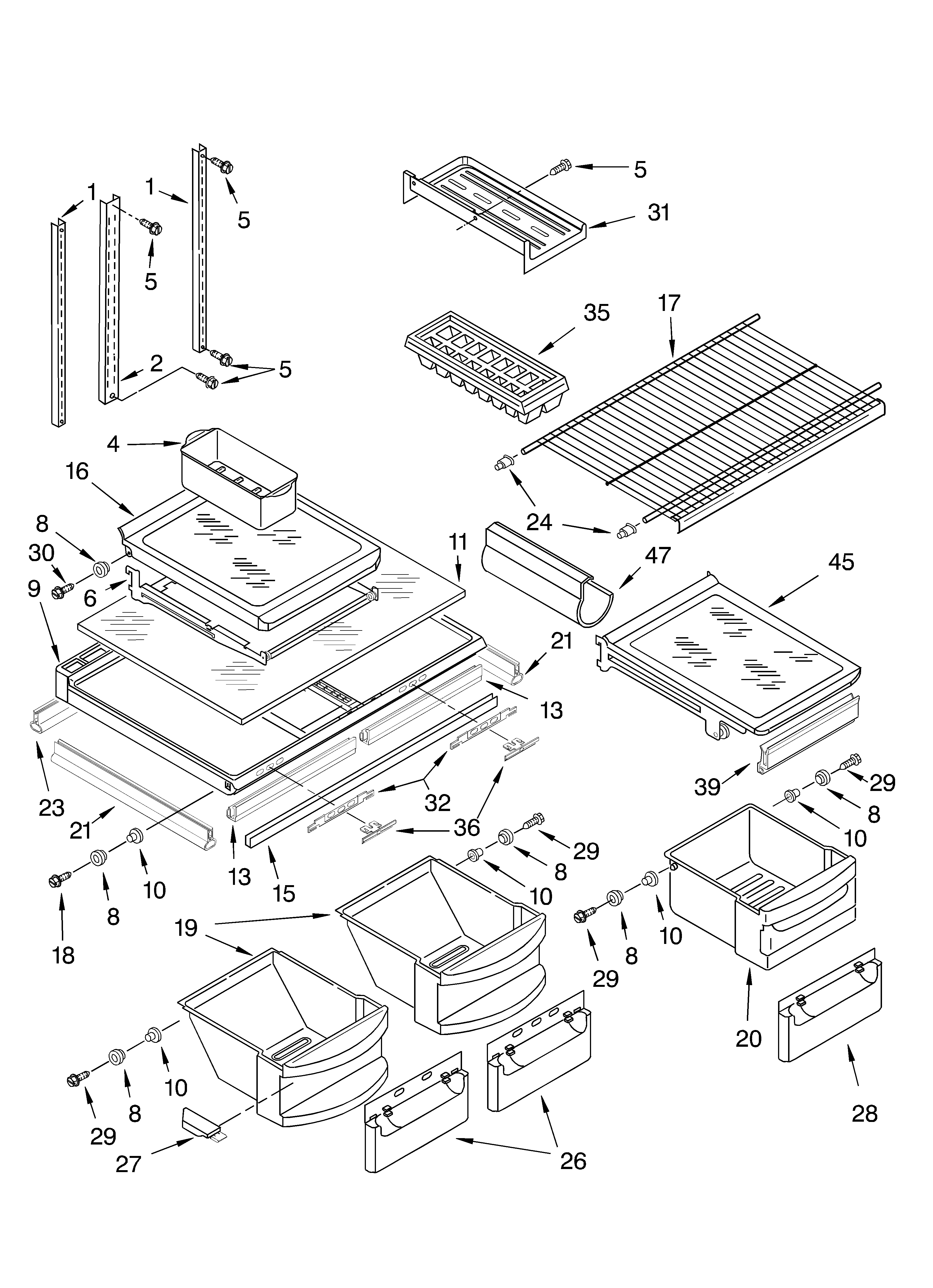

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 225 parts  |
Light Bulb 527949
#17

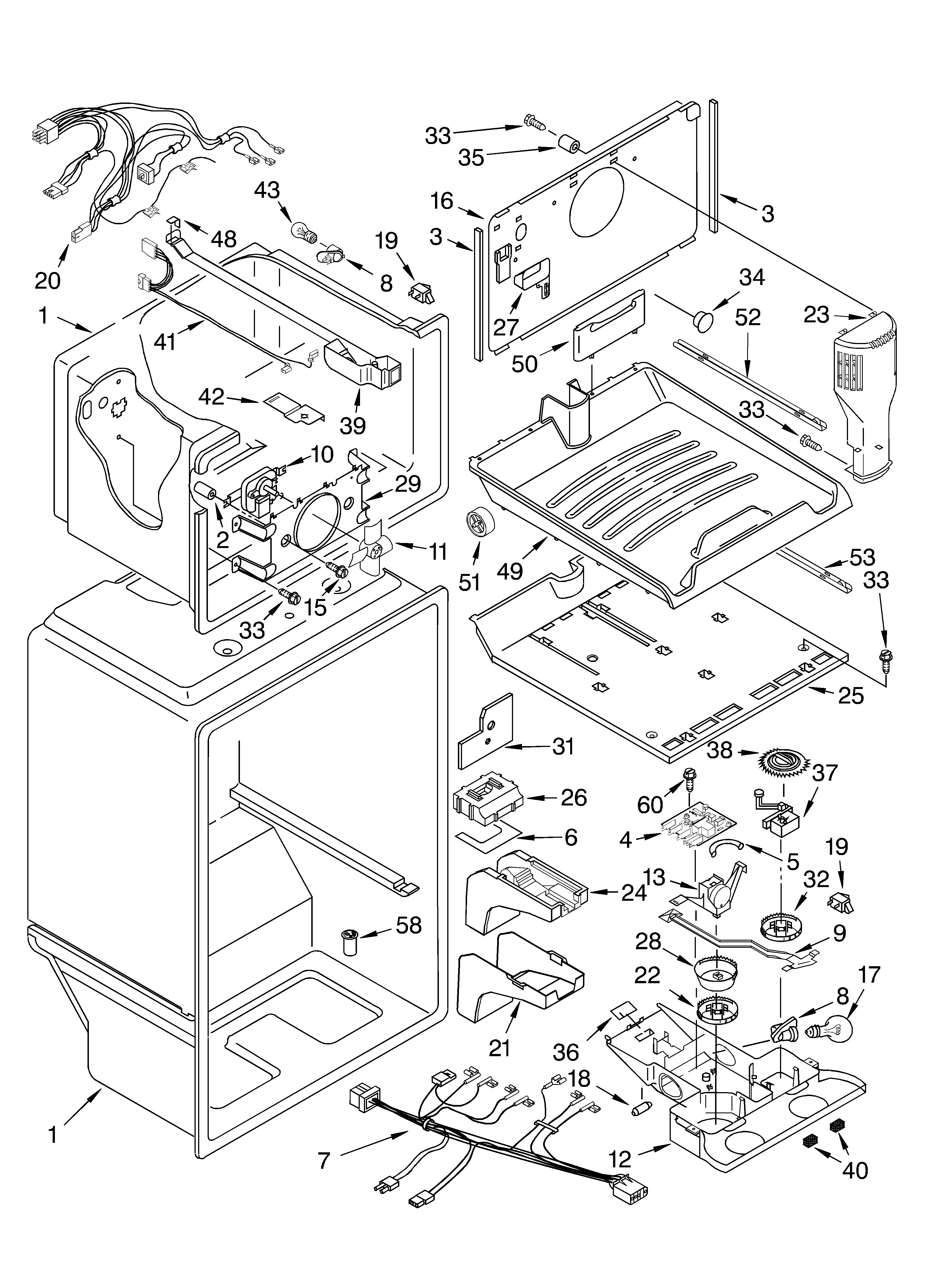

Liner diagram

Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Upright Freezer Run Capacitor 2169373
#32

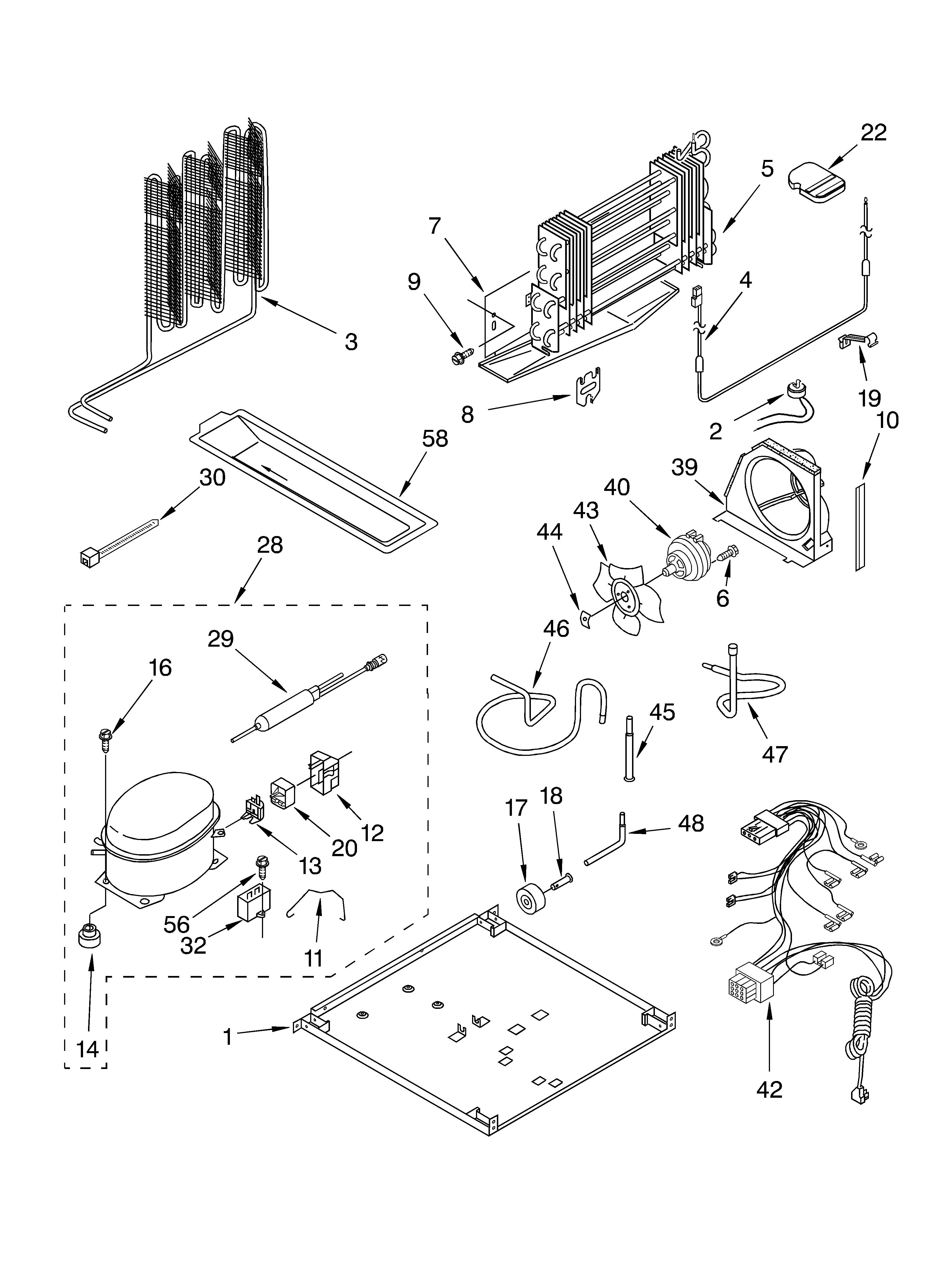

Unit diagram

Upright freezer run capacitor

Part #2169373

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 2169373. Substitute parts can look different from the original.
BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Refrigerator Evaporator Fan Blade 2163777
#11

Liner diagram

Refrigerator evaporator fan blade

Part #2163777

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2163777. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
Condenser Motor 2188537
#40

Unit diagram

Condenser motor

Part #2188537

Replaced by #W10822259

?
Manufacturer substitution
This part replaces 2188537. Substitute parts can look different from the original.
BEST SELLER
$128.22 |
9% OFF Phone Price : $140.22
In Stock
Gasket Panel (black) 2202882
#8A

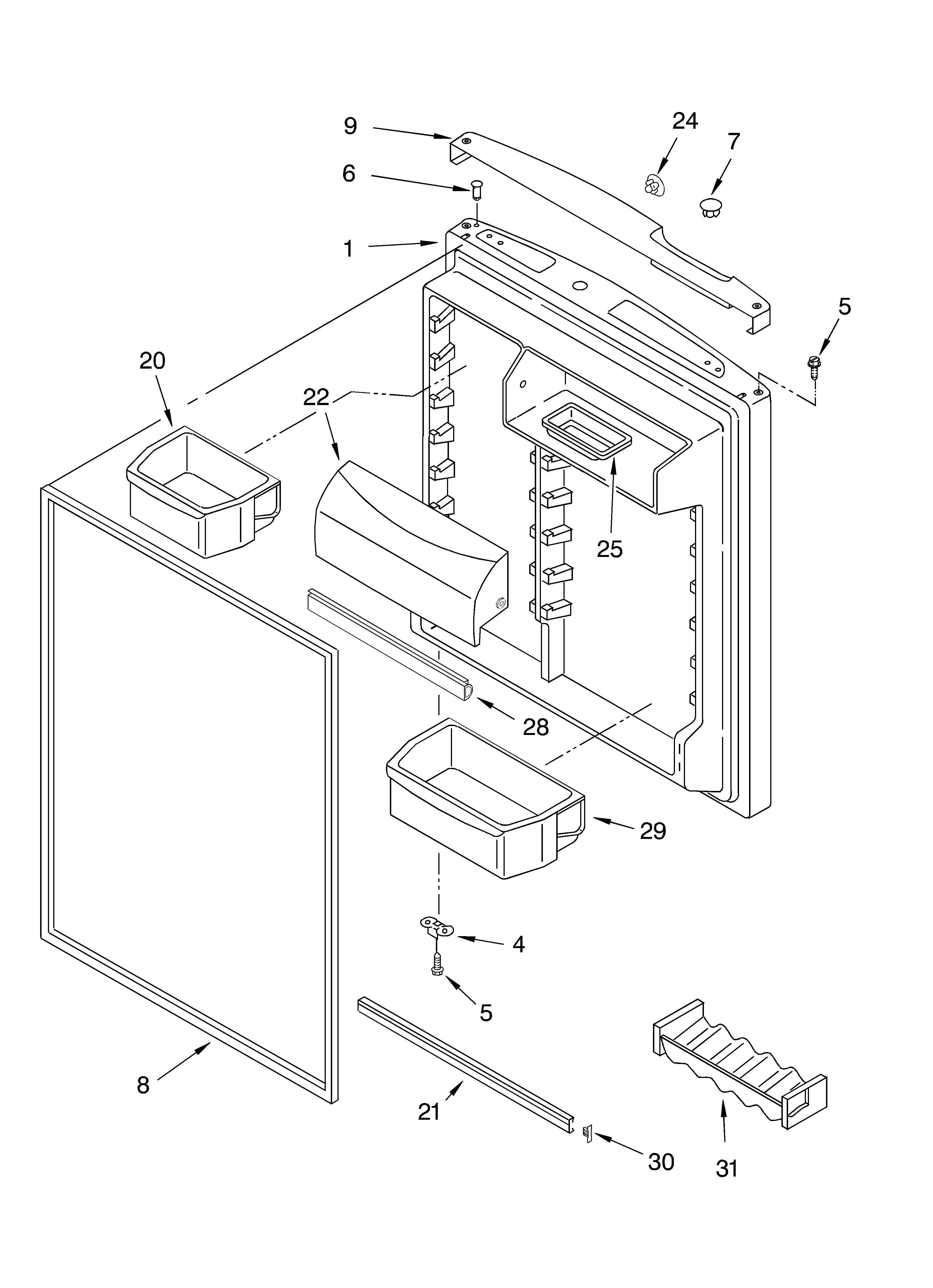

Refrigerator door diagram

Gasket panel (black)

Part #2202882

Replaced by #2177311

?
Manufacturer substitution
This part replaces 2202882. Substitute parts can look different from the original.
BEST SELLER
$136.52 |
8% OFF Phone Price : $148.52
In Stock
Gasket Panel 2214967
#8

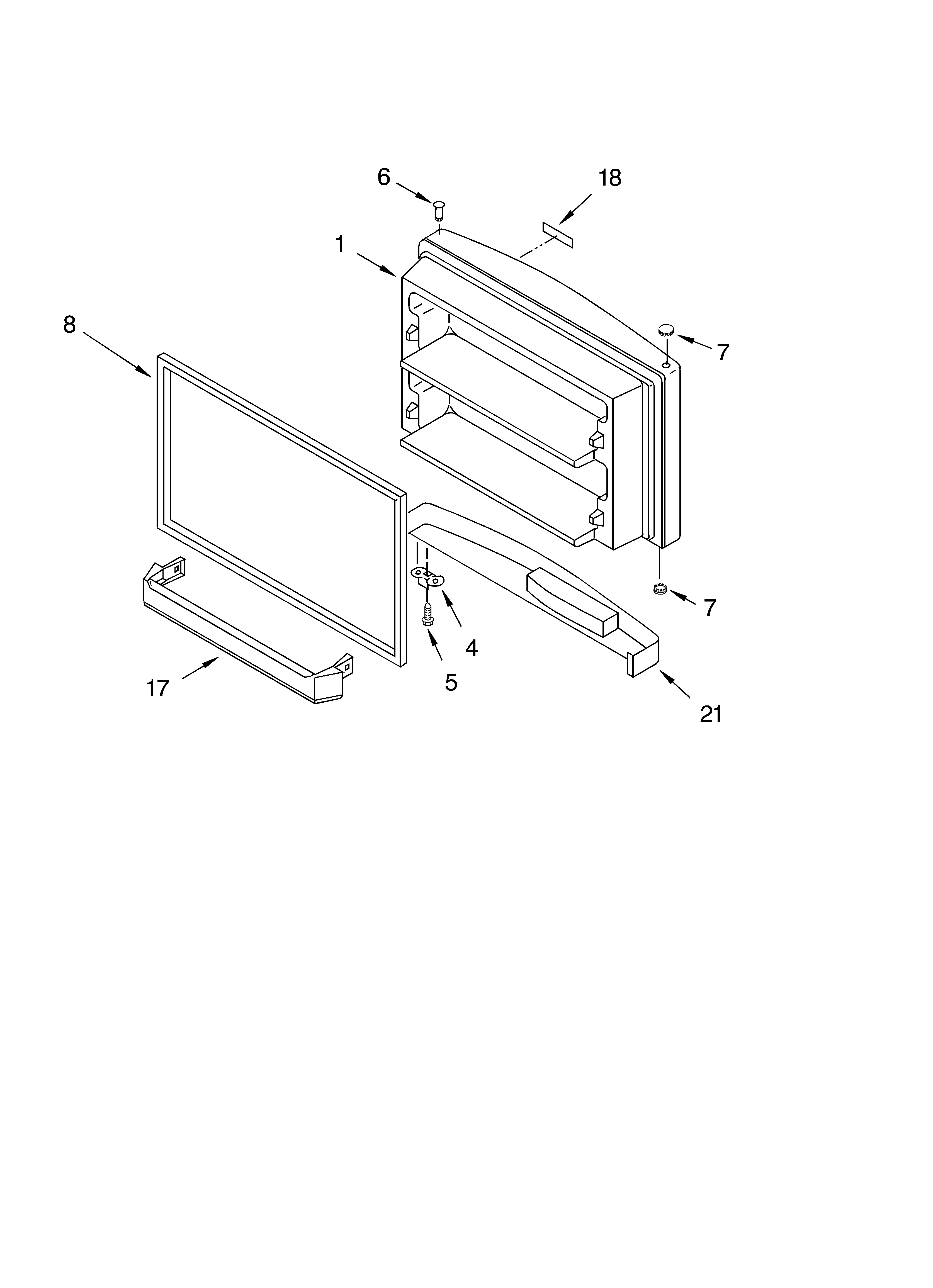

Freezer door/optional diagram

Gasket panel

Part #2214967

Replaced by #2159060

?
Manufacturer substitution
This part replaces 2214967. Substitute parts can look different from the original.
BEST SELLER
$146.92 |
8% OFF Phone Price : $158.92
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764
#NI

Unit diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Heater 2166124
#4

Unit diagram

Heater

Part #2166124

Replaced by #WP2315530

?
Manufacturer substitution
This part replaces 2166124. Substitute parts can look different from the original.
BEST SELLER
$66.71 |
8% OFF Phone Price : $72.71
In Stock
Appliance Silicone Lubricant 542638
#NI

Freezer door/optional diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Appliance Touch-up Paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, W10831982) 72032
#NI

Freezer door/optional diagram

Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)

Part #72032

BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
