Model # 1106109500 Official Kenmore gas combination washer/dryer

Here are the diagrams and repair parts for Official Kenmore 1106109500 gas combination washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

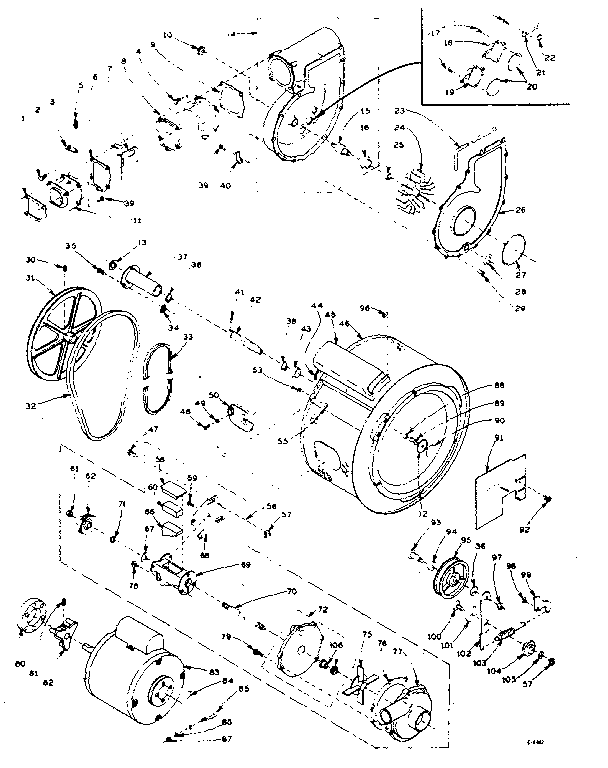

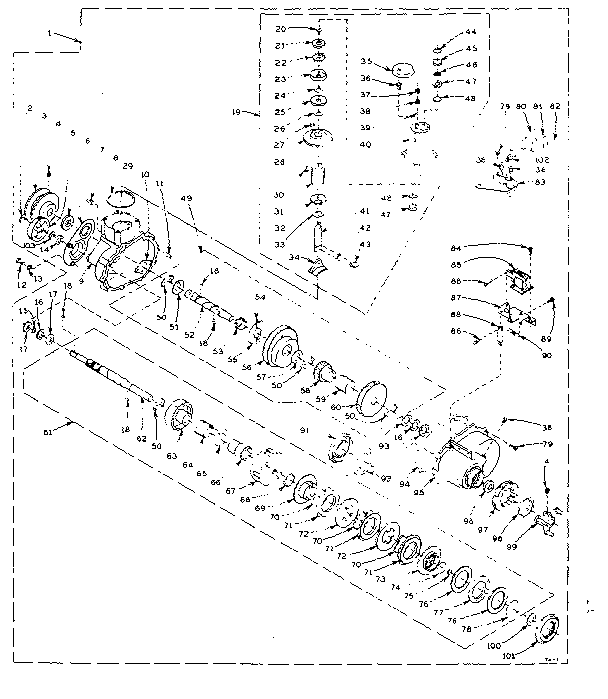

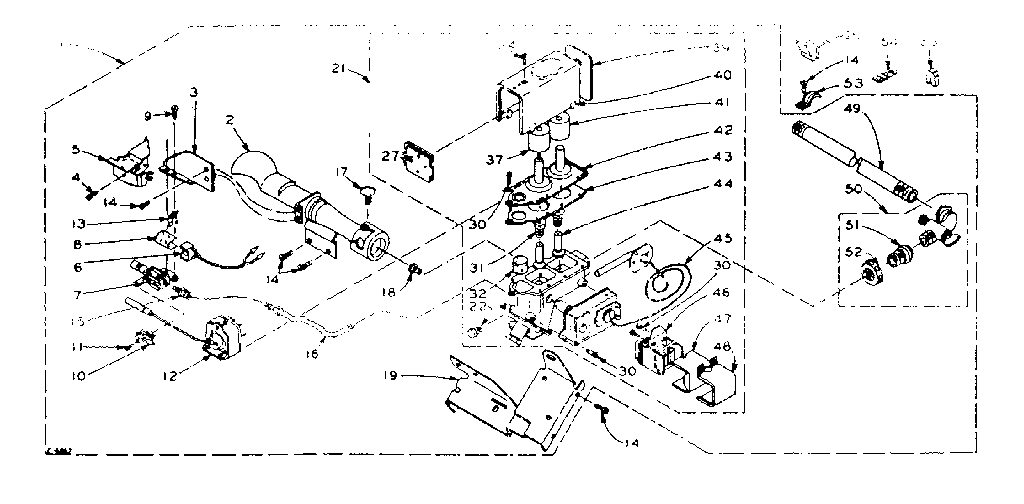

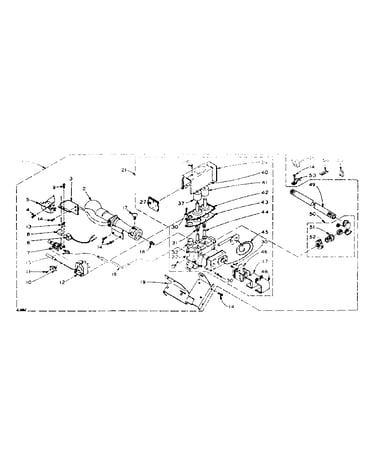

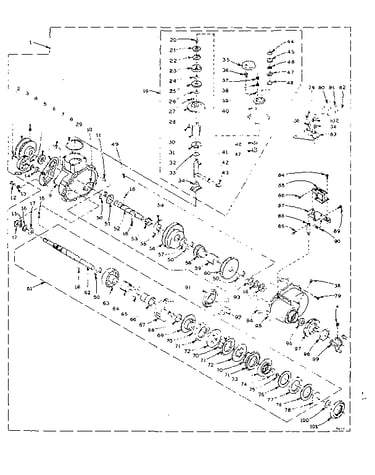

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 531 parts  |
Screw 98585
#14

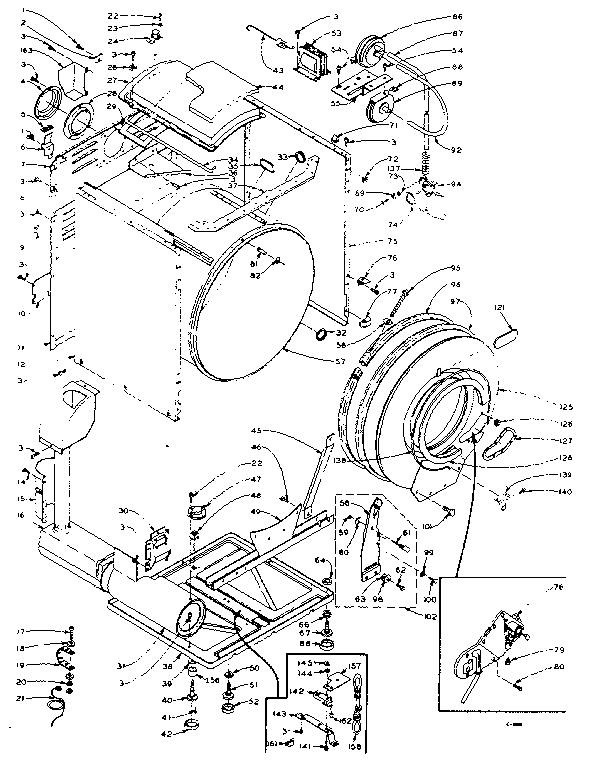

Base and tank diagram

Screw

Part #98585

Replaced by #WP681414

?
Manufacturer substitution
This part replaces 98585. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dryer Top Panel Clip 18776
#41

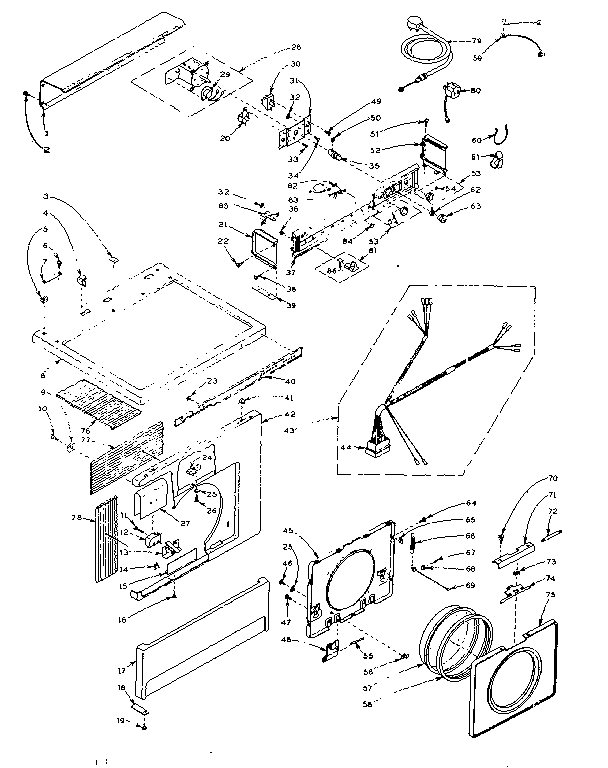

Top and front assembly diagram

Dryer top panel clip

Part #18776

Replaced by #WP18776

?
Manufacturer substitution
This part replaces 18776. Substitute parts can look different from the original.
This item is not returnable
$7.68 |
12% OFF Phone Price : $8.68
In Stock
Clip 237818
#77

Base and tank diagram

Clip

Part #237818

Replaced by #279638

?
Manufacturer substitution
This part replaces 237818. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Filter Washer 21092
#7

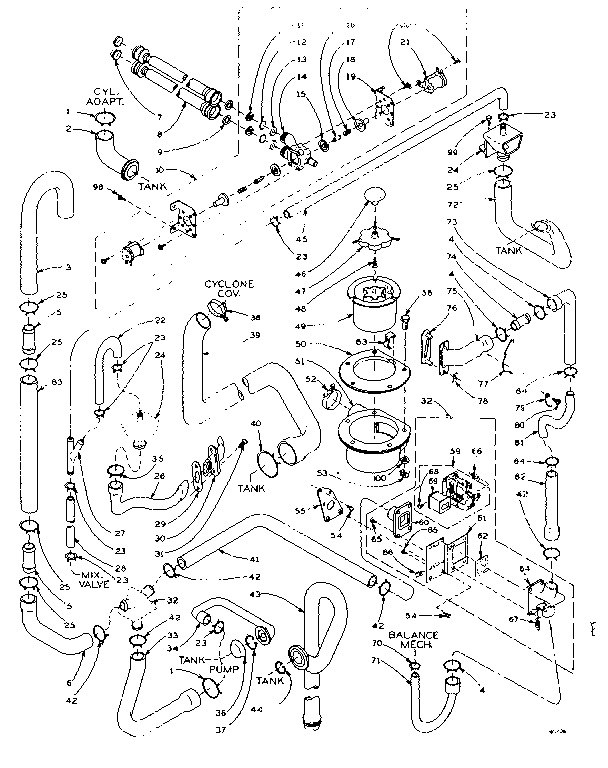

Water system diagram
