Tappan
Electric Range

Model # 31-4967-23-01 Official Tappan electric range - lt32087370

Here are the diagrams and repair parts for Official Tappan 31-4967-23-01 electric range - lt32087370, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

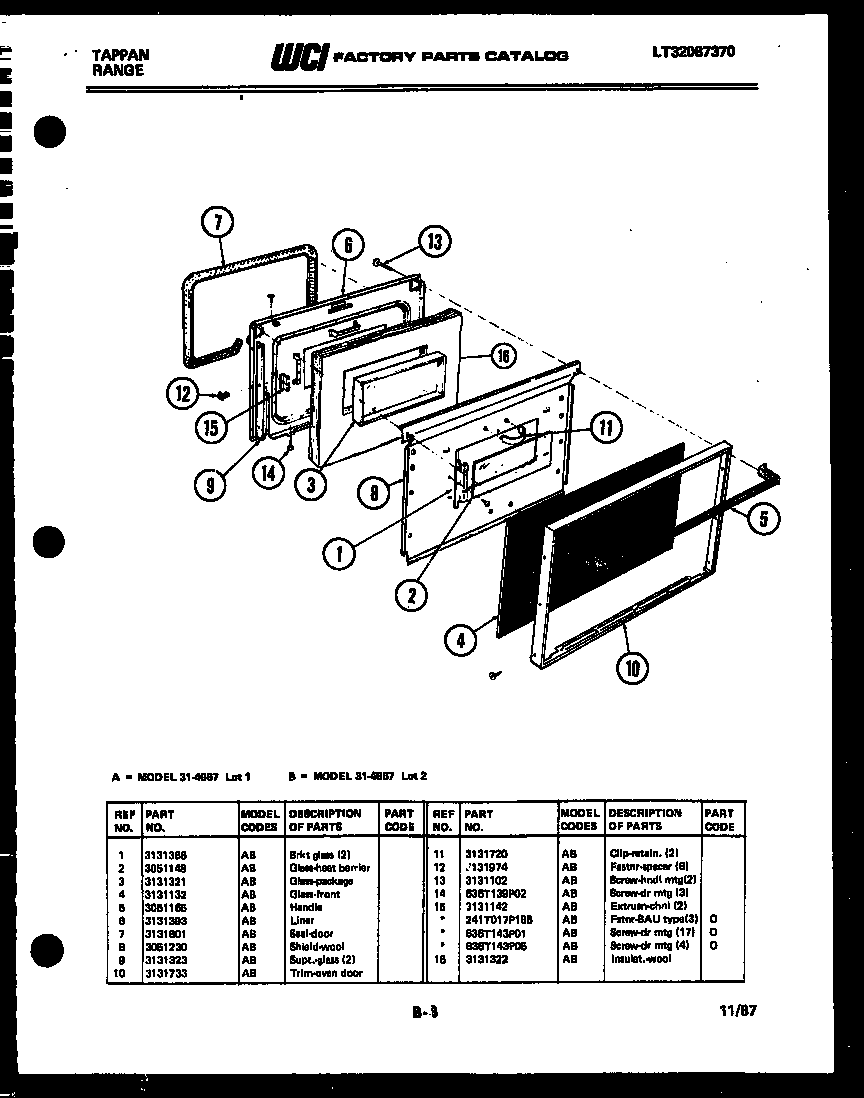

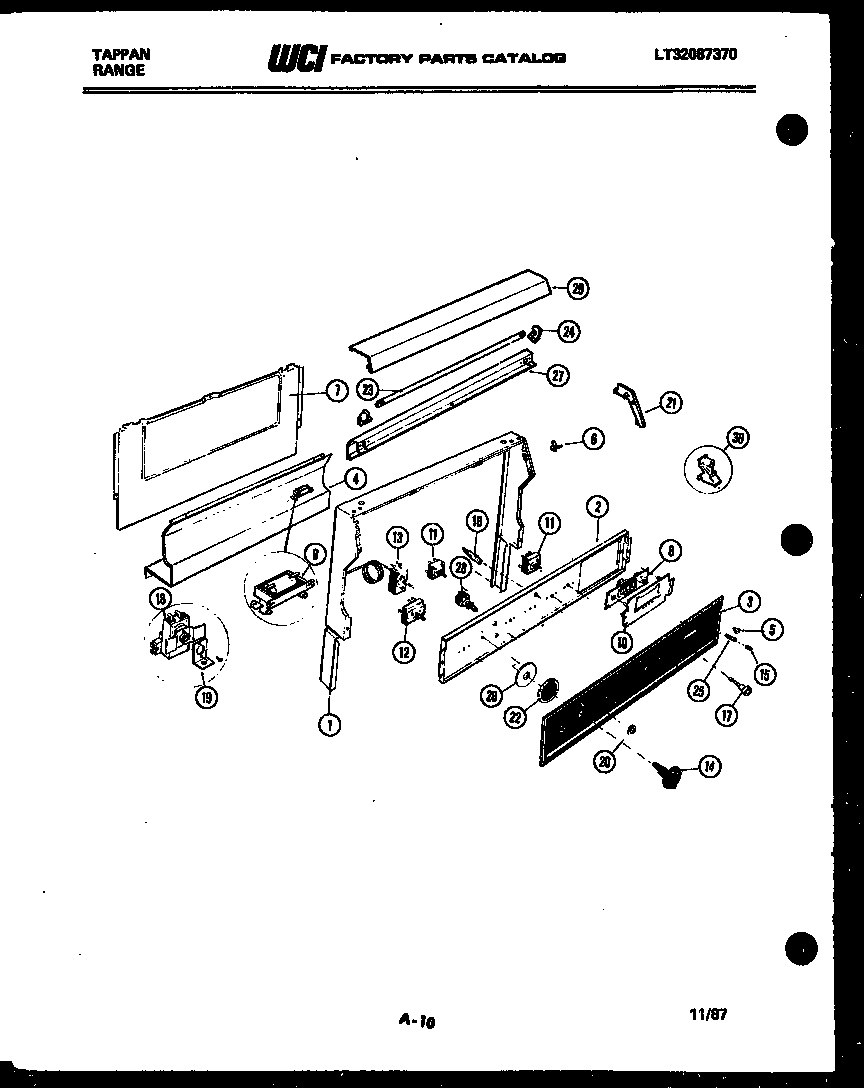

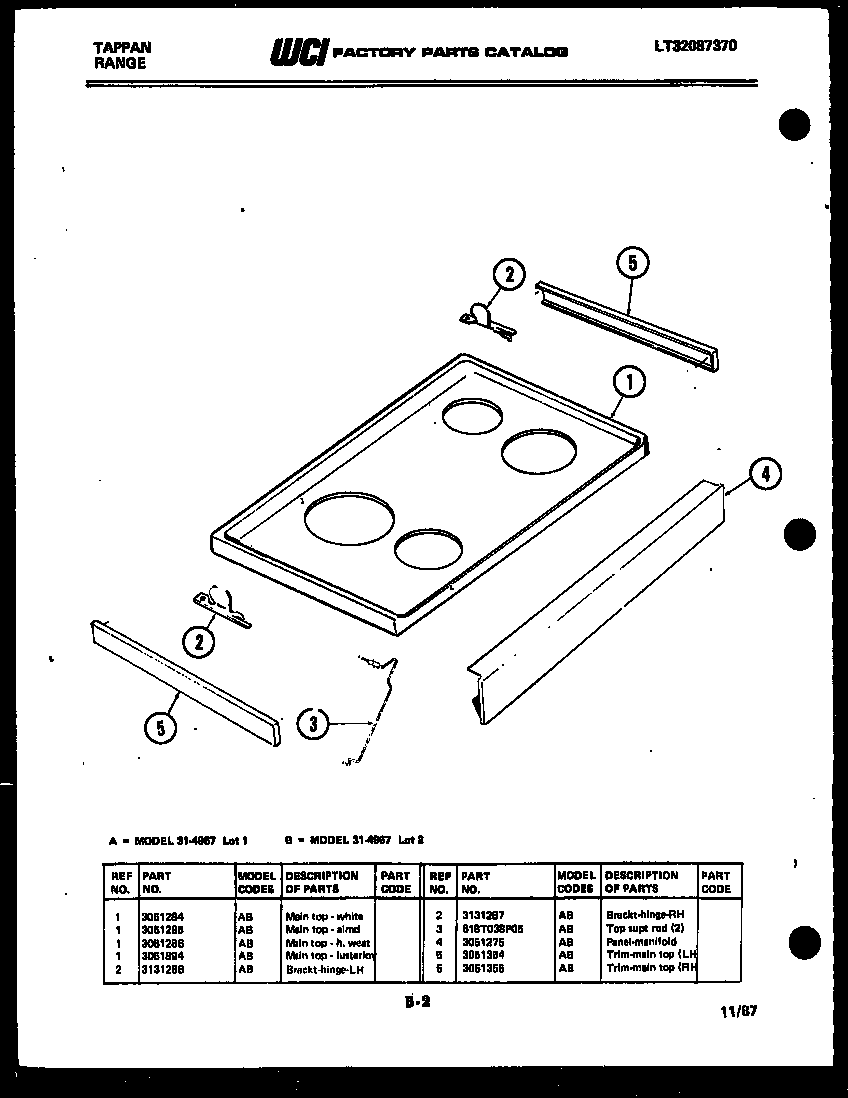

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Element 3051434
#1

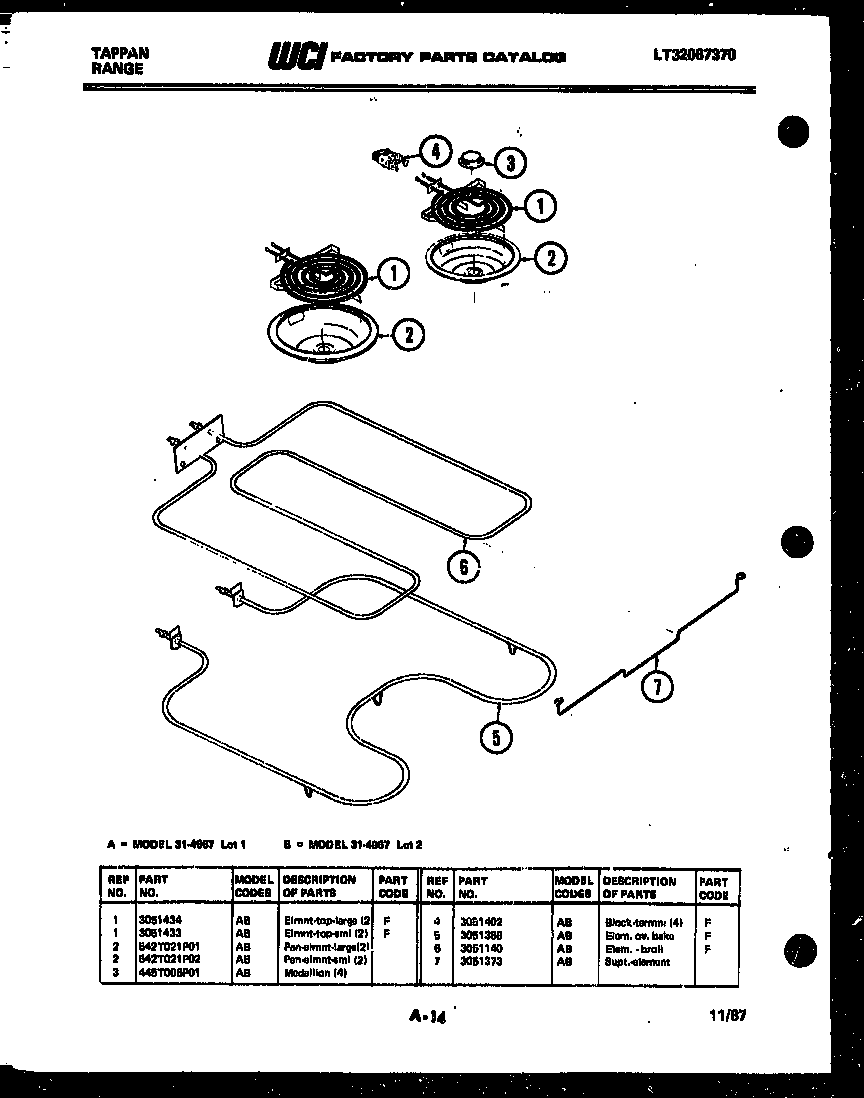

Broiler parts diagram

Element

Part #3051434

Replaced by #316442301

?
Manufacturer substitution
This part replaces 3051434. Substitute parts can look different from the original.
BEST SELLER
$23.22 |
21% OFF Phone Price : $29.22
In Stock
Light 374T018P05
#37

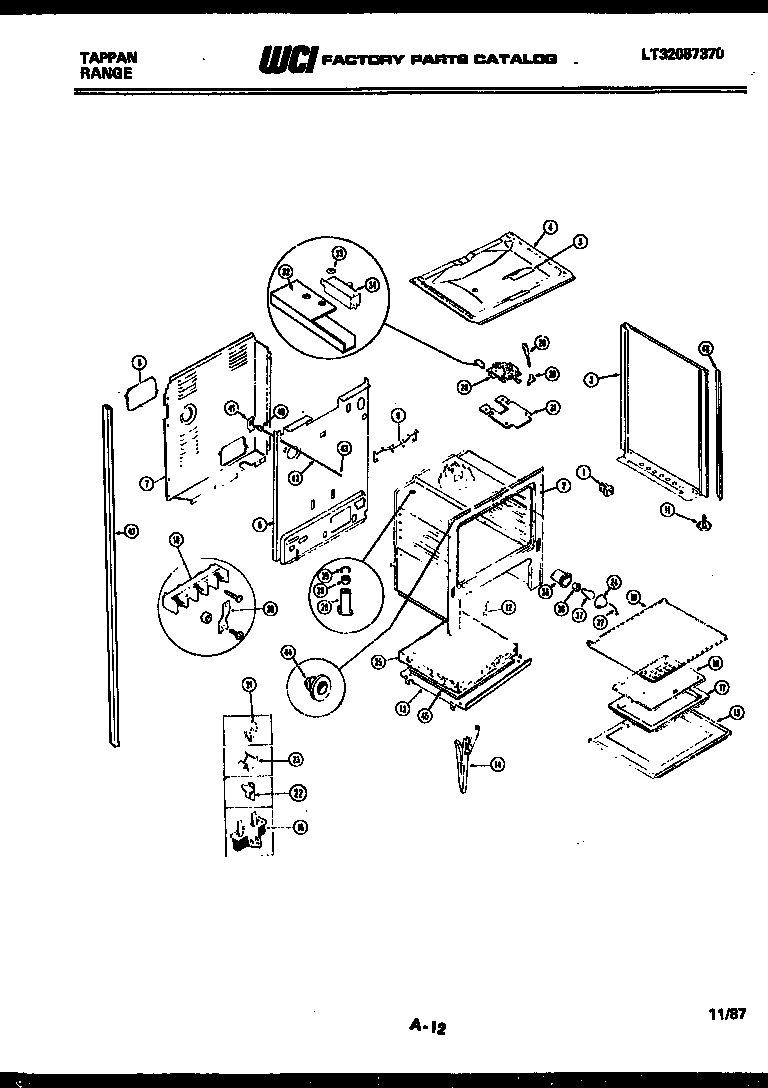

Body parts diagram

Light

Part #374T018P05

Replaced by #316538904

?
Manufacturer substitution
This part replaces 374T018P05. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Element 3051433
#1

Broiler parts diagram

Element

Part #3051433

Replaced by #318372211

?
Manufacturer substitution
This part replaces 3051433. Substitute parts can look different from the original.
BEST SELLER
$36.79 |
14% OFF Phone Price : $42.79
In Stock
Range Drawer Glide (replaces 08067822, 3012699) 3051163
#2

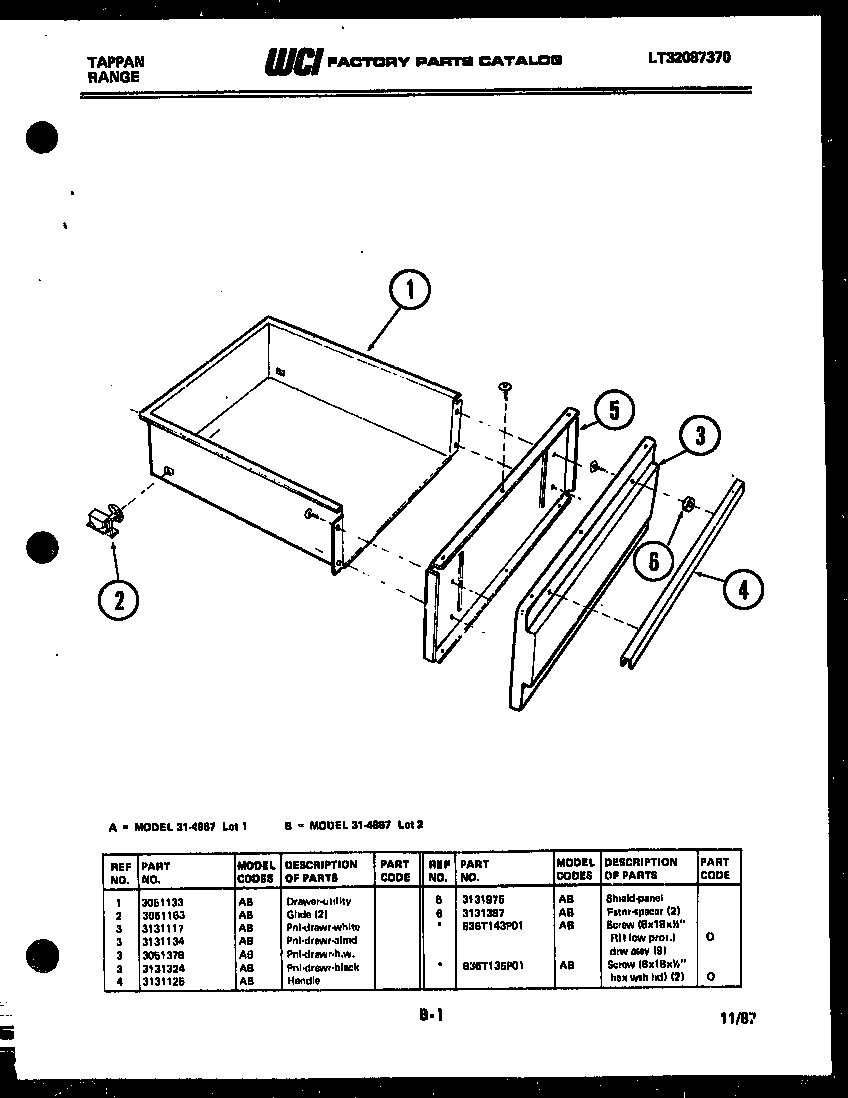

Drawer parts diagram

Range drawer glide (replaces 08067822, 3012699)

Part #3051163

BEST SELLER
This item is not returnable
$4.69 |
18% OFF Phone Price : $5.69
In Stock
Light Socket 3051735
#36

Body parts diagram

Light socket

Part #3051735

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3051735. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Oven Rack 3131973
#10

Body parts diagram

Oven rack

Part #3131973

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 3131973. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
In Stock
Element 3051140
#6

Broiler parts diagram

Element

Part #3051140

Replaced by #5303051140

?
Manufacturer substitution
This part replaces 3051140. Substitute parts can look different from the original.
This item is not returnable
$136.99 |
8% OFF Phone Price : $148.99
In Stock
Bumper 3131903
#27C

Body parts diagram

Bumper

Part #3131903

$47.29
In Stock
Range Drawer Glide, Front (replaces 08067766, 3012698, 3051361, 3131687) 3051162
#22

Body parts diagram

Range drawer glide, front (replaces 08067766, 3012698, 3051361, 3131687)

Part #3051162

This item is not returnable
$3.89 |
20% OFF Phone Price : $4.89
In Stock
Screw 636T143P01
Screw

Part #636T143P01

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 636T143P01. Substitute parts can look different from the original.
This item is not returnable
$16.63
In Stock
