Canon
Digital Camcorder

Model # DC210A Official Canon digital camcorder

Here are the diagrams and repair parts for Official Canon DC210A digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

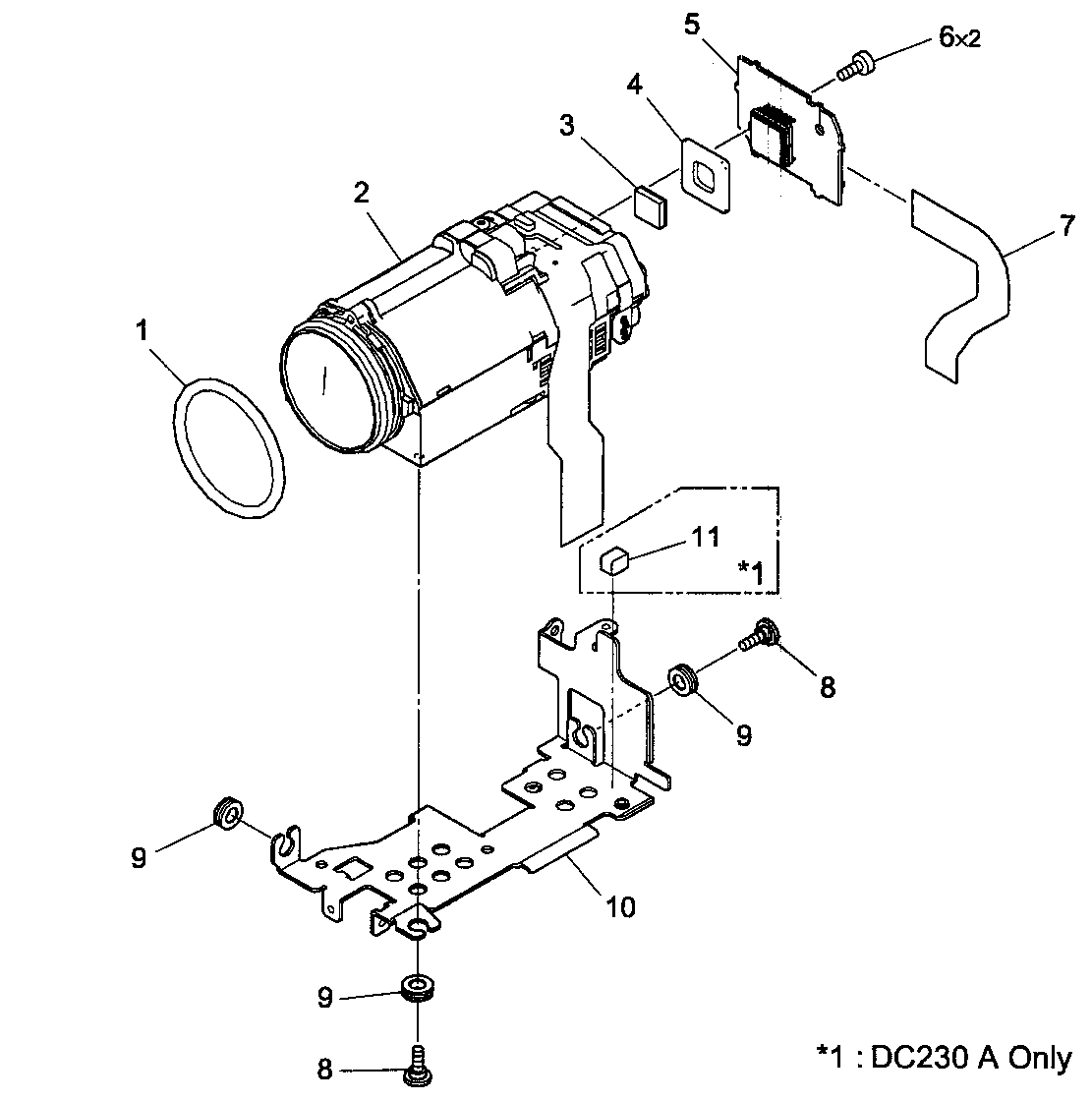

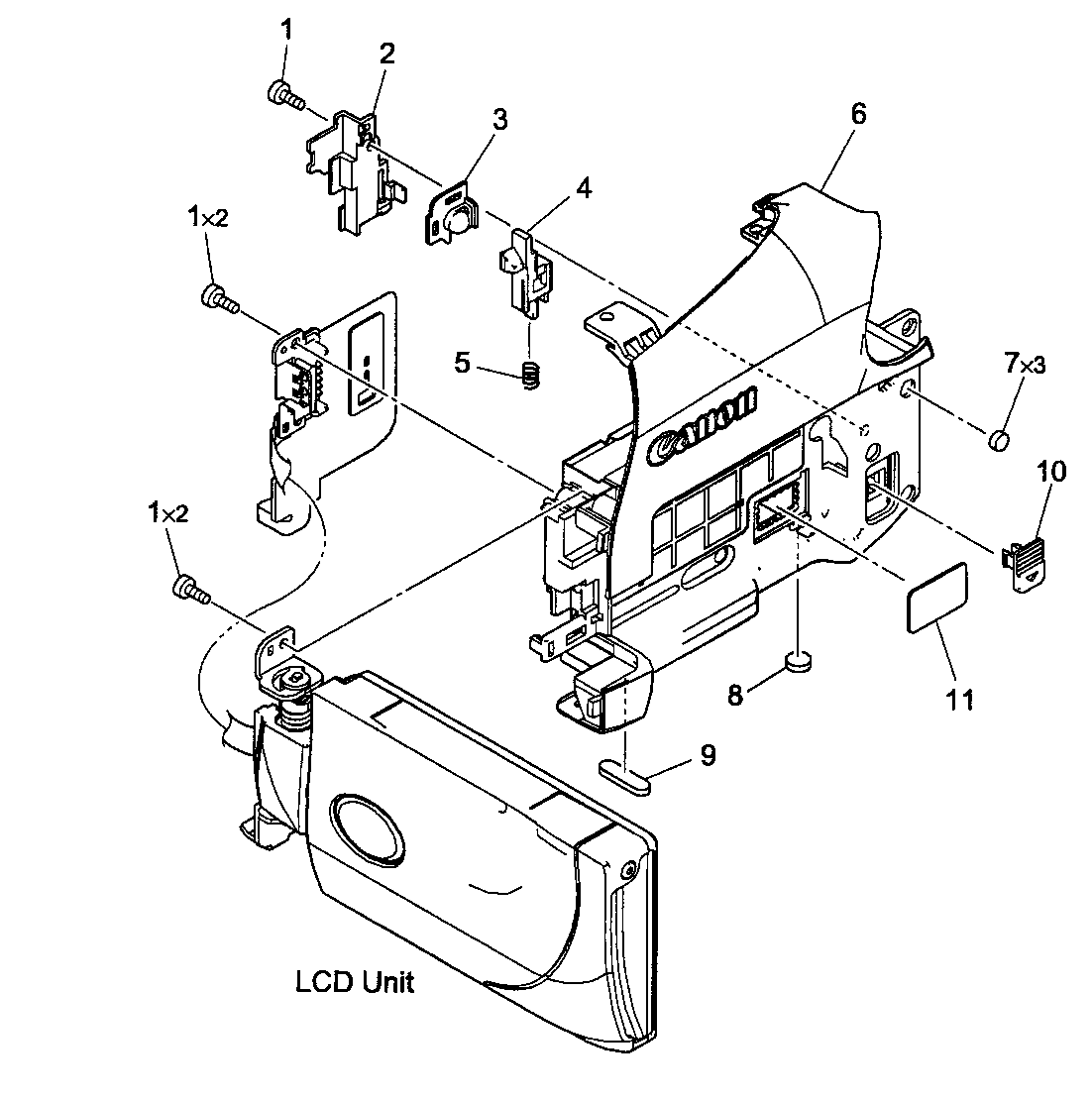

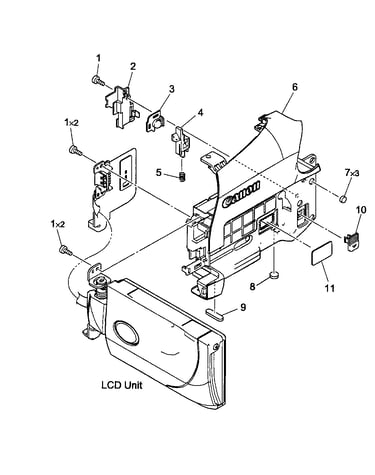

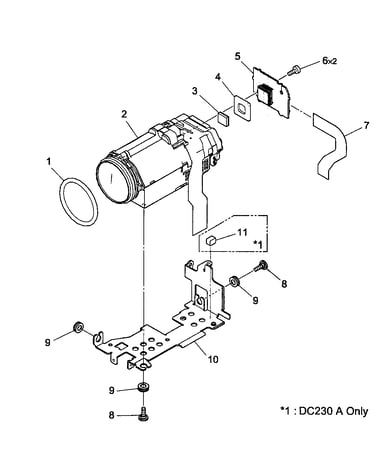

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |

Cover DA3-6441-000
#3

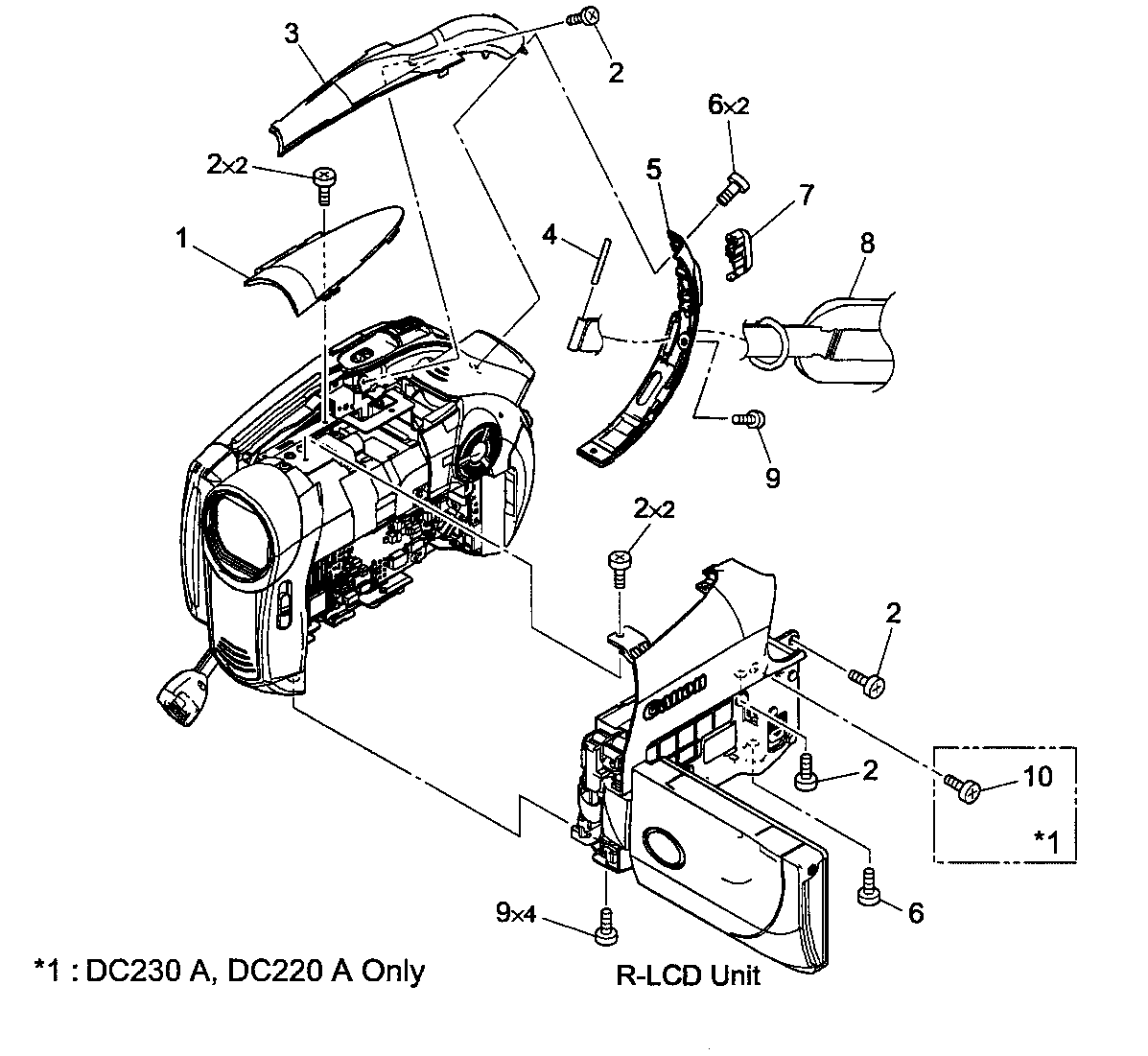

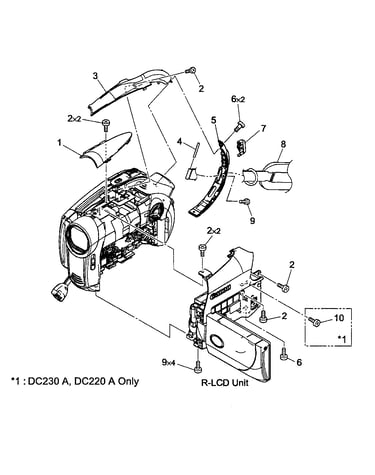

Casing parts 1 diagram

Cover

Part #DA3-6441-000

The manufacturer no longer makes this part, and there's no substitute part

Reflector DA3-3936-000
#3

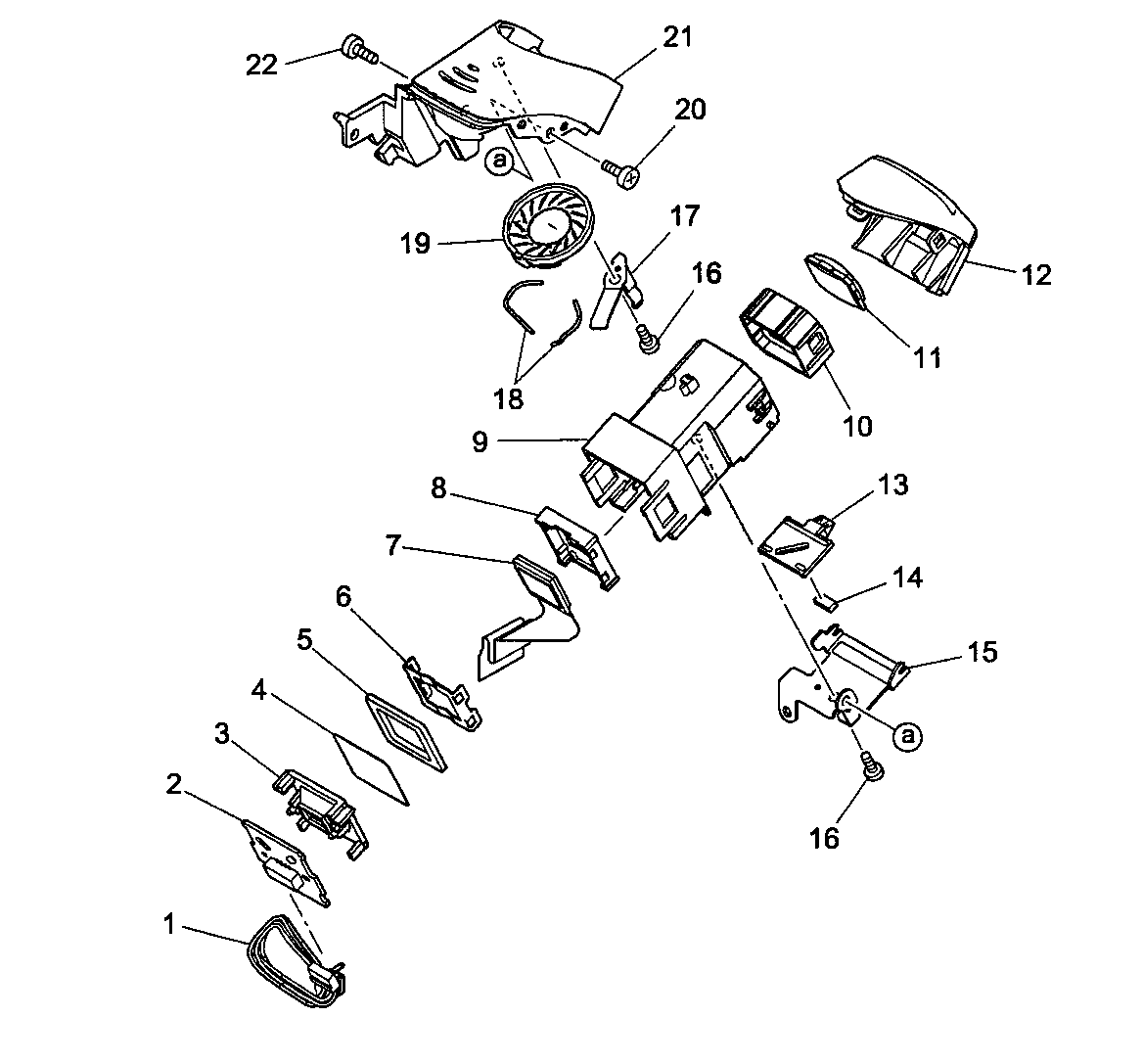

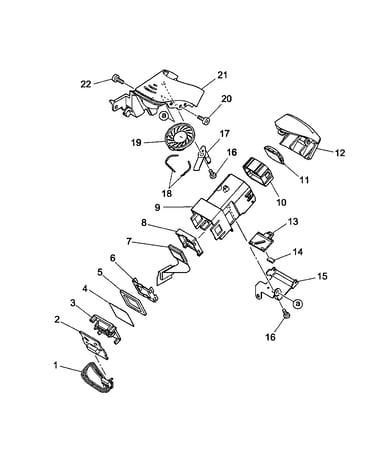

Cvf unit diagram

Reflector

Part #DA3-3936-000

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly DG3-2033-000
#3

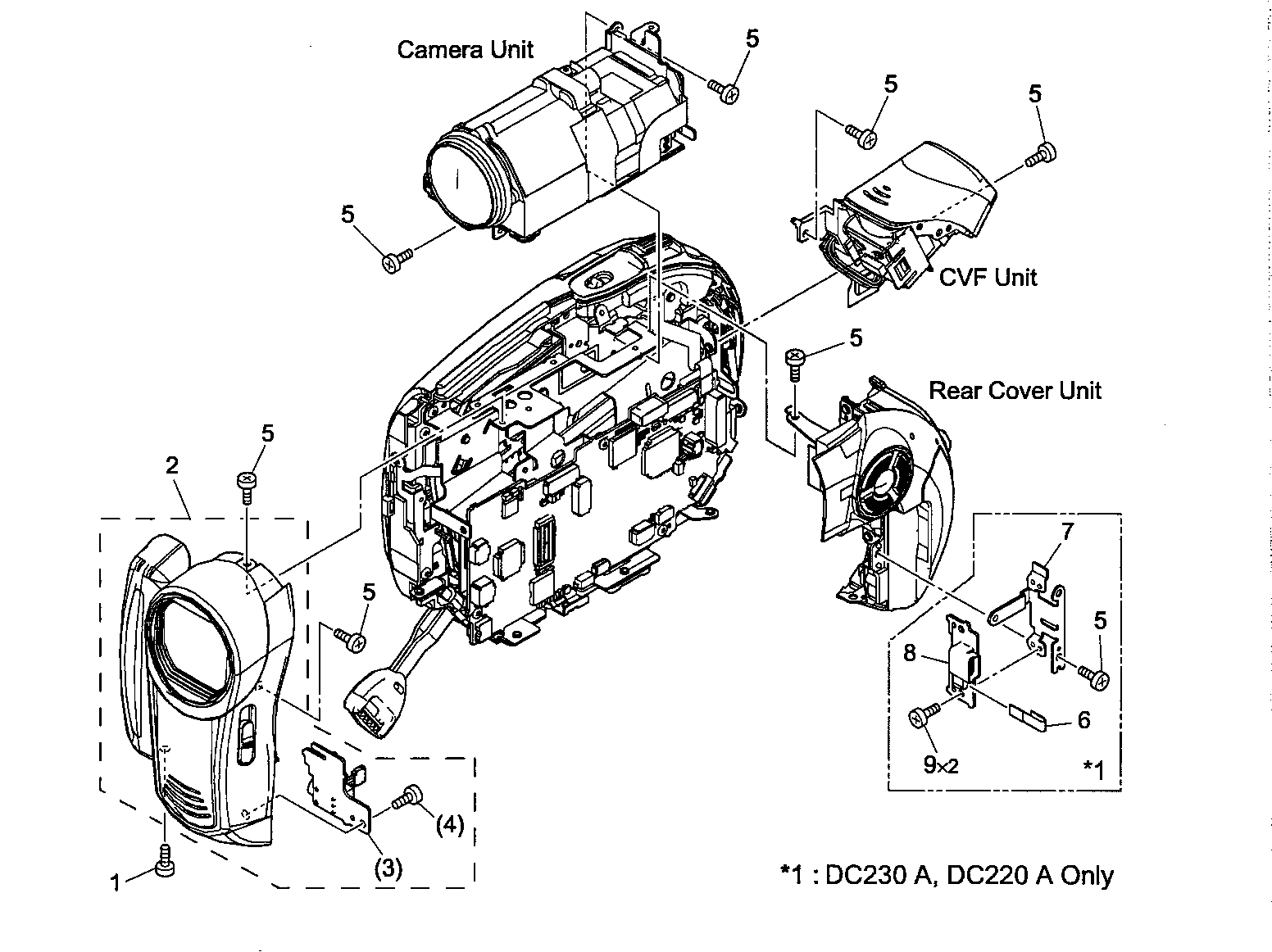

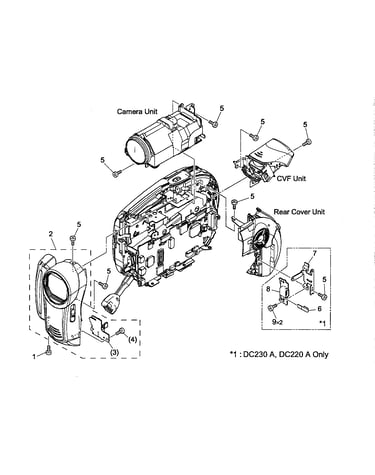

Casing parts 2 diagram

Pcb assembly

Part #DG3-2033-000

The manufacturer no longer makes this part, and there's no substitute part

Recorder DG3-1906-000
#5

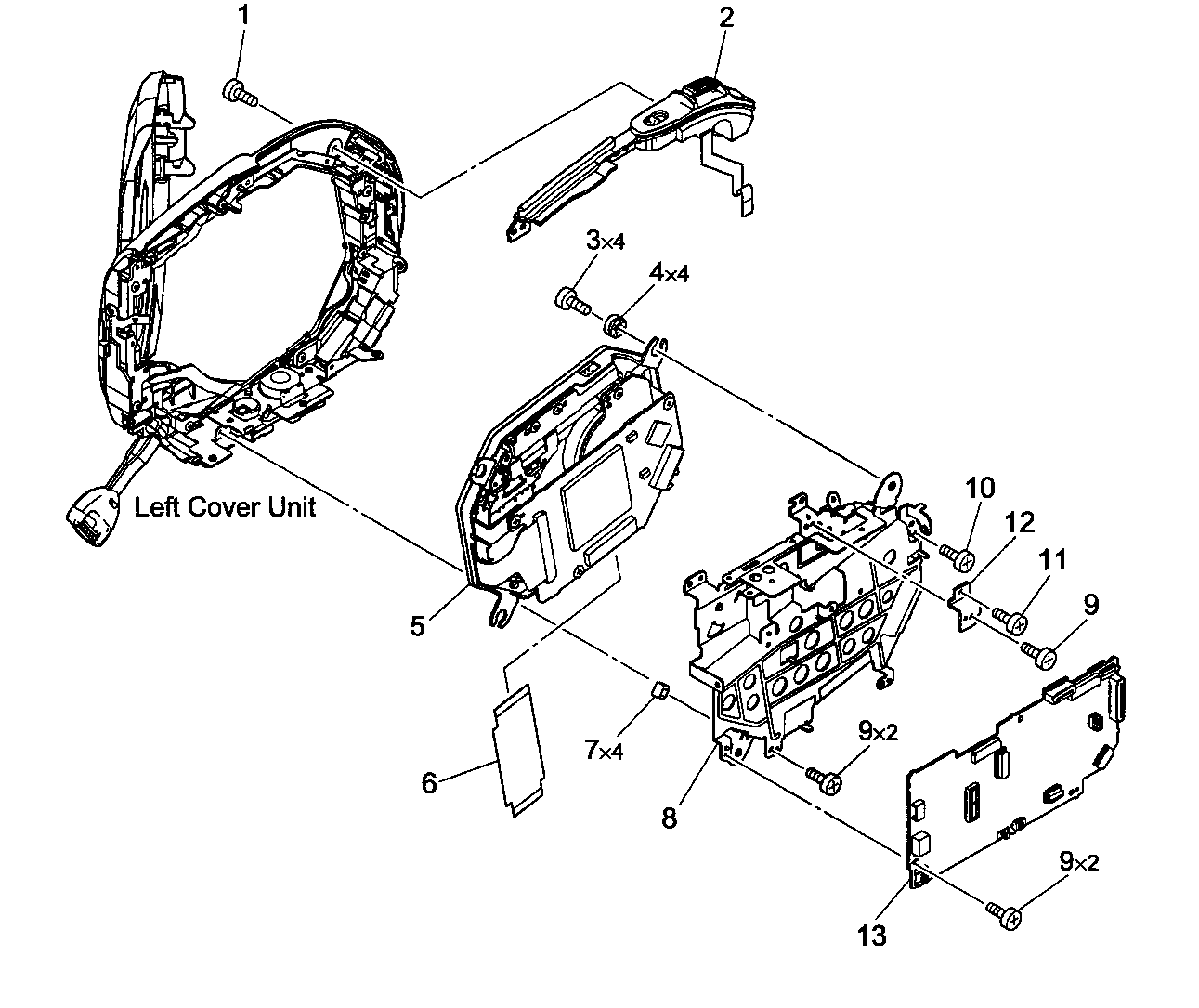

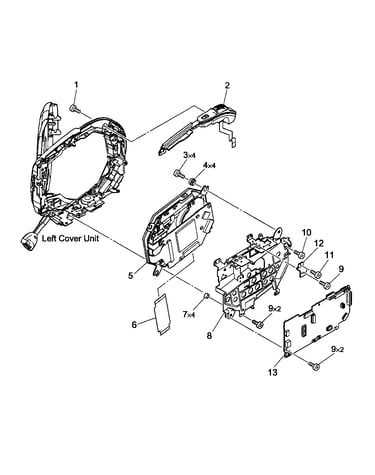

Casing parts 3 diagram

Recorder

Part #DG3-1906-000

The manufacturer no longer makes this part, and there's no substitute part

Zoom Assembly DG3-2043-000
#2

Casing parts 3 diagram

Zoom assembly

Part #DG3-2043-000

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly DG3-2030-000
#15

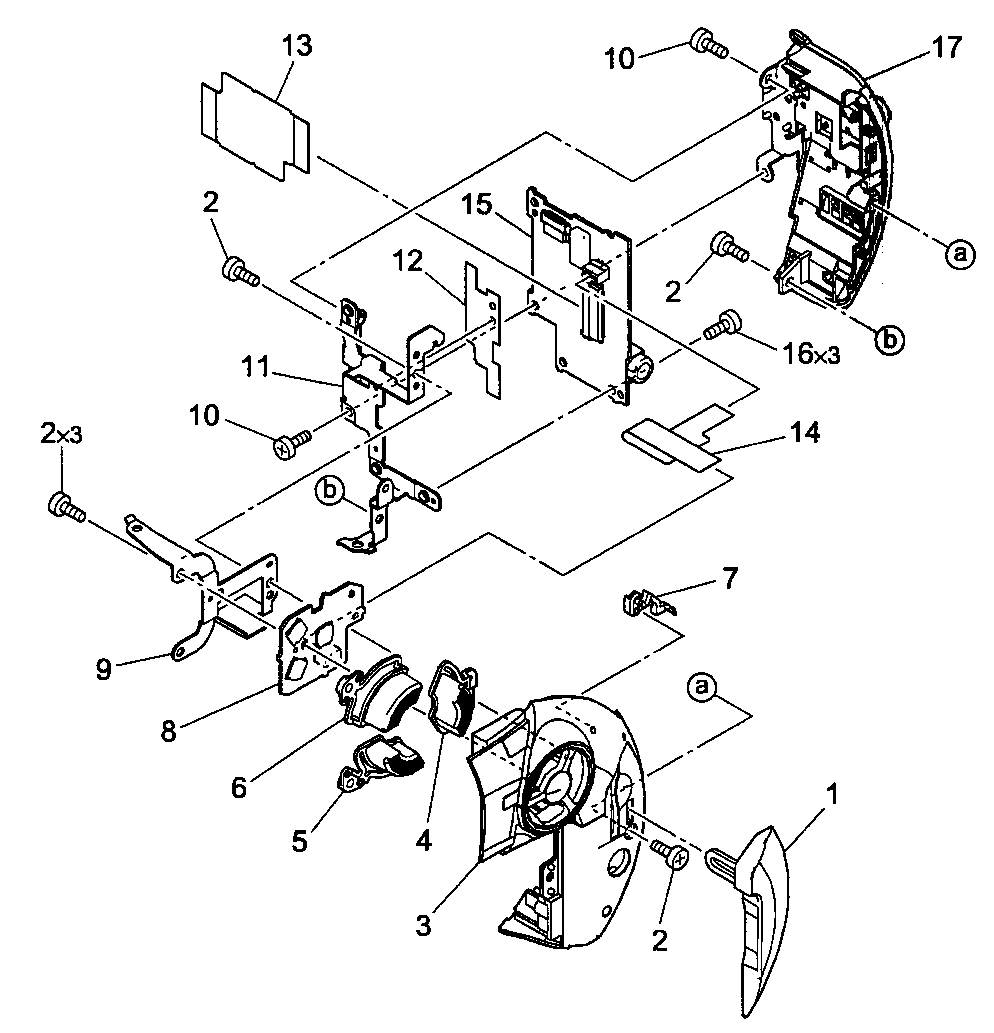

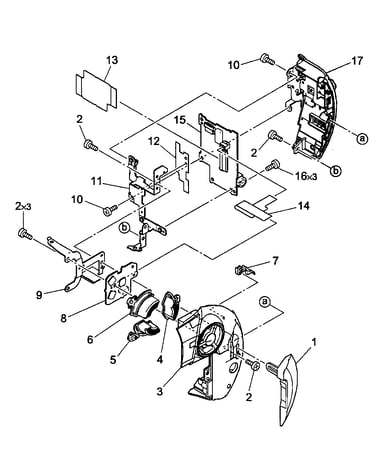

Rear cover unit diagram

Pcb assembly

Part #DG3-2030-000

The manufacturer no longer makes this part, and there's no substitute part

Battery WK1-5170-000
#5

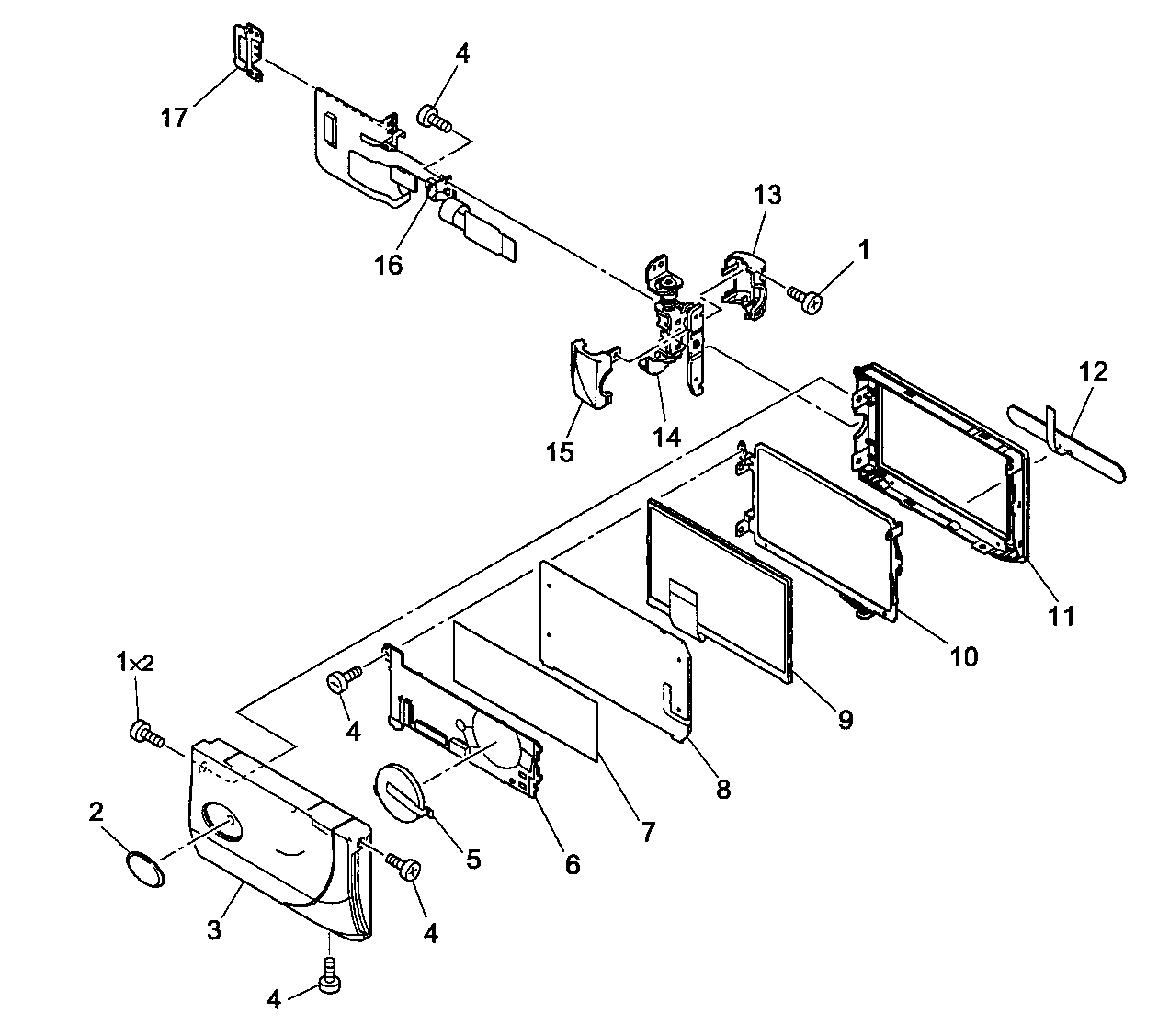

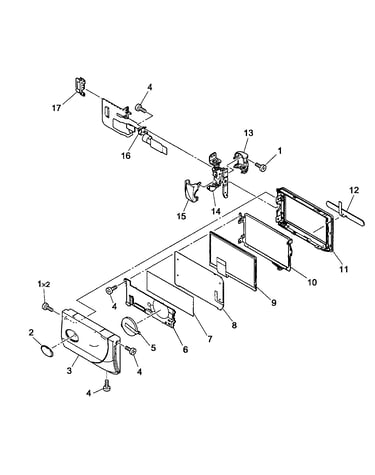

Lcd unit diagram

Battery

Part #WK1-5170-000

The manufacturer no longer makes this part, and there's no substitute part

Cover Disc DY1-9098-000
#1

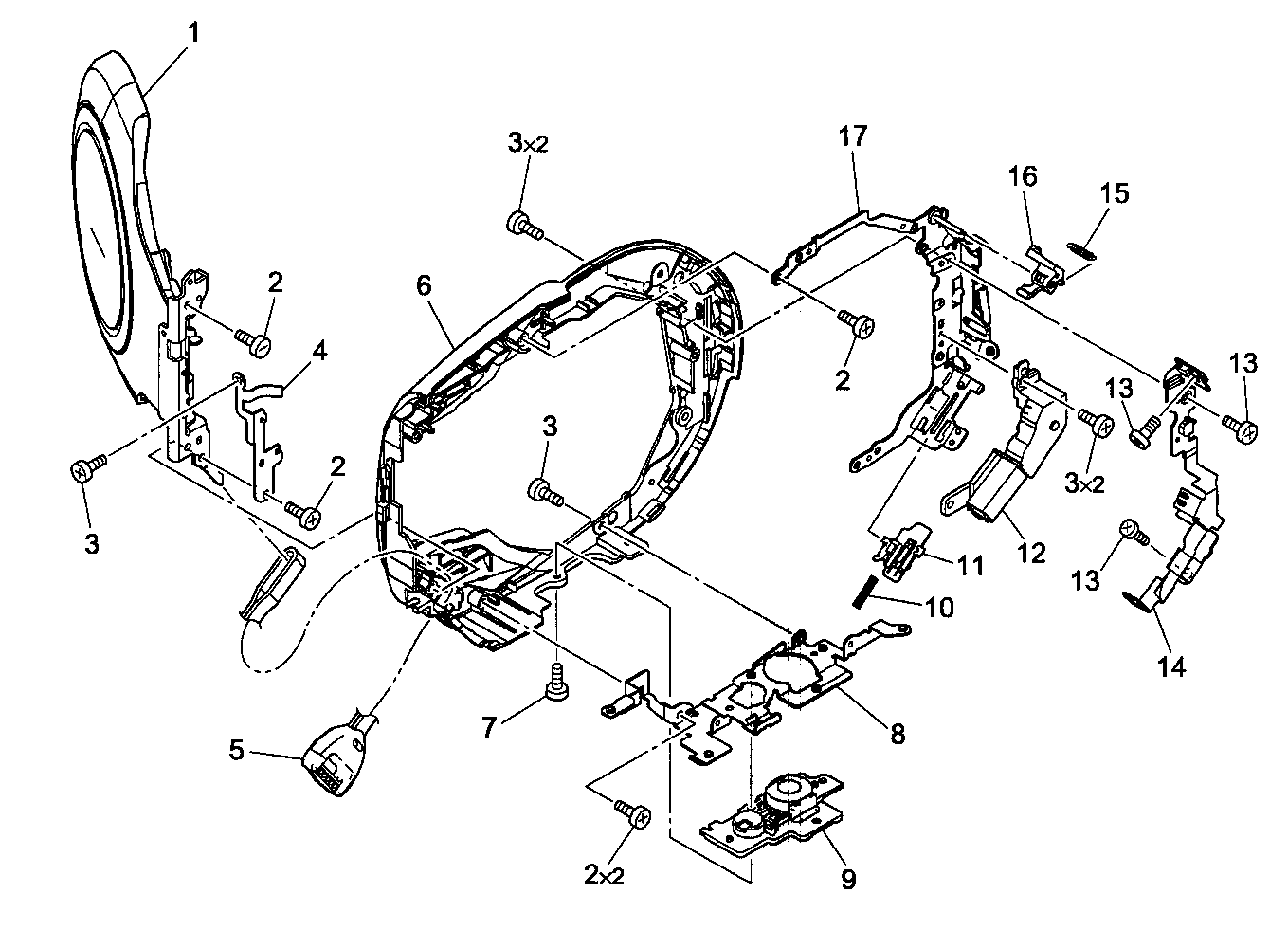

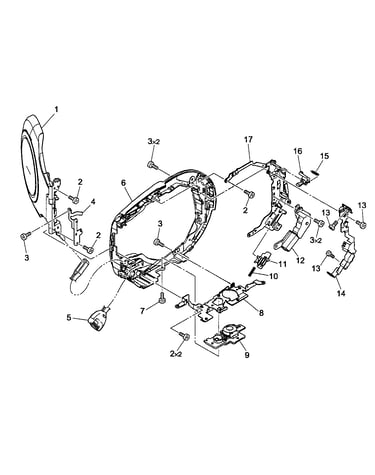

Lt cover unit diagram

Cover disc

Part #DY1-9098-000

The manufacturer no longer makes this part, and there's no substitute part

Key DA3-6463-000
#6

Rear cover unit diagram

Key

Part #DA3-6463-000

The manufacturer no longer makes this part, and there's no substitute part

Flex Cable DH2-5727-000
#14

Rear cover unit diagram

Flex cable

Part #DH2-5727-000

The manufacturer no longer makes this part, and there's no substitute part
