Payne
Heating & Cooling Combined Unit

Model # PH3ZNA030000AA Official Payne package unit

Here are the diagrams and repair parts for Official Payne PH3ZNA030000AA package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Central Air Conditioner Condenser Fan Motor HC35GE235
#NI

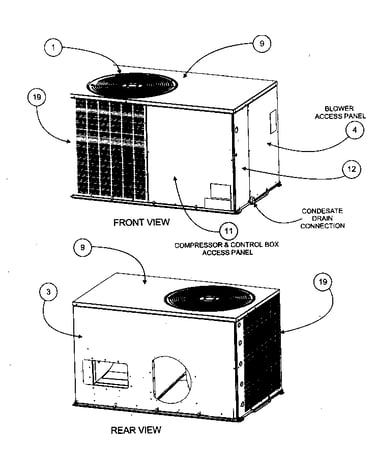

Cabinet parts diagram

Central air conditioner condenser fan motor

Part #HC35GE235

$509.50
In Stock
Arm, Mount HC98ZZ247
#NI

Cabinet parts diagram

Arm, mount

Part #HC98ZZ247

This item is not returnable
$5.51
In Stock
Evaporator Coil 50ZH400288
#NI

Cabinet parts diagram

Evaporator coil

Part #50ZH400288

$2691.48
In Stock
Pnl,louver 50ZP500496
#19

Cabinet parts diagram

Pnl,louver

Part #50ZP500496

$161.14
In Stock
Core,valve EC39EZ067
#NI

Cabinet parts diagram

Core,valve

Part #EC39EZ067

$22.03
In Stock
Top Cover 50ZP400614
#9

Cabinet parts diagram

Top cover

Part #50ZP400614

$346.53
In Stock
Grommet KA56DS001
#NI

Cabinet parts diagram

Grommet

Part #KA56DS001

This item is not returnable
$2.63
In Stock
Band, Mtr HC98ZZ485
#NI

Cabinet parts diagram

Band, mtr

Part #HC98ZZ485

$32.76
In Stock
Fan Blade LA01RA033
#NI

Cabinet parts diagram

Fan blade

Part #LA01RA033

$343.68
In Stock
Switch,tem HH18HA271
#NI

Cabinet parts diagram

Switch,tem

Part #HH18HA271

$18.74
In Stock
