Craftsman
Power Drill

Model # 27024 Official Craftsman 1/2" drill

Here are the diagrams and repair parts for Official Craftsman 27024 1/2" drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Sears Screw 448269-00
#17

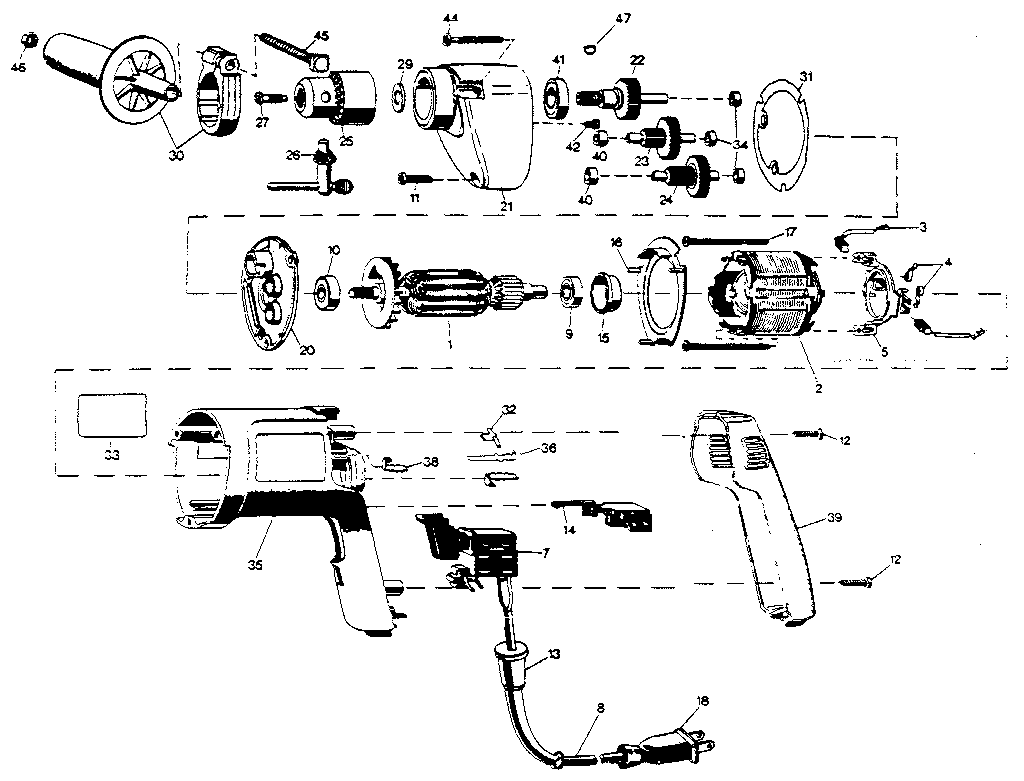

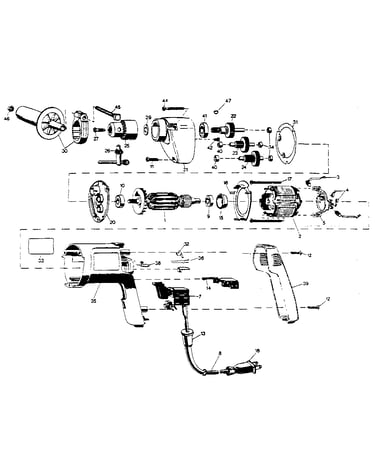

Unit parts diagram

Sears screw

Part #448269-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Chuck Key 450239-00
#25

Unit parts diagram

Craftsman chuck key

Part #450239-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Drill Motor Brush Spring 445860-00
#4

Unit parts diagram

Sears drill motor brush spring

Part #445860-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 448674-00
#45

Unit parts diagram

Screw

Part #448674-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Fan Baffle 447866-00
#16

Unit parts diagram

Sears fan baffle

Part #447866-00

The manufacturer no longer makes this part, and there's no substitute part

Terminal 449192-00
#36

Unit parts diagram

Terminal

Part #449192-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 330005-01
#13

Unit parts diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part

Ndl Bearing 93128-00
#34

Unit parts diagram

Ndl bearing

Part #93128-00

The manufacturer no longer makes this part, and there's no substitute part

Brinley Power Tool 2-prong Power Cord 448557-98
#8

Unit parts diagram

Brinley power tool 2-prong power cord

Part #448557-98

The manufacturer no longer makes this part, and there's no substitute part

Sears Plug 234900-02
#18

Unit parts diagram

Sears plug

Part #234900-02

The manufacturer no longer makes this part, and there's no substitute part
