Model # 41789190620 Official Kenmore combination washer/dryer

Here are the diagrams and repair parts for Official Kenmore 41789190620 combination washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

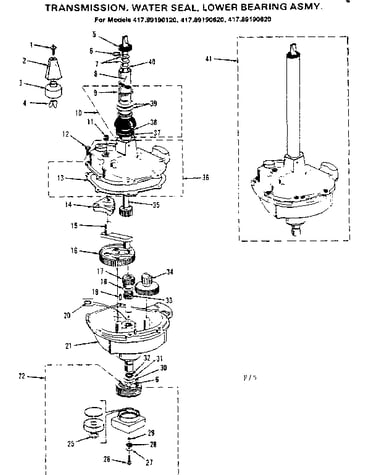

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 320 parts  |
Terminal Block 73334
#51

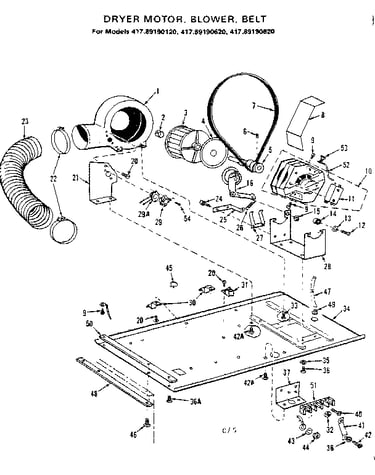

Dryer motor, blower, belt diagram

Terminal block

Part #73334

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 73334. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Screw 136469
Screw

Part #136469

Replaced by #131168200

?
Manufacturer substitution
This part replaces 136469. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Screw 136132
#42

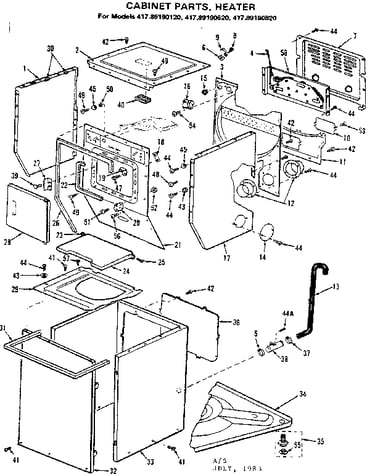

Dryer/cabinet parts heater diagram

Screw

Part #136132

Replaced by #131302800

?
Manufacturer substitution
This part replaces 136132. Substitute parts can look different from the original.
BEST SELLER
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Adhesive 64709-1

#NI

All parts diagram

Adhesive

Part #64709-1

Replaced by #5308027429

?
Manufacturer substitution
This part replaces 64709-1. Substitute parts can look different from the original.
$48.99 |
11% OFF Phone Price : $54.99
In Stock
Thrust Washer 132835
#45

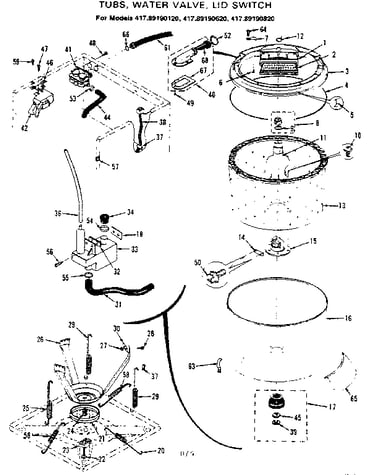

Tubs water valvelid switch diagram

Thrust washer

Part #132835

Replaced by #5308002401

?
Manufacturer substitution
This part replaces 132835. Substitute parts can look different from the original.
$20.89 |
22% OFF Phone Price : $26.89
In Stock
Spray Paint (white) F94566-10

#NI

All parts diagram

Spray paint (white)

Part #F94566-10

Replaced by #5303321319

?
Manufacturer substitution
This part replaces F94566-10. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Drive Belt 133171
#7

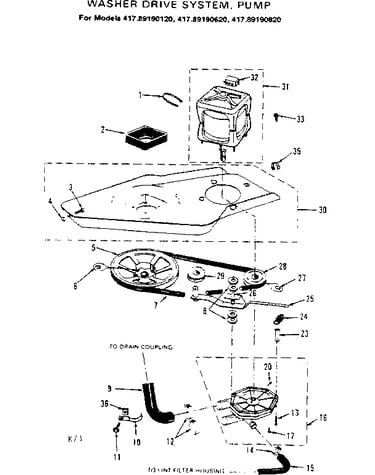

Washer drive system, pump diagram

Drive belt

Part #133171

Replaced by #5303280326

?
Manufacturer substitution
This part replaces 133171. Substitute parts can look different from the original.
This item is not returnable
$33.14 |
15% OFF Phone Price : $39.14
In Stock
Washer 65798
#66

Tubs water valvelid switch diagram

Washer

Part #65798

Replaced by #5303161296

?
Manufacturer substitution
This part replaces 65798. Substitute parts can look different from the original.
This item is not returnable
$10.44 |
16% OFF Phone Price : $12.44
In Stock
Heater 136777
#29A

Dryer motor, blower, belt diagram

Heater

Part #136777

Replaced by #131658100

?
Manufacturer substitution
This part replaces 136777. Substitute parts can look different from the original.
$62.60
In Stock
Screw 135019
#44

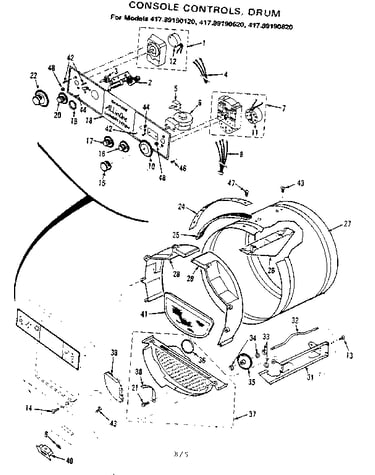

Console controls drum diagram

Screw

Part #135019

Replaced by #131243800

?
Manufacturer substitution
This part replaces 135019. Substitute parts can look different from the original.
$7.84 |
11% OFF Phone Price : $8.84
In Stock
