Upright Freezer

Model # UF16DL3 Official Frigidaire upright freezer - lf30889040

Here are the diagrams and repair parts for Official Frigidaire UF16DL3 upright freezer - lf30889040, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forUF16DL3 Freestanding Freezers

  • Filter 08000027
    #7

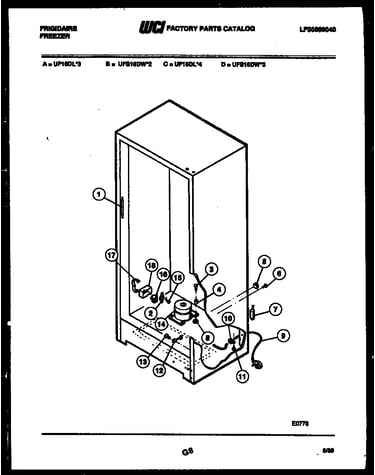

    System parts diagram

    Filter

    Part #08000027

    Replaced by #5303305677

    ?
    Manufacturer substitution
    This part replaces 08000027. Substitute parts can look different from the original.
    BEST SELLER
    $23.67 |
    20% OFF Phone Price : $29.67
    In Stock
  • Key 06599905
    #12

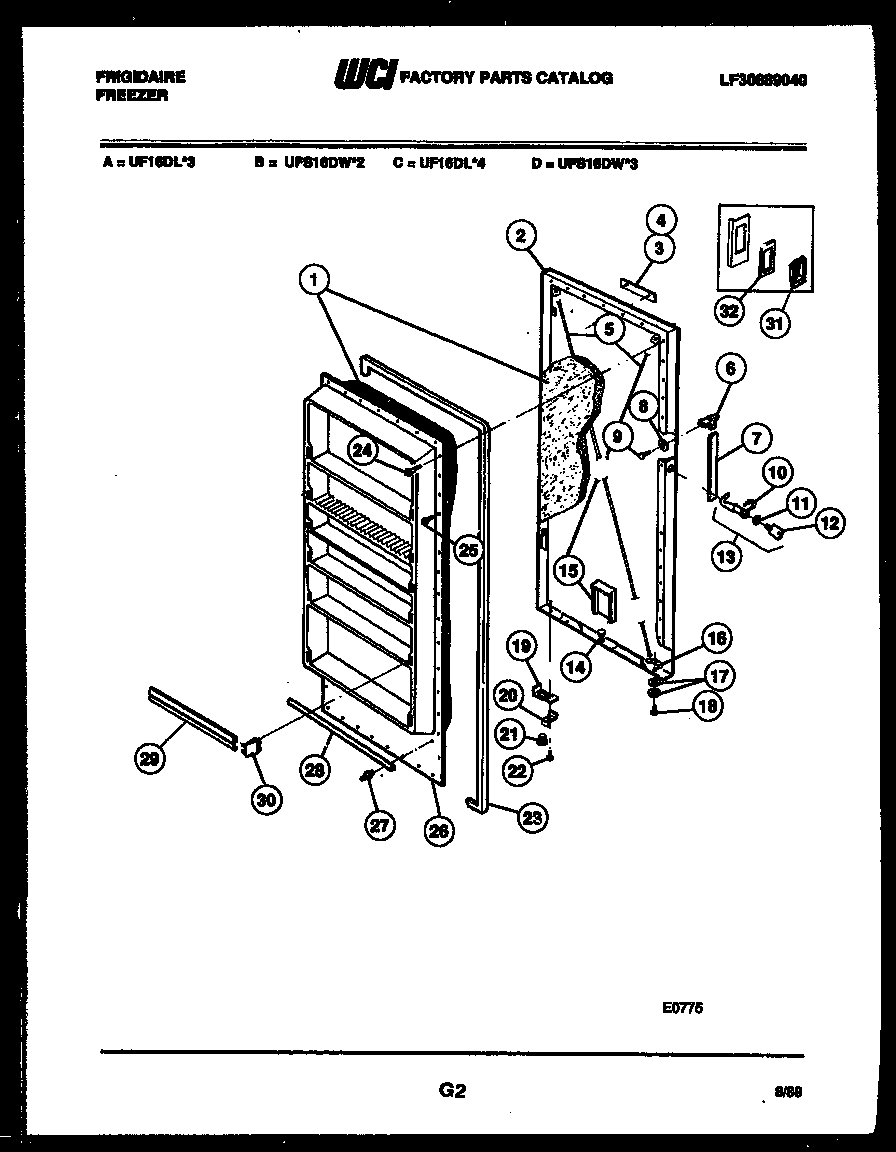

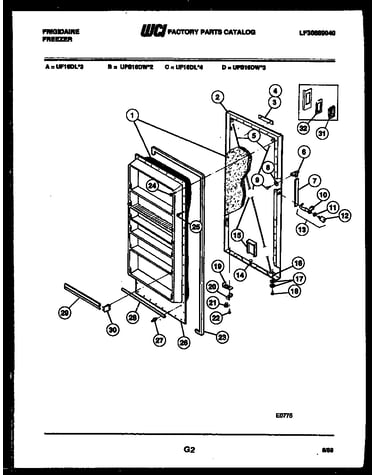

    Door parts diagram

    Key

    Part #06599905

    Replaced by #297147700

    ?
    Manufacturer substitution
    This part replaces 06599905. Substitute parts can look different from the original.
    3.8 (51)
    BEST SELLER
    $8.48 |
    11% OFF Phone Price : $9.48
    In Stock
  • Bulb 3091423
    #25

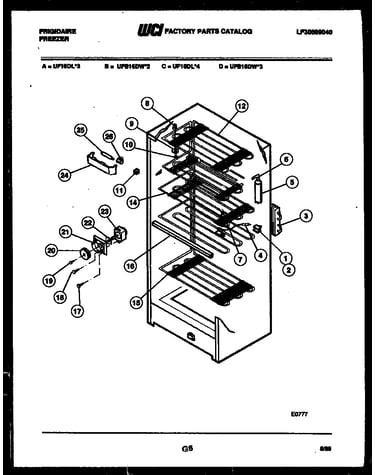

    Shelf parts diagram

    Bulb

    Part #3091423

    Replaced by #5304517886

    ?
    Manufacturer substitution
    This part replaces 3091423. Substitute parts can look different from the original.
    3.9 (19)
    BEST SELLER
    $51.58 |
    10% OFF Phone Price : $57.58
    In Stock
  • Drain 08005500
    Drain

    Part #08005500

    Replaced by #5304511843

    ?
    Manufacturer substitution
    This part replaces 08005500. Substitute parts can look different from the original.
    This item is not returnable
    $13.52 |
    13% OFF Phone Price : $15.52
    In Stock
  • Hose 08037944
    #18

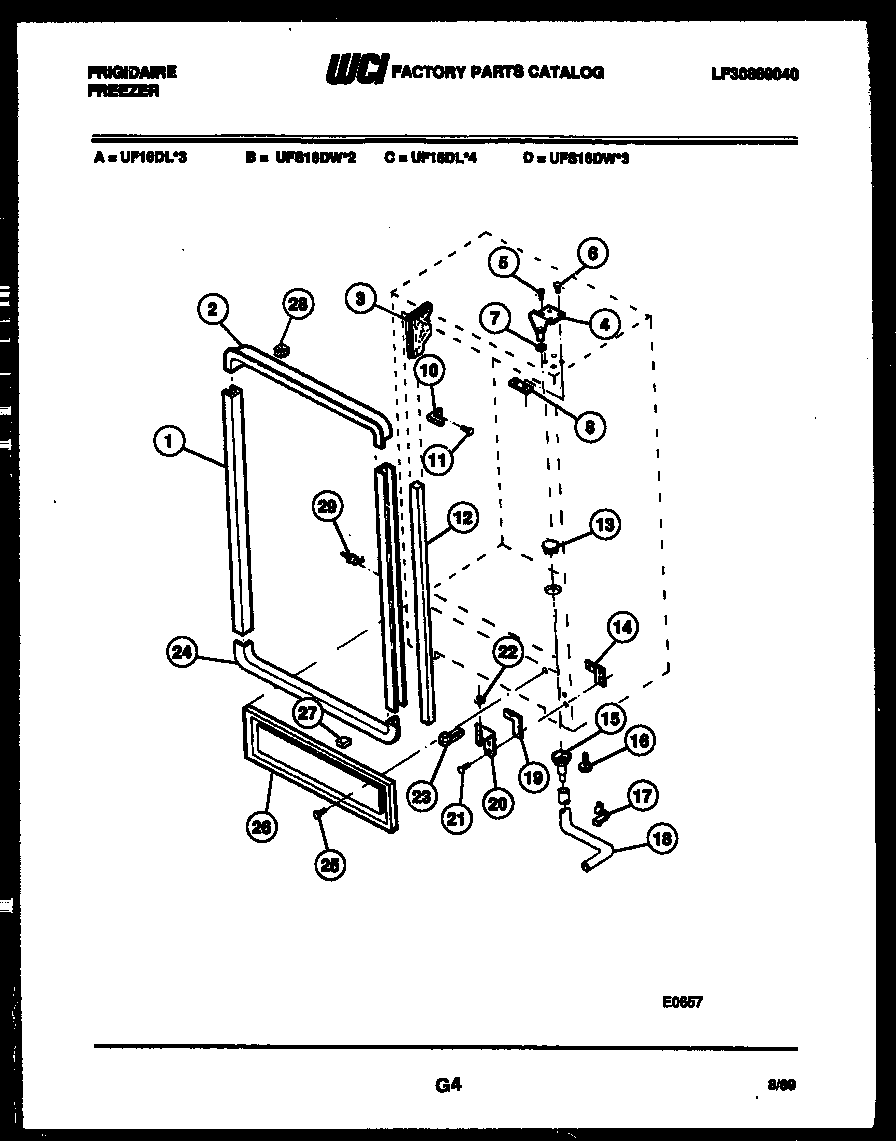

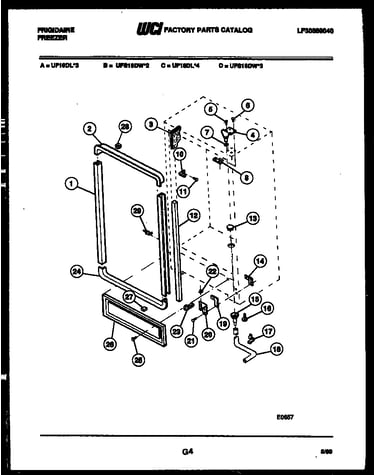

    Cabinet parts diagram

    Hose

    Part #08037944

    Replaced by #5304512272

    ?
    Manufacturer substitution
    This part replaces 08037944. Substitute parts can look different from the original.
    5 (1)
    This item is not returnable
    $16.36 |
    11% OFF Phone Price : $18.36
    In Stock
  • Support, Left 08037927
    #1

    Shelf parts diagram

    Support, left

    Part #08037927

    Replaced by #297001600

    ?
    Manufacturer substitution
    This part replaces 08037927. Substitute parts can look different from the original.
    This item is not returnable
    $16.67 |
    11% OFF Phone Price : $18.67
    In Stock
  • Screw 06594684
    Screw

    Part #06594684

    Replaced by #216036601

    ?
    Manufacturer substitution
    This part replaces 06594684. Substitute parts can look different from the original.
    $14.74
    In Stock
  • Freezer Screw, #8-18 X 1/2-in 08016582
    #9

    Door parts diagram

    Freezer screw, #8-18 x 1/2-in

    Part #08016582

    The manufacturer no longer makes this part, and there's no substitute part

  • Foot 06593395
    #16

    Cabinet parts diagram

    Foot

    Part #06593395

    This item is not returnable
    $4.39
    In Stock
  • Insert 08037949
    #4

    Door parts diagram

    Insert

    Part #08037949

    $20.09
    In Stock
