Model # S1077060 Official Hoover handheld vacuum
Here are the diagrams and repair parts for Official Hoover S1077060 handheld vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
S1077060 Vacuum Cleaners
#1

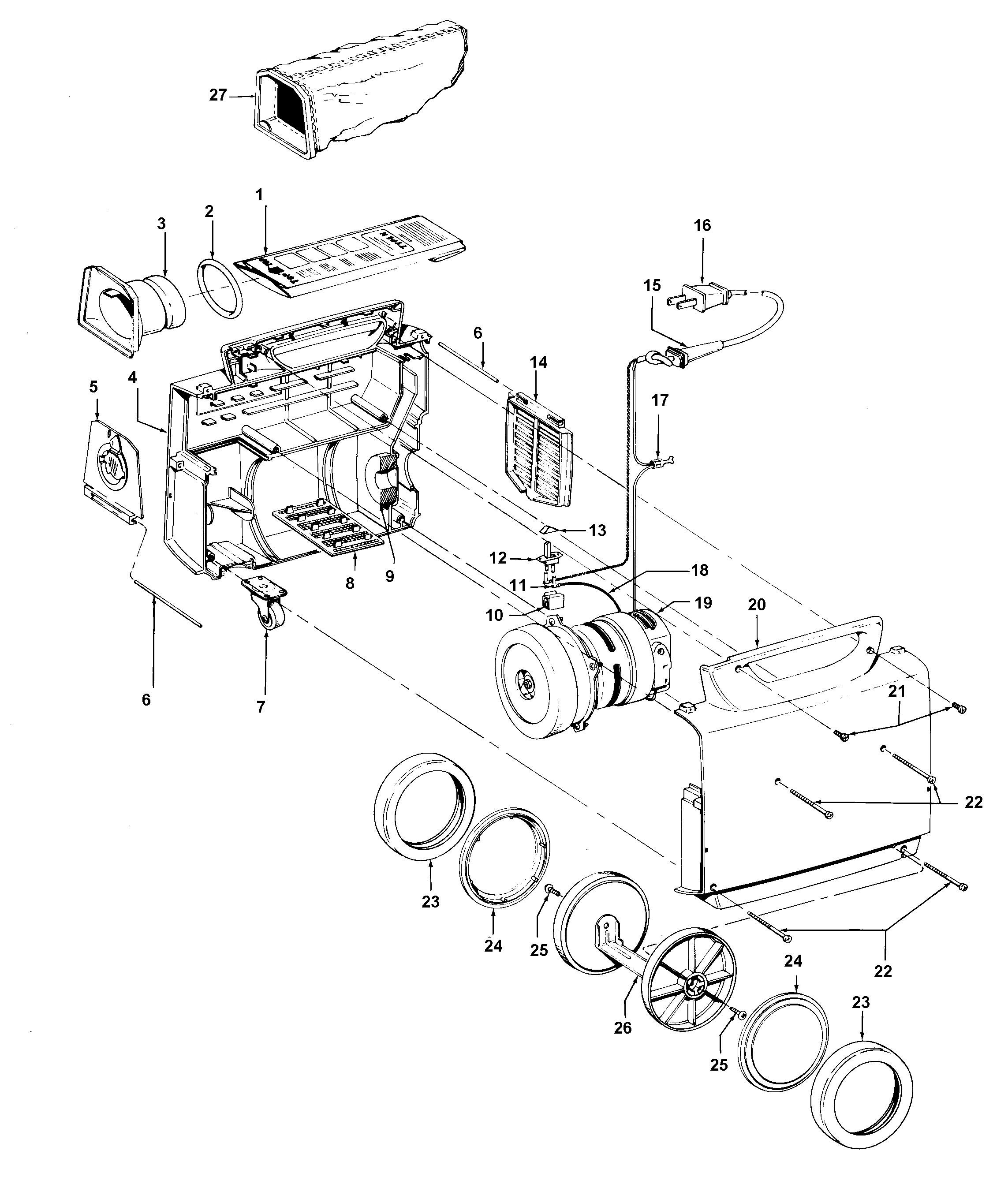

Mainhousing diagram
Hoover vacuum bag, type n, 5-pack
Part #4010038N
The manufacturer no longer makes this part, and there's no substitute part
#21

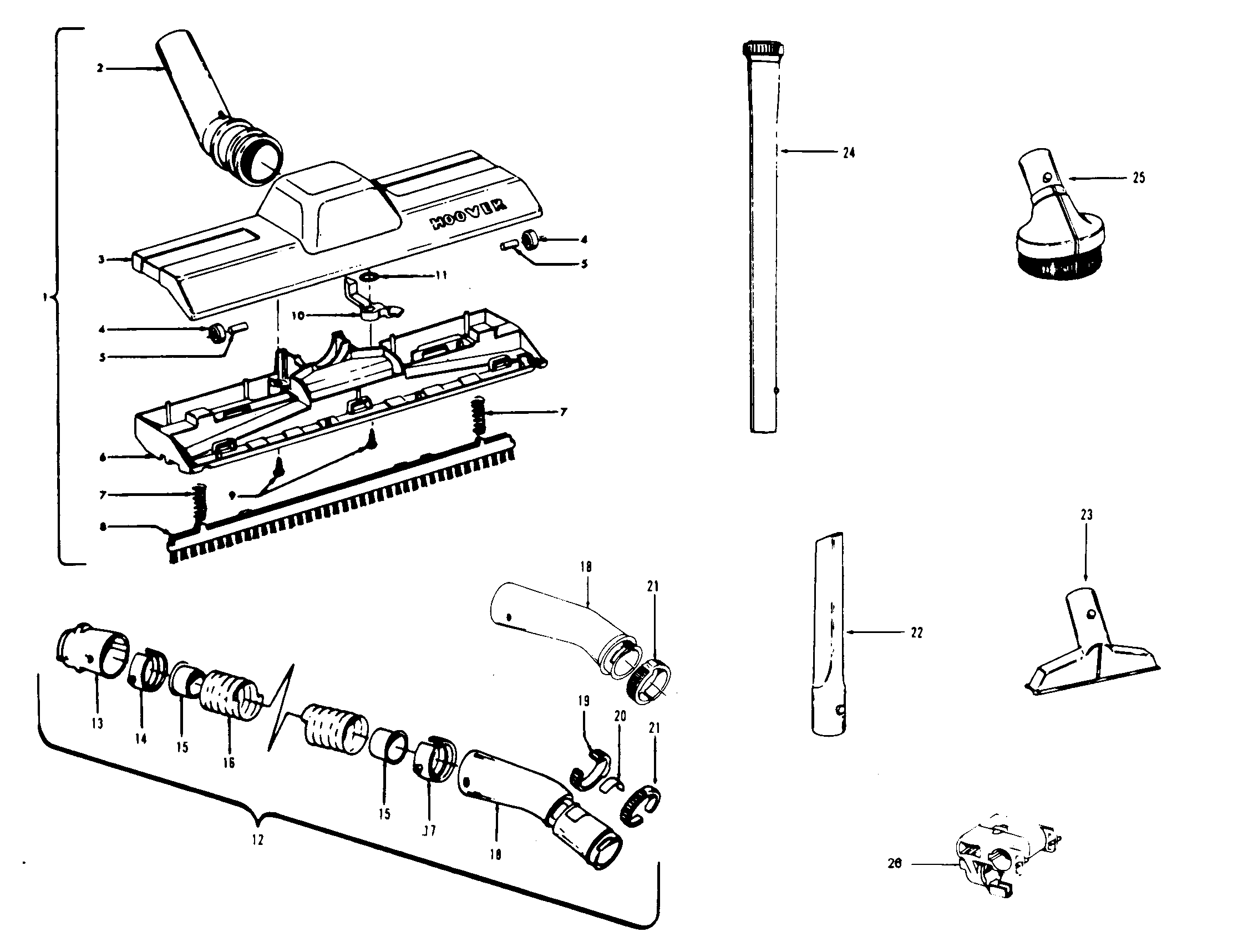

Hose, cleaningtools diagram
Vacuum hose grip lock ring
Part #36153009
The manufacturer no longer makes this part, and there's no substitute part
#22
Hose, cleaningtools diagram
Kenmore vacuum crevice tool
Part #38617017
The manufacturer no longer makes this part, and there's no substitute part
#17

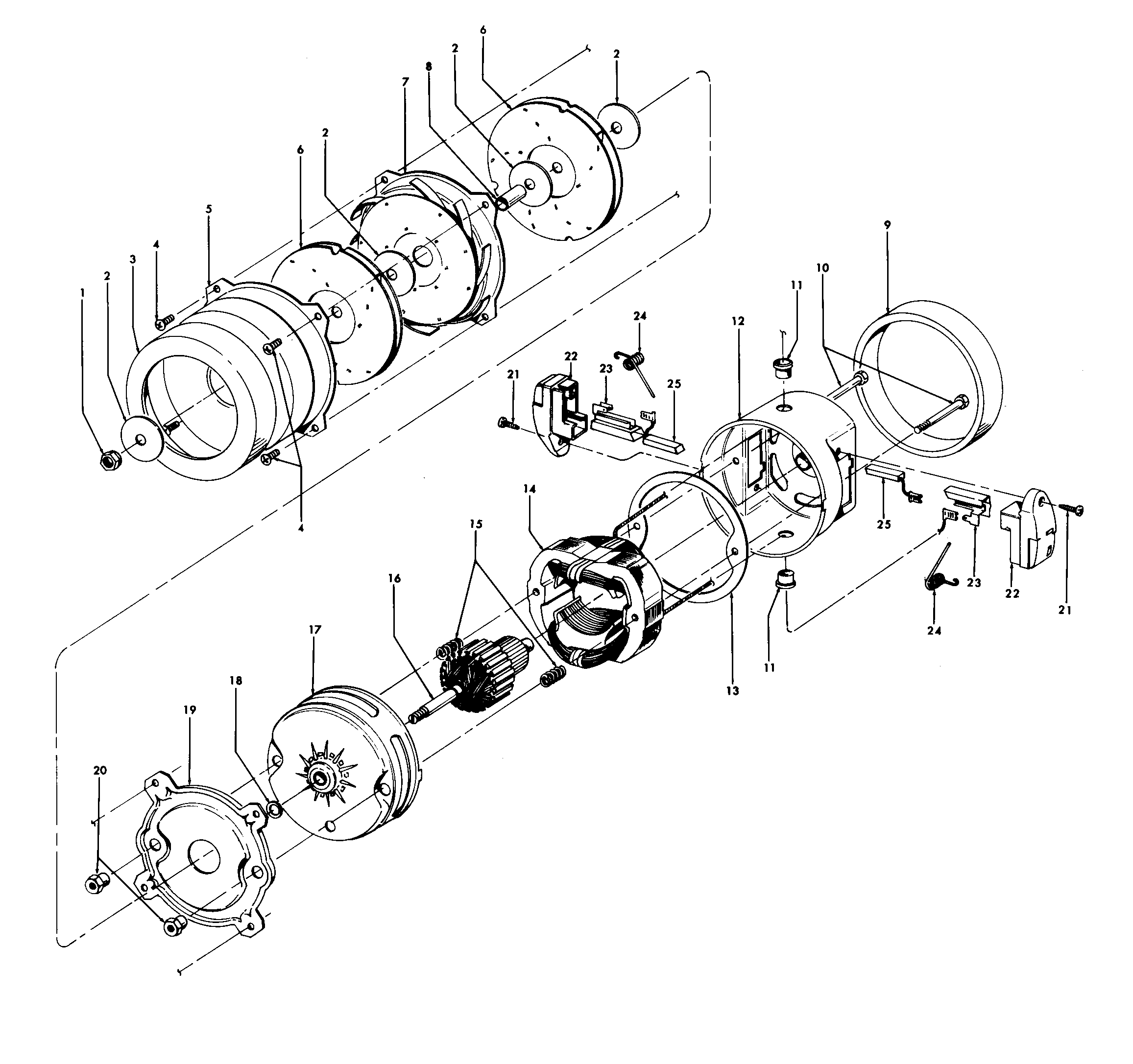

Motor assembly diagram
Motor housing assembly
Part #37191085
The manufacturer no longer makes this part, and there's no substitute part
#3

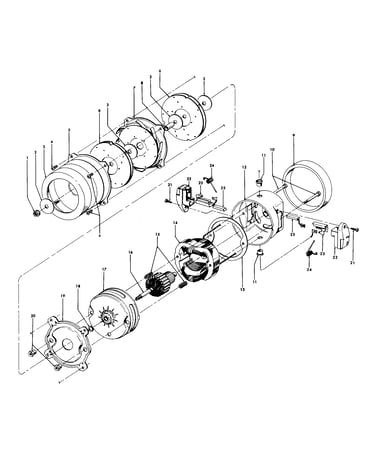

Motor assembly diagram
Motor mount
Part #31328002
The manufacturer no longer makes this part, and there's no substitute part
#13

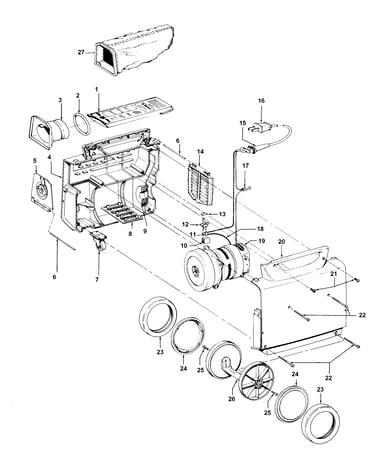

Mainhousing diagram
Kenmore button
Part #38421012
The manufacturer no longer makes this part, and there's no substitute part
#4

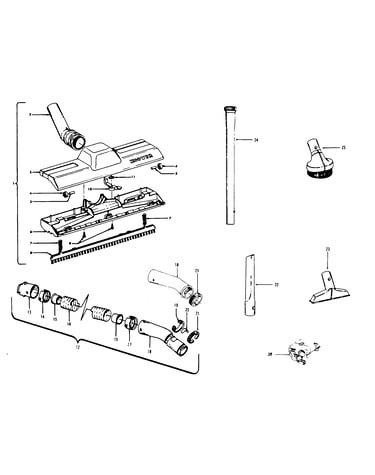

Hose, cleaningtools diagram
Vacuum floor nozzle roller
Part #38521018
The manufacturer no longer makes this part, and there's no substitute part
#21
Mainhousing diagram
Vacuum screw
Part #21447043
The manufacturer no longer makes this part, and there's no substitute part
#15
Hose, cleaningtools diagram
Kenmore sleeve hose
Part #32156010
The manufacturer no longer makes this part, and there's no substitute part
#25
Hose, cleaningtools diagram
Kenmore vacuum dust brush
Part #43414064
The manufacturer no longer makes this part, and there's no substitute part
