Amana
Top-Mount Refrigerator

Model # BIFA Official Amana built-in refrigerator/freezer

Here are the diagrams and repair parts for Official Amana BIFA built-in refrigerator/freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

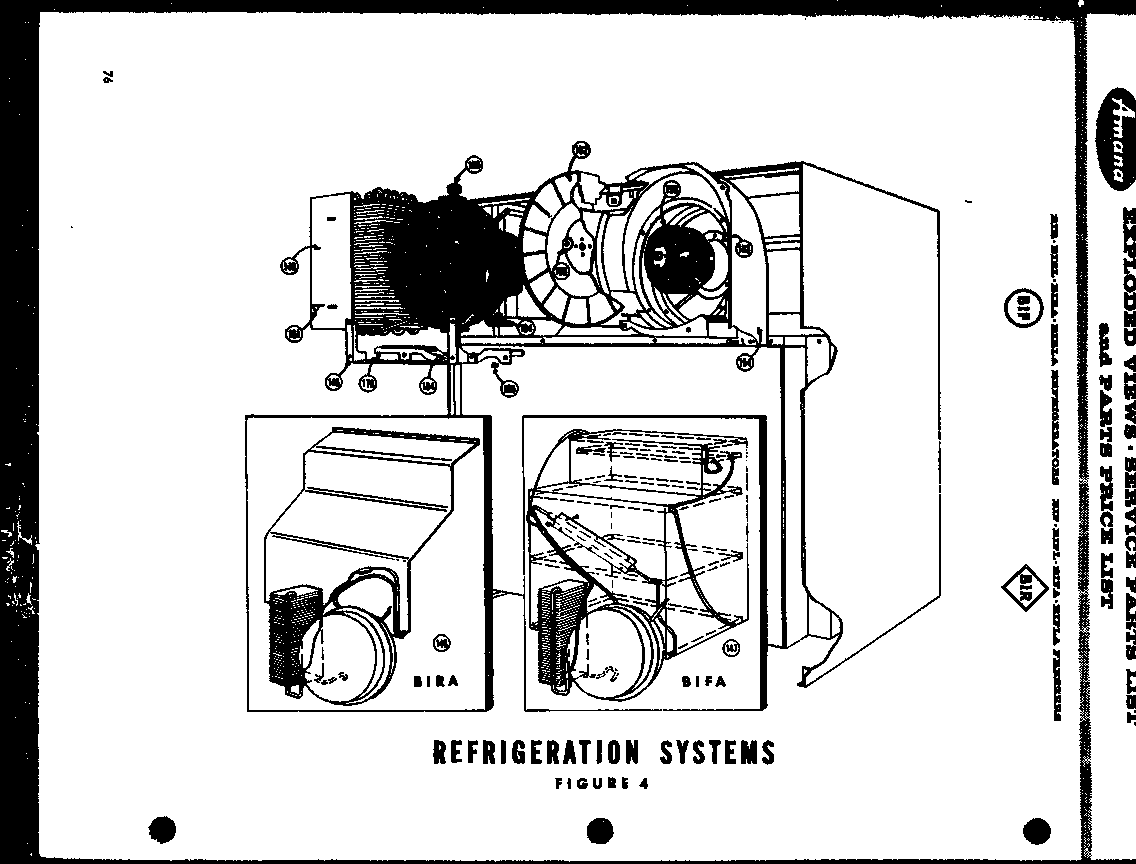

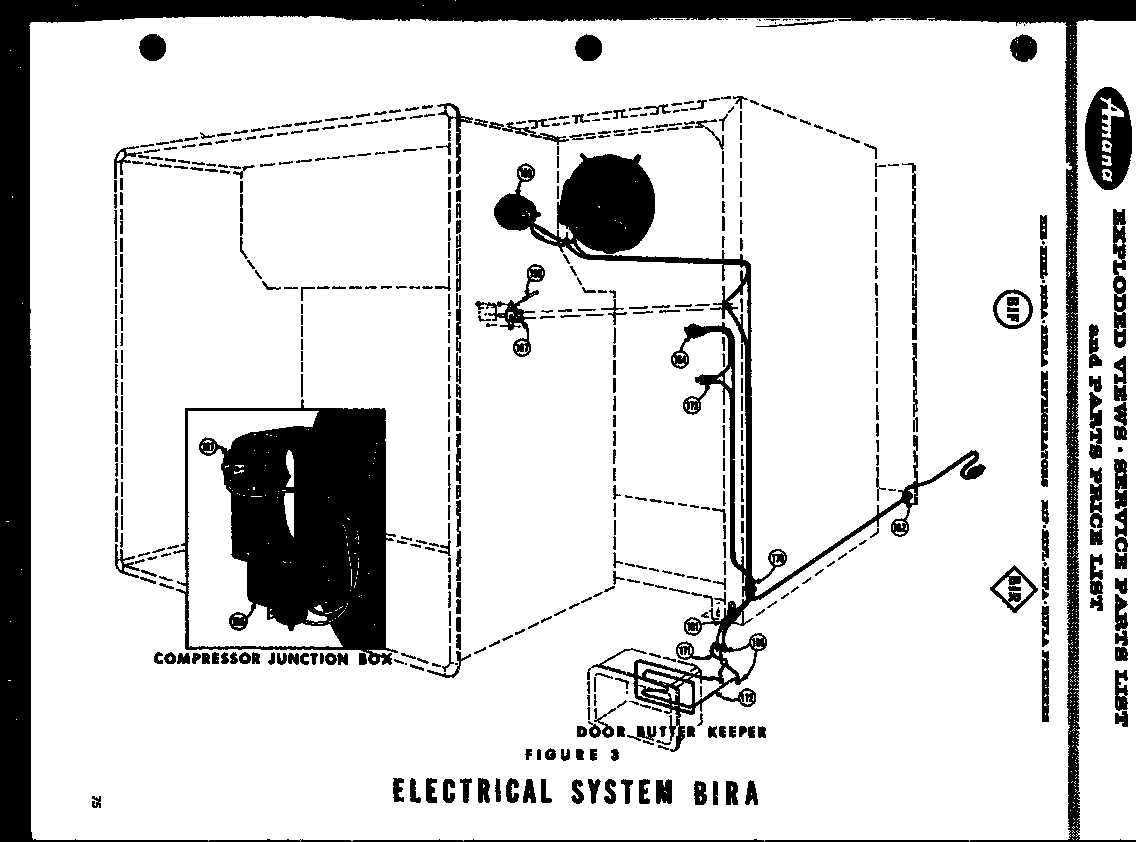

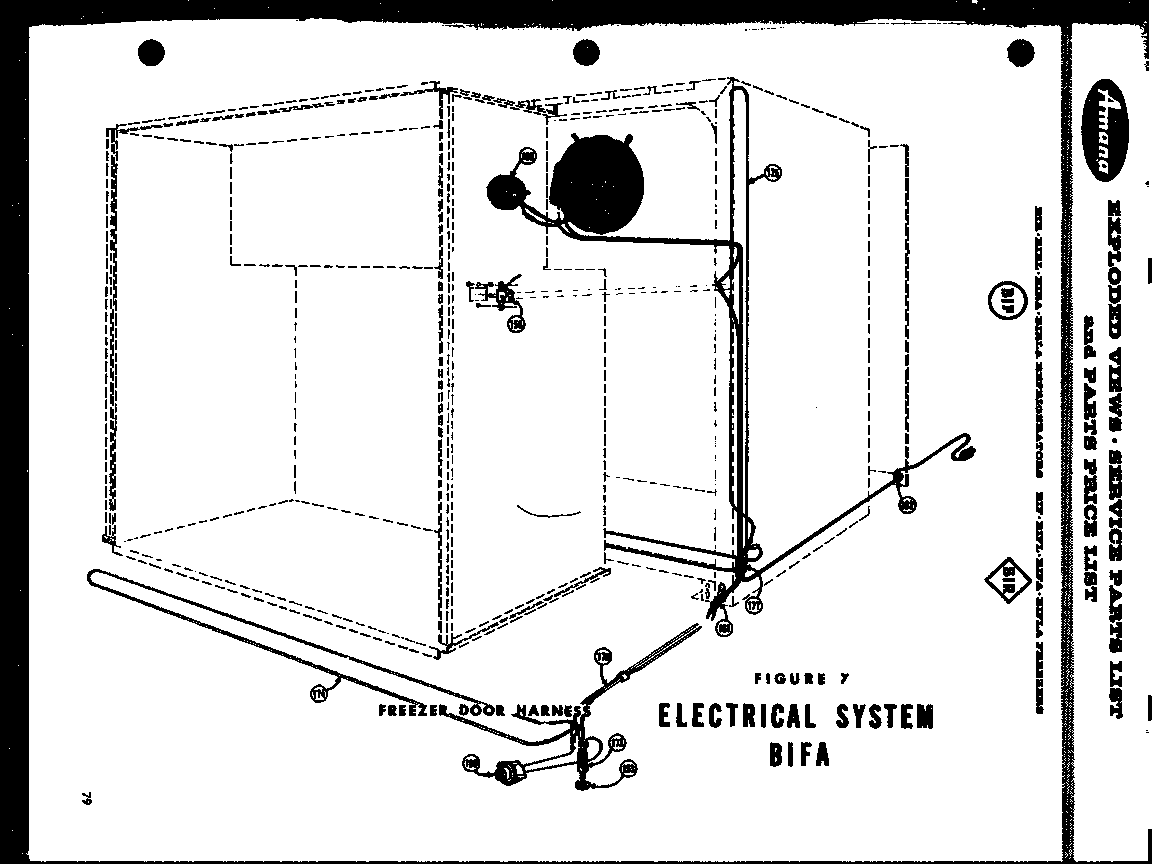

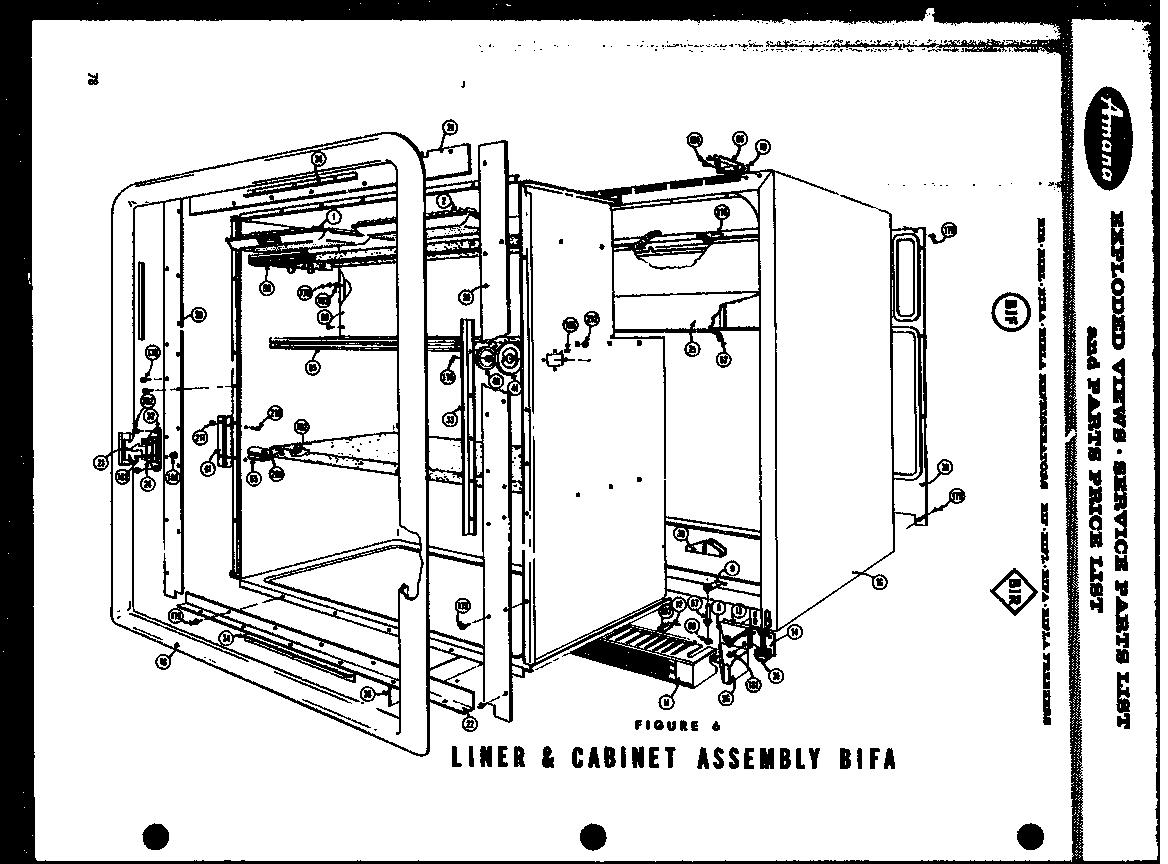

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 282 parts  |
Side Support, Freshener Tray B0491601
#97

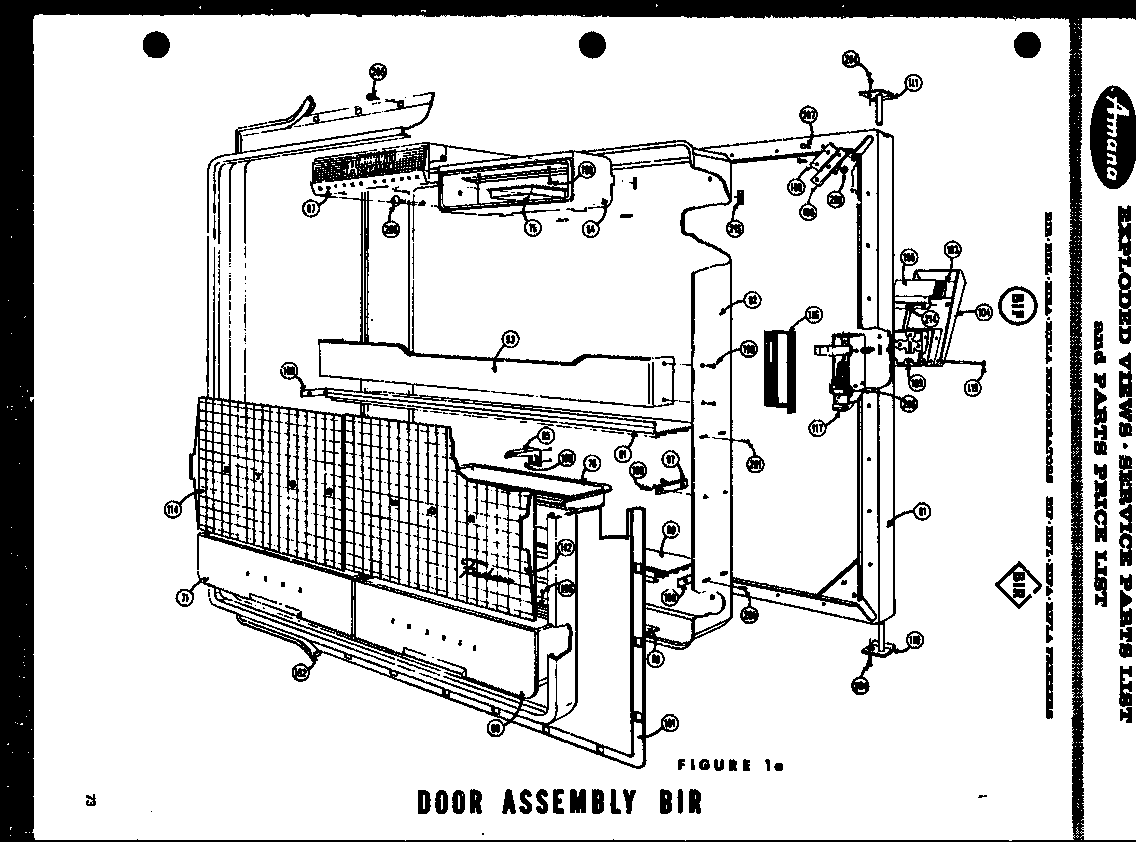

Door assembly bir (ii) diagram

Side support, freshener tray

Part #B0491601

The manufacturer no longer makes this part, and there's no substitute part

Lip, (rubber) Drip Trough B0503601
#56

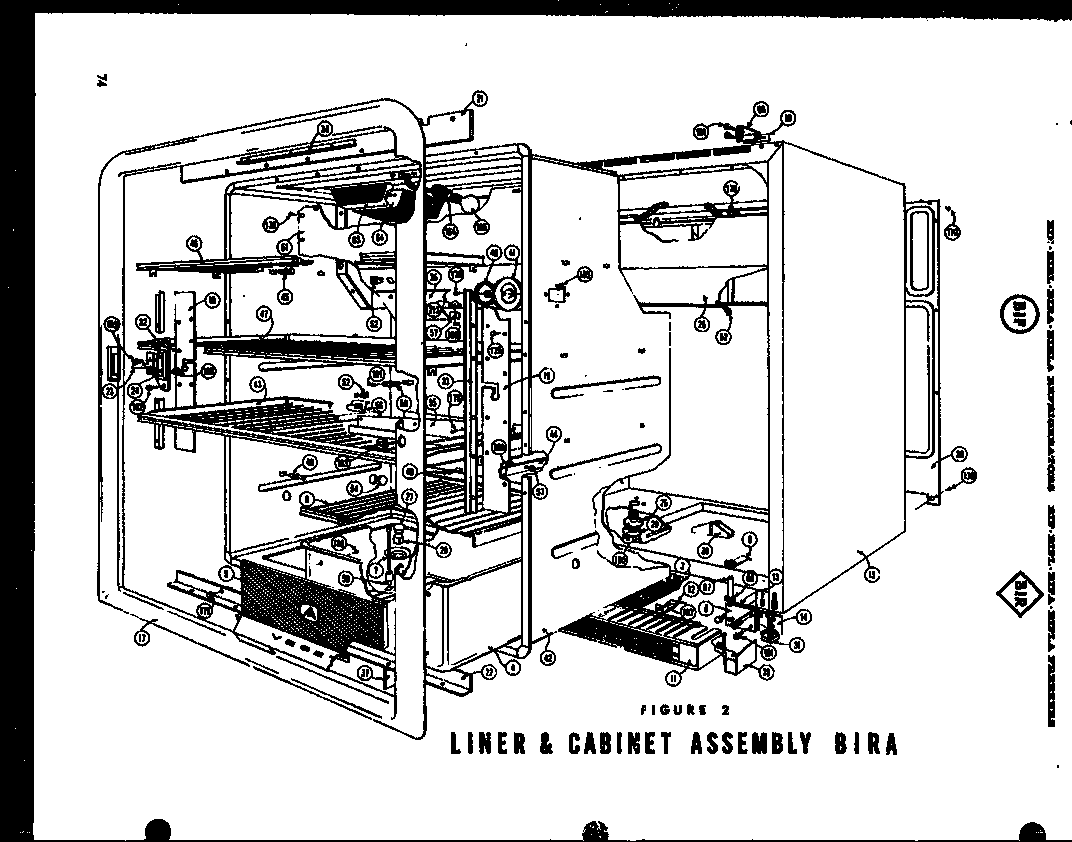

Liner & cabinet assembly bira (i) diagram

Lip, (rubber) drip trough

Part #B0503601

The manufacturer no longer makes this part, and there's no substitute part

Door Freshener, Left D0788402
#115

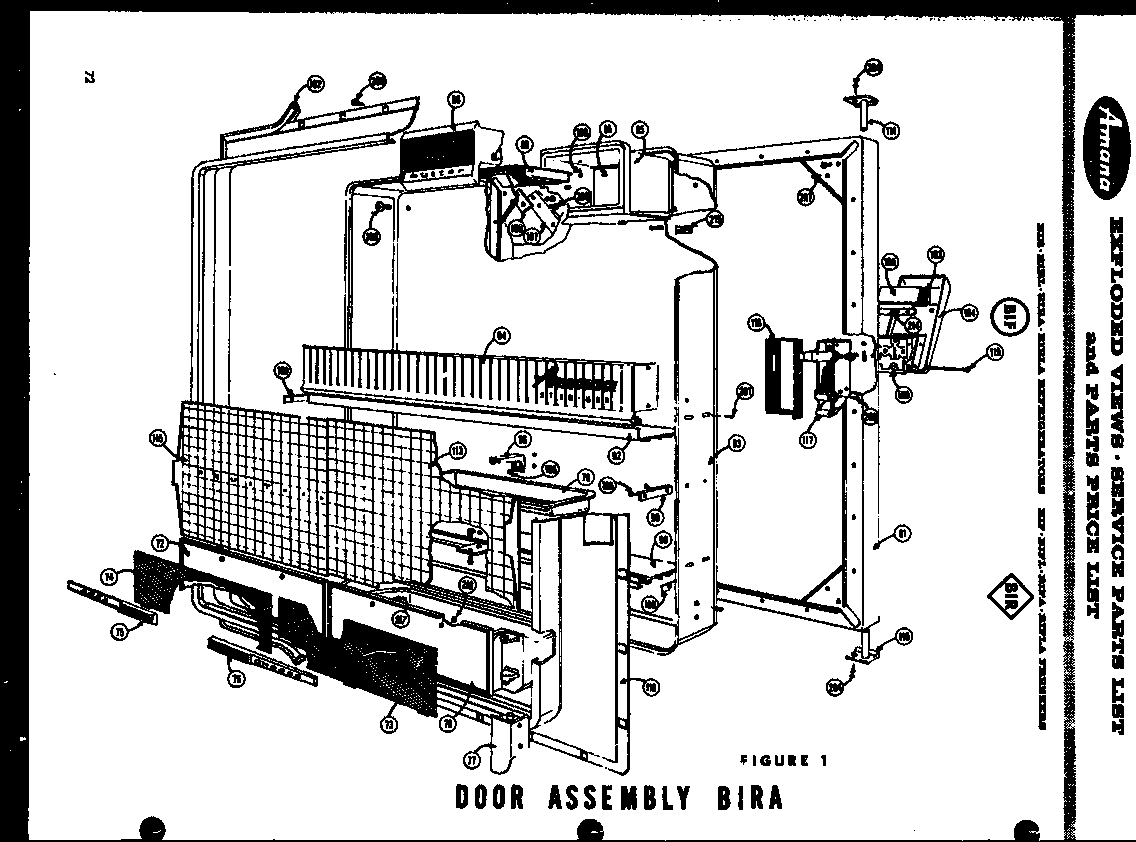

Door assembly bira (i) diagram

Door freshener, left

Part #D0788402

The manufacturer no longer makes this part, and there's no substitute part

Pin Door Handle Mtg. A0335301
Pin door handle mtg.

Part #A0335301

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Meat Pan D0773909

#NI

All parts diagram

Refrigerator meat pan

Part #D0773909

The manufacturer no longer makes this part, and there's no substitute part

Thermal Spacer, Upper Right & Lower Left B0501201
Thermal spacer, upper right & lower left

Part #B0501201

The manufacturer no longer makes this part, and there's no substitute part

Access. Door, Unit Compt. Housing D0790901
#25

Liner & cabinet assembly bira (i) diagram

Access. door, unit compt. housing

Part #D0790901

The manufacturer no longer makes this part, and there's no substitute part

Lockwasher, Mtg. Brkt. To Unit Comp. Mtg. A0241601

#NI

All parts diagram

Lockwasher, mtg. brkt. to unit comp. mtg.

Part #A0241601

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut, Ice Tray Retainer Mfg. A0259901
Hex nut, ice tray retainer mfg.

Part #A0259901

The manufacturer no longer makes this part, and there's no substitute part

Shim, Divider Shelf A0321301
#145

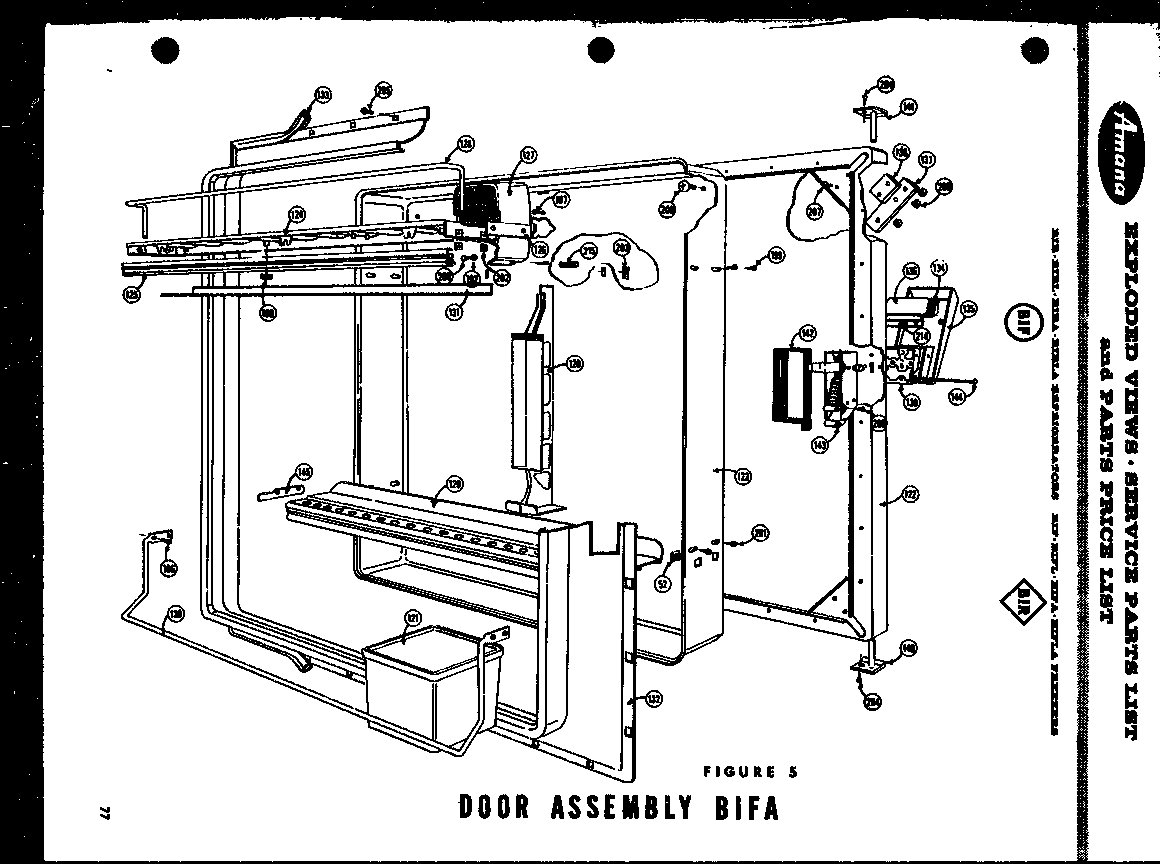

Door assembly bifa diagram

Shim, divider shelf

Part #A0321301

The manufacturer no longer makes this part, and there's no substitute part
