Model # 79969722 Official Craftsman hose reel cart

Here are the diagrams and repair parts for Official Craftsman 79969722 hose reel cart, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

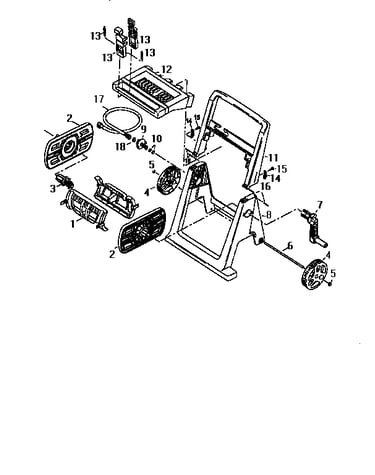

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Craftsman Axle 0280134
#6

Replacement parts diagram

Craftsman axle

Part #0280134

The manufacturer no longer makes this part, and there's no substitute part

Spring Pin 0240024
#16

Replacement parts diagram

Spring pin

Part #0240024

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Tray 010075029
#12

Replacement parts diagram

Craftsman tray

Part #010075029

The manufacturer no longer makes this part, and there's no substitute part

Suncast Garden Hose Reel Screw 0210081
#15

Replacement parts diagram

Suncast garden hose reel screw

Part #0210081

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Roller 010062010
#13C

Replacement parts diagram

Craftsman roller

Part #010062010

The manufacturer no longer makes this part, and there's no substitute part

Catch 010005010
#14

Replacement parts diagram

Catch

Part #010005010

The manufacturer no longer makes this part, and there's no substitute part

Wheel Cap 0240025
#5

Replacement parts diagram

Wheel cap

Part #0240025

The manufacturer no longer makes this part, and there's no substitute part

Garden Hose Reel Inner Hose Connector 0460827
#9

Replacement parts diagram

Garden hose reel inner hose connector

Part #0460827

The manufacturer no longer makes this part, and there's no substitute part

Crank 0460826
#7

Replacement parts diagram

Crank

Part #0460826

The manufacturer no longer makes this part, and there's no substitute part

Tube 0460887
#3

Replacement parts diagram

Tube

Part #0460887

The manufacturer no longer makes this part, and there's no substitute part
