Whirlpool
Top-Mount Refrigerator

Model # 8VET2WPKKQ02 Official Whirlpool top-mount refrigerator

Here are the diagrams and repair parts for Official Whirlpool 8VET2WPKKQ02 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

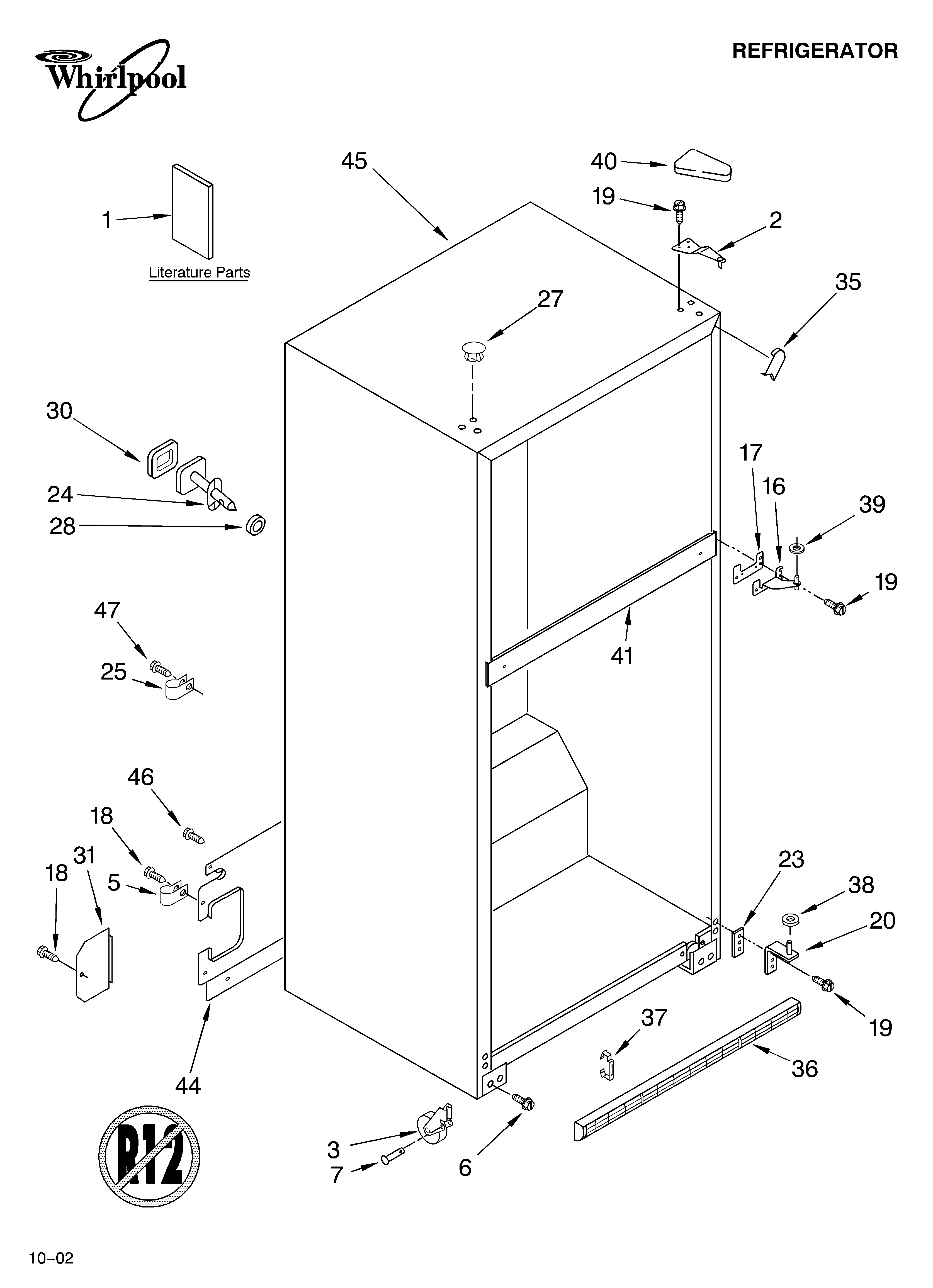

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |
Light Bulb 527949
#17

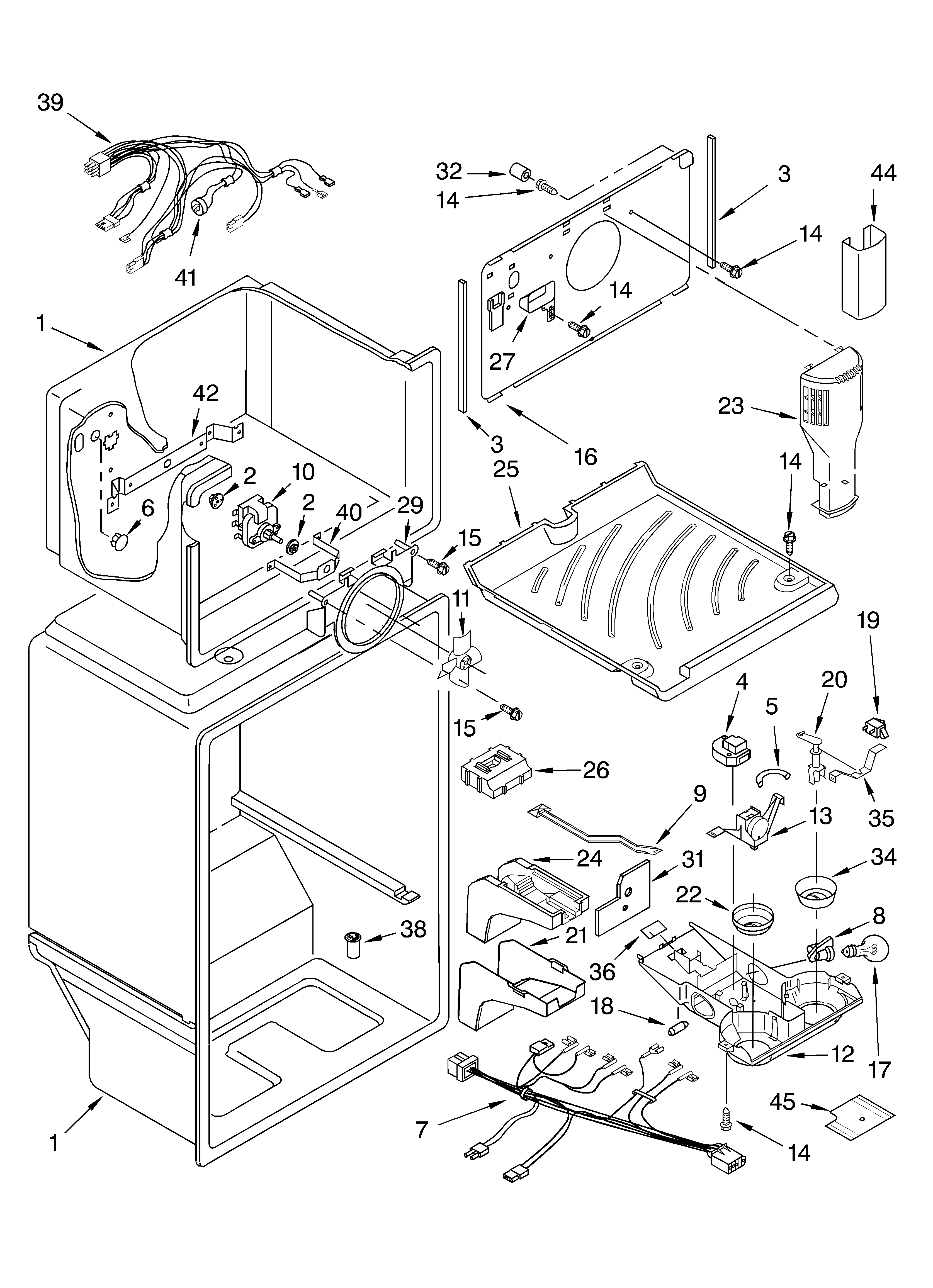

Liner diagram

Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Light Switch 1118894
#19

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Evaporator Motor 2219660
#10

Liner diagram

Evaporator motor

Part #2219660

Replaced by #WP2315539

?
Manufacturer substitution
This part replaces 2219660. Substitute parts can look different from the original.
BEST SELLER
$54.64 |
10% OFF Phone Price : $60.64
In Stock
Refrigerator Dryer Tube 4387019
#29A

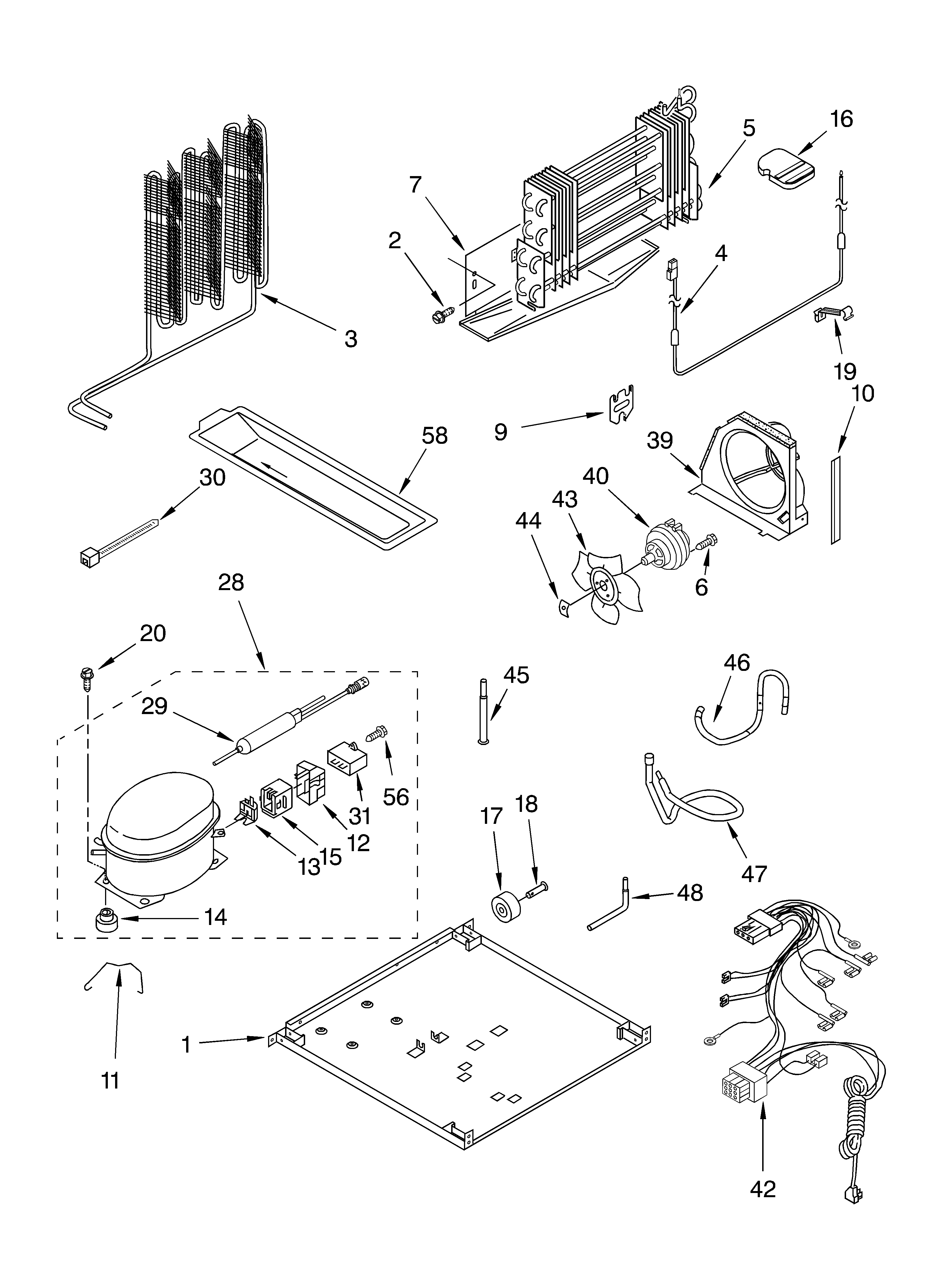

Unit diagram

Refrigerator dryer tube

Part #4387019

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4387019. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Drier-tue 2199167
#29

Unit diagram

Drier-tue

Part #2199167

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2199167. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Crisper Pan 2166256
#24

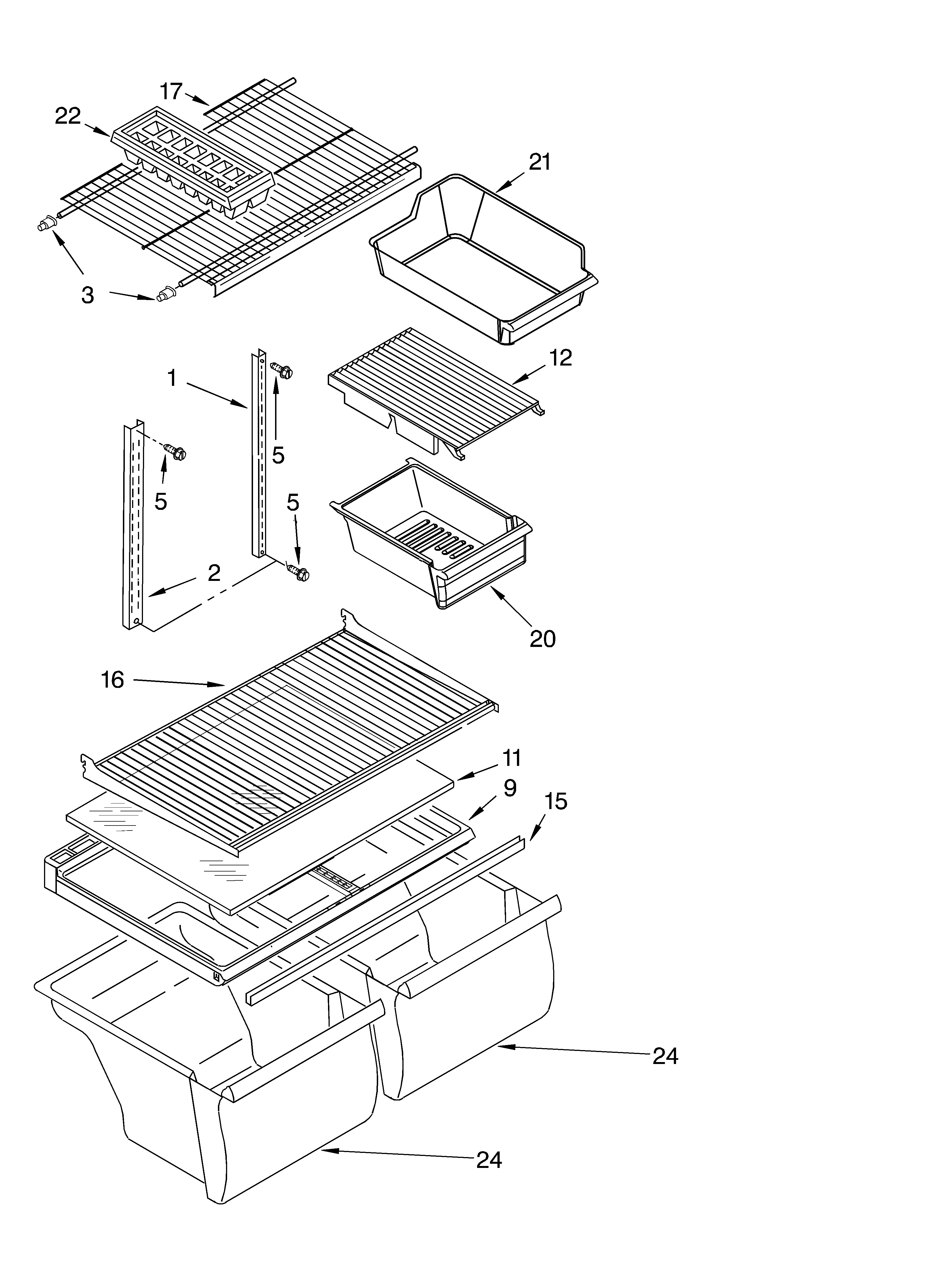

Shelf diagram

Refrigerator crisper pan

Part #2166256

Replaced by #W10854037

?
Manufacturer substitution
This part replaces 2166256. Substitute parts can look different from the original.
BEST SELLER
$82.04 |
7% OFF Phone Price : $88.04
Back Order
Defrost Bi-metal 2221677
#41

Liner diagram

Defrost bi-metal

Part #2221677

Replaced by #WP4387503

?
Manufacturer substitution
This part replaces 2221677. Substitute parts can look different from the original.
BEST SELLER
$39.71 |
13% OFF Phone Price : $45.71
In Stock
Ice Maker 2155469
#NI

Shelf diagram

Ice maker

Part #2155469

Replaced by #W11510803

?
Manufacturer substitution
This part replaces 2155469. Substitute parts can look different from the original.
BEST SELLER
$111.86 |
10% OFF Phone Price : $123.86
In Stock
Gasket Panel (white) 2202875
#9

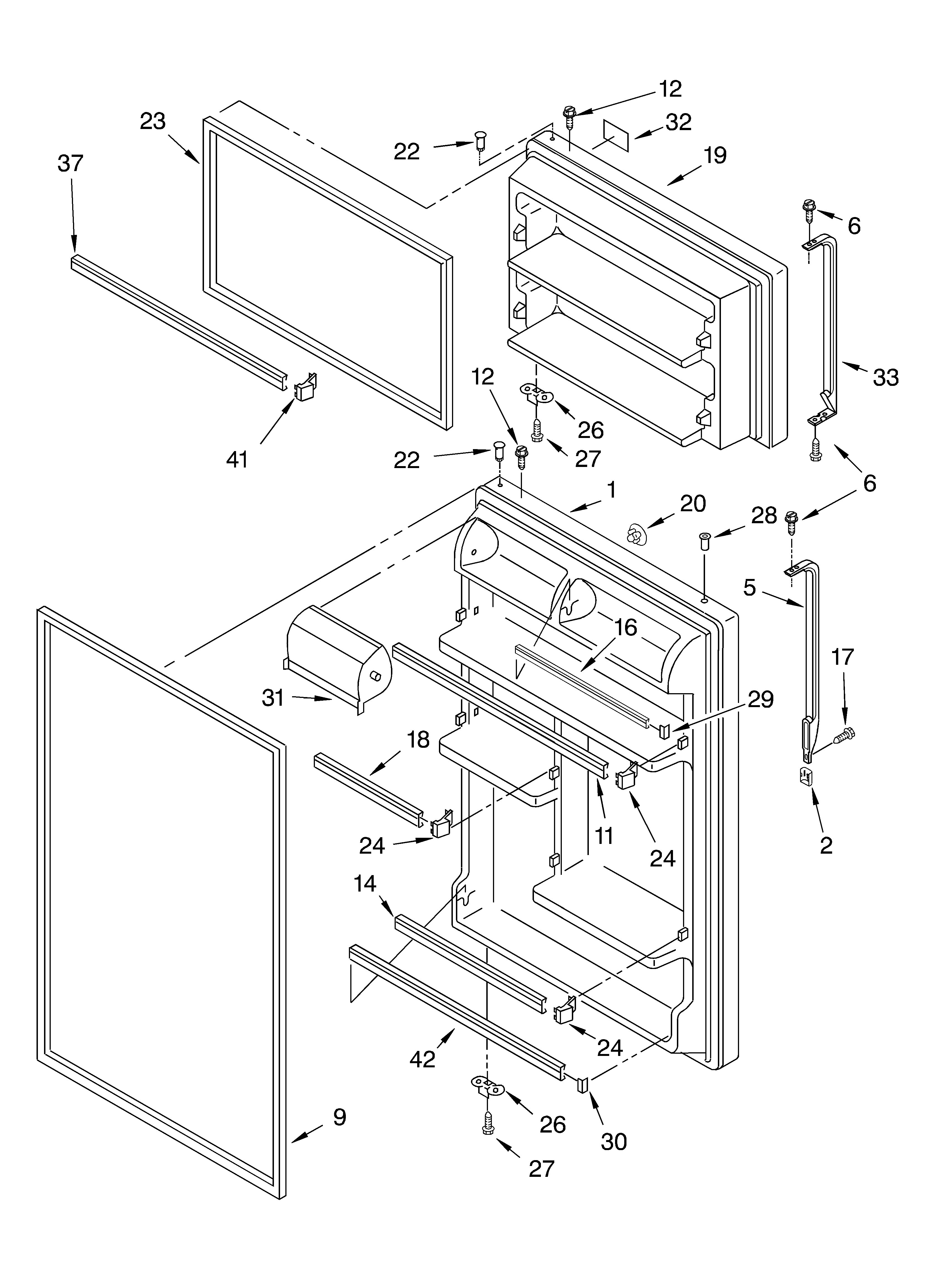

Door diagram

Gasket panel (white)

Part #2202875

Replaced by #2159061

?
Manufacturer substitution
This part replaces 2202875. Substitute parts can look different from the original.
BEST SELLER
$110.63 |
10% OFF Phone Price : $122.63
In Stock
Fan Blade 2200509
#11

Liner diagram

Fan blade

Part #2200509

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2200509. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
