Model # 22601(1988) Official Kenmore conventional element cartridge plug-in element

Here are the diagrams and repair parts for Official Kenmore 22601(1988) conventional element cartridge plug-in element, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
22601(1988) Ranges
Keps Nut 715634
#18

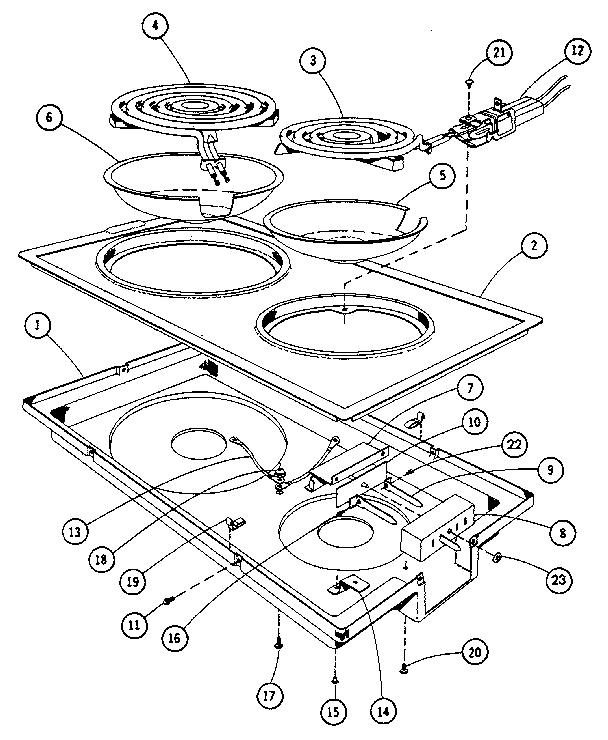

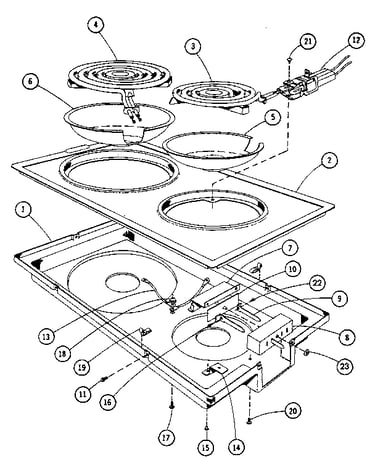

Cartridge and elements diagram

Keps nut

Part #715634

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 715634. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Service Kit 700125
#12

Cartridge and elements diagram

Service kit

Part #700125

The manufacturer no longer makes this part, and there's no substitute part

Element 9" 715928
#4

Cartridge and elements diagram

Element 9"

Part #715928

Replaced by #WPY04100166

?
Manufacturer substitution
This part replaces 715928. Substitute parts can look different from the original.
$33.39
15% OFF Phone Price : $39.39
In Stock
Drip Pan 6" 715877
#5

Cartridge and elements diagram

Drip pan 6"

Part #715877

The manufacturer no longer makes this part, and there's no substitute part

Drip Pan 9" 715878
#6

Cartridge and elements diagram

Drip pan 9"

Part #715878

The manufacturer no longer makes this part, and there's no substitute part

Screw 707172
#20

Cartridge and elements diagram

Screw

Part #707172

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707172. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Screw 708359
#21

Cartridge and elements diagram

Screw

Part #708359

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 708359. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Cartridge 715925
#2

Cartridge and elements diagram

Cartridge

Part #715925

Replaced by #WP2002F208-50

?
Manufacturer substitution
This part replaces 715925. Substitute parts can look different from the original.
$93.49
6% OFF Phone Price : $99.49
In Stock
Insulator 708834
#10

Cartridge and elements diagram

Insulator

Part #708834

Replaced by #708834

?
Manufacturer substitution
This part replaces 708834. Substitute parts can look different from the original.
In Stock
Cont Spade 708572
#9

Cartridge and elements diagram

Cont spade

Part #708572

Replaced by #Y708572

?
Manufacturer substitution
This part replaces 708572. Substitute parts can look different from the original.
This item is not returnable
$9.09
10% OFF Phone Price : $10.09
In Stock
