Kenmore
Electric Range

Model # 79095595104 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 79095595104 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

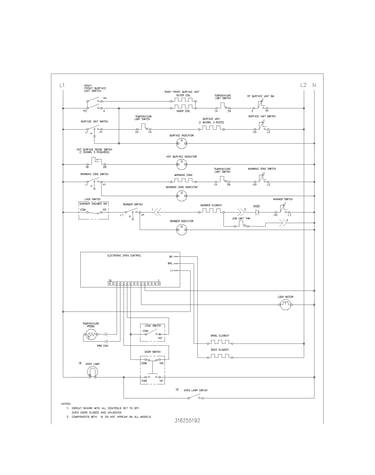

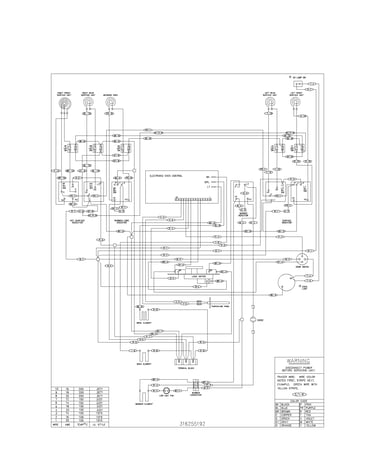

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Oven Switch 316021500
#54

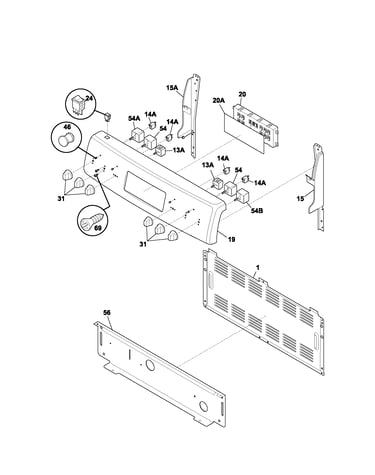

Backguard diagram

Oven switch

Part #316021500

Replaced by #316436000

?
Manufacturer substitution
This part replaces 316021500. Substitute parts can look different from the original.
BEST SELLER
$57.43 |
9% OFF Phone Price : $63.43
In Stock
Range Oven Light Bulb 5303013071
#15

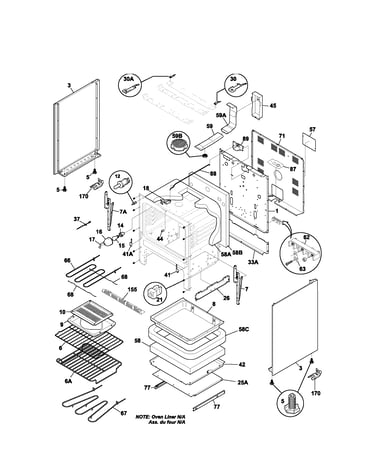

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Cooktop Surface Element Control Switch 316238200
#54B

Backguard diagram

Cooktop surface element control switch

Part #316238200

Replaced by #316238201

?
Manufacturer substitution
This part replaces 316238200. Substitute parts can look different from the original.
BEST SELLER
$82.08 |
7% OFF Phone Price : $88.08
In Stock
Range Radiant Surface Element, 6-in 316010205
#15A

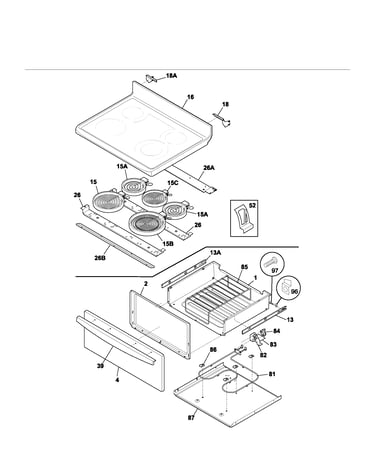

Top/drawer diagram

Range radiant surface element, 6-in

Part #316010205

Replaced by #318178110

?
Manufacturer substitution
This part replaces 316010205. Substitute parts can look different from the original.
BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Frigidaire Range Broil Element (replaces 316200600) 316203301
#66

Body diagram

Frigidaire range broil element (replaces 316200600)

Part #316203301

BEST SELLER
$137.47 |
8% OFF Phone Price : $149.47
In Stock
Element-su 316224300
#15B

Top/drawer diagram

Element-su

Part #316224300

Replaced by #316555800

?
Manufacturer substitution
This part replaces 316224300. Substitute parts can look different from the original.
BEST SELLER
$162.16 |
7% OFF Phone Price : $174.16
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#10B

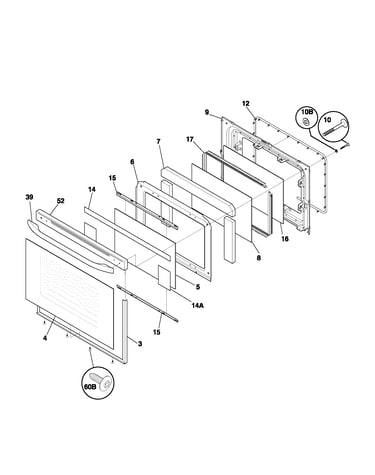

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Range Control Overlay 316220817
#20A

Backguard diagram

Range control overlay

Part #316220817

Replaced by #316220804

?
Manufacturer substitution
This part replaces 316220817. Substitute parts can look different from the original.
BEST SELLER
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Range Light Socket (replaces 5308011085) 316116400
#14

Body diagram

Range light socket (replaces 5308011085)

Part #316116400

BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
