Kenmore
Laundry Center

Model # 41799160100 Official Kenmore stacked laundry center

Here are the diagrams and repair parts for Official Kenmore 41799160100 stacked laundry center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

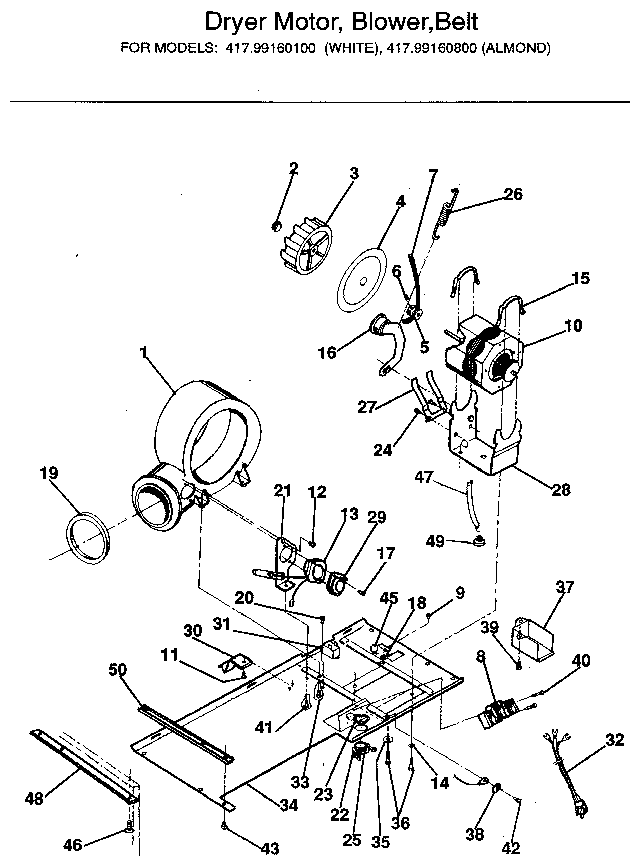

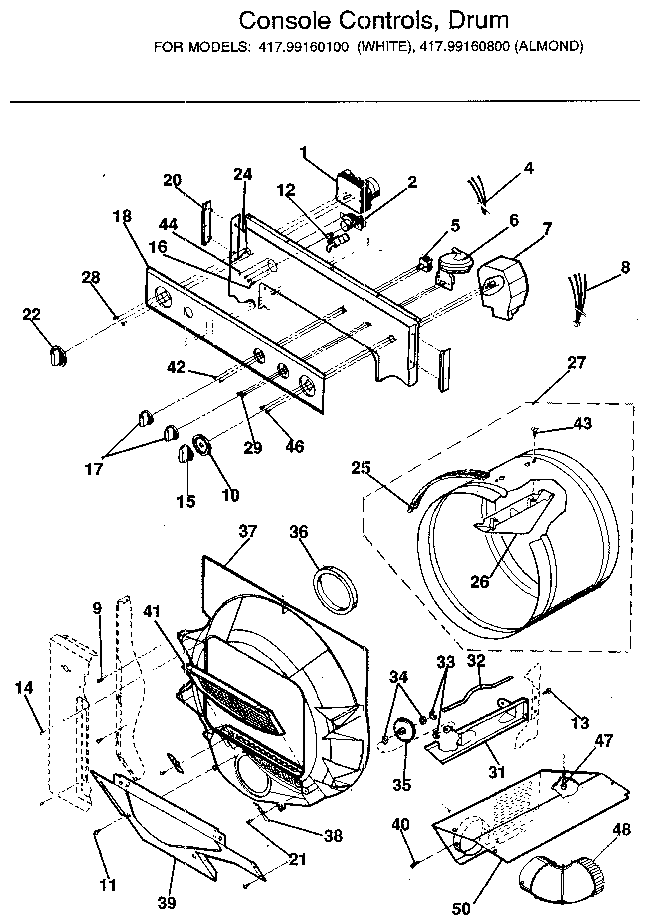

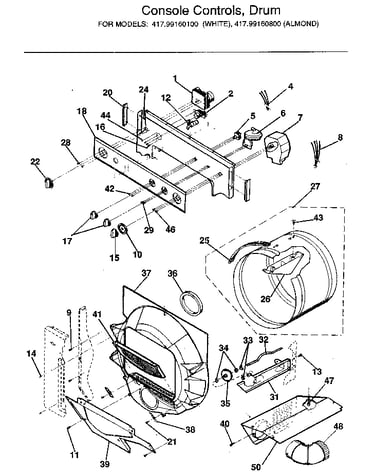

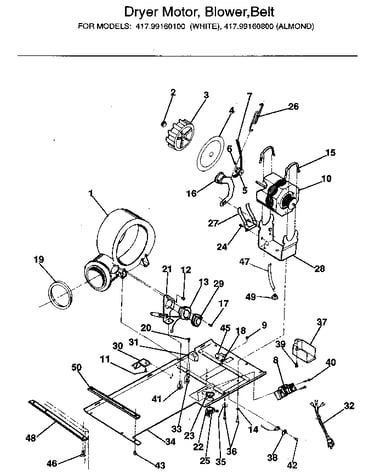

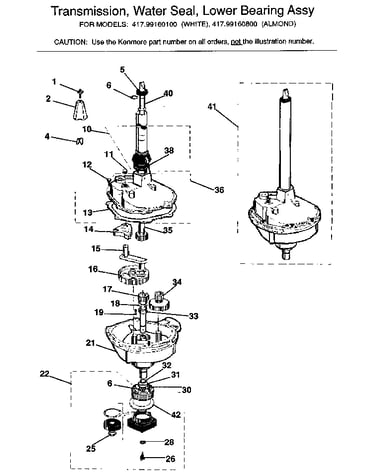

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 290 parts  |
Screw 3161233
Screw

Part #3161233

Replaced by #131168200

?
Manufacturer substitution
This part replaces 3161233. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Screw 08027517
#50

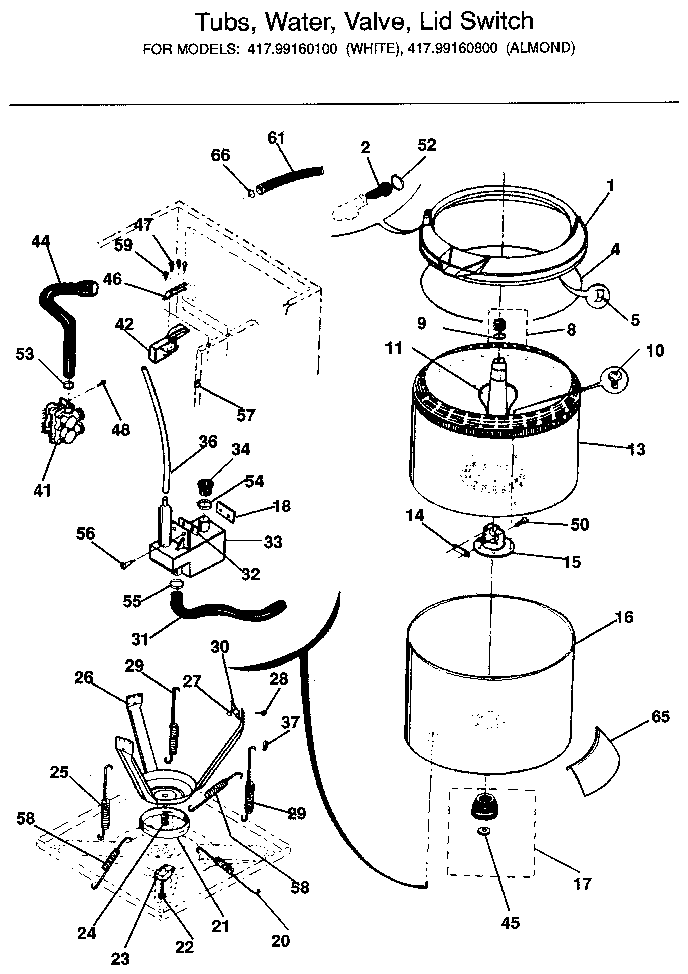

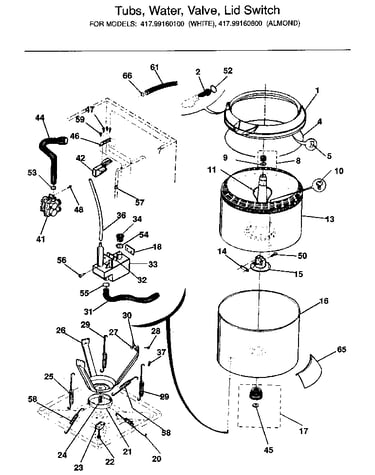

Tubs, water, valve, lid switch diagram

Screw

Part #08027517

Replaced by #137539500

?
Manufacturer substitution
This part replaces 08027517. Substitute parts can look different from the original.
BEST SELLER
$15.24 |
12% OFF Phone Price : $17.24
In Stock
Adhesive 5364709100

#NI

All parts diagram

Adhesive

Part #5364709100

Replaced by #5308027429

?
Manufacturer substitution
This part replaces 5364709100. Substitute parts can look different from the original.
$48.99 |
11% OFF Phone Price : $54.99
In Stock
Washer 08002401
#45

Tubs, water, valve, lid switch diagram

Washer

Part #08002401

Replaced by #5308002401

?
Manufacturer substitution
This part replaces 08002401. Substitute parts can look different from the original.
$20.89 |
22% OFF Phone Price : $26.89
In Stock
Spray Paint (white) 3204474

#NI

All parts diagram

Spray paint (white)

Part #3204474

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 3204474. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Electrolux Laundry Center Screw, #6-20 X 3/8-in 3204368
#37

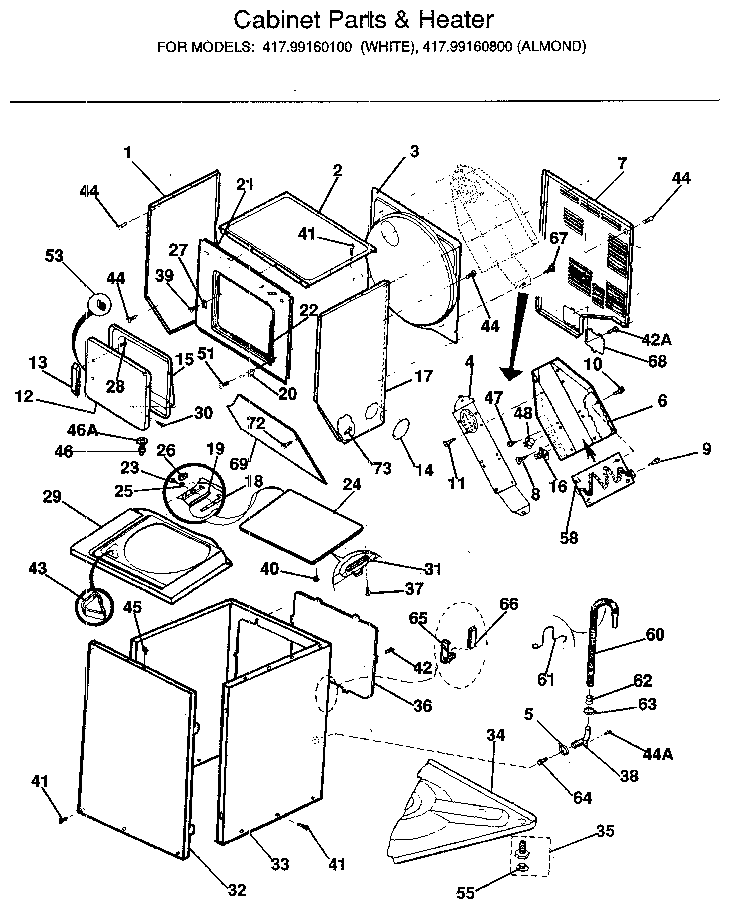

Cabinet parts & heater diagram

Electrolux laundry center screw, #6-20 x 3/8-in

Part #3204368

This item is not returnable
$12.57
In Stock
Strike 3204970
#31

Cabinet parts & heater diagram

Strike

Part #3204970

Replaced by #131390000

?
Manufacturer substitution
This part replaces 3204970. Substitute parts can look different from the original.
$54.89 |
10% OFF Phone Price : $60.89
In Stock
Washer Drive Belt 5303280326
#7

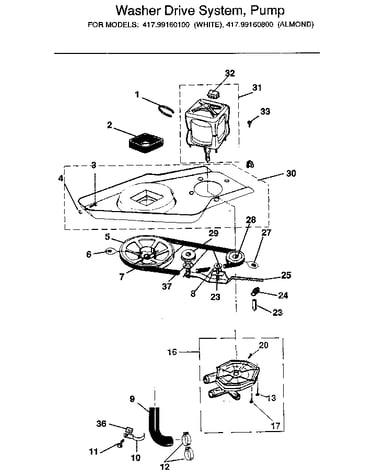

Washer drive system, pump diagram

Washer drive belt

Part #5303280326

This item is not returnable
$33.14 |
15% OFF Phone Price : $39.14
In Stock
Washer 3161296
#66

Tubs, water, valve, lid switch diagram

Washer

Part #3161296

Replaced by #5303161296

?
Manufacturer substitution
This part replaces 3161296. Substitute parts can look different from the original.
This item is not returnable
$10.44 |
16% OFF Phone Price : $12.44
In Stock
Spray Paint (almond) 3204476

#NI

All parts diagram

Spray paint (almond)

Part #3204476

Replaced by #350956

?
Manufacturer substitution
This part replaces 3204476. Substitute parts can look different from the original.
This item is not returnable
$20.89 |
22% OFF Phone Price : $26.89
In Stock
