Bosch
Gas Range

Model # HGS3053UC/07 Official Bosch range

Here are the diagrams and repair parts for Official Bosch HGS3053UC-07 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Range Bake Igniter 00676872
#224

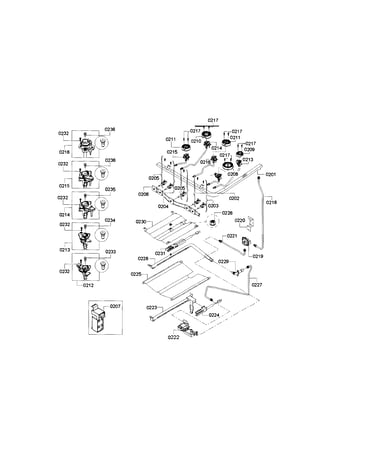

Valve assy diagram

Range bake igniter

Part #00676872

$269.69 |
$12.00 OFF Phone Price : $281.69
In Stock
Range Lp Conversion Kit 00617840
#NI

Valve assy diagram

Range lp conversion kit

Part #00617840

$138.86 |
8% OFF Phone Price : $150.86
In Stock
Cover Shield 00676731
#326

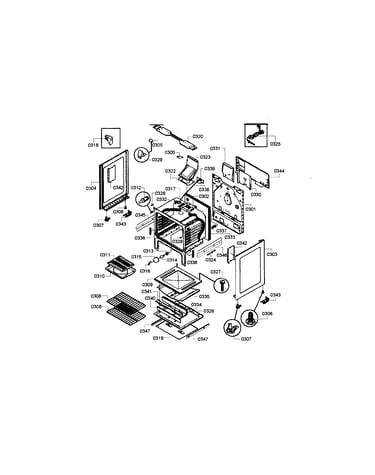

Cavity & frame diagram

Cover shield

Part #00676731

$184.00
In Stock
Slide 00653941
#404

Burners & drawer diagram

Slide

Part #00653941

$123.40
In Stock
Range Oven Door Outer Glass (black) 00684141
#501

Door assy diagram

Range oven door outer glass (black)

Part #00684141

$170.67 |
7% OFF Phone Price : $182.67
In Stock
Spacer 00684079
#510

Door assy diagram

Spacer

Part #00684079

$121.08
In Stock
Range Oven Door Inner Glass 00684076
#504

Door assy diagram

Range oven door inner glass

Part #00684076

$377.83
In Stock
Range Wire Harness 00654057
#NI

Valve assy diagram

Range wire harness

Part #00654057

$139.26
In Stock
Burner 00649239
#211

Valve assy diagram

Burner

Part #00649239

$108.36
In Stock
Sheet Cover 00676767
#107

Control panel diagram

Sheet cover

Part #00676767

$41.00
In Stock
