Microwave/Hood Combo

Model # MH1140XMB3 Official Whirlpool microwave/hood combo

Here are the diagrams and repair parts for Official Whirlpool MH1140XMB3 microwave/hood combo, as well as links to manuals and error code tables, if available.

By Schematic
By Part

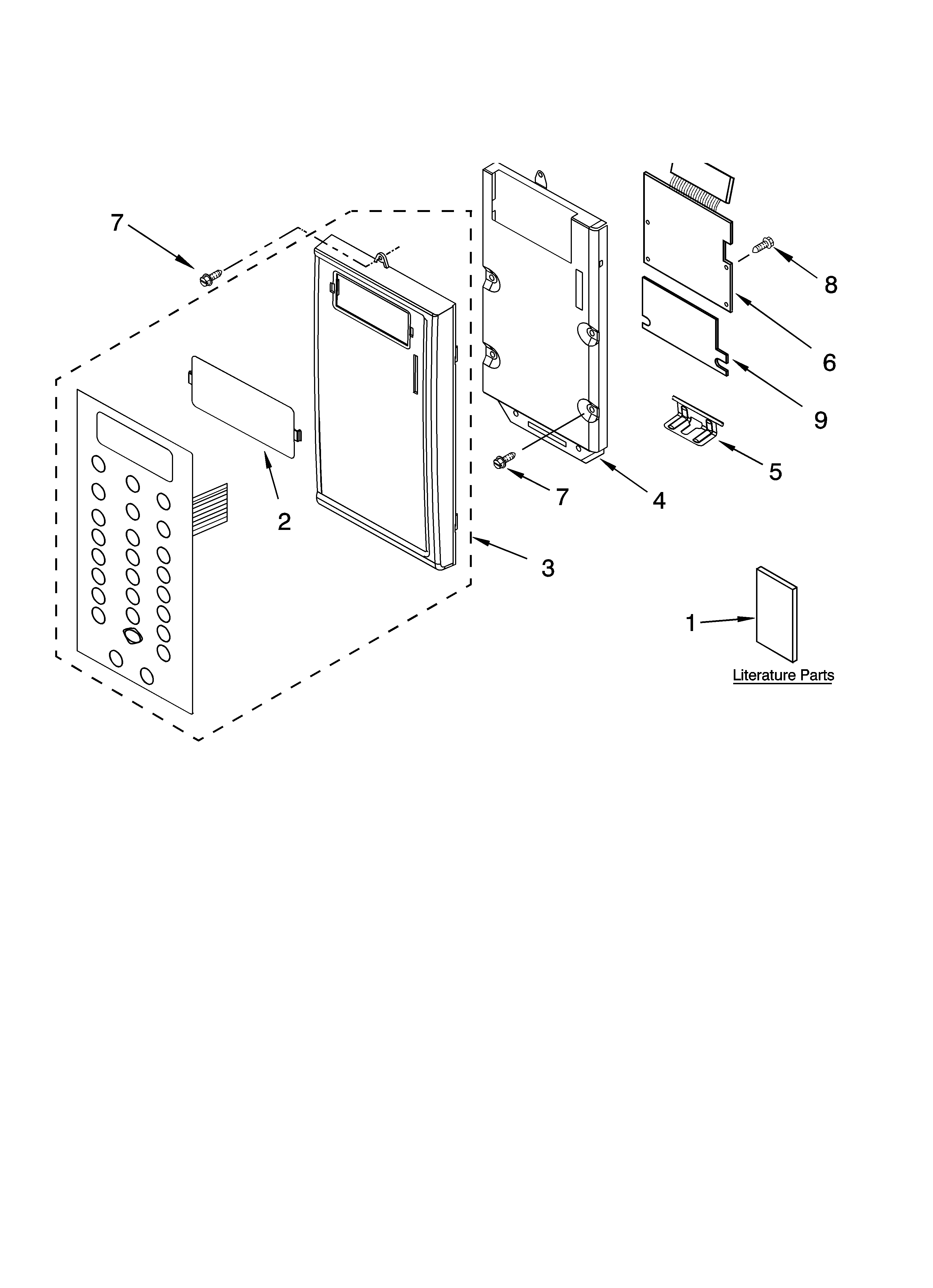

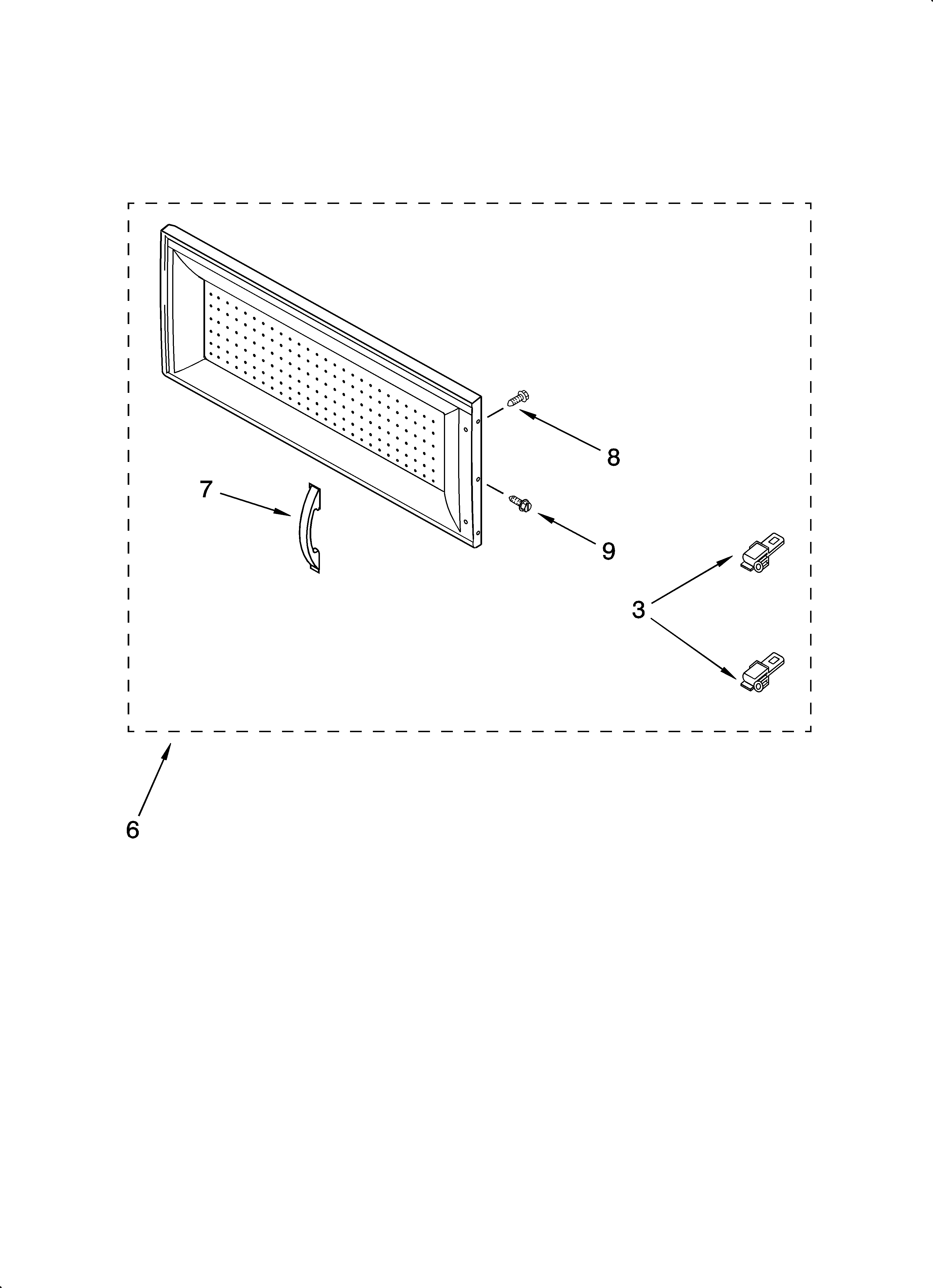

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
MH1140XMB3 Microwave/Hood Combo
Diode 8205361
#21

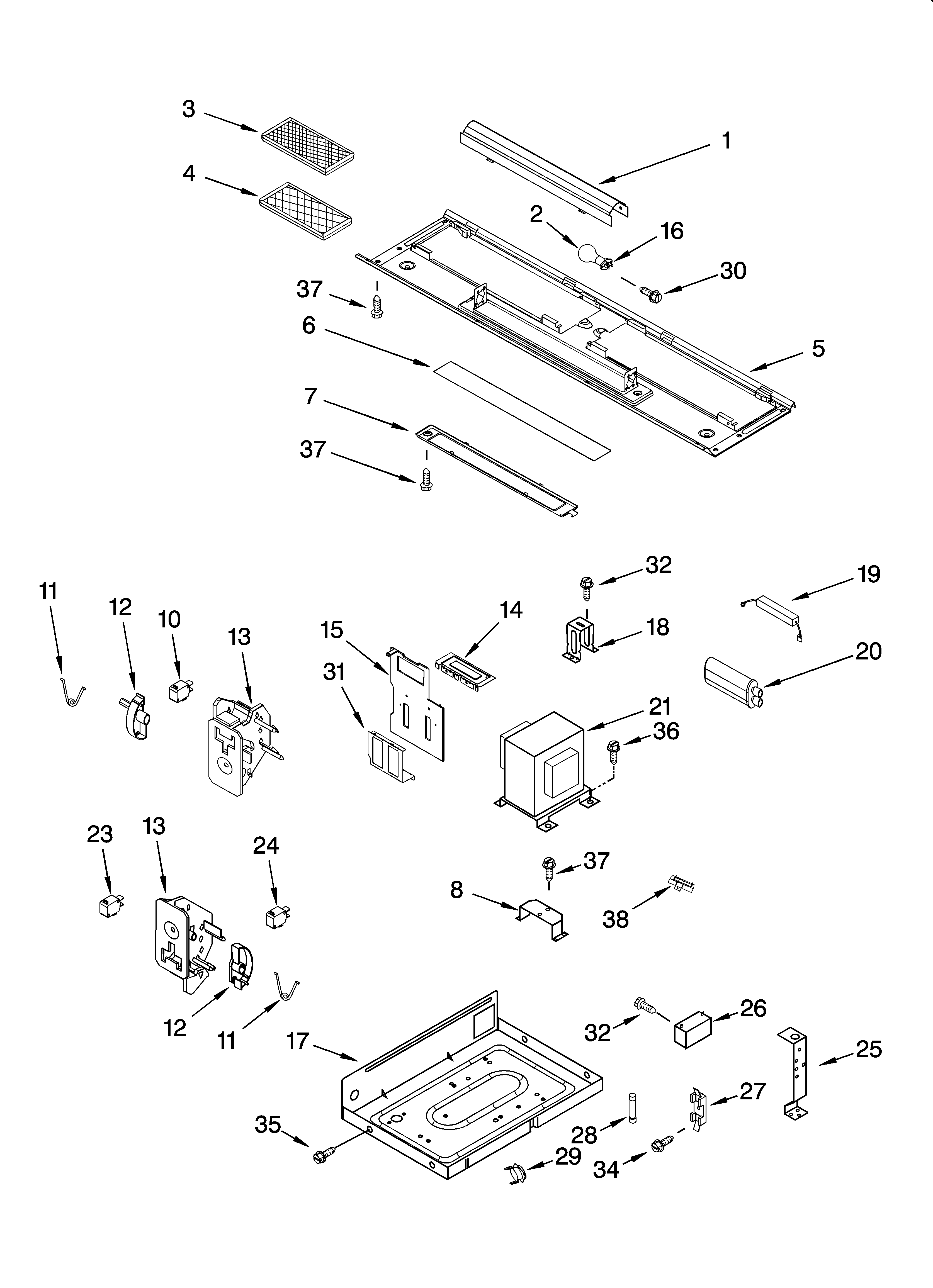

Interior and ventilation parts diagram

Diode

Part #8205361

Replaced by #W11256462

?
Manufacturer substitution
This part replaces 8205361. Substitute parts can look different from the original.
BEST SELLER
$23.42 |
20% OFF Phone Price : $29.42
In Stock
Monitor Switch 4393598
#23

Interior and ventilation parts diagram

Monitor switch

Part #4393598

Replaced by #W10269458

?
Manufacturer substitution
This part replaces 4393598. Substitute parts can look different from the original.
5 (3)
BEST SELLER
$23.51 |
20% OFF Phone Price : $29.51
In Stock
Capacitor 8205553
#20

Interior and ventilation parts diagram

Capacitor

Part #8205553

Replaced by #W10850446

?
Manufacturer substitution
This part replaces 8205553. Substitute parts can look different from the original.
BEST SELLER
$94.83 |
6% OFF Phone Price : $100.83
In Stock
Microwave/hood Light Bulb 8205586
#2

Interior and ventilation parts diagram

Microwave/hood light bulb

Part #8205586

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8205586. Substitute parts can look different from the original.
3.92 (26)
BEST SELLER
$8.36 |
11% OFF Phone Price : $9.36
In Stock
Lamp Assembly 4393681
#7

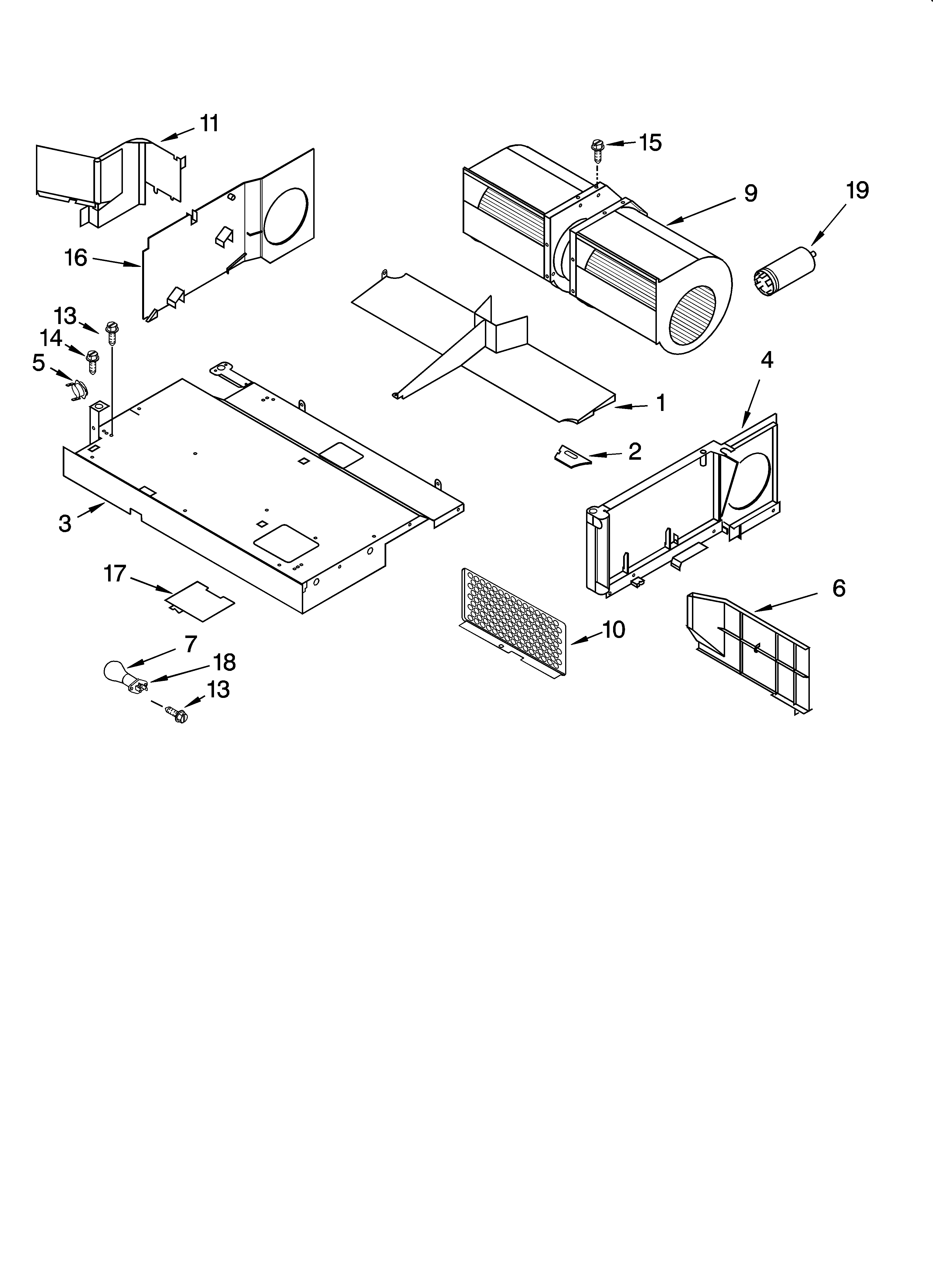

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
3.92 (26)
BEST SELLER
$8.36 |
11% OFF Phone Price : $9.36
In Stock
Primary Switch 4393697
#10

Interior and ventilation parts diagram

Primary switch

Part #4393697

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4393697. Substitute parts can look different from the original.
BEST SELLER
$28.77 |
17% OFF Phone Price : $34.77
In Stock
Thermal Fuse 4393308
#28

Interior and ventilation parts diagram

Thermal fuse

Part #4393308

Replaced by #W11707984

?
Manufacturer substitution
This part replaces 4393308. Substitute parts can look different from the original.
BEST SELLER
$54.49
In Stock
Microwave Turntable Tray (replaces 8206226) 4393799
#4

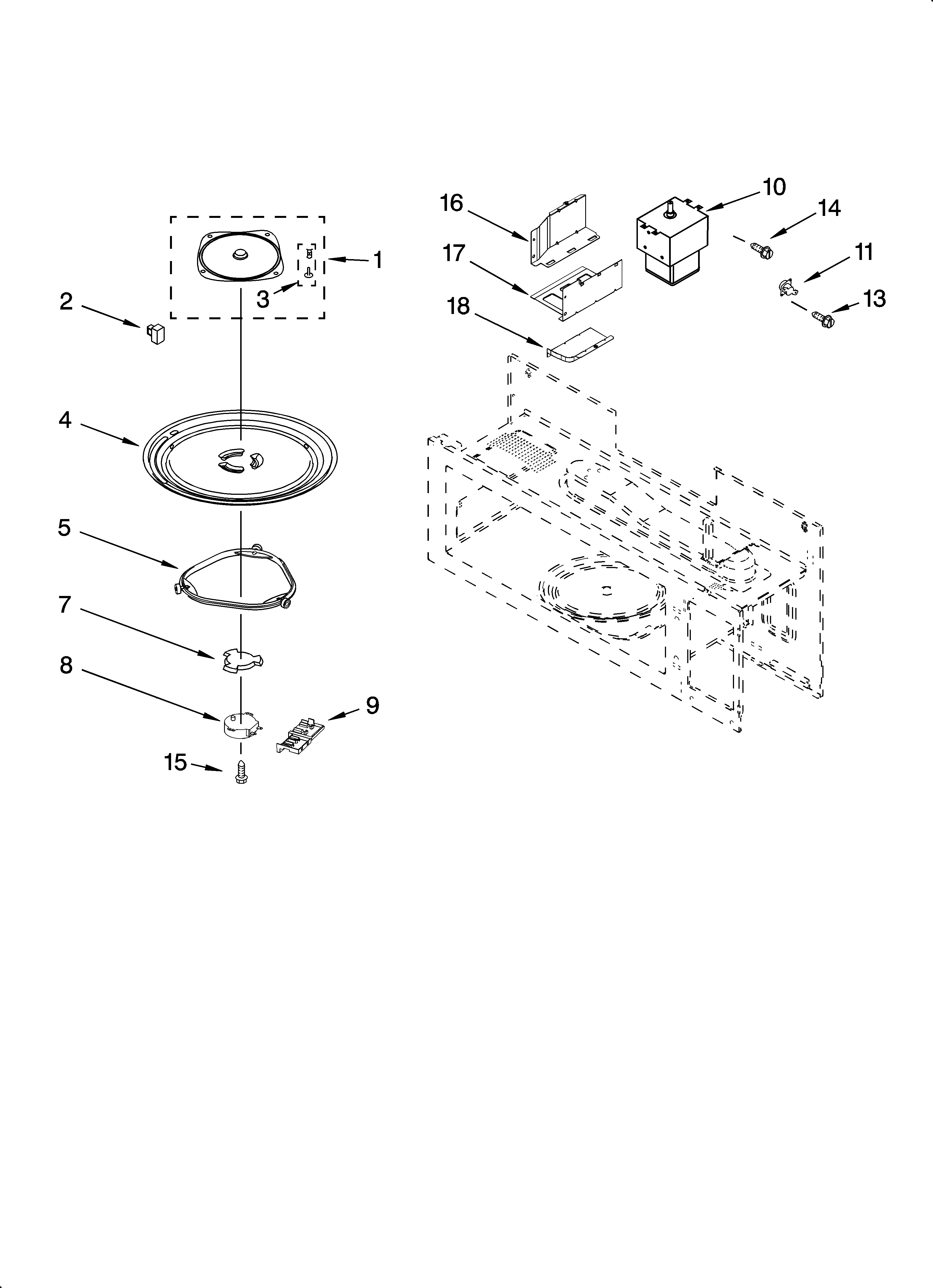

Magnetron and turntable parts diagram

Microwave turntable tray (replaces 8206226)

Part #4393799

3.69 (13)
$53.40 |
10% OFF Phone Price : $59.40
In Stock
Microwave Vent Grille (replaces 8169463) 8183948
#8

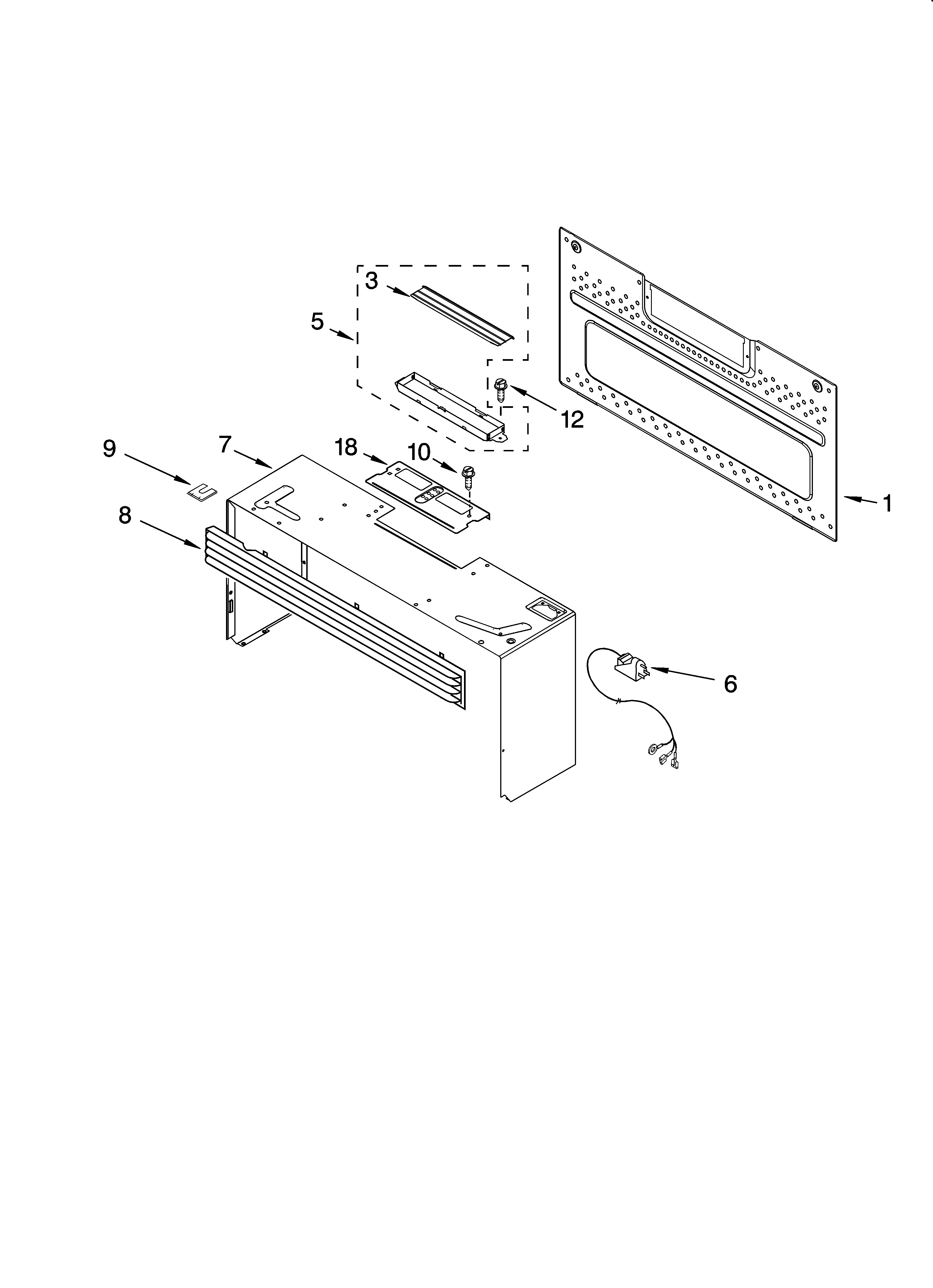

Cabinet and installation parts diagram

Microwave vent grille (replaces 8169463)

Part #8183948

4 (15)
$37.23 |
14% OFF Phone Price : $43.23
In Stock
Damper 4393713
#3

Cabinet and installation parts diagram

Damper

Part #4393713

Replaced by #W10843943

?
Manufacturer substitution
This part replaces 4393713. Substitute parts can look different from the original.
4.4 (5)
$52.95 |
10% OFF Phone Price : $58.95
In Stock
