Amana
Countertop Microwave

Model # CM601.A Official Amana microwave

Here are the diagrams and repair parts for Official Amana CM601A microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Wiring Harness M27D417
#57A

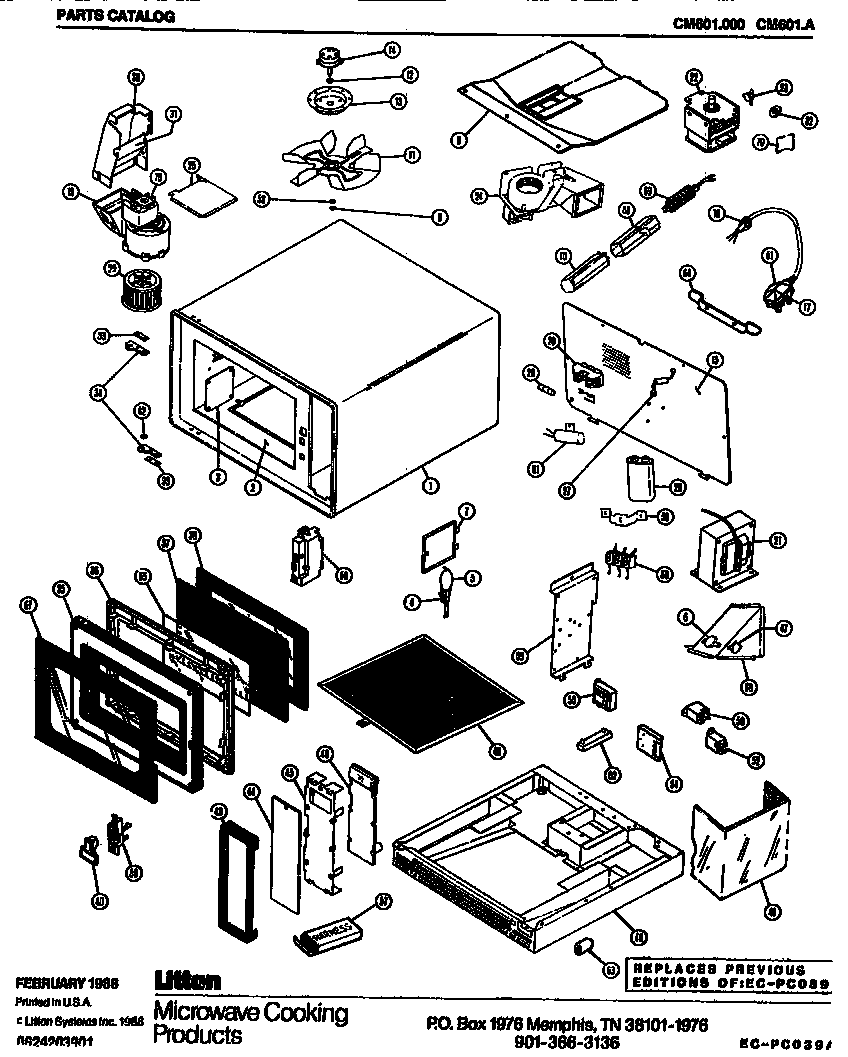

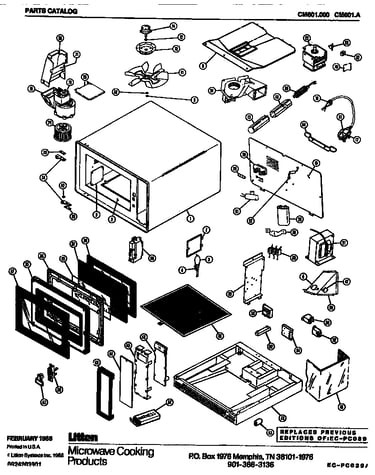

Replacement parts diagram

Wiring harness

Part #M27D417

The manufacturer no longer makes this part, and there's no substitute part

Baffle M65D344
#25A

Replacement parts diagram

Baffle

Part #M65D344

The manufacturer no longer makes this part, and there's no substitute part

Microwave Blower Motor M12D89
#18A

Replacement parts diagram

Microwave blower motor

Part #M12D89

The manufacturer no longer makes this part, and there's no substitute part

Screw 6-32 X 1/4 Hex Hd M1D626
#54B

Replacement parts diagram

Screw 6-32 x 1/4 hex hd

Part #M1D626

The manufacturer no longer makes this part, and there's no substitute part

Nut Magnetron Mounting M1D619
#22C

Replacement parts diagram

Nut magnetron mounting

Part #M1D619

The manufacturer no longer makes this part, and there's no substitute part

Latch Assembly (incl. Spring And No. 38) M20D295
#39A

Replacement parts diagram

Latch assembly (incl. spring and no. 38)

Part #M20D295

The manufacturer no longer makes this part, and there's no substitute part

Screw, Handle Mounting M1D905
#40B

Replacement parts diagram

Screw, handle mounting

Part #M1D905

The manufacturer no longer makes this part, and there's no substitute part

Retainer, Lamp Cover M25D82
#7F

Replacement parts diagram

Retainer, lamp cover

Part #M25D82

The manufacturer no longer makes this part, and there's no substitute part

Foam (3 Ft. Per Pkg.) M1D737
Foam (3 ft. per pkg.)

Part #M1D737

The manufacturer no longer makes this part, and there's no substitute part

High-voltage Transformer M60D151
#21

Replacement parts diagram

High-voltage transformer

Part #M60D151

The manufacturer no longer makes this part, and there's no substitute part
