White-Westinghouse
Top-Mount Refrigerator

Model # WRT21FGAW3 Official White-Westinghouse top-mount refrigerator - 5995274486

Here are the diagrams and repair parts for Official White-Westinghouse WRT21FGAW3 top-mount refrigerator - 5995274486, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

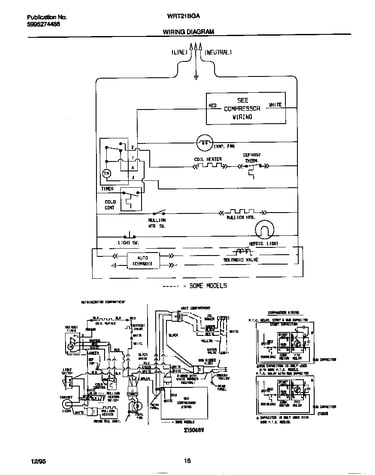

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 215 parts  |
Filter 5308000027
#4

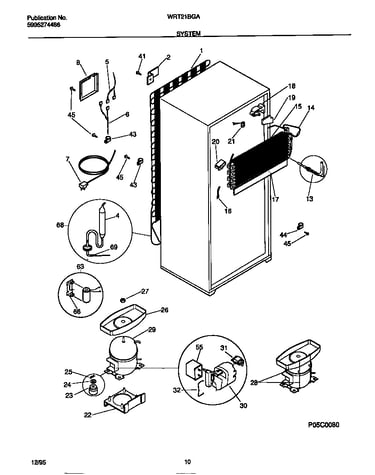

System diagram

Filter

Part #5308000027

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 5308000027. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Dirt Valve 215987000
#68

System diagram

Dirt valve

Part #215987000

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 215987000. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

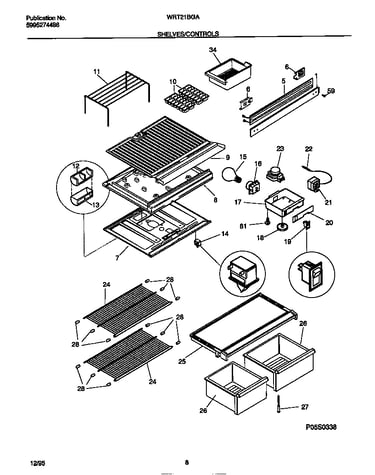

Shelves/controls diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Refrigerator Evaporator Fan Blade 5308000010
#5

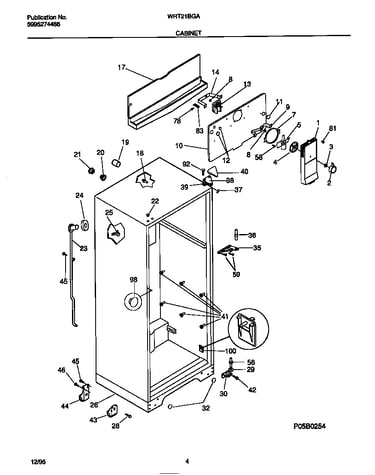

Cabinet diagram

Refrigerator evaporator fan blade

Part #5308000010

BEST SELLER
$41.13 |
13% OFF Phone Price : $47.13
In Stock
Molo Body 3206327
#17

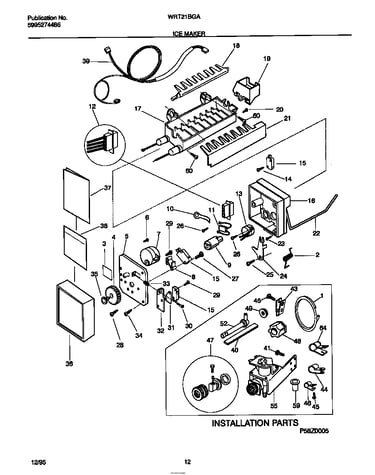

Ice maker diagram

Molo body

Part #3206327

Replaced by #241798224

?
Manufacturer substitution
This part replaces 3206327. Substitute parts can look different from the original.
BEST SELLER
$105.99 |
10% OFF Phone Price : $117.99
In Stock
Refrigerator Thermostat 5316269001
#21

System diagram

Refrigerator thermostat

Part #5316269001

Replaced by #5303917954

?
Manufacturer substitution
This part replaces 5316269001. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
20% OFF Phone Price : $30.36
In Stock
Refrigerator Thermostat Sensor Barrier 5303916855
#22

Shelves/controls diagram

Refrigerator thermostat sensor barrier

Part #5303916855

$47.89 |
11% OFF Phone Price : $53.89
In Stock
Touch Paint 5303305324

#NI

All parts diagram

Touch paint

Part #5303305324

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Refrigerator Gasket 215732463
#2

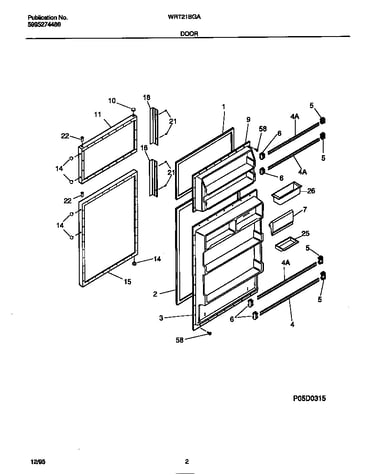

Door diagram

Refrigerator gasket

Part #215732463

Replaced by #218730609

?
Manufacturer substitution
This part replaces 215732463. Substitute parts can look different from the original.
$107.82 |
10% OFF Phone Price : $119.82
In Stock
Refrigerator Ice Cube Tray 215667501
#10

Shelves/controls diagram

Refrigerator ice cube tray

Part #215667501

This item is not returnable
$4.30 |
19% OFF Phone Price : $5.30
In Stock
