Model # 0611304139 Official Bosch brute hammer

Here are the diagrams and repair parts for Official Bosch 0611304139 brute hammer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |

Bosch Plate 1611099003
#84

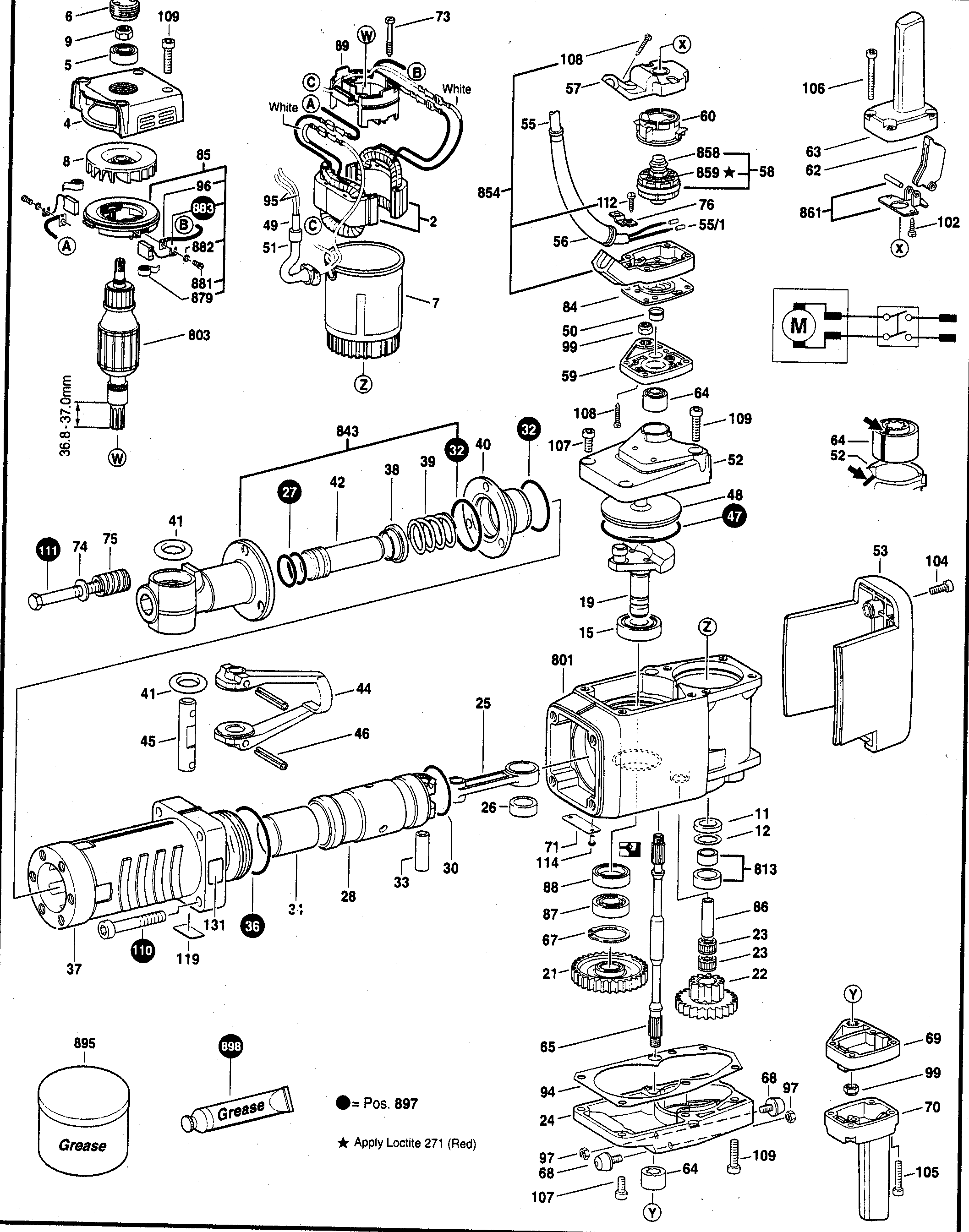

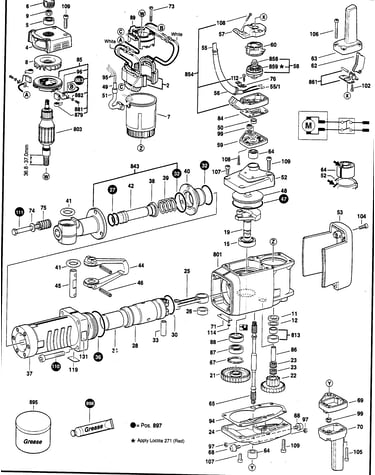

Brute hammer diagram

Bosch plate

Part #1611099003

The manufacturer no longer makes this part, and there's no substitute part

Bosch Switch Cover 1615500212
#57

Brute hammer diagram

Bosch switch cover

Part #1615500212

The manufacturer no longer makes this part, and there's no substitute part

Bosch Spring 1614619005
#39

Brute hammer diagram

Bosch spring

Part #1614619005

The manufacturer no longer makes this part, and there's no substitute part

Bosch Bumper 1613465001
#68

Brute hammer diagram

Bosch bumper

Part #1613465001

The manufacturer no longer makes this part, and there's no substitute part

Bosch Piston 1618700043
#28

Brute hammer diagram

Bosch piston

Part #1618700043

The manufacturer no longer makes this part, and there's no substitute part

Bosch Wqsher 2916160009
#74

Brute hammer diagram

Bosch wqsher

Part #2916160009

The manufacturer no longer makes this part, and there's no substitute part

Bosch Jack Hammer Motor Armature, 120-volt 1614011092
#803

Brute hammer diagram

Bosch jack hammer motor armature, 120-volt

Part #1614011092

The manufacturer no longer makes this part, and there's no substitute part

Screw 2910141201
#104

Brute hammer diagram

Screw

Part #2910141201

The manufacturer no longer makes this part, and there's no substitute part

Bosch Gasket 1611015021
#94

Brute hammer diagram

Bosch gasket

Part #1611015021

The manufacturer no longer makes this part, and there's no substitute part

Bosch Relief 1610703011
#56

Brute hammer diagram

Bosch relief

Part #1610703011

The manufacturer no longer makes this part, and there's no substitute part
