Model # GFWS3705F0MC Official GE washer

Here are the diagrams and repair parts for Official GE GFWS3705F0MC washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

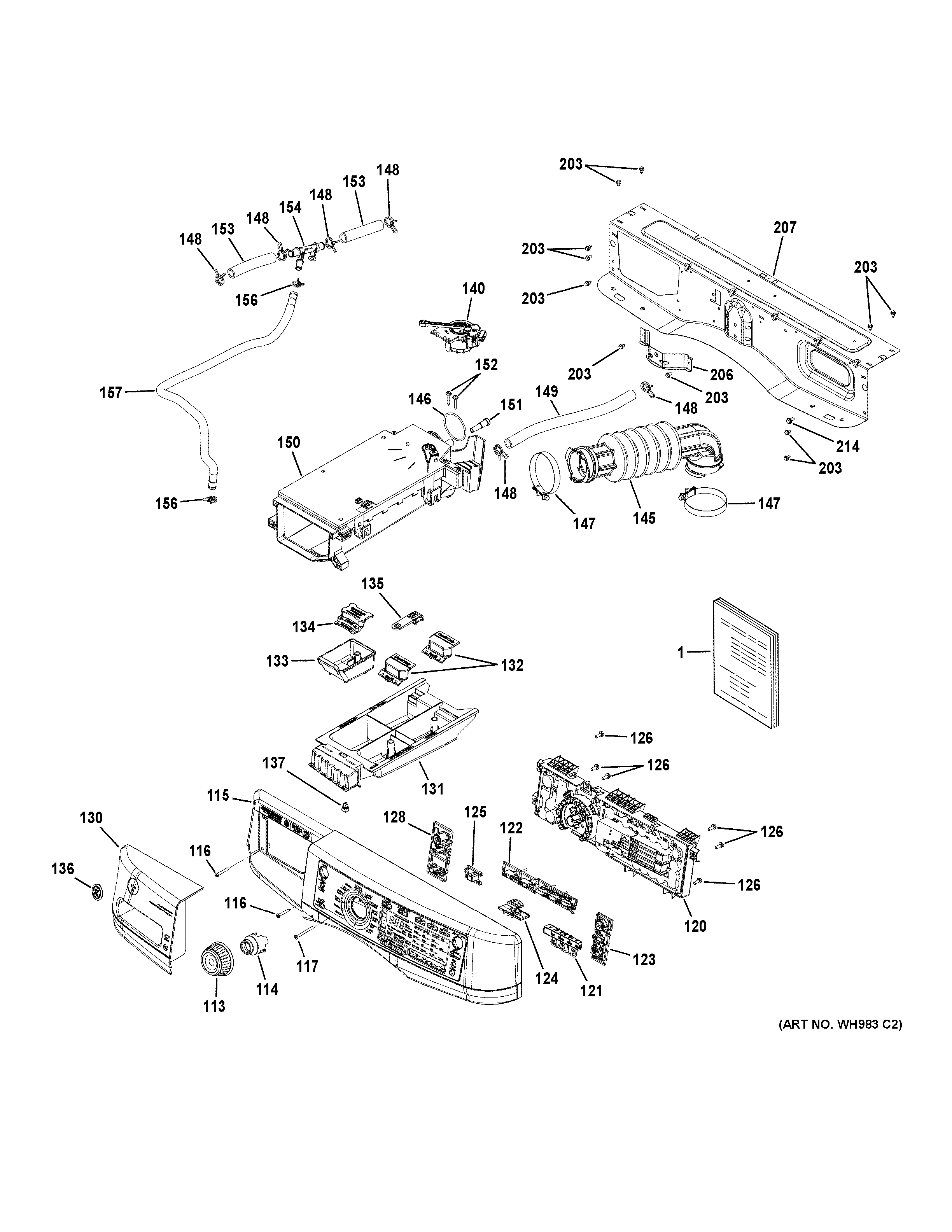

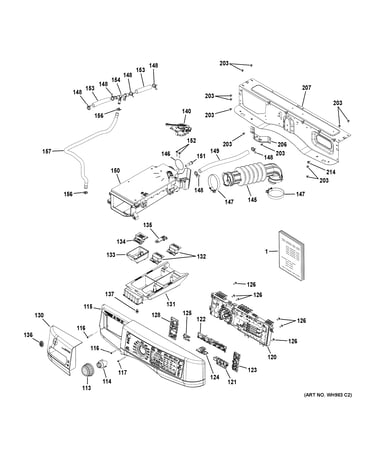

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Washer Spin Basket (replaces Wh45x10140, Wh45x10148) WH45X10137
#311

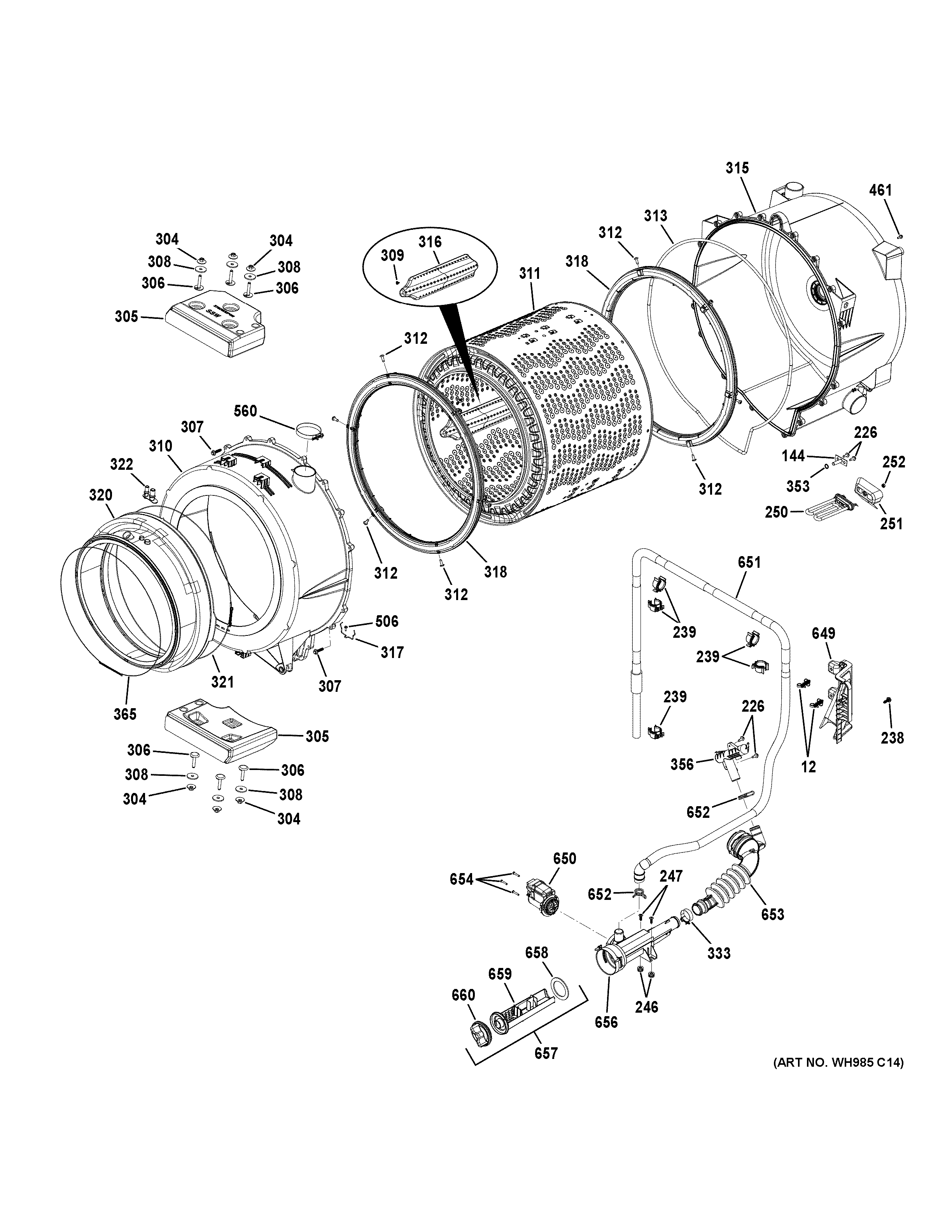

Tub & drain pump diagram

Washer spin basket (replaces wh45x10140, wh45x10148)

Part #WH45X10137

BEST SELLER
This item is not returnable
$457.24 |
$12.00 OFF Phone Price : $469.24
In Stock
Washer Outer Rear Tub WH45X10136
#315

Tub & drain pump diagram

Washer outer rear tub

Part #WH45X10136

BEST SELLER
$448.84 |
$12.00 OFF Phone Price : $460.84
In Stock
Im Controlle WH12X10598
#30

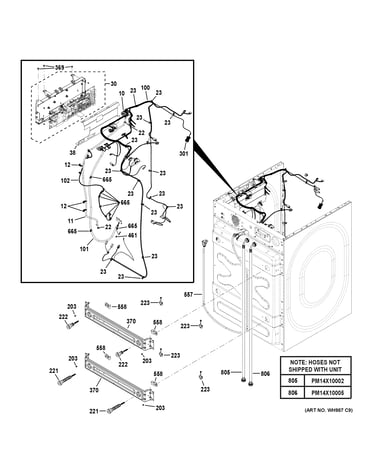

Cabinet (2) diagram

Im controlle

Part #WH12X10598

Replaced by #WH12X26034

?
Manufacturer substitution
This part replaces WH12X10598. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$313.89 |
$12.00 OFF Phone Price : $325.89
In Stock
O-ring Seal WH01X10720
#313

Tub & drain pump diagram

O-ring seal

Part #WH01X10720

Replaced by #WH01X21994

?
Manufacturer substitution
This part replaces WH01X10720. Substitute parts can look different from the original.
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Washer Shock Absorber WH01X10727
#210

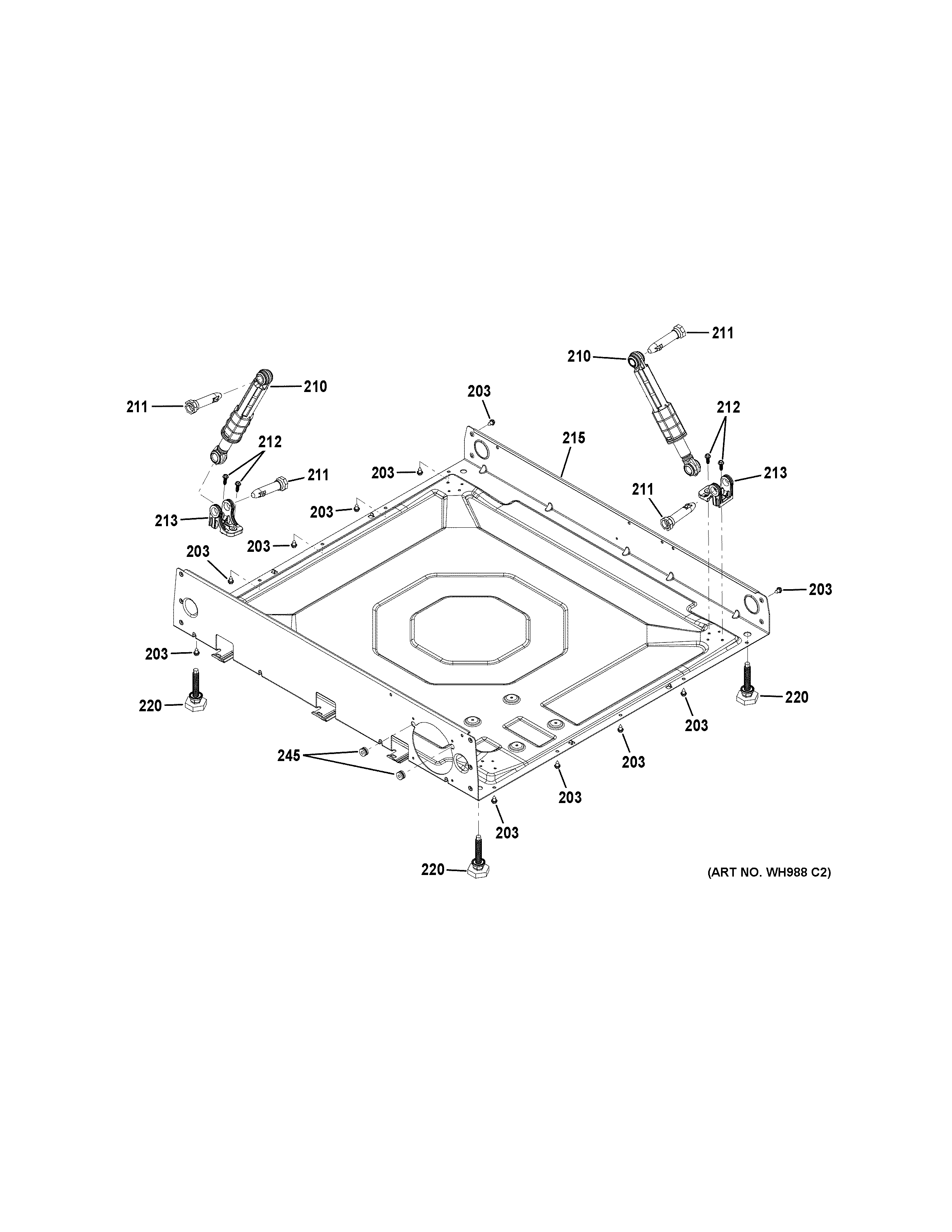

Base pan diagram

Washer shock absorber

Part #WH01X10727

$24.81 |
19% OFF Phone Price : $30.81
In Stock
Rps Module WH12X10594
#326

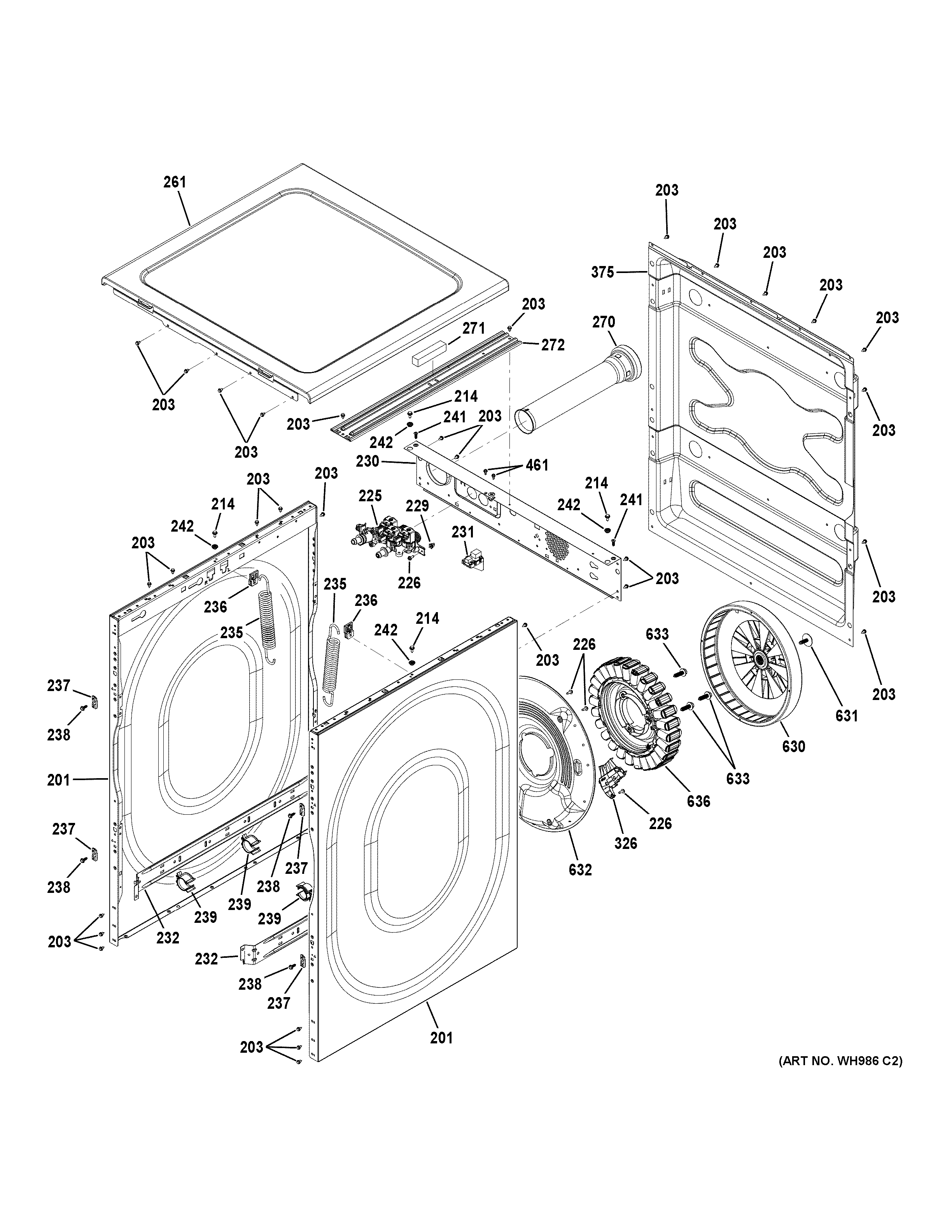

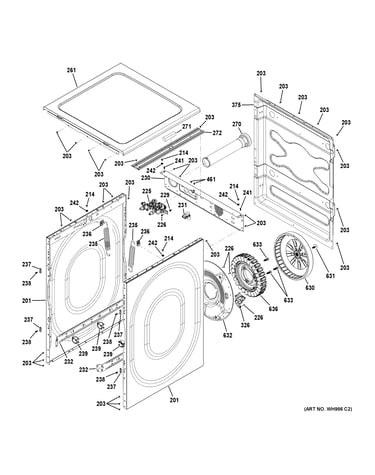

Cabinet & drive assembly diagram

Rps module

Part #WH12X10594

Replaced by #WH12X23995

?
Manufacturer substitution
This part replaces WH12X10594. Substitute parts can look different from the original.
$39.32 |
13% OFF Phone Price : $45.32
In Stock
Wire Tie WH01X10704
#23

Cabinet (2) diagram

Wire tie

Part #WH01X10704

This item is not returnable
$7.14
In Stock
Washer Drain Pump (replaces Wh23x10050) WH23X10051
#650

Tub & drain pump diagram

Washer drain pump (replaces wh23x10050)

Part #WH23X10051

$84.14 |
7% OFF Phone Price : $90.14
In Stock
Screw WH02X0930
#286

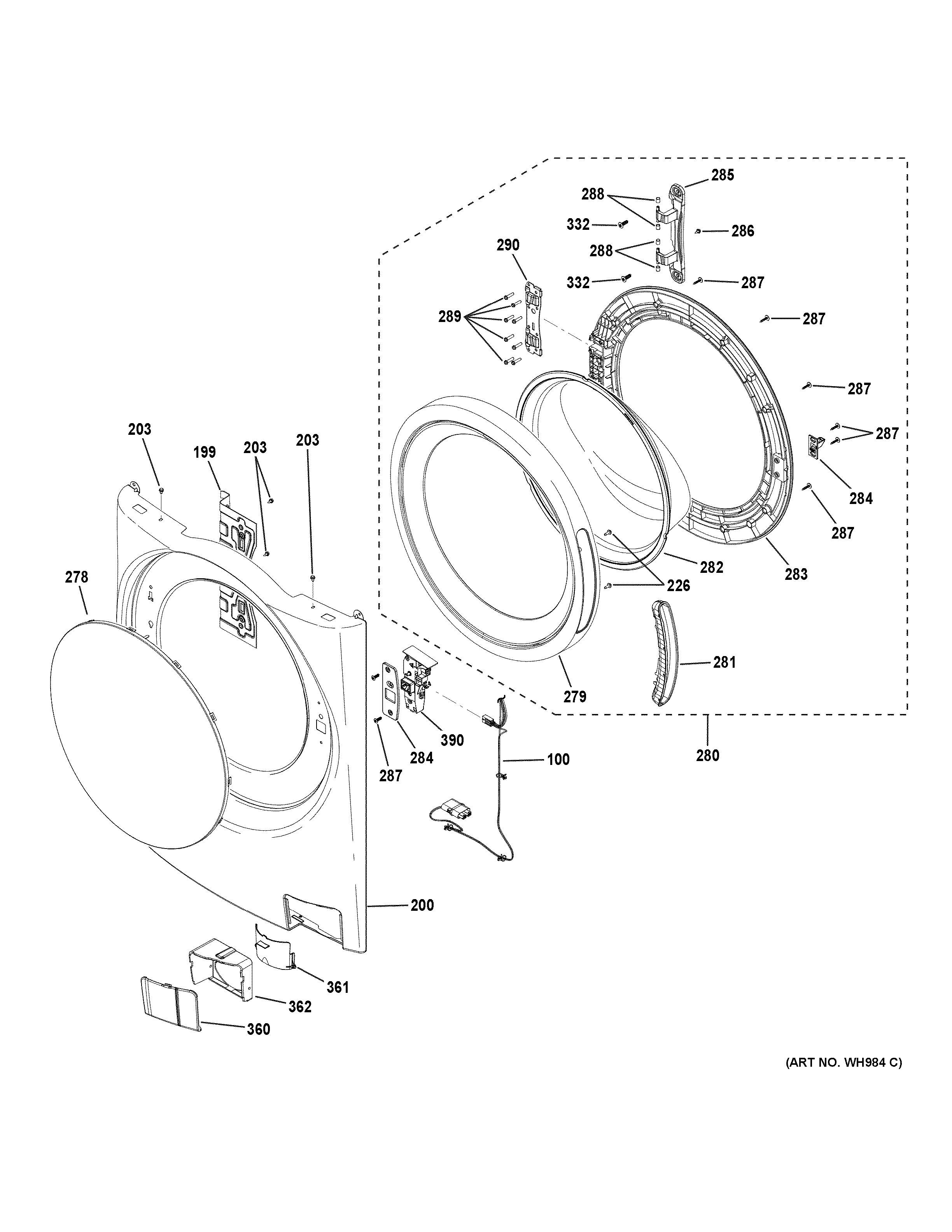

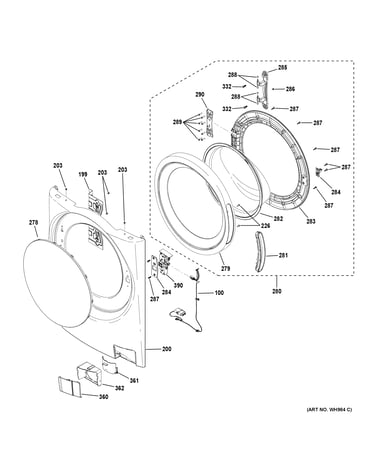

Front panel & door diagram

Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Outer Front Tub WH45X10141
#310

Tub & drain pump diagram

Washer outer front tub

Part #WH45X10141

This item is not returnable
$153.12 |
7% OFF Phone Price : $165.12
In Stock
