GE
Bottom-Mount Refrigerator

Model # CYE22TP3MFD1 Official GE refrigerator

Here are the diagrams and repair parts for Official GE CYE22TP3MFD1 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

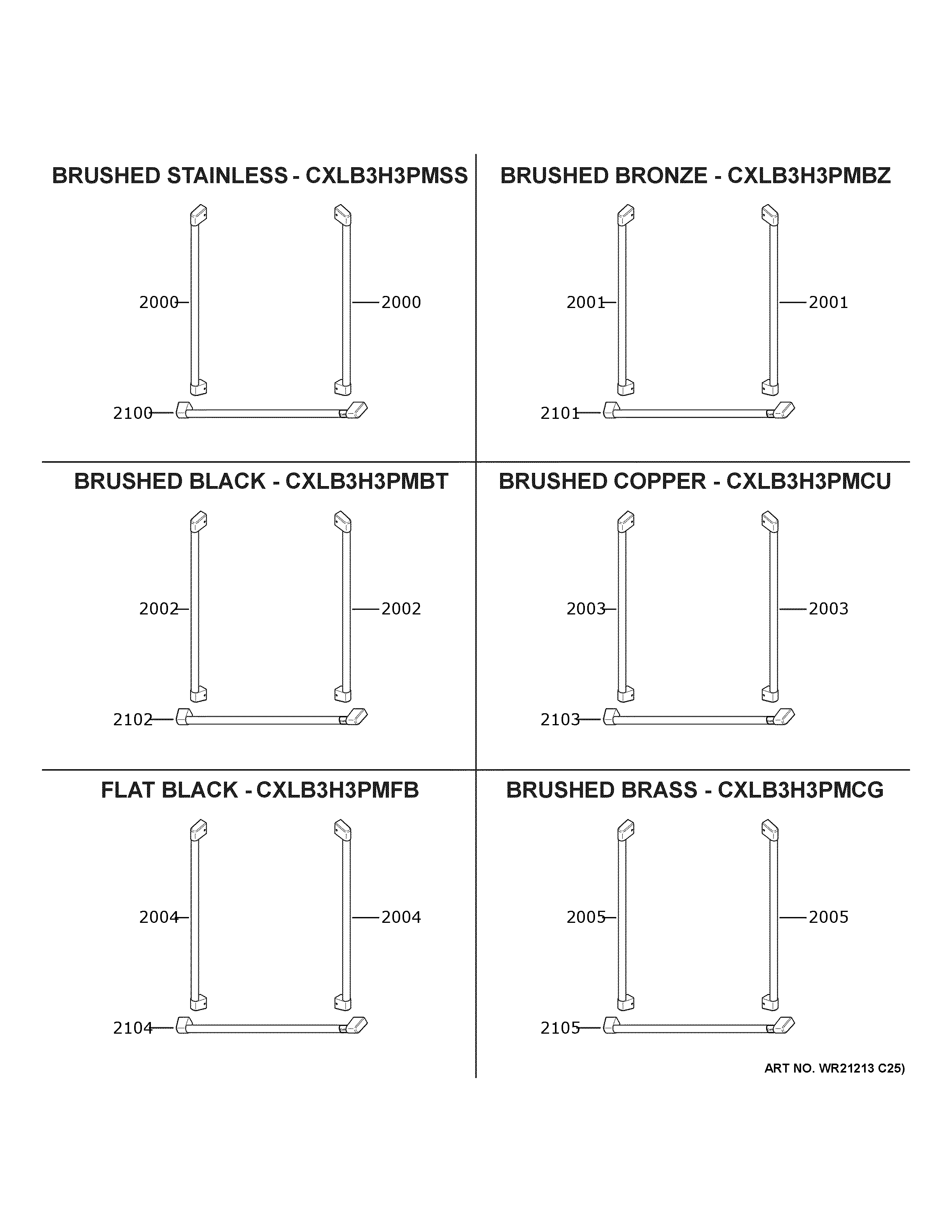

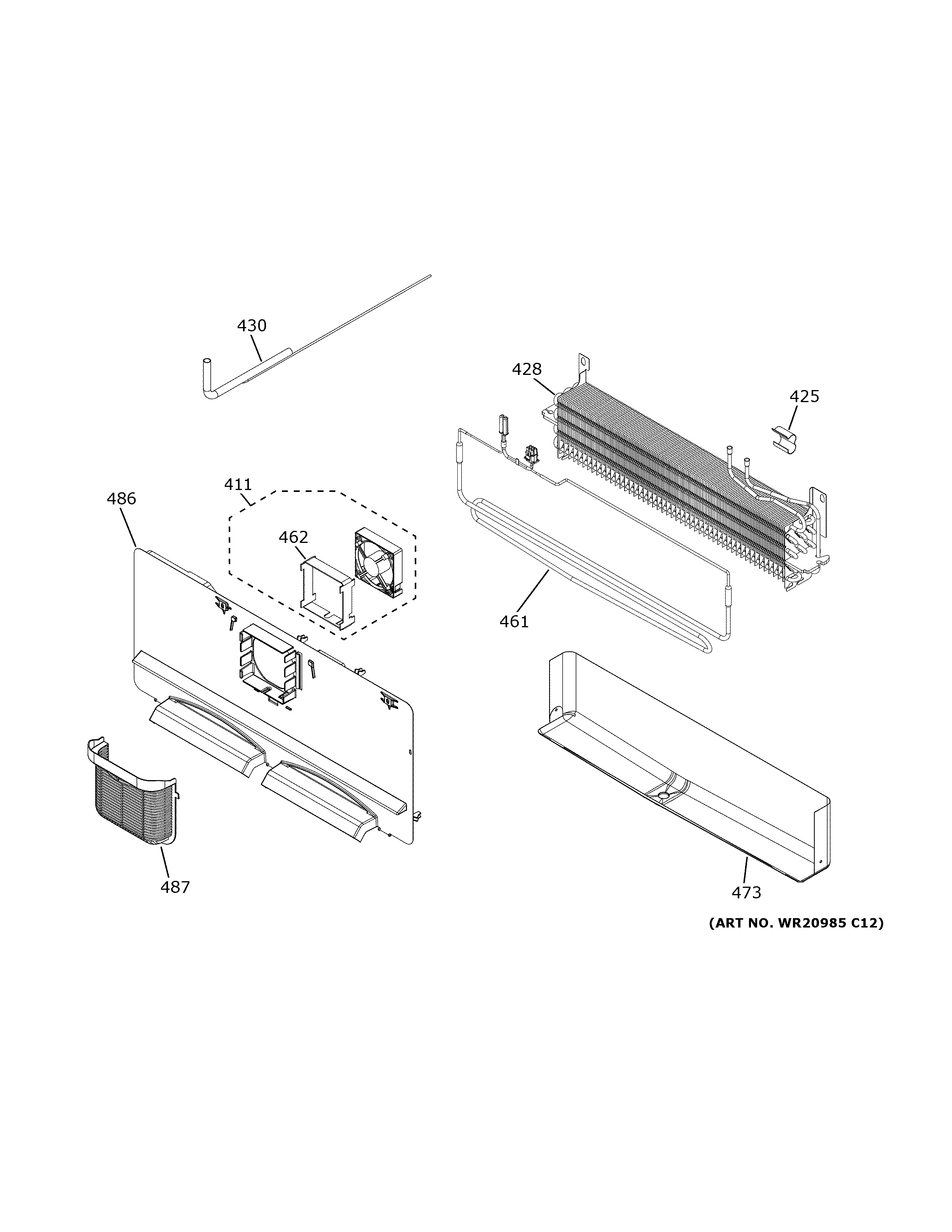

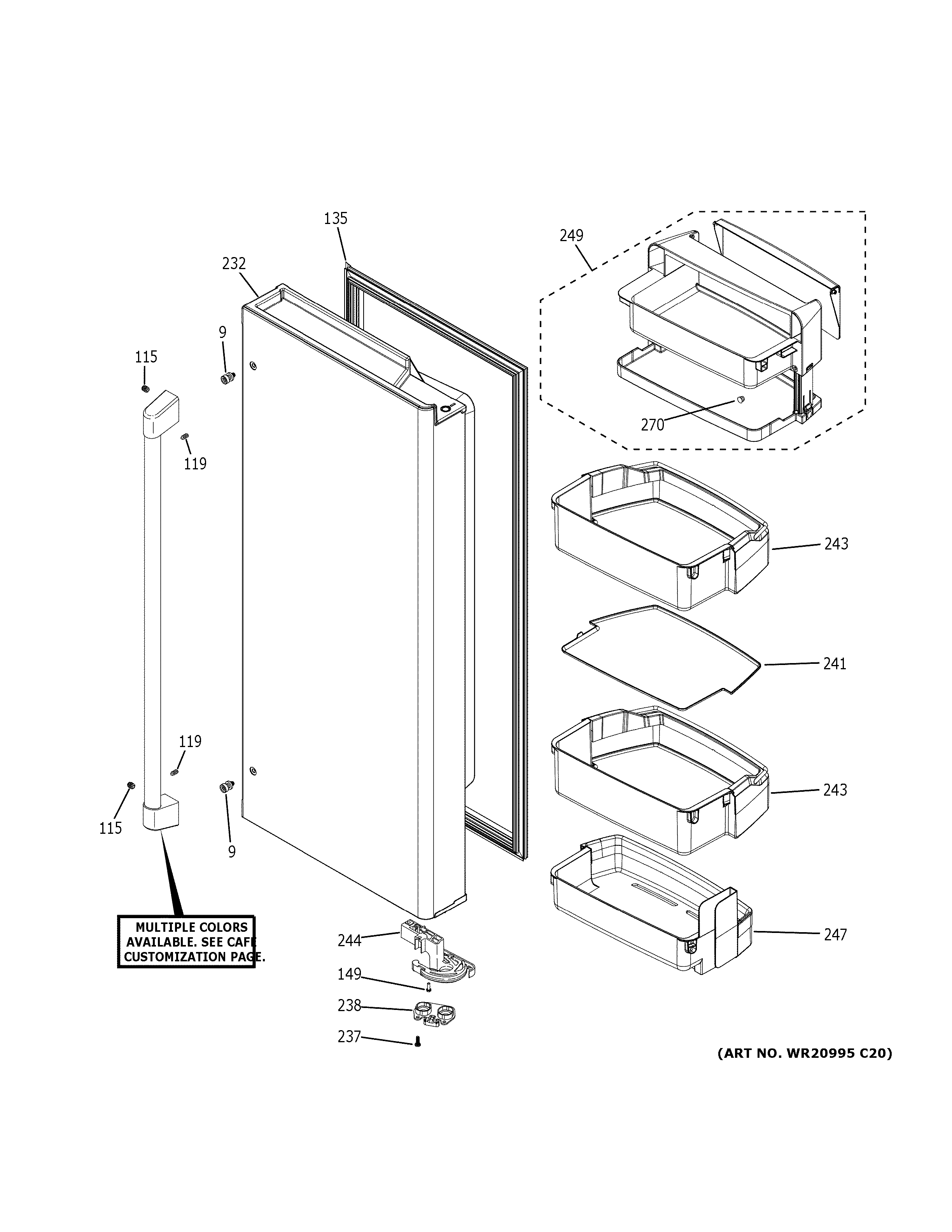

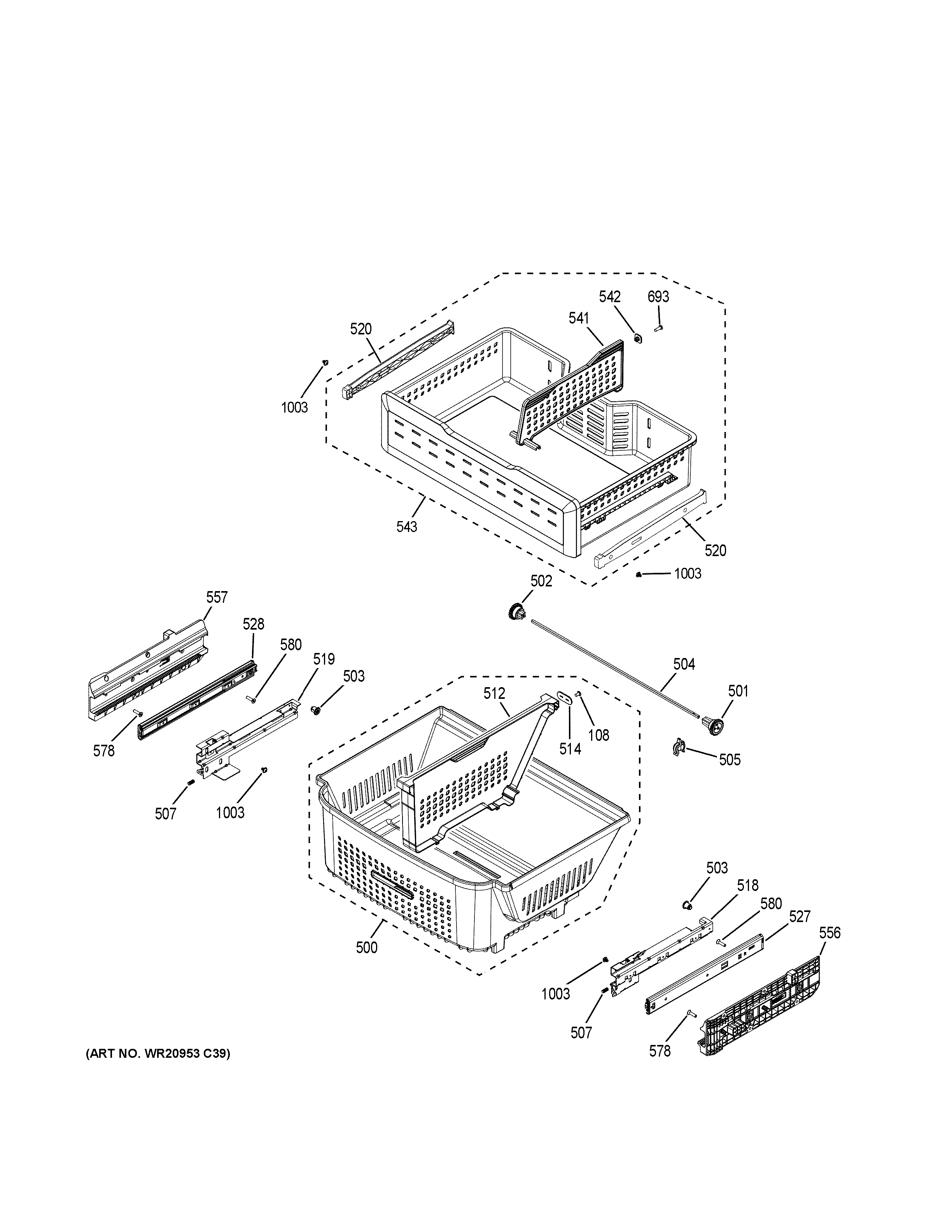

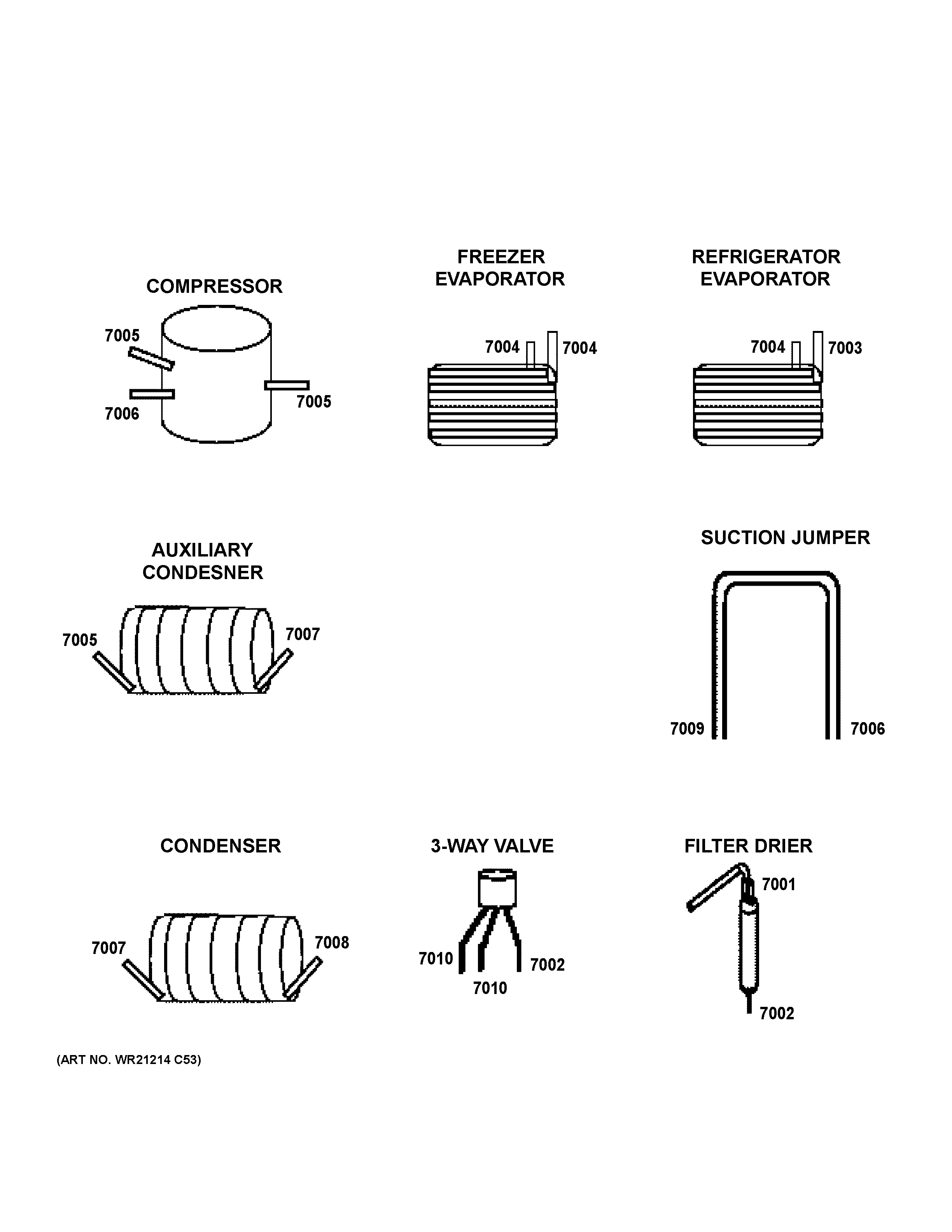

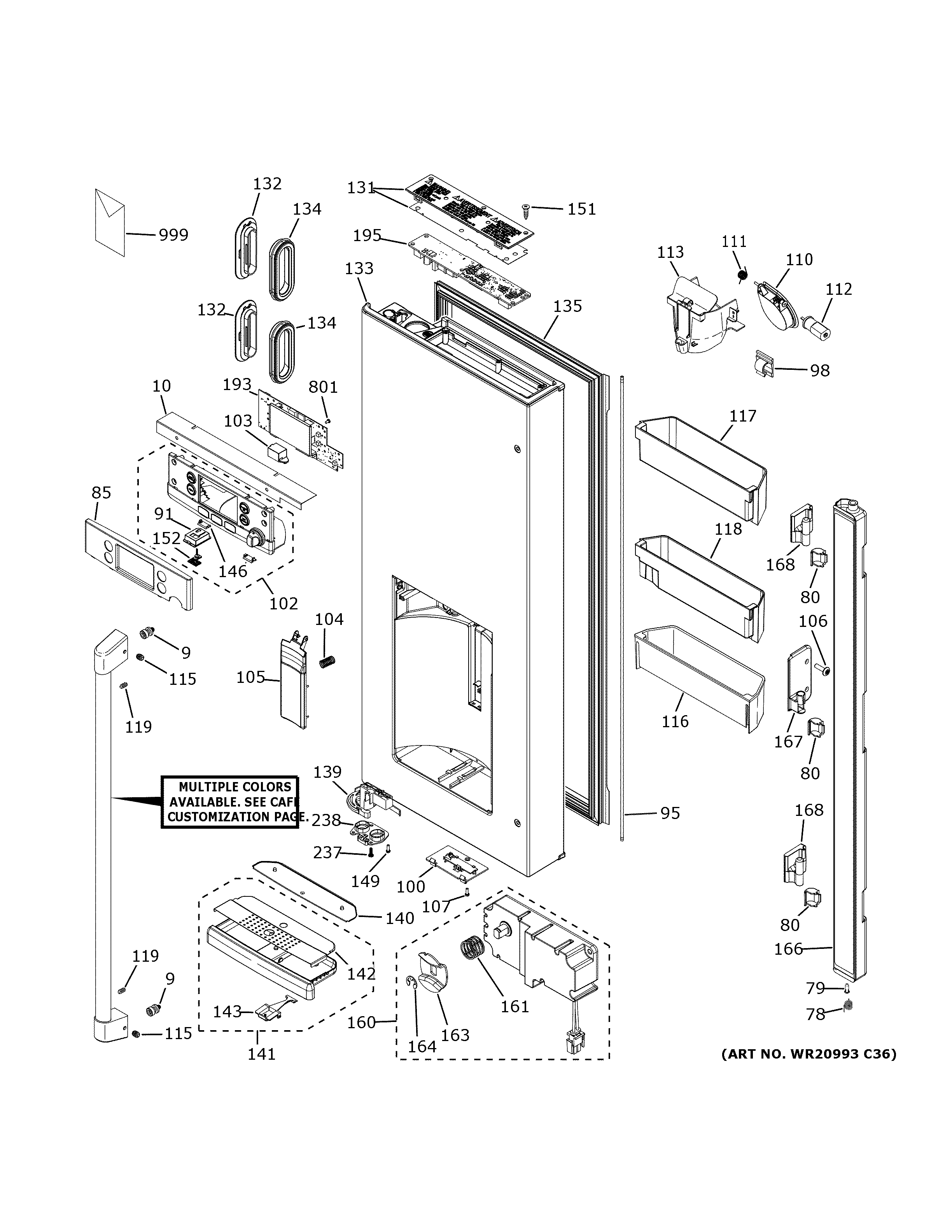

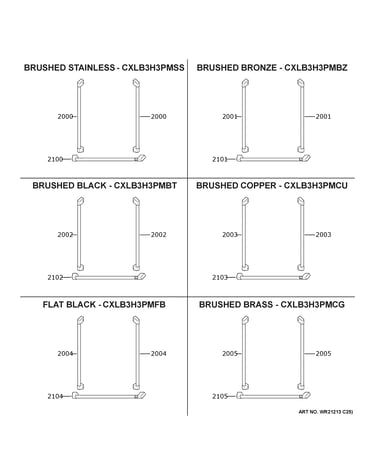

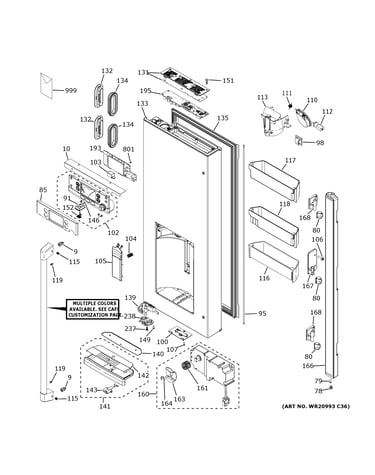

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 255 parts  |
Refrigerator Temperature Sensor WR55X11153
#955

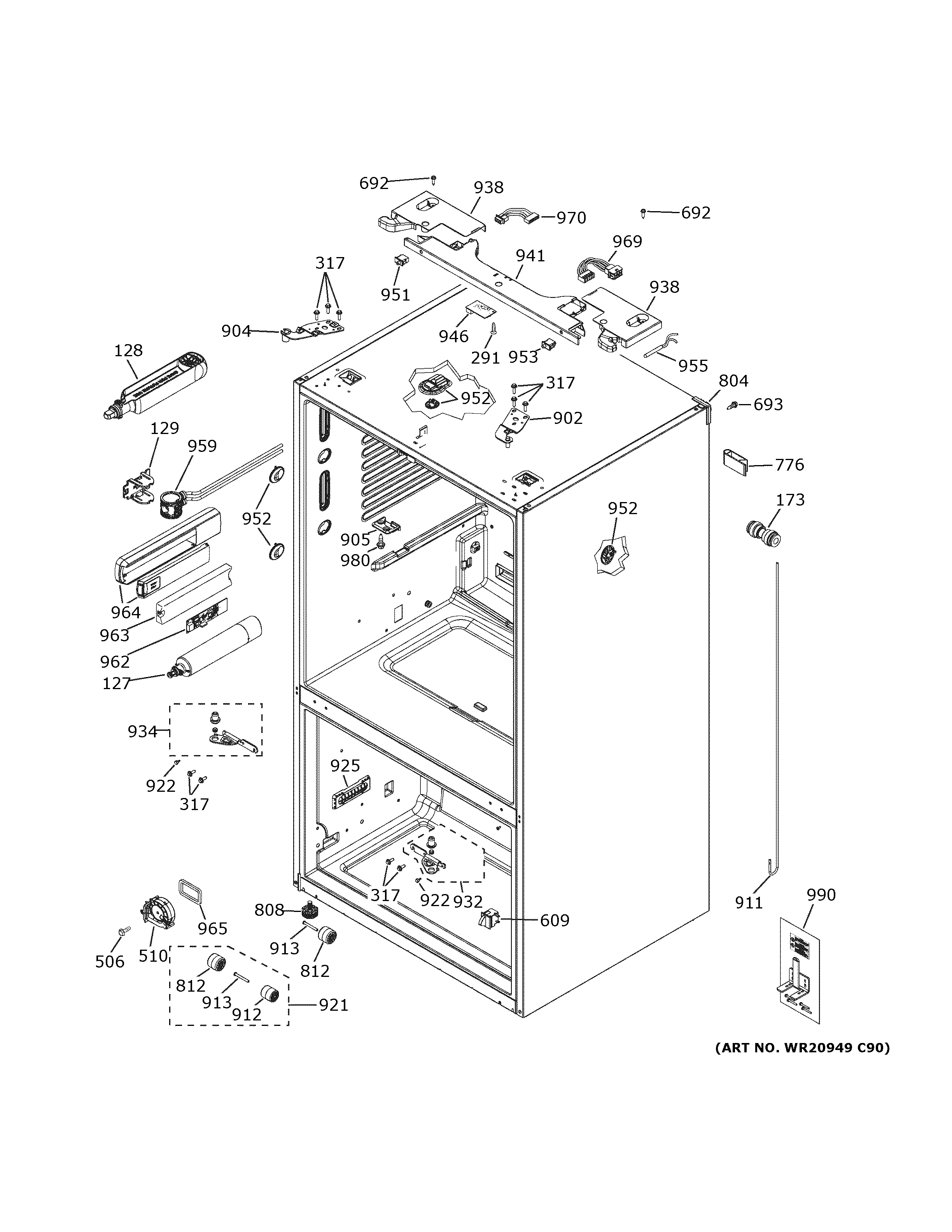

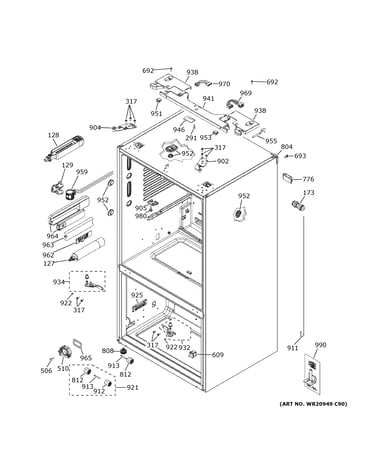

Case parts diagram

Refrigerator temperature sensor

Part #WR55X11153

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11153. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X11142
#153

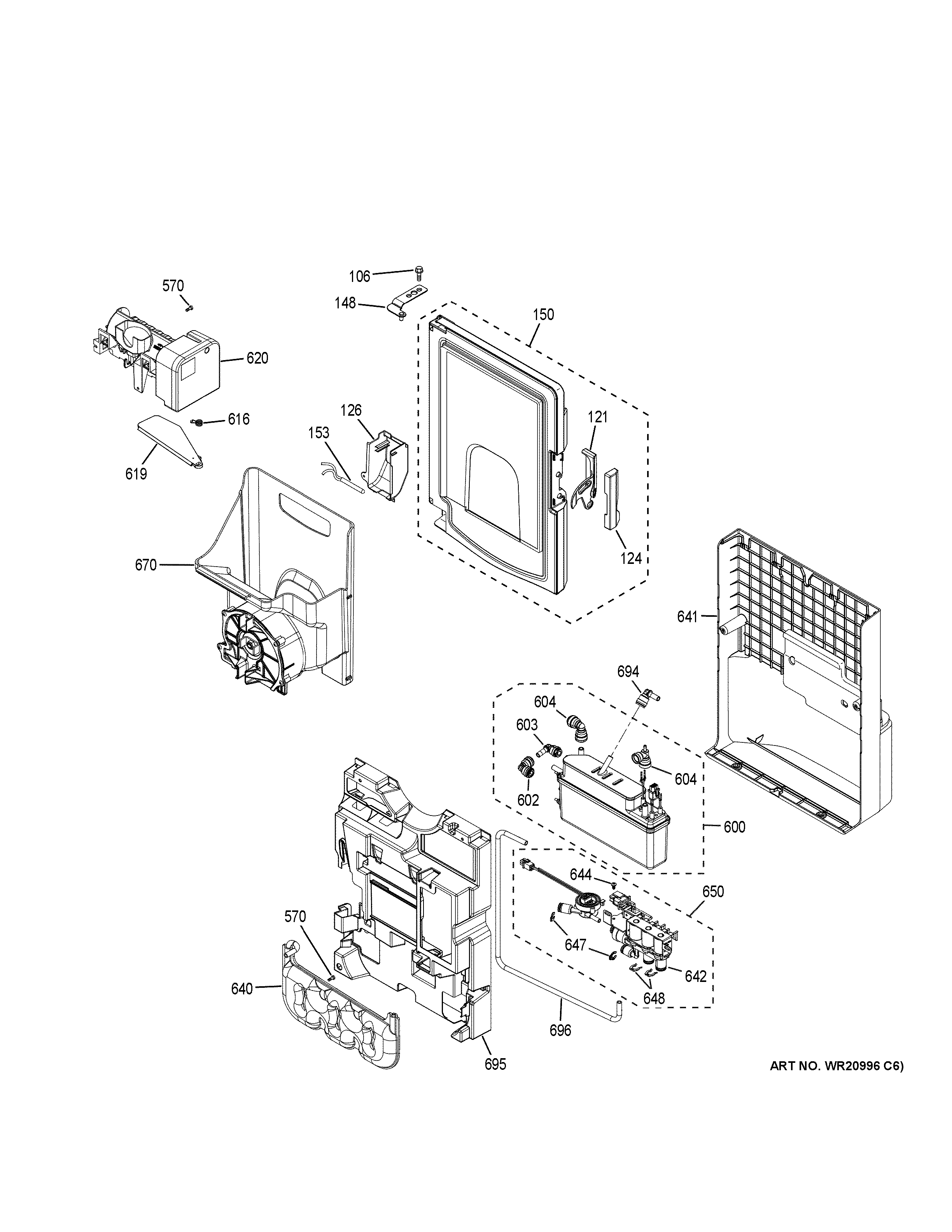

Ice maker & dispenser diagram

Refrigerator temperature sensor

Part #WR55X11142

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11142. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X11141
#841

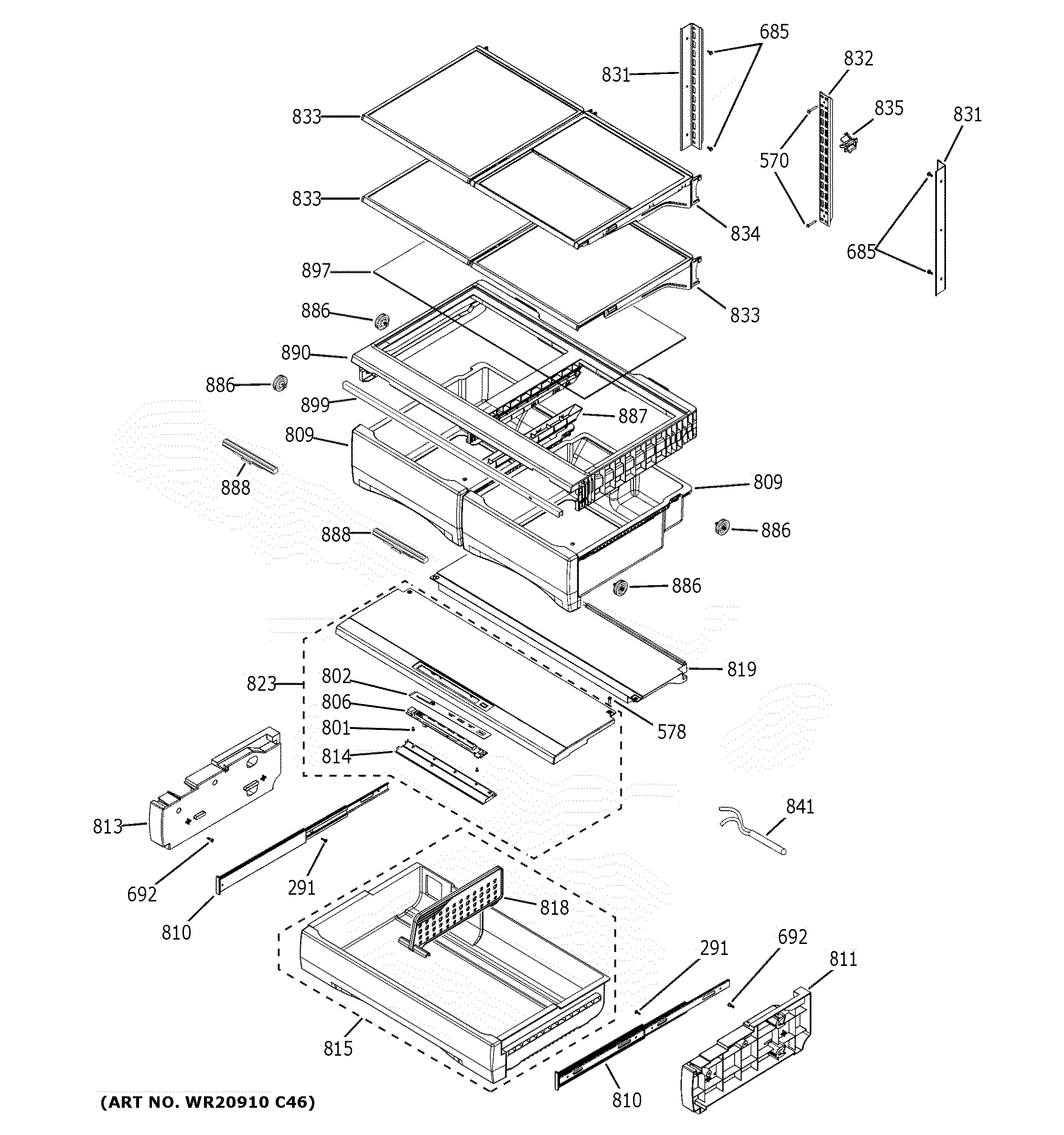

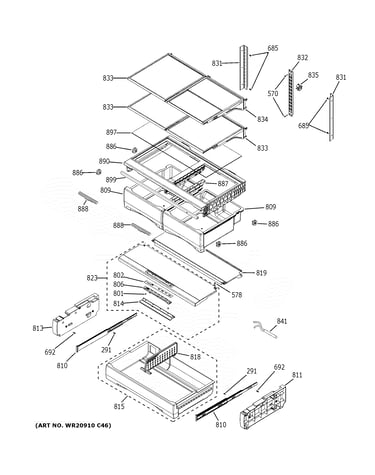

Fresh food shelves diagram

Refrigerator temperature sensor

Part #WR55X11141

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11141. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X11152
#719

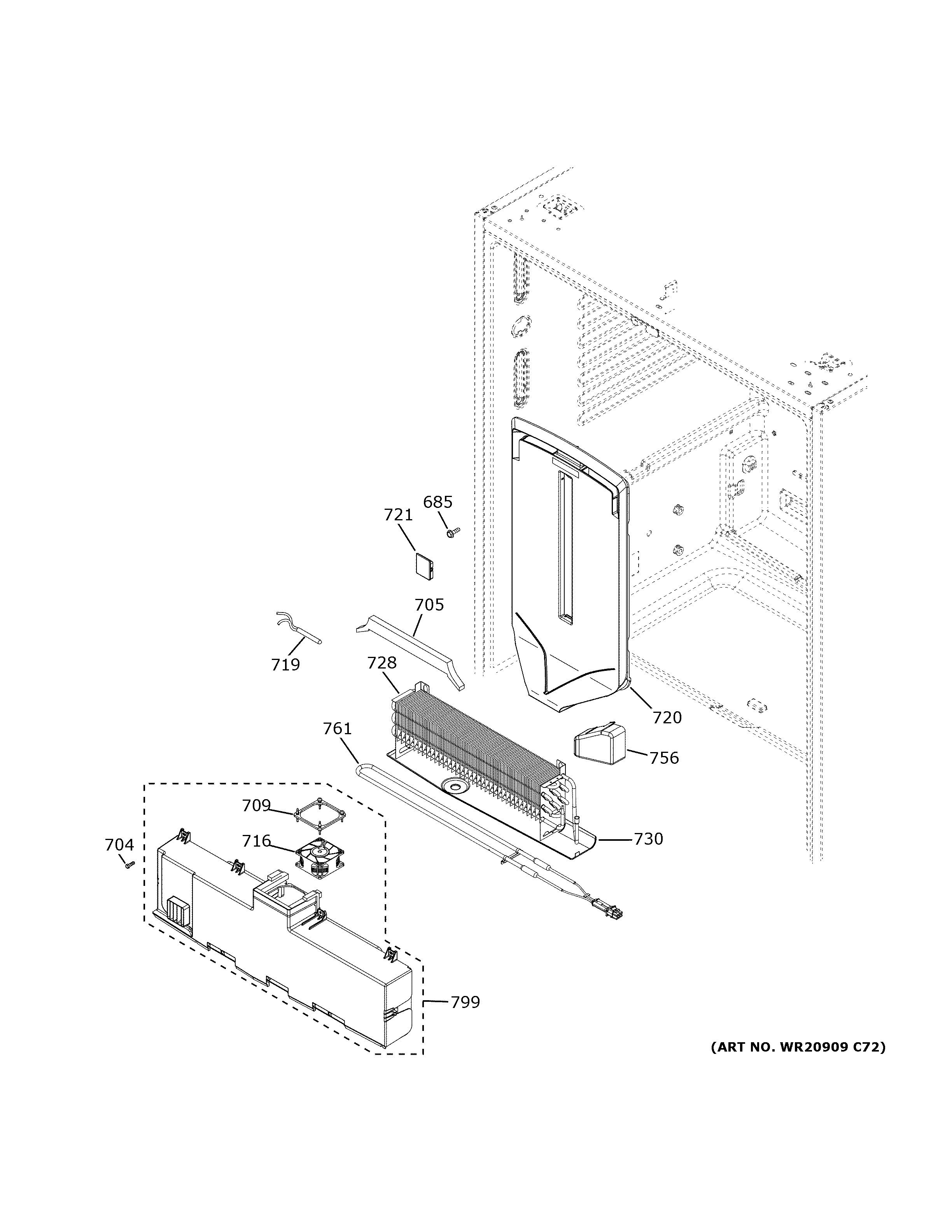

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X11152

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11152. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Ge Refrigerator Water Filter (replaces Rpwf) RPWFE
#127

Case parts diagram

Ge refrigerator water filter (replaces rpwf)

Part #RPWFE

BEST SELLER

Get free shipping with Automatic Reorder

$54.99
In Stock
Refrigerator Filter Dryer WR86X10089
#940

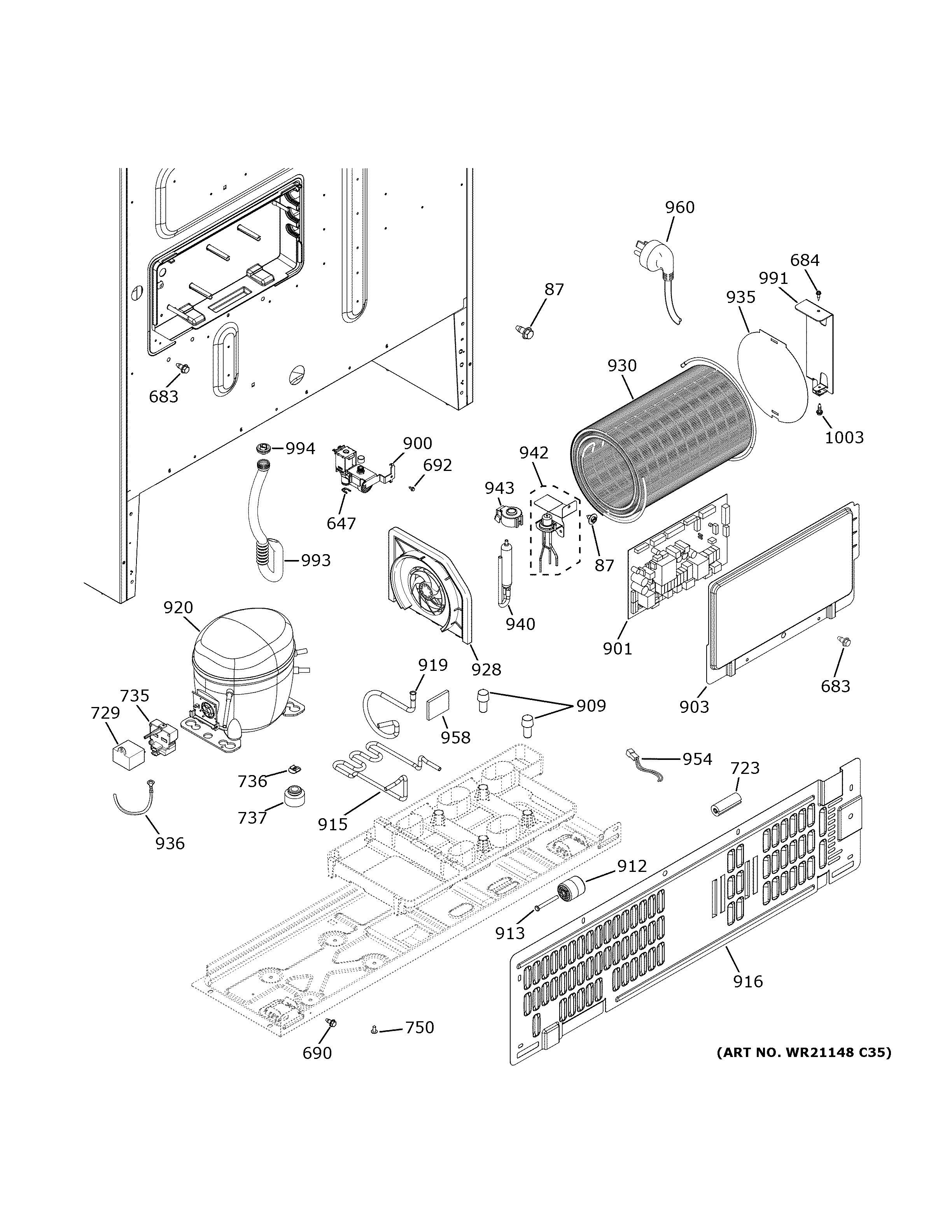

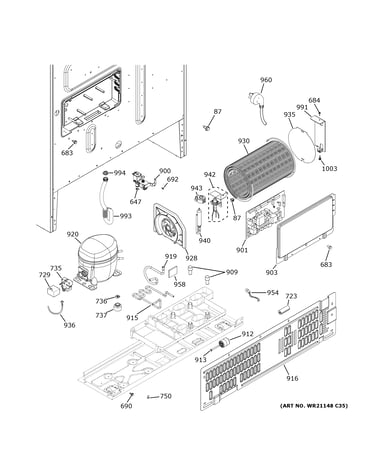

Machine compartment diagram

Refrigerator filter dryer

Part #WR86X10089

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10089. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Main Control Board WR55X35727
#901

Machine compartment diagram

Refrigerator main control board

Part #WR55X35727

Replaced by #WR55X38248

?
Manufacturer substitution
This part replaces WR55X35727. Substitute parts can look different from the original.
BEST SELLER
$206.37 |
5% OFF Phone Price : $218.37
In Stock
Cover Led Assembly WR55X26487
#952

Case parts diagram

Cover led assembly

Part #WR55X26487

Replaced by #WR55X11132

?
Manufacturer substitution
This part replaces WR55X26487. Substitute parts can look different from the original.
BEST SELLER
$33.83 |
15% OFF Phone Price : $39.83
In Stock
Refrigerator Freezer Door Gasket WR14X31558
#312

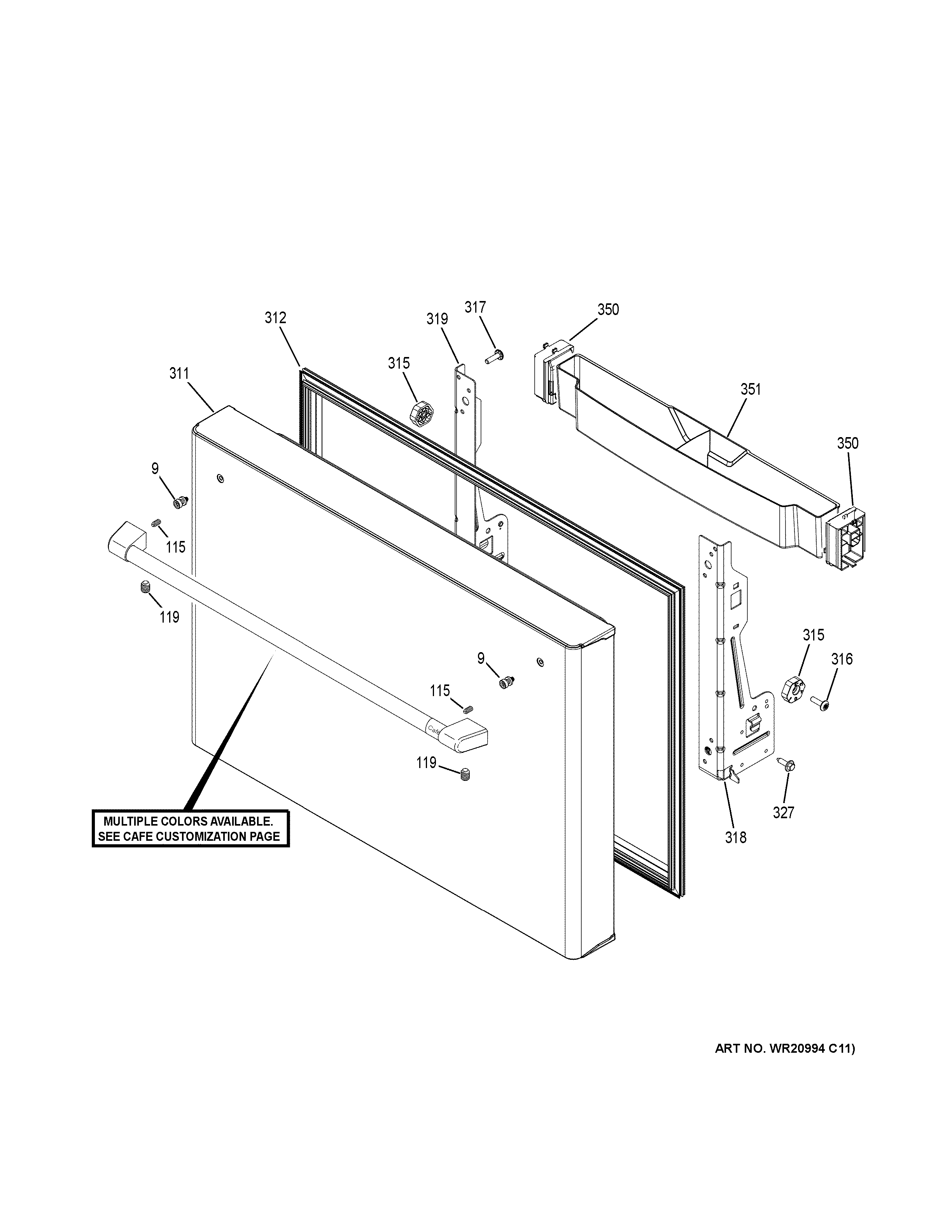

Freezer door diagram

Refrigerator freezer door gasket

Part #WR14X31558

Replaced by #WR14X36194

?
Manufacturer substitution
This part replaces WR14X31558. Substitute parts can look different from the original.
BEST SELLER
$58.11 |
9% OFF Phone Price : $64.11
In Stock
Refrigerator Compressor WR87X29155
#920

Machine compartment diagram

Refrigerator compressor

Part #WR87X29155

Replaced by #WR87X23410

?
Manufacturer substitution
This part replaces WR87X29155. Substitute parts can look different from the original.
BEST SELLER
$439.96 |
$12.00 OFF Phone Price : $451.96
In Stock
