Maytag
Bottom-Mount Refrigerator

Model # MFT2772HEZ01 Official Maytag bottom-mount refrigerator

Here are the diagrams and repair parts for Official Maytag MFT2772HEZ01 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

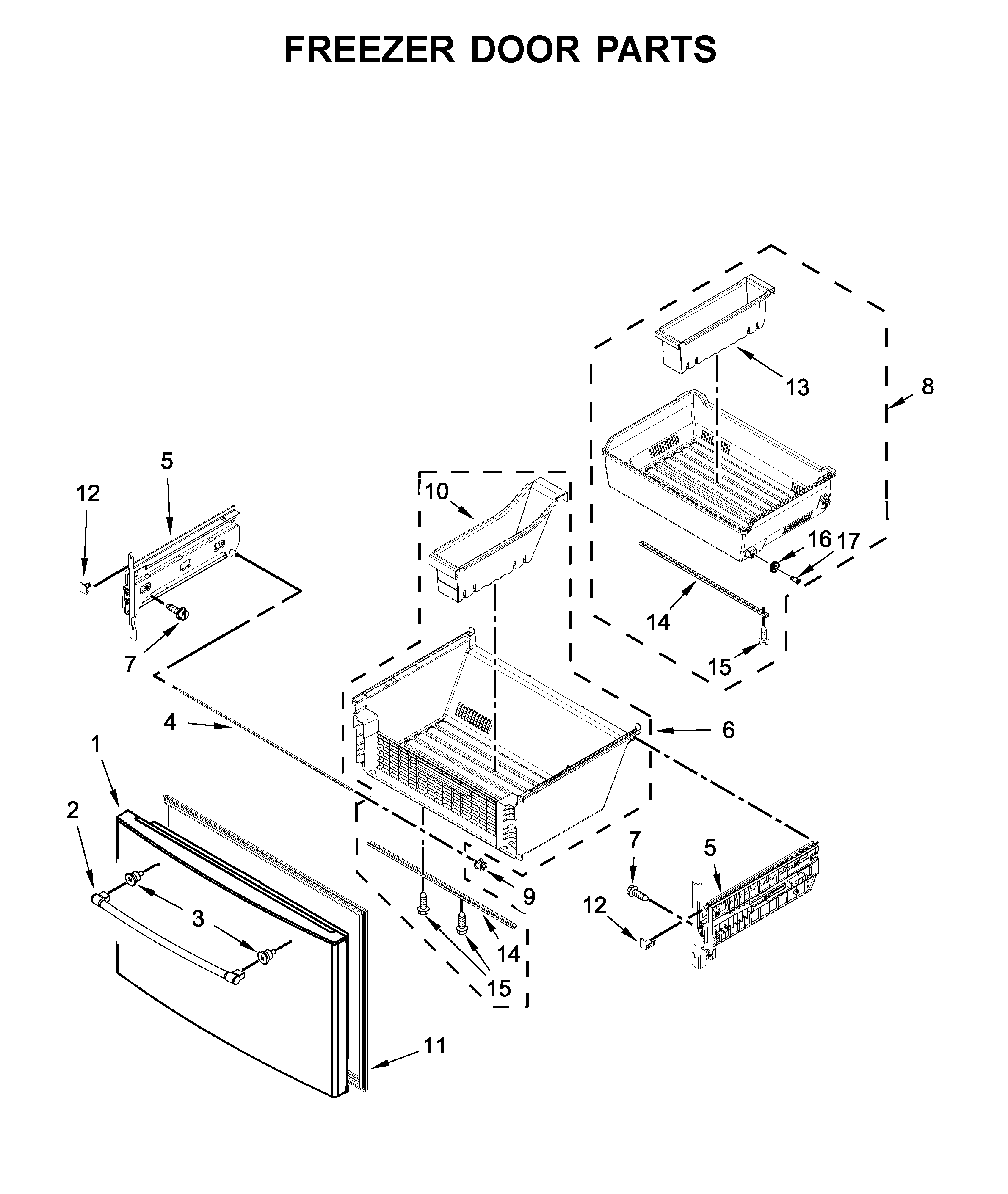

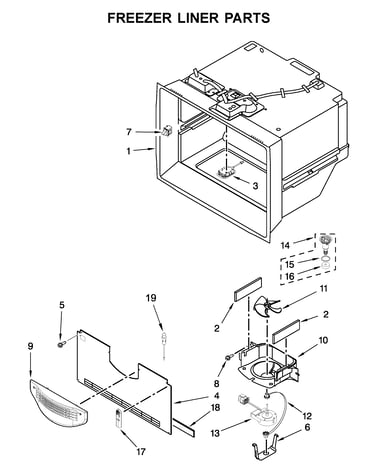

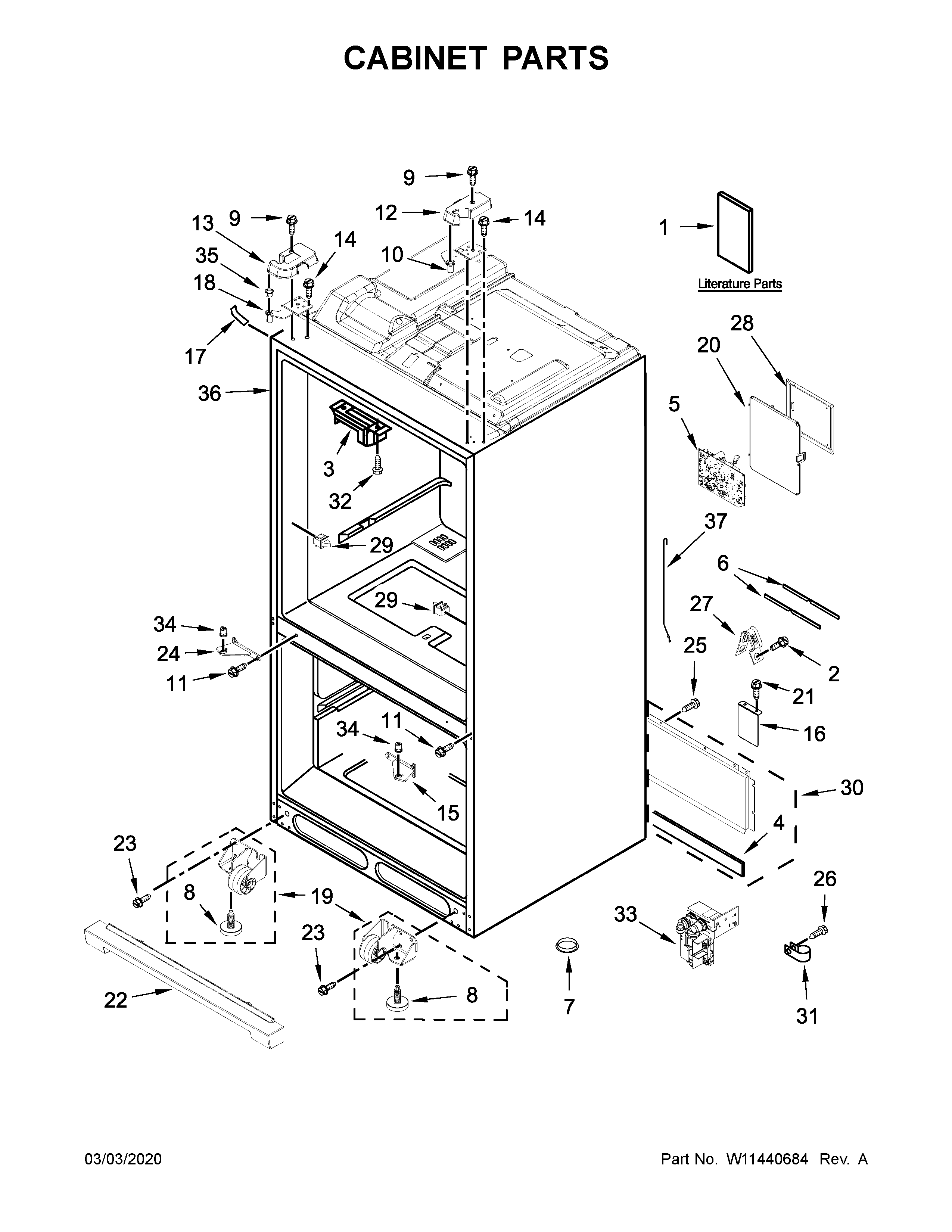

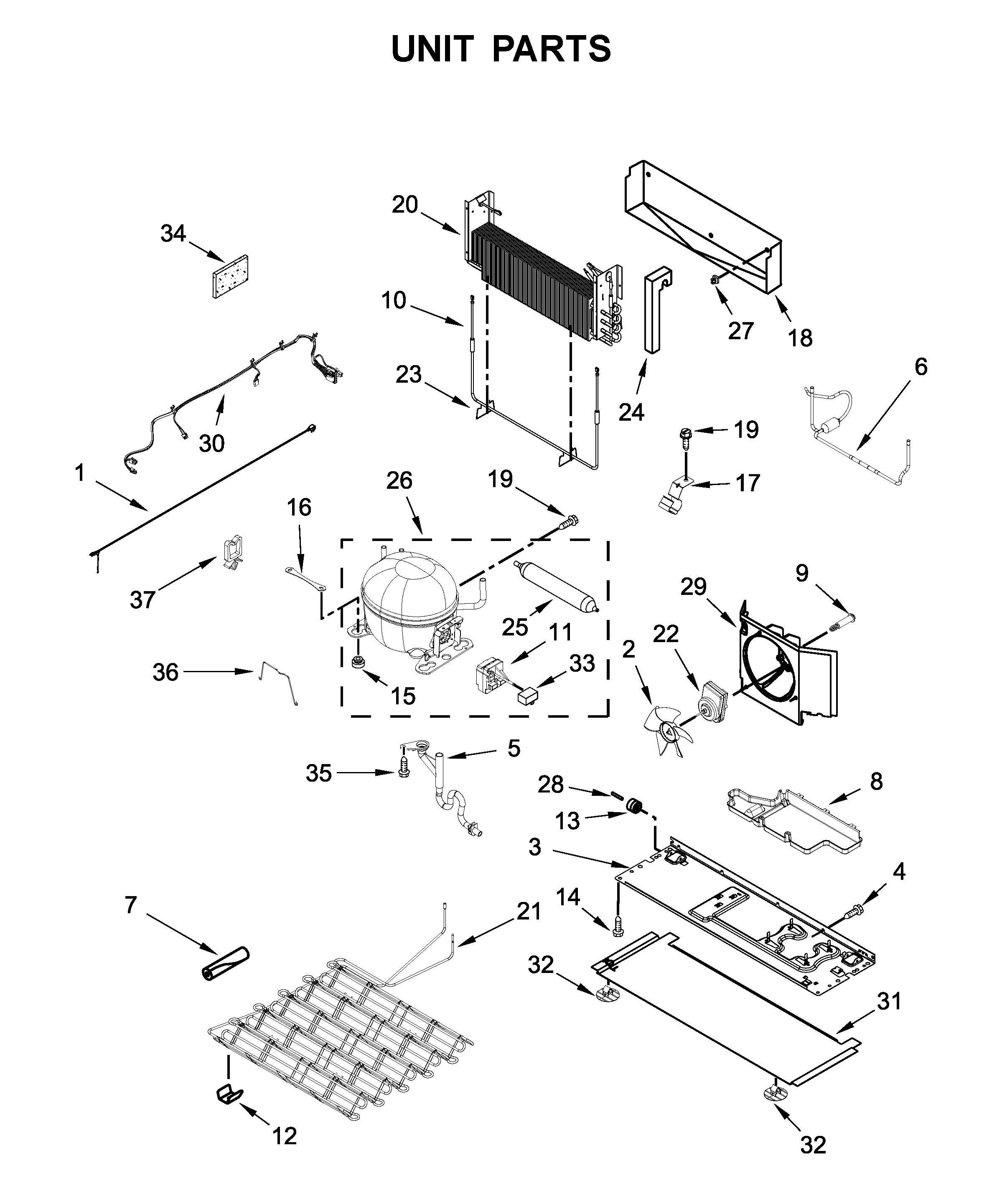

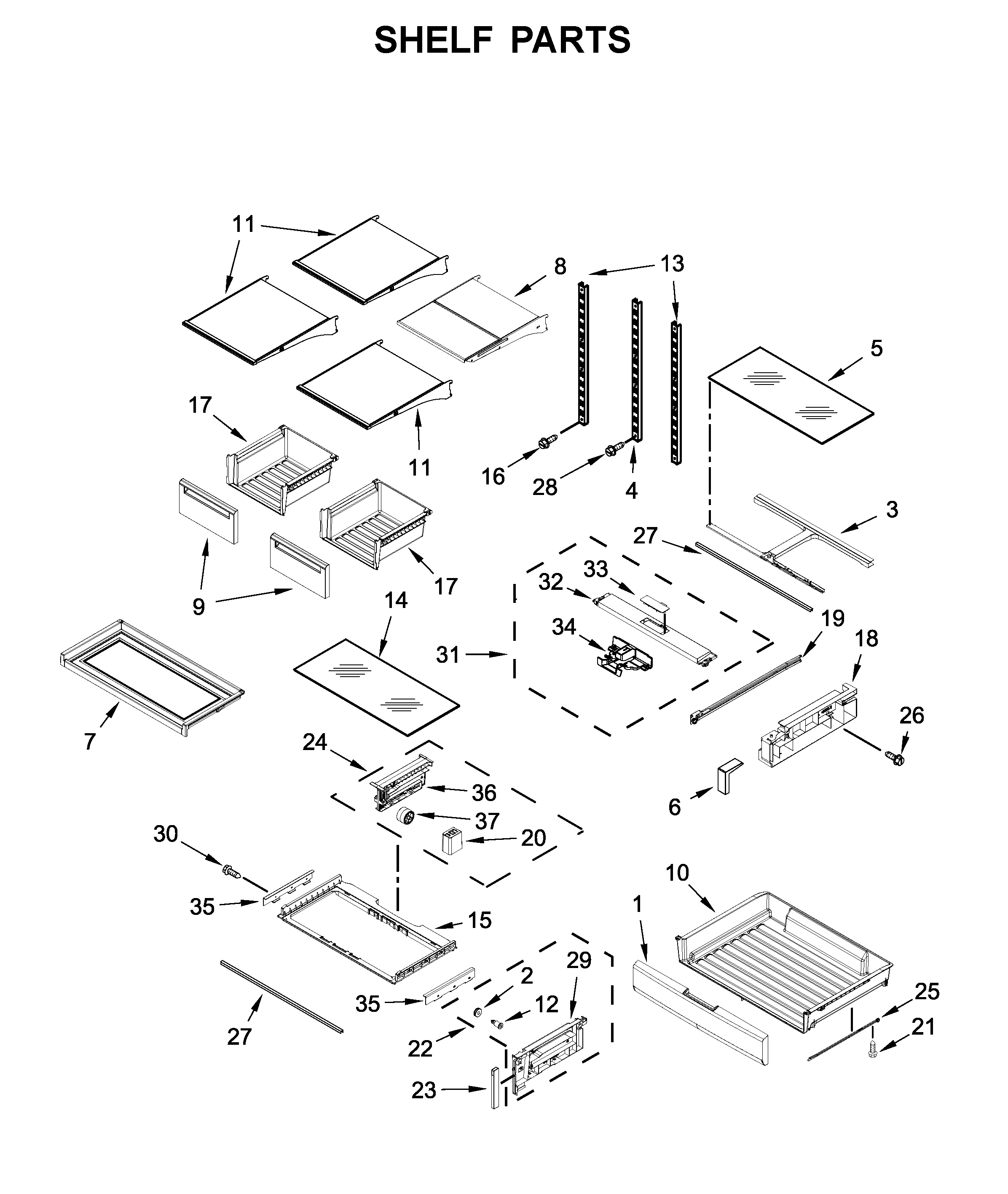

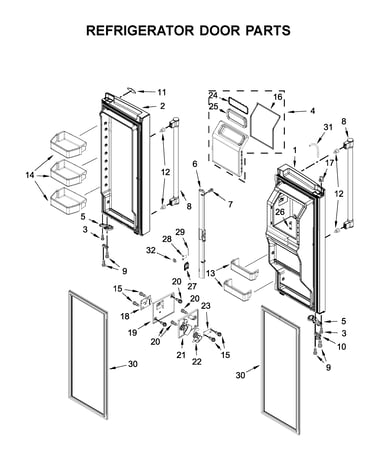

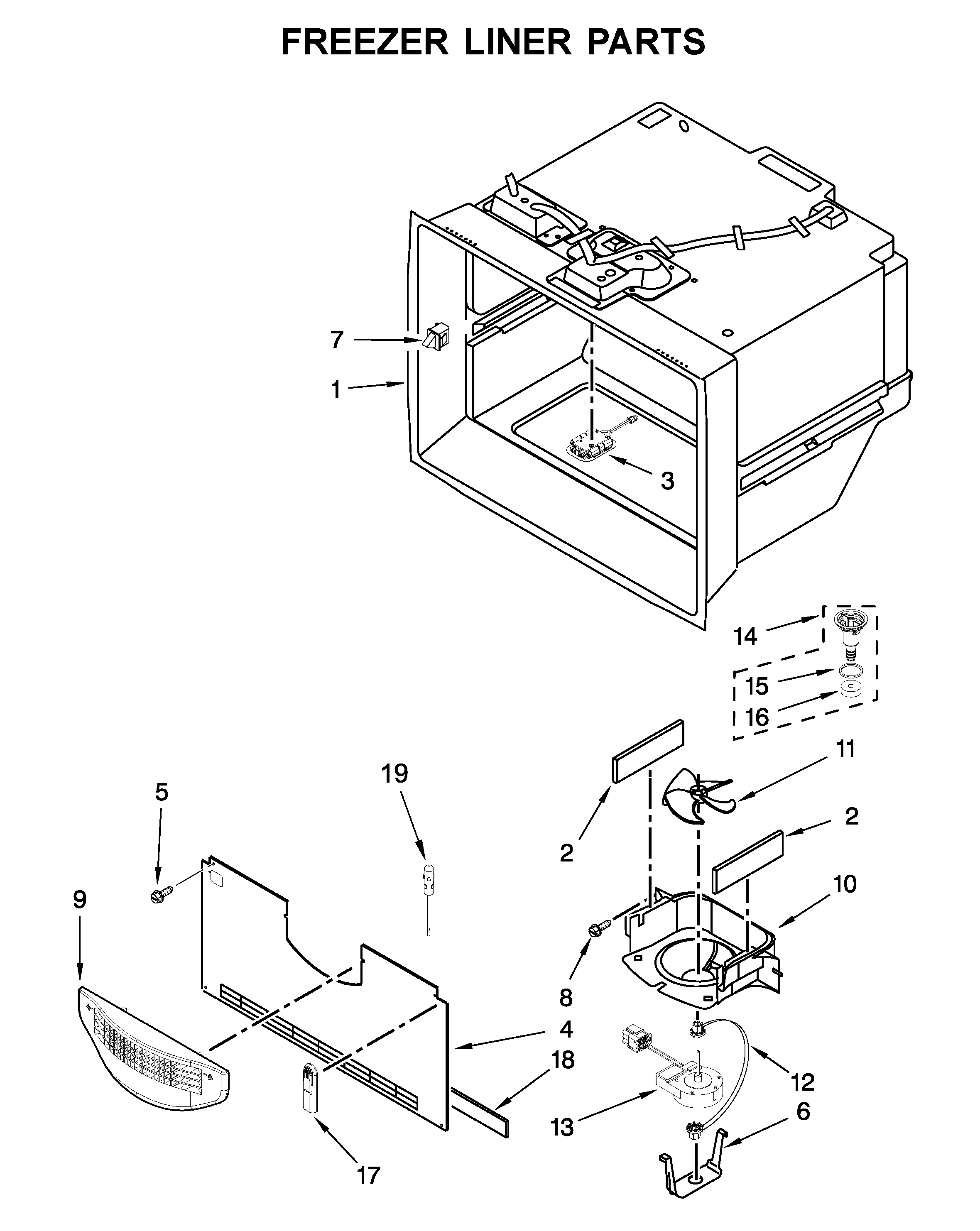

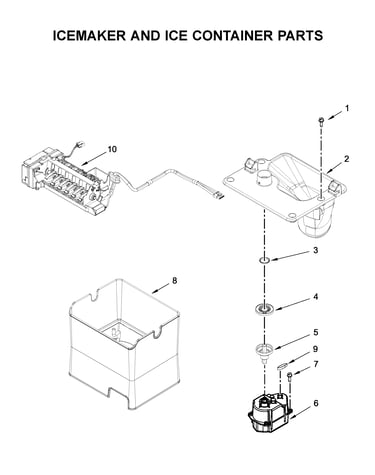

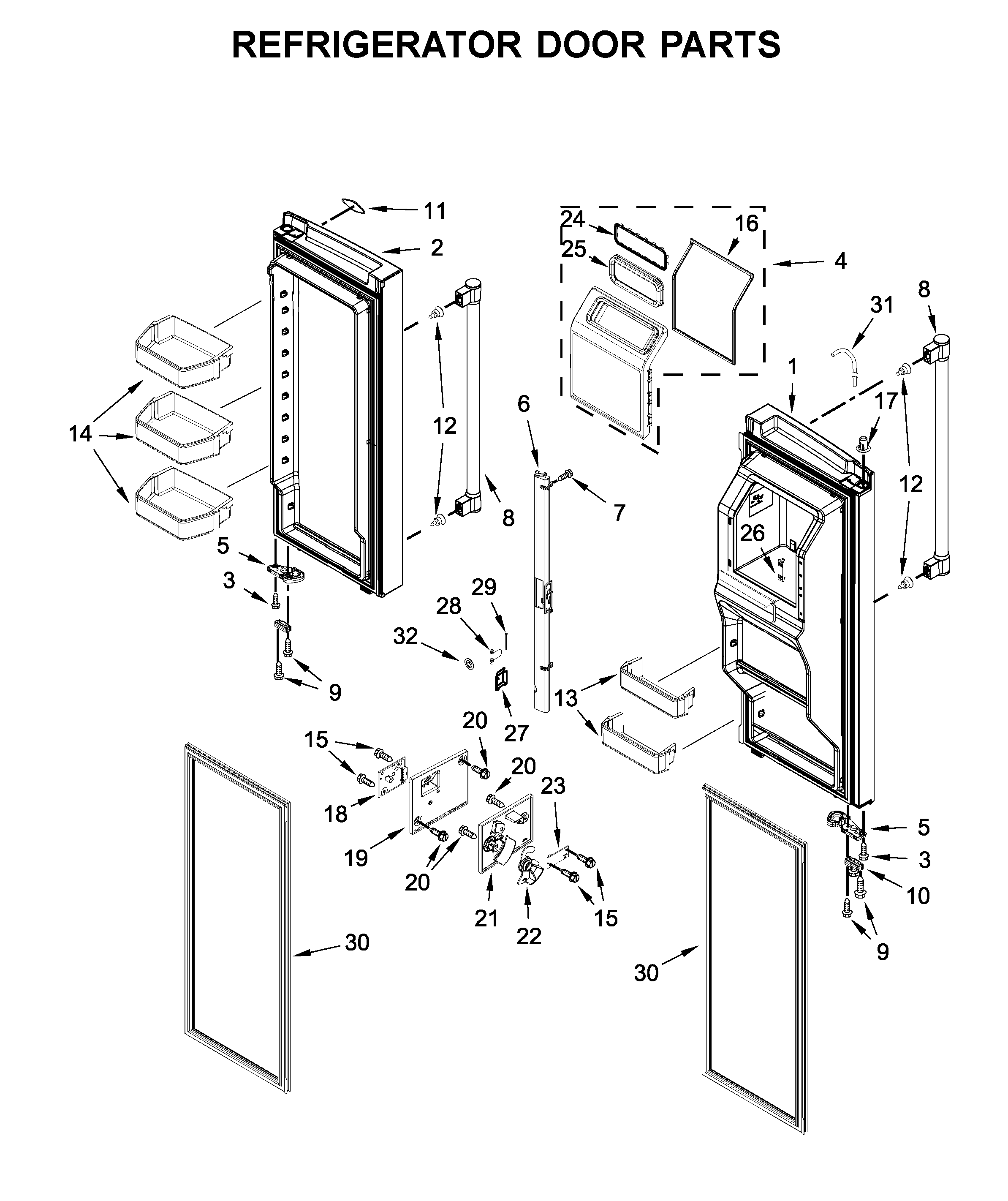

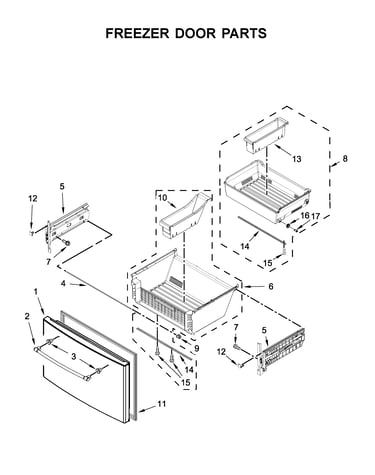

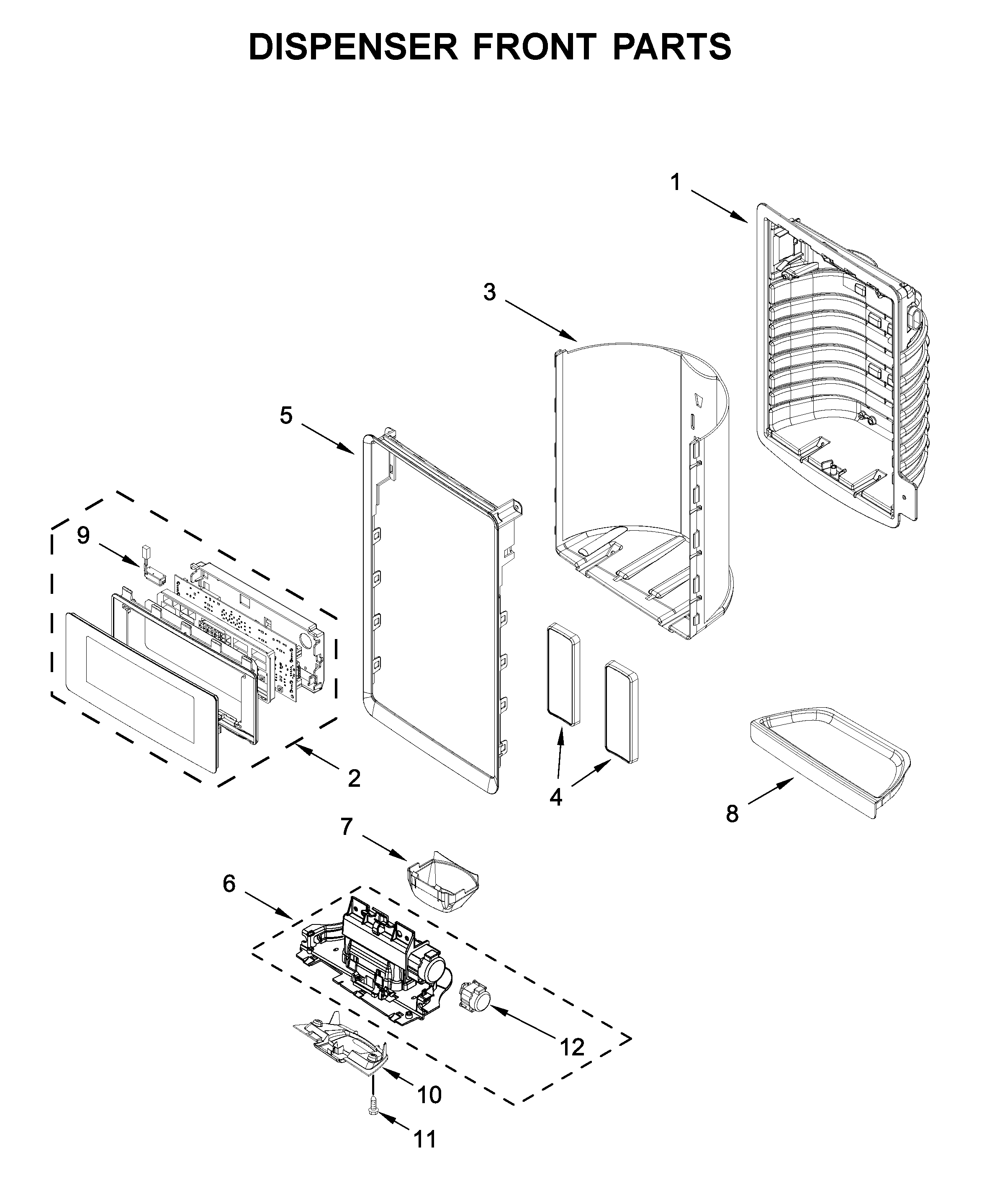

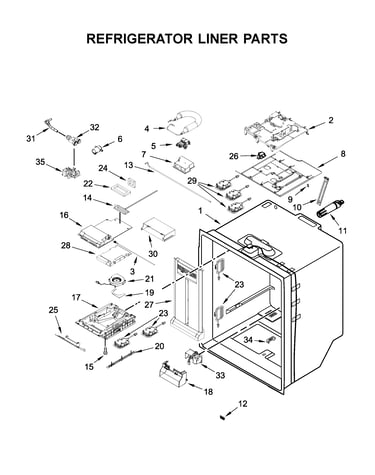

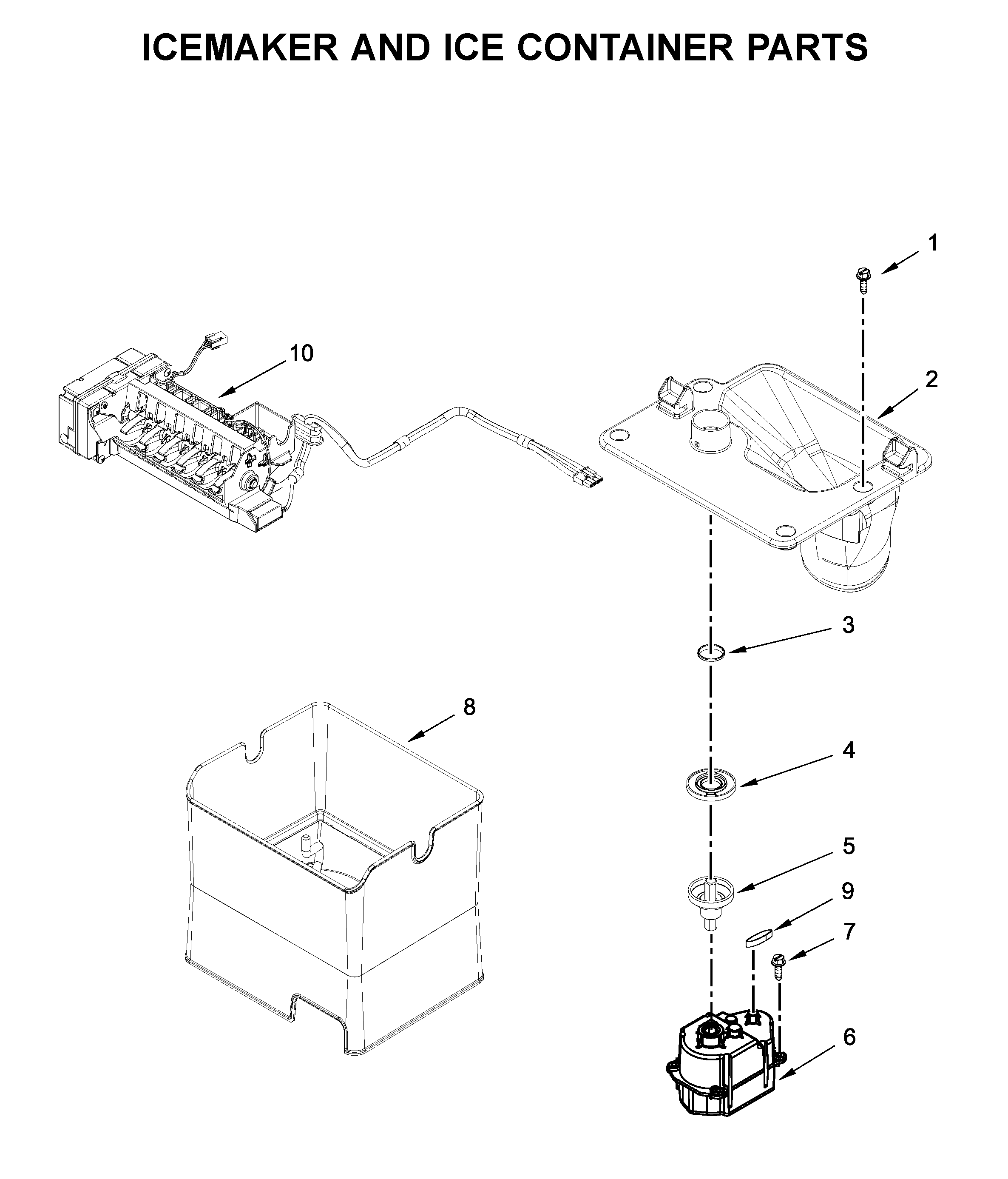

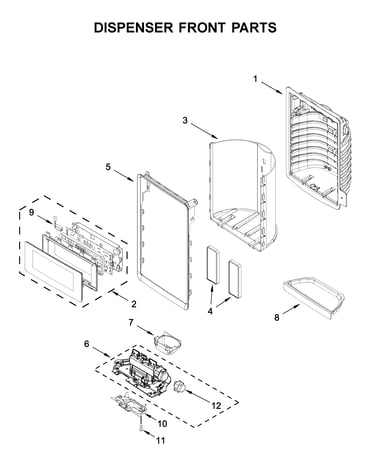

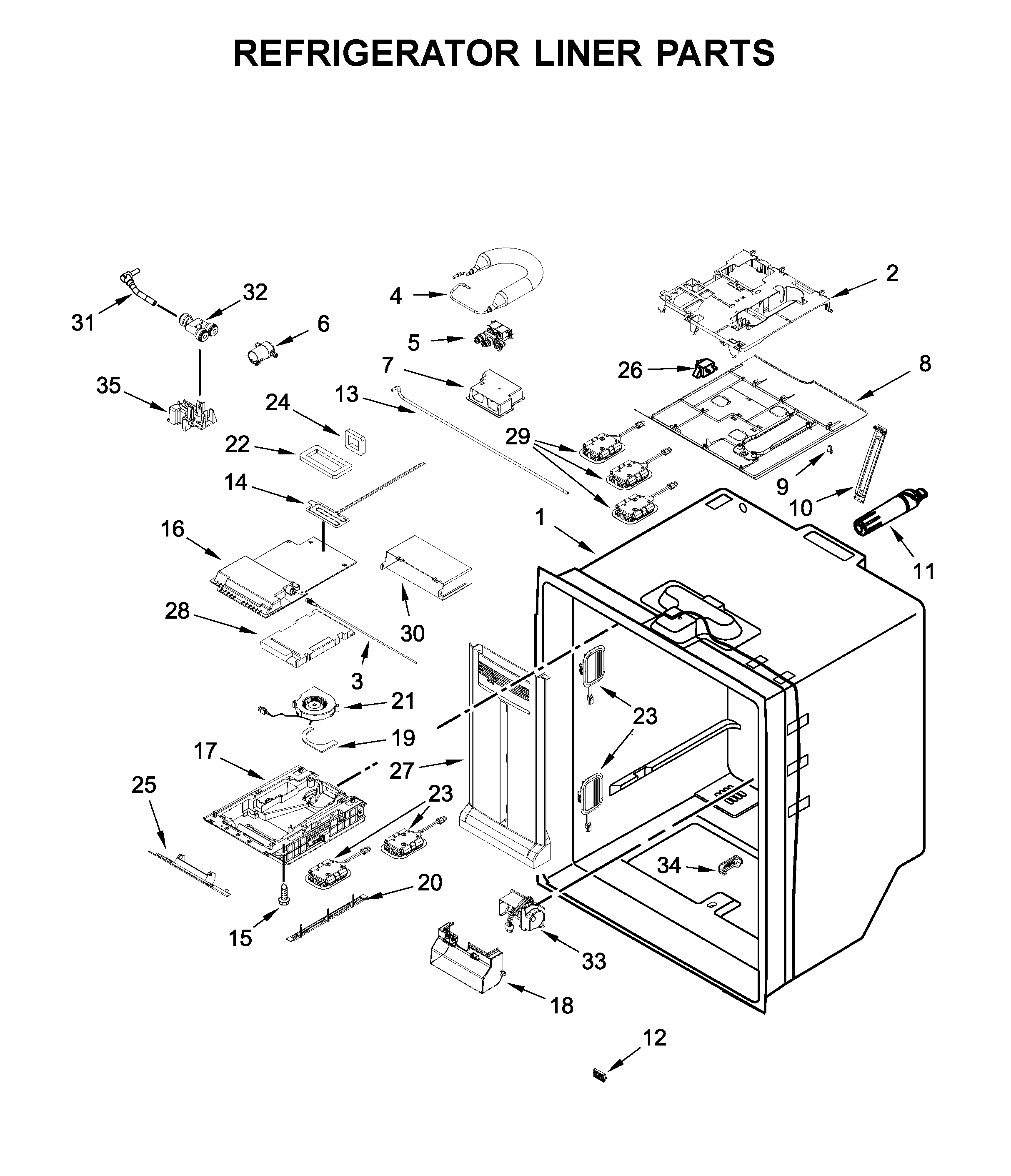

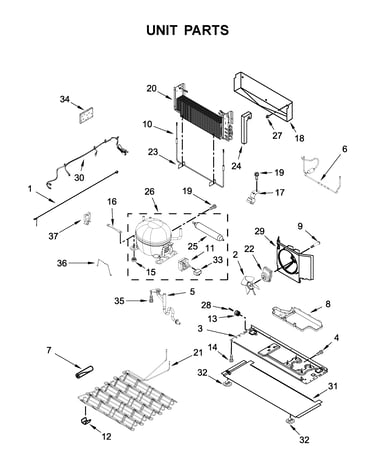

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 271 parts  |
Refrigerator Air Filter W10315189
Refrigerator air filter

Part #W10315189

Replaced by #W10311524

?
Manufacturer substitution
This part replaces W10315189. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$16.74 |
11% OFF Phone Price : $18.74
In Stock
Drier Tube W10177049
Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Cartridge Wrap Assembly W10680605
Refrigerator cartridge wrap assembly

Part #W10680605

Replaced by #EDR2RXD1

?
Manufacturer substitution
This part replaces W10680605. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Ice Maker W11232541
Refrigerator ice maker

Part #W11232541

Replaced by #W11658802

?
Manufacturer substitution
This part replaces W11232541. Substitute parts can look different from the original.
BEST SELLER
$110.61 |
10% OFF Phone Price : $122.61
In Stock
Switch- Rock W10847853
Switch- rock

Part #W10847853

Replaced by #W11384469

?
Manufacturer substitution
This part replaces W10847853. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Led Light W10843353
Refrigerator led light

Part #W10843353

Replaced by #W11683243

?
Manufacturer substitution
This part replaces W10843353. Substitute parts can look different from the original.
BEST SELLER
$114.07 |
10% OFF Phone Price : $126.07
In Stock
Refrigerator Water Inlet Valve Assembly W10341329
Refrigerator water inlet valve assembly

Part #W10341329

Replaced by #WPW10341329

?
Manufacturer substitution
This part replaces W10341329. Substitute parts can look different from the original.
BEST SELLER
$57.45 |
9% OFF Phone Price : $63.45
In Stock
Refrigerator Fan W10833801
Refrigerator fan

Part #W10833801

Replaced by #W10846539

?
Manufacturer substitution
This part replaces W10833801. Substitute parts can look different from the original.
BEST SELLER
$129.47 |
8% OFF Phone Price : $141.47
In Stock
Refrigerator Door Switch W10847849
Refrigerator door switch

Part #W10847849

Replaced by #W11396033

?
Manufacturer substitution
This part replaces W10847849. Substitute parts can look different from the original.
BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Refrigerator Run Capacitor W10350564
Refrigerator run capacitor

Part #W10350564

Replaced by #WPW10350564

?
Manufacturer substitution
This part replaces W10350564. Substitute parts can look different from the original.
BEST SELLER
$47.79 |
11% OFF Phone Price : $53.79
In Stock
