Model # CSTC7512WW/P1143842NWW Official Caloric electric range
Here are the diagrams and repair parts for Official Caloric CSTC7512WW/P1143842NWW electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

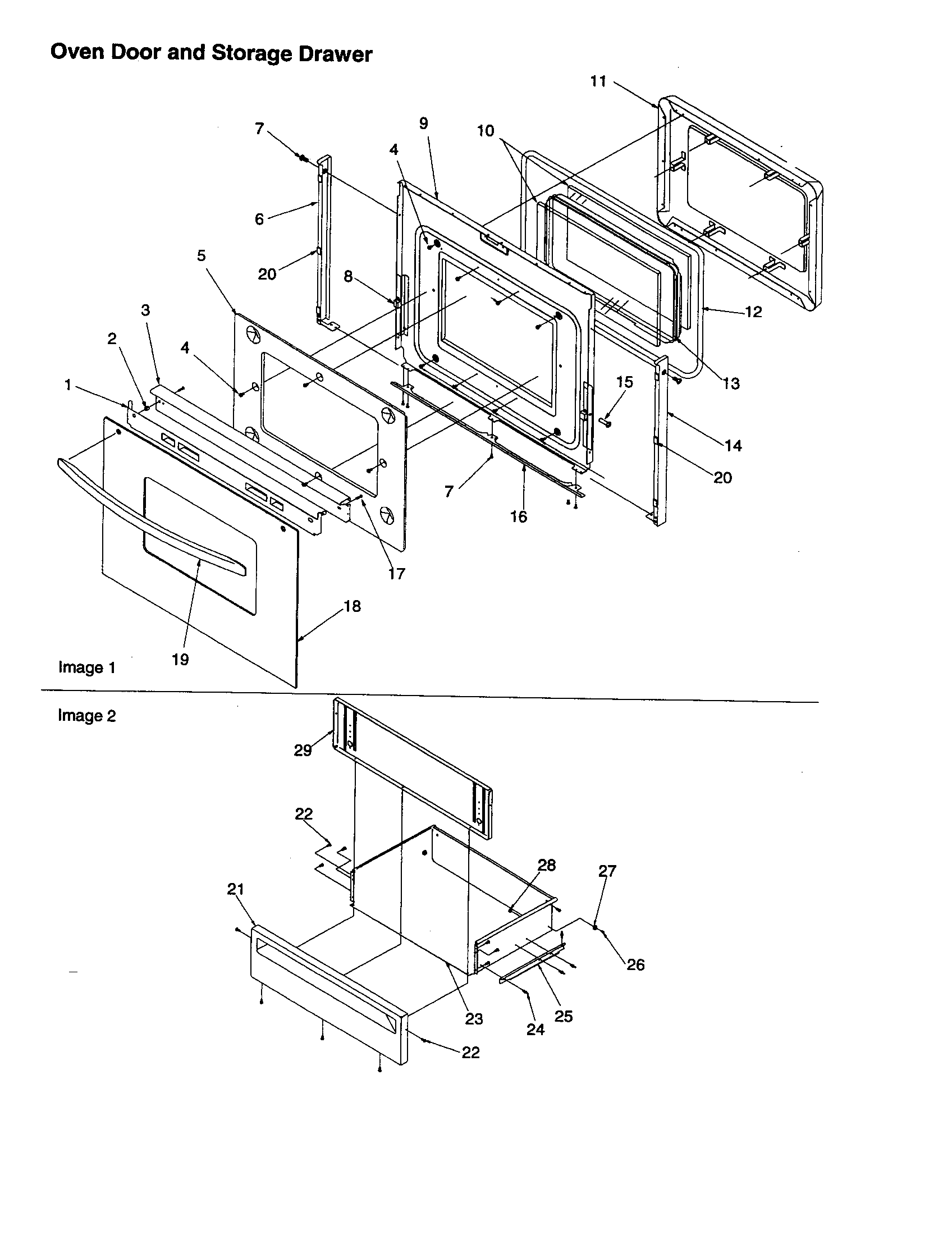

SELECT DIAGRAM
Browse Parts forCSTC7512WW/P1143842NWW Ranges
- #19

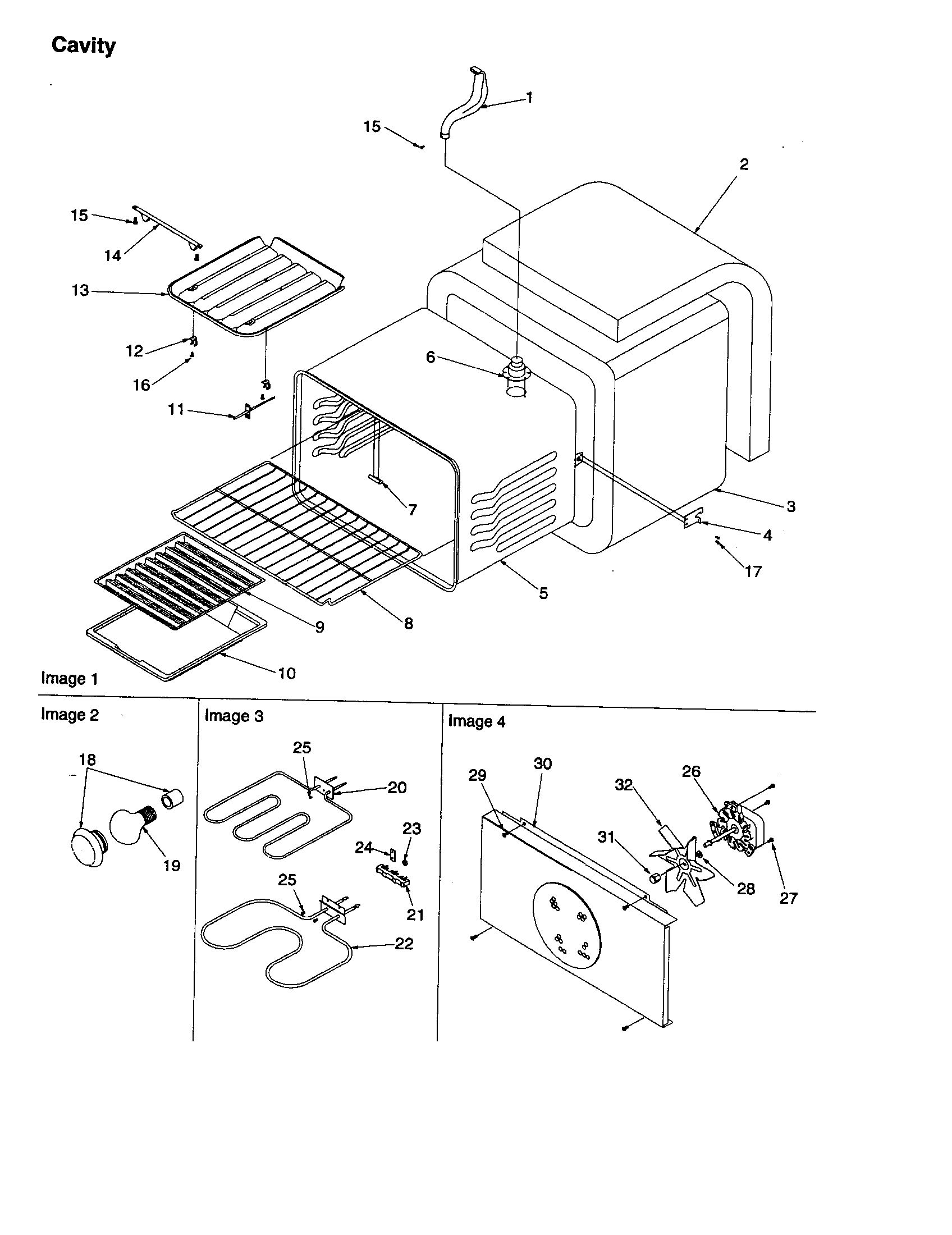

Cavity diagram
LampPart #0042175
Replaced by #40A15
?Manufacturer substitutionThis part replaces 0042175. Substitute parts can look different from the original.$13.61 |13% OFF Phone Price : $15.61In Stock - #24
Cavity diagram
Cover,backgdPart #0306379
Replaced by #WPW10245259
?Manufacturer substitutionThis part replaces 0306379. Substitute parts can look different from the original.$24.63 |24% OFF Was : $32.40In Stock - #6
Main top and backguard diagram
Large elementPart #31794601
The manufacturer no longer makes this part, and there's no substitute part
- #22
Cavity diagram
Element-blkPart #0059552
The manufacturer no longer makes this part, and there's no substitute part
- #19

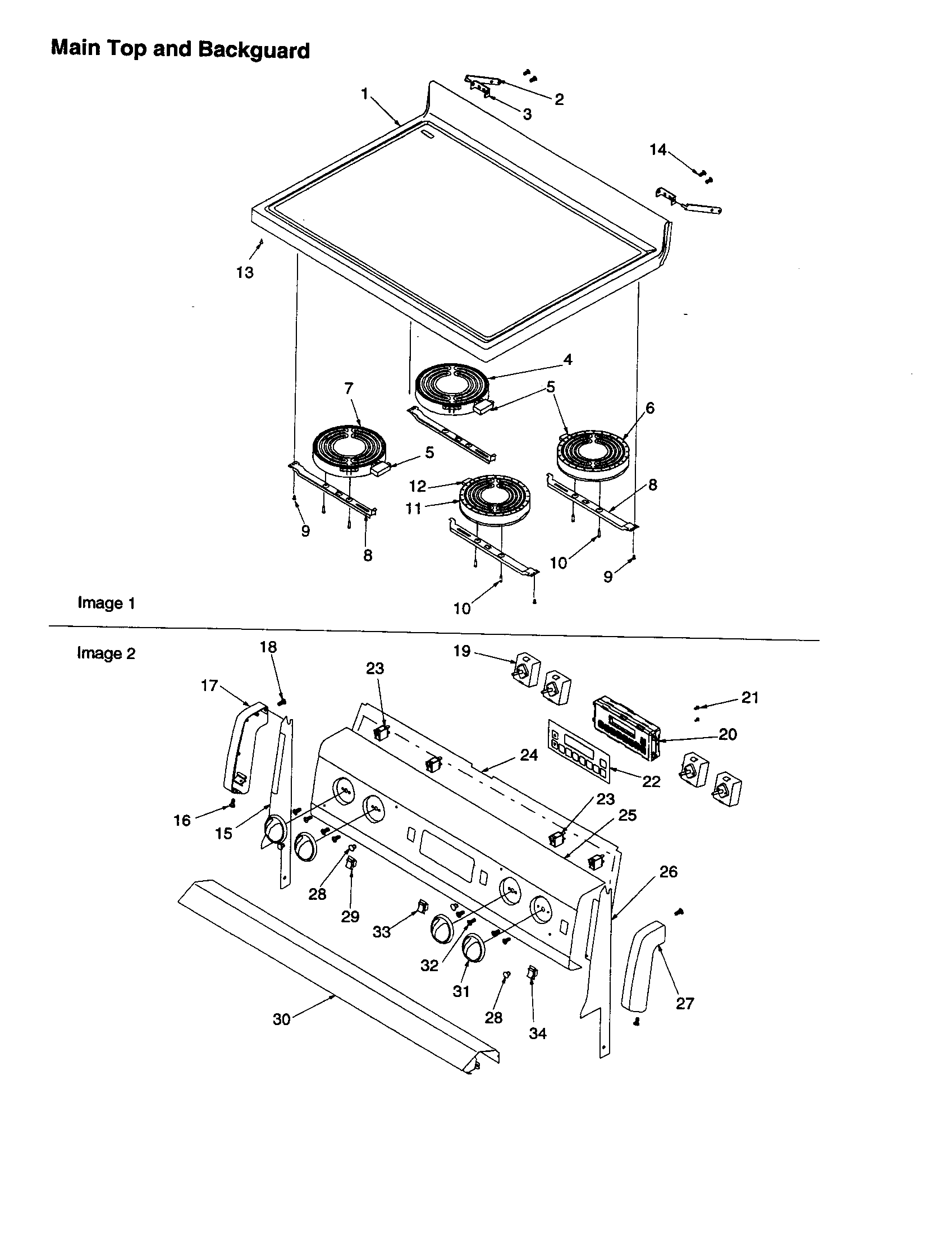

Main top and backguard diagram
SwitchPart #31891202
The manufacturer no longer makes this part, and there's no substitute part
- #11
Main top and backguard diagram
Element modulePart #31852001
Replaced by #W10823726
?Manufacturer substitutionThis part replaces 31852001. Substitute parts can look different from the original.$128.56 |9% OFF Phone Price : $140.56In Stock - #2

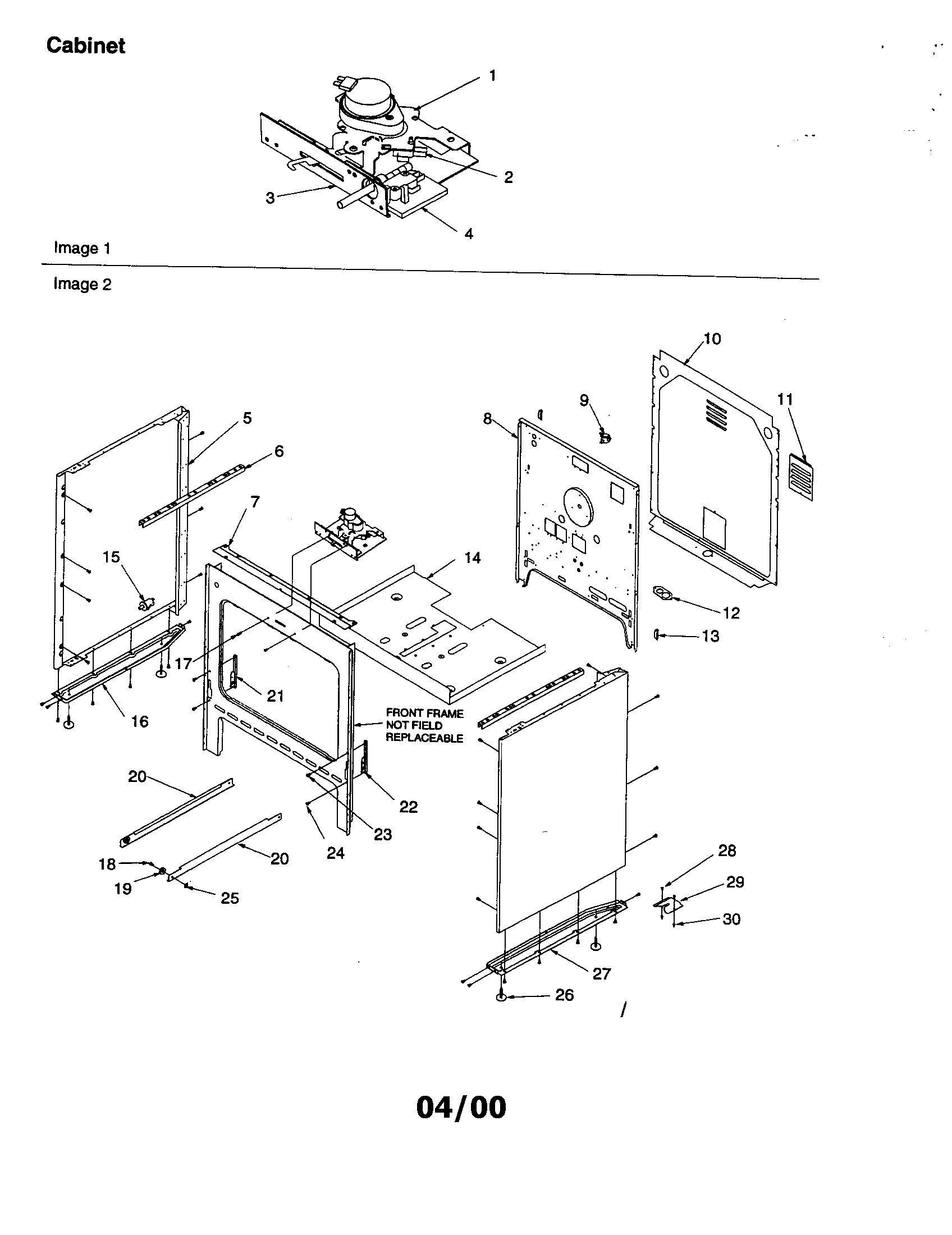

Cabinet diagram
SwitchPart #31899201
Replaced by #W10915404
?Manufacturer substitutionThis part replaces 31899201. Substitute parts can look different from the original.This item is not returnable$14.75 |12% OFF Phone Price : $16.75In Stock - #10
Cavity diagram
Broiler panPart #314175CG
Replaced by #4396923
?Manufacturer substitutionThis part replaces 314175CG. Substitute parts can look different from the original.$31.03 |16% OFF Phone Price : $37.03In Stock - #9
Cavity diagram
"grid, broile"Part #304451CG
Replaced by #4396923
?Manufacturer substitutionThis part replaces 304451CG. Substitute parts can look different from the original.$31.03 |16% OFF Phone Price : $37.03In Stock - #20
Cavity diagram
Broil elementPart #0061732
The manufacturer no longer makes this part, and there's no substitute part
