Model # MW8500XR0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MW8500XR0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

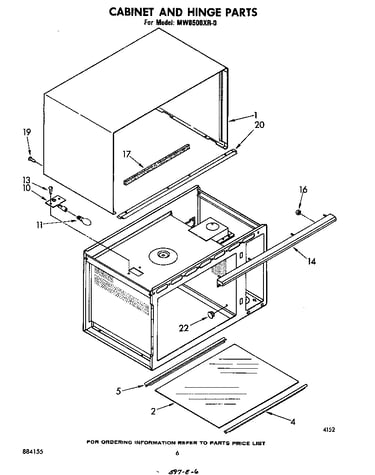

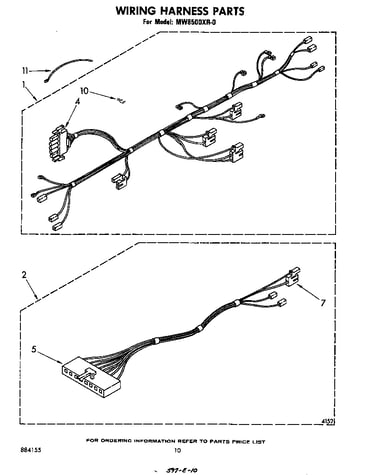

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Magnetron 660595
#29

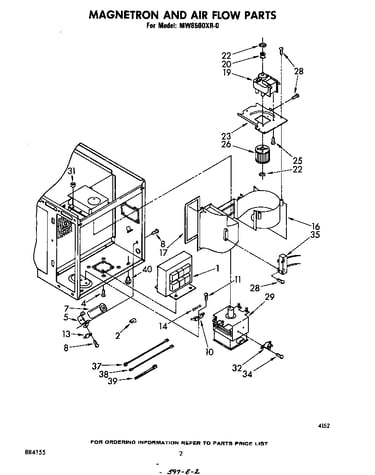

Magnetron and air flow diagram

Magnetron

Part #660595

The manufacturer no longer makes this part, and there's no substitute part

Adhesive 482338

#NI

All parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Fuse 661172
#14

Magnetron and air flow diagram

Fuse

Part #661172

Replaced by #STD388200

?
Manufacturer substitution
This part replaces 661172. Substitute parts can look different from the original.
This item is not returnable
$2.53 |
28% OFF Phone Price : $3.53
In Stock
Appliance Touch-up Paint, 6-oz (citrine White) 261900

#NI

All parts diagram

Appliance touch-up paint, 6-oz (citrine white)

Part #261900

$23.19 |
21% OFF Phone Price : $29.19
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831

#NI

All parts diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

$318.95
In Stock
Drive Button 313611
#37

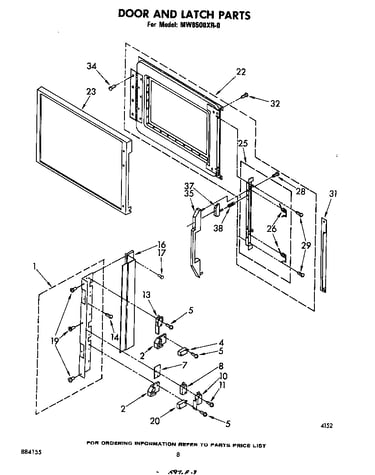

Door and latch diagram

Drive button

Part #313611

$29.01
In Stock
Cable Tie 309330
Cable tie

Part #309330

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 309330. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Switch 661146
Switch

Part #661146

Replaced by #814037

?
Manufacturer substitution
This part replaces 661146. Substitute parts can look different from the original.
$33.18
In Stock
Screw 313811
#28

Door and latch diagram

Screw

Part #313811

Replaced by #303776

?
Manufacturer substitution
This part replaces 313811. Substitute parts can look different from the original.
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Microwave Stirrer Fan Drive Belt 313646
#14

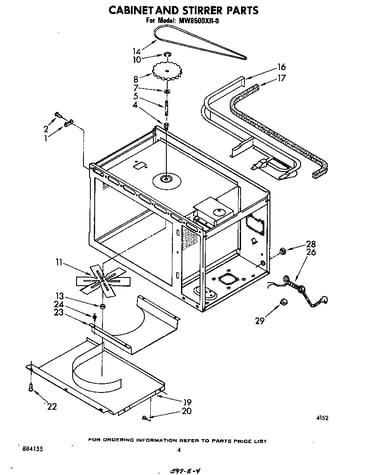

Cabinet and stirrer diagram

Microwave stirrer fan drive belt

Part #313646

Replaced by #WP313646

?
Manufacturer substitution
This part replaces 313646. Substitute parts can look different from the original.
$31.49
In Stock
