Frigidaire
Top-Mount Refrigerator

Model # FFHT1814VW0 Official Frigidaire top-mount refrigerator

Here are the diagrams and repair parts for Official Frigidaire FFHT1814VW0 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

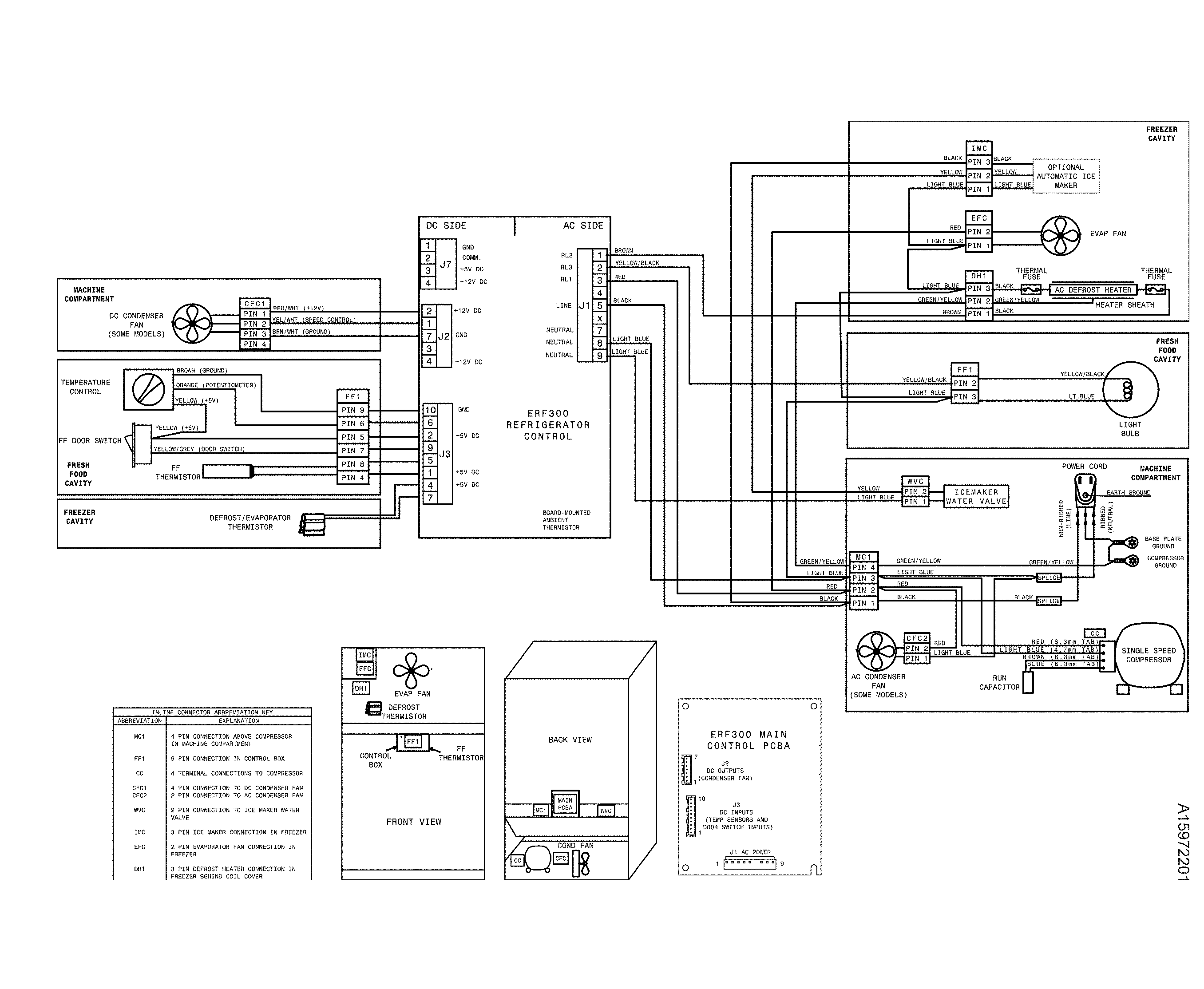

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Refrigerator Run Capacitor 5304522105
#24

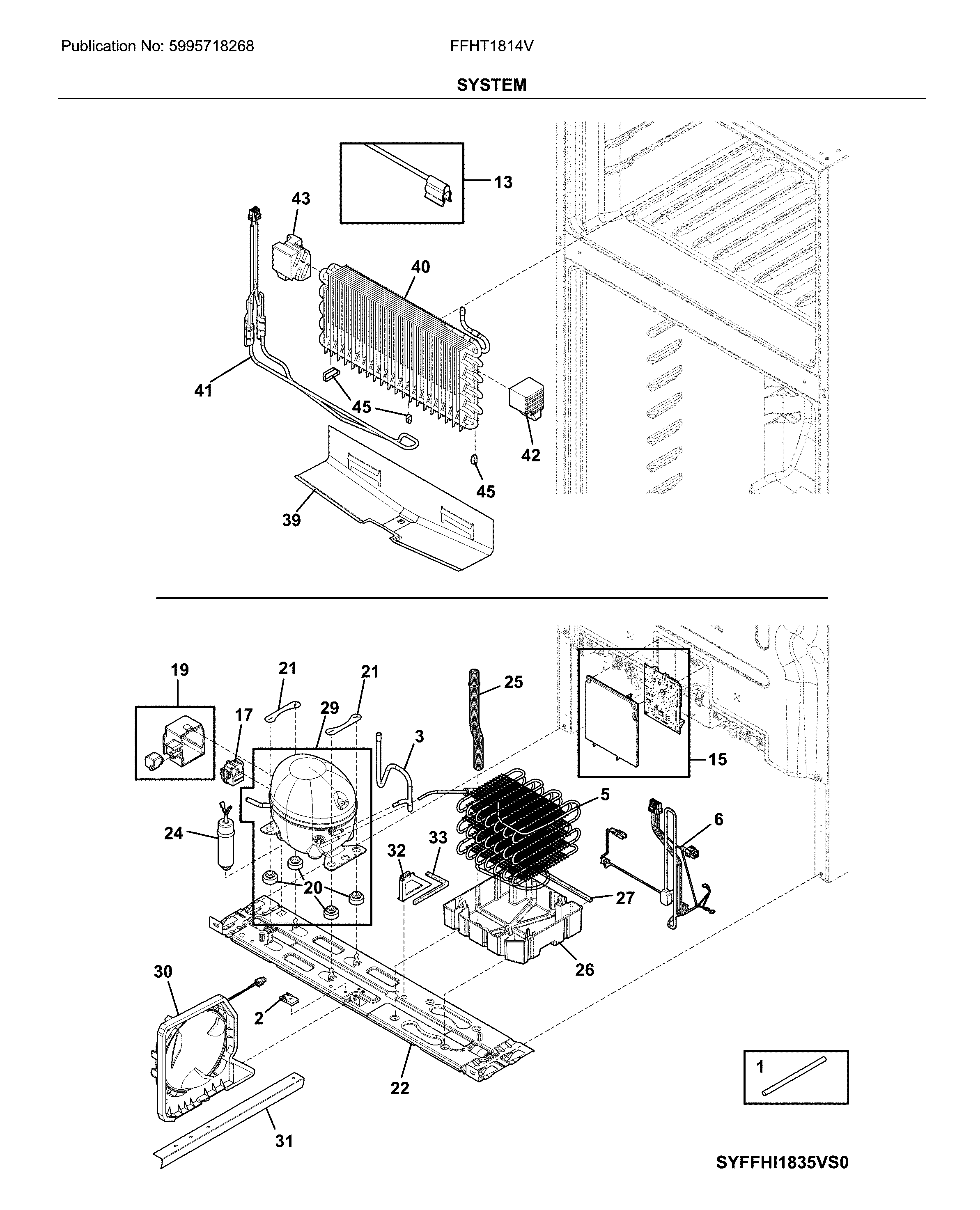

System diagram

Refrigerator run capacitor

Part #5304522105

Replaced by #5304528894

?
Manufacturer substitution
This part replaces 5304522105. Substitute parts can look different from the original.
BEST SELLER
$34.04
In Stock
Refrigerator Strap 5308000110
#45

System diagram

Refrigerator strap

Part #5308000110

BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Evaporator,assembly 5304522324
#40

System diagram

Evaporator,assembly

Part #5304522324

BEST SELLER
$113.70
In Stock
Refrigerator Freezer Evaporator Cover 5304519654
#19

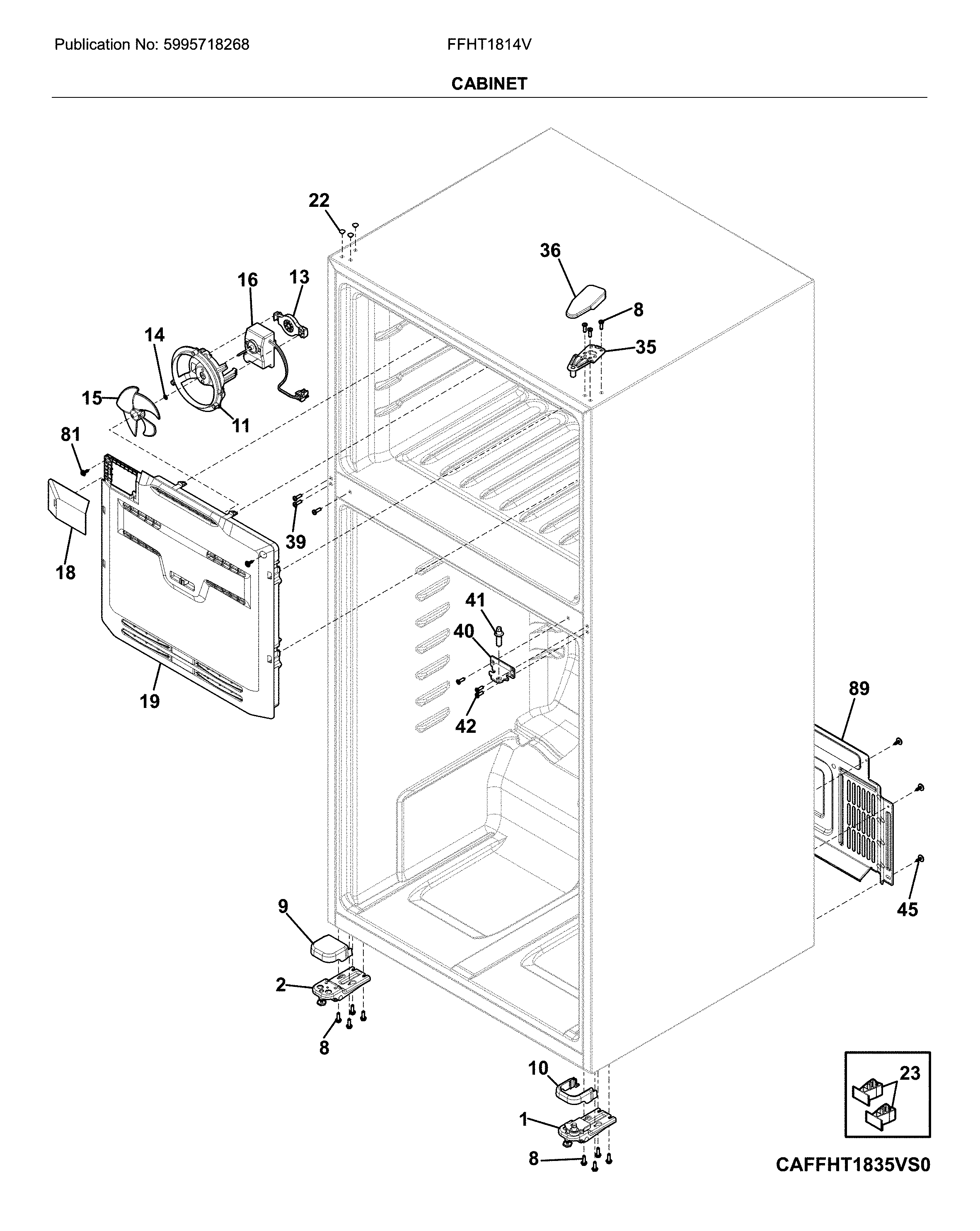

Cabinet diagram

Refrigerator freezer evaporator cover

Part #5304519654

$101.27
In Stock
Refrigerator Wire Shelf Support, Right 5304522259
#5

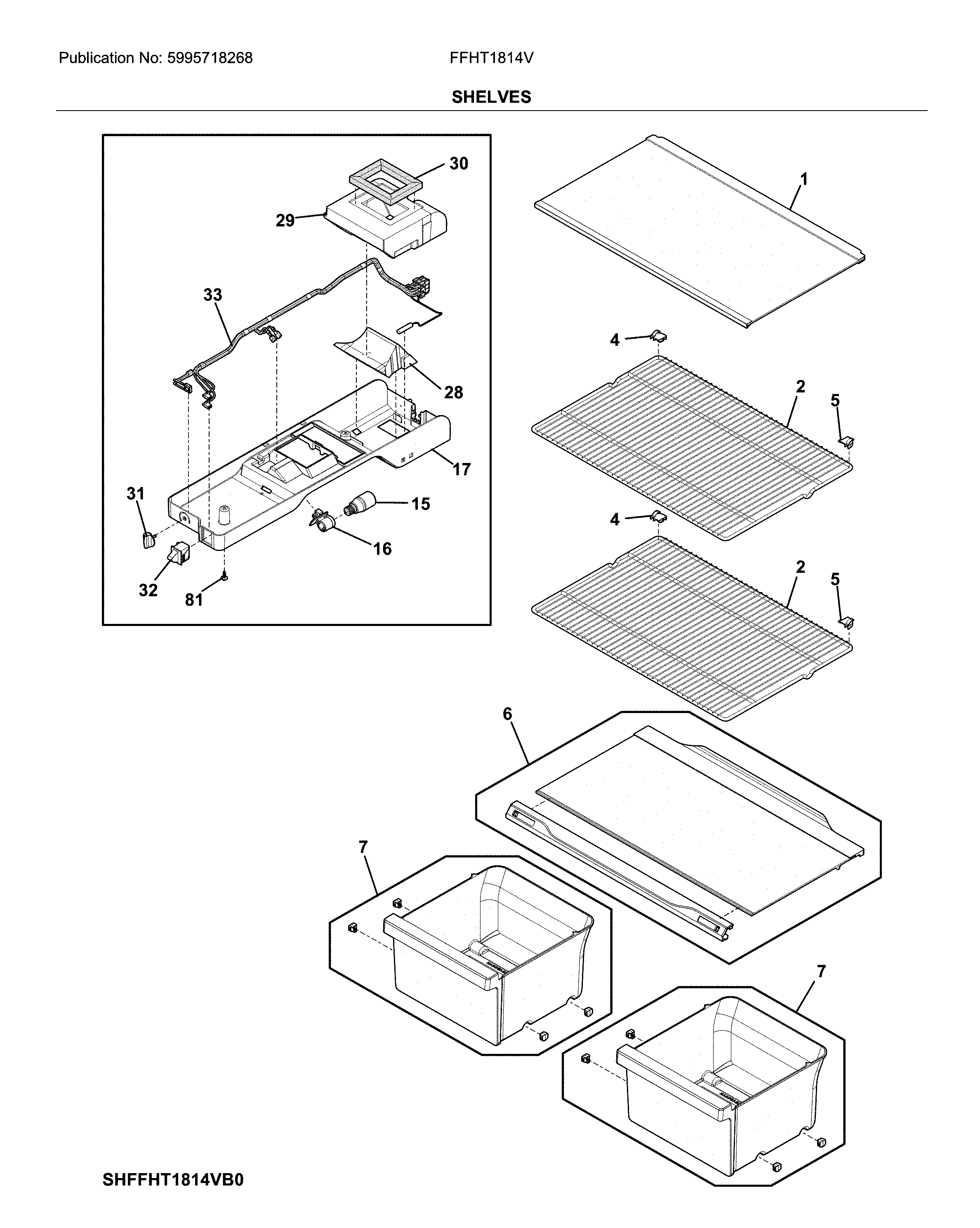

Shelves diagram

Refrigerator wire shelf support, right

Part #5304522259

This item is not returnable
$2.16
In Stock
Refrigerator Freezer Door Gasket (gray) 5304523139
#4

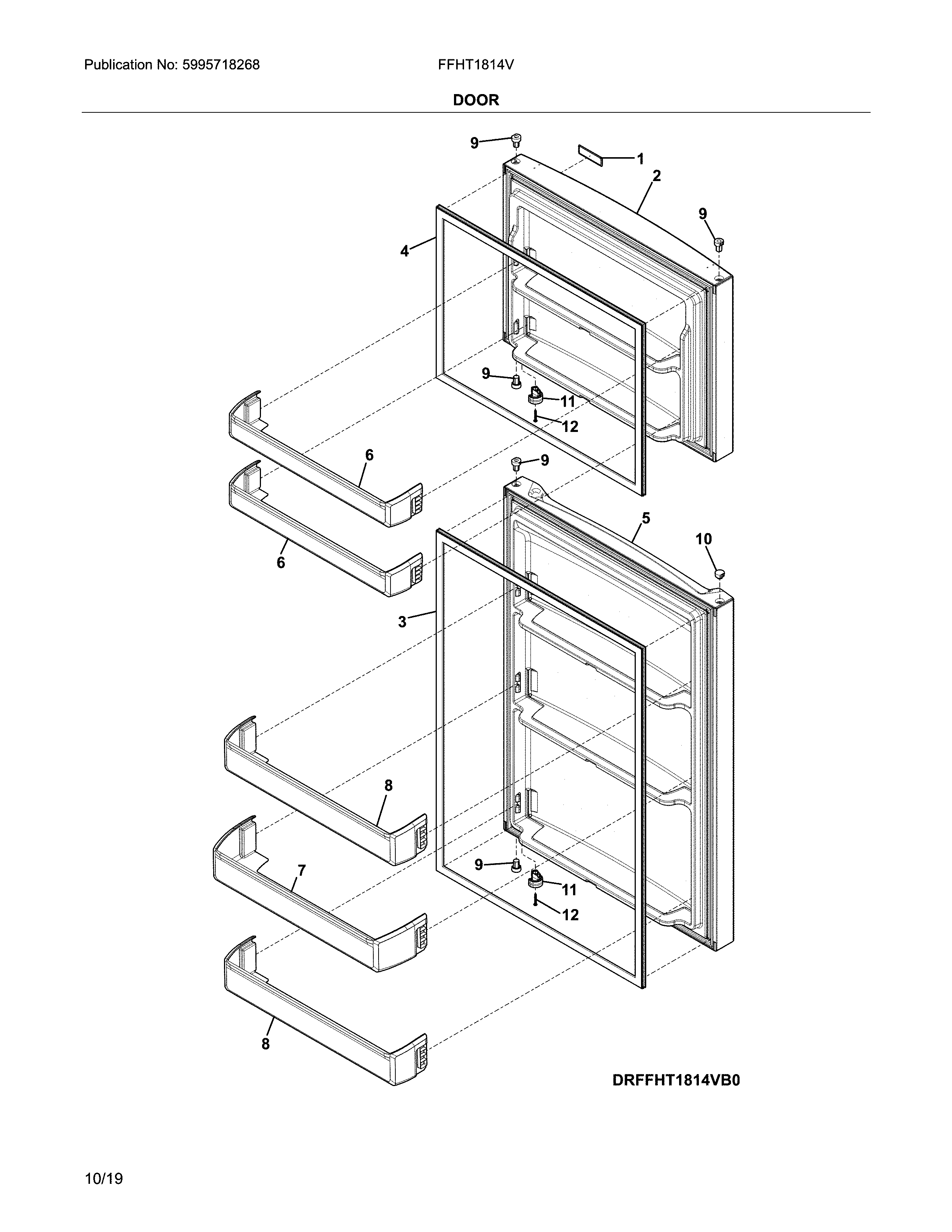

Doors diagram

Refrigerator freezer door gasket (gray)

Part #5304523139

$109.28 |
10% OFF Phone Price : $121.28
In Stock
Ikea Refrigerator Evaporator Fan Shaft Washer 215474201
#14

Cabinet diagram

Ikea refrigerator evaporator fan shaft washer

Part #215474201

This item is not returnable
$19.39 |
9% OFF Phone Price : $21.39
In Stock
Hinge,door ,upper 5304519646
#35

Cabinet diagram

Hinge,door ,upper

Part #5304519646

This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Refrigerator Defrost Heater 5304522325
#41

System diagram

Refrigerator defrost heater

Part #5304522325

$78.76 |
7% OFF Phone Price : $84.76
In Stock
Refrigerator Compressor 5304522265
#29

System diagram

Refrigerator compressor

Part #5304522265

Replaced by #5303918884

?
Manufacturer substitution
This part replaces 5304522265. Substitute parts can look different from the original.
$165.00 |
7% OFF Phone Price : $177.00
In Stock
