Tecumseh
Lawn & Garden Engine

Model # TYPE 642-19 Official Tecumseh engine

Here are the diagrams and repair parts for Official Tecumseh TYPE-642-19 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
O-ring 631028
#25

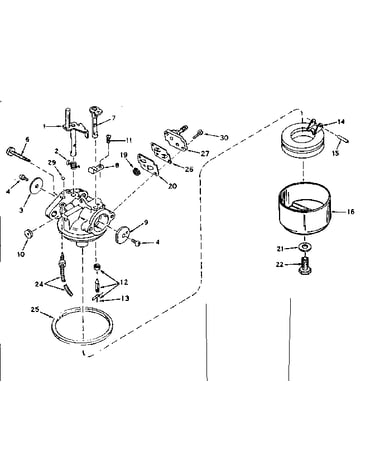

Carburetor no. 631895 diagram

O-ring

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Bowl Gasket 631334
#21

Carburetor no. 631895 diagram

Bowl gasket

Part #631334

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#59

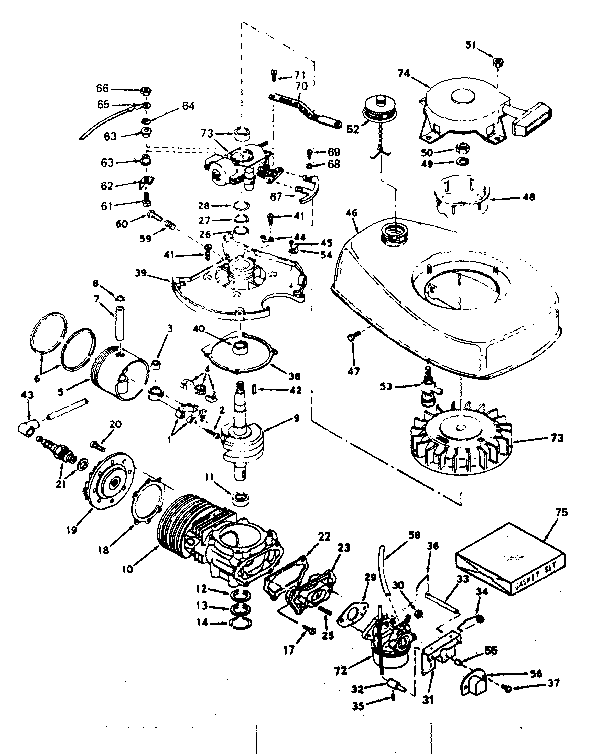

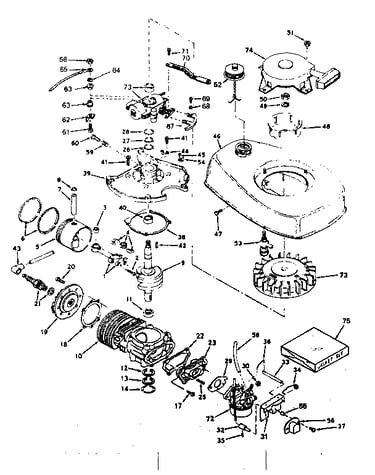

Basic engine diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

Pistn Rng St 310190
#6

Basic engine diagram

Pistn rng st

Part #310190

The manufacturer no longer makes this part, and there's no substitute part

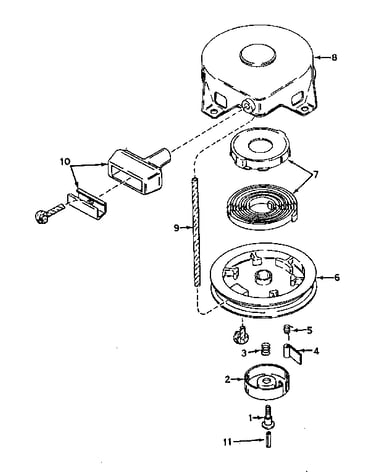

Rewnd Startr 590420
#74

Basic engine diagram

Rewnd startr

Part #590420

The manufacturer no longer makes this part, and there's no substitute part

Piston 310230
#5

Basic engine diagram

Piston

Part #310230

The manufacturer no longer makes this part, and there's no substitute part

Pump Element 630953
#6

Carburetor no. 631895 diagram

Pump element

Part #630953

The manufacturer no longer makes this part, and there's no substitute part

Gasket 510274
#18

Basic engine diagram

Gasket

Part #510274

The manufacturer no longer makes this part, and there's no substitute part

Coil 30560A
#11

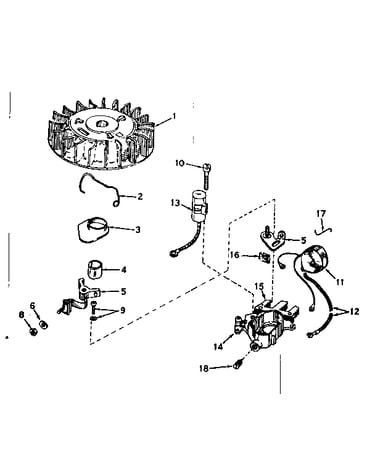

Magneto no. 610832a diagram

Coil

Part #30560A

The manufacturer no longer makes this part, and there's no substitute part

Seal 510105
#26

Basic engine diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part
