Frigidaire
Gas Range

Model # PLGFZ390ECB Official Frigidaire gas range

Here are the diagrams and repair parts for Official Frigidaire PLGFZ390ECB gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

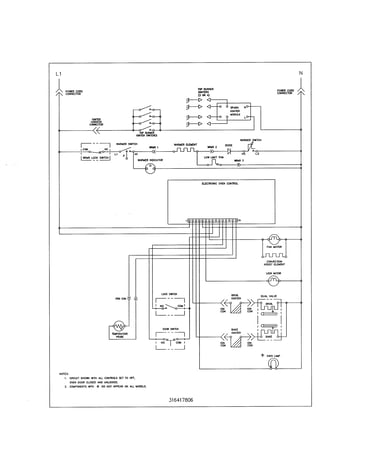

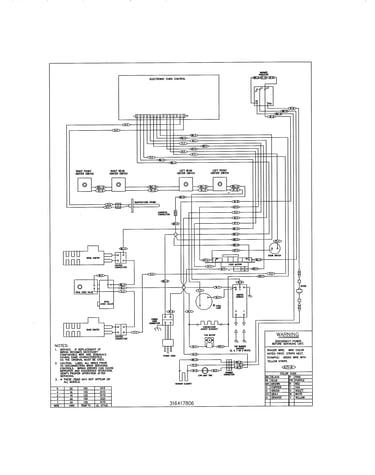

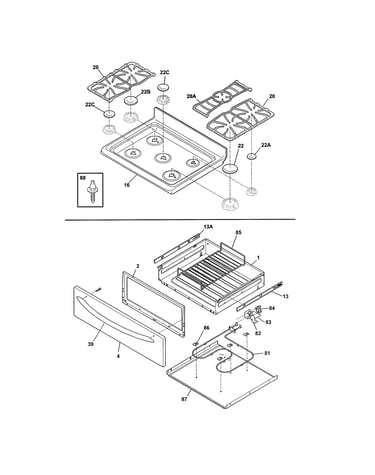

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |
Range Oven Light Bulb 5303013071
#15

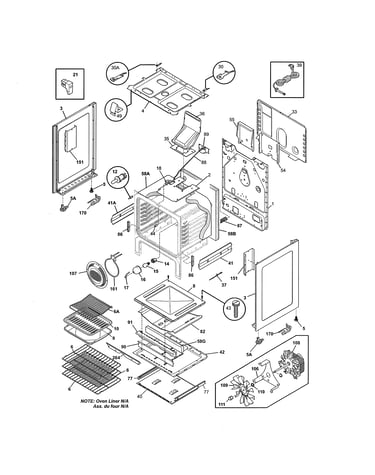

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Igniter 316428500
#19

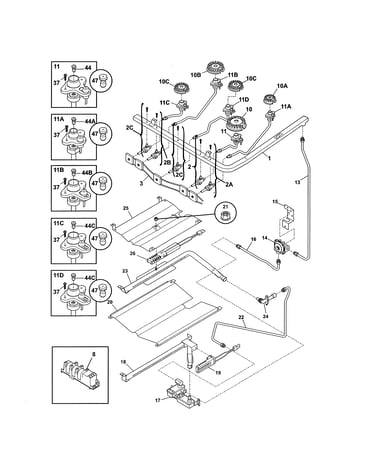

Burner diagram

Igniter

Part #316428500

Replaced by #316489400

?
Manufacturer substitution
This part replaces 316428500. Substitute parts can look different from the original.
BEST SELLER
$140.06 |
8% OFF Phone Price : $152.06
In Stock
Range Oven Door Inner Glass 316117500
#8

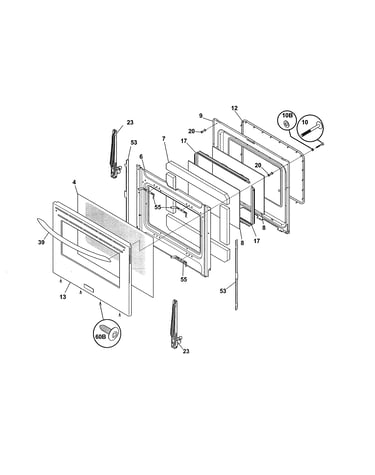

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Indicator Light 316022500
#14

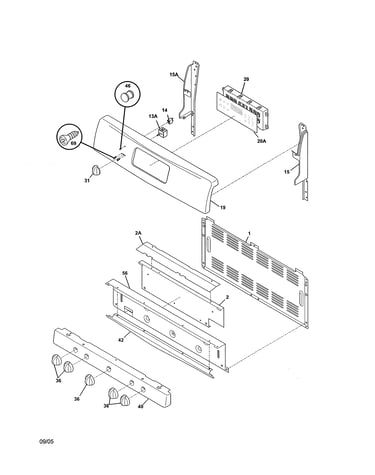

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
Range Surface Burner Head (replaces 7316212400) 316212400
#10C

Burner diagram

Range surface burner head (replaces 7316212400)

Part #316212400

BEST SELLER
$29.85 |
17% OFF Phone Price : $35.85
In Stock
Rack 316404501
#6

Body diagram

Rack

Part #316404501

Replaced by #316496201

?
Manufacturer substitution
This part replaces 316404501. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$86.40 |
6% OFF Phone Price : $92.40
In Stock
Range Pressure Regulator 316091706
#14

Burner diagram

Range pressure regulator

Part #316091706

Replaced by #5304521339

?
Manufacturer substitution
This part replaces 316091706. Substitute parts can look different from the original.
BEST SELLER
$66.32 |
8% OFF Phone Price : $72.32
In Stock
Range Bake Burner (replaces 7316404400) 316404400
#18

Burner diagram

Range bake burner (replaces 7316404400)

Part #316404400

BEST SELLER
$90.07 |
6% OFF Phone Price : $96.07
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#10B

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Washer 316136500
#110

Body diagram

Washer

Part #316136500

Replaced by #316008401

?
Manufacturer substitution
This part replaces 316136500. Substitute parts can look different from the original.
BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
