Countertop Microwave

Model # WW600/XAA Official Samsung microwave

Here are the diagrams and repair parts for Official Samsung WW600-XAA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Fuse 3601-001197
#16

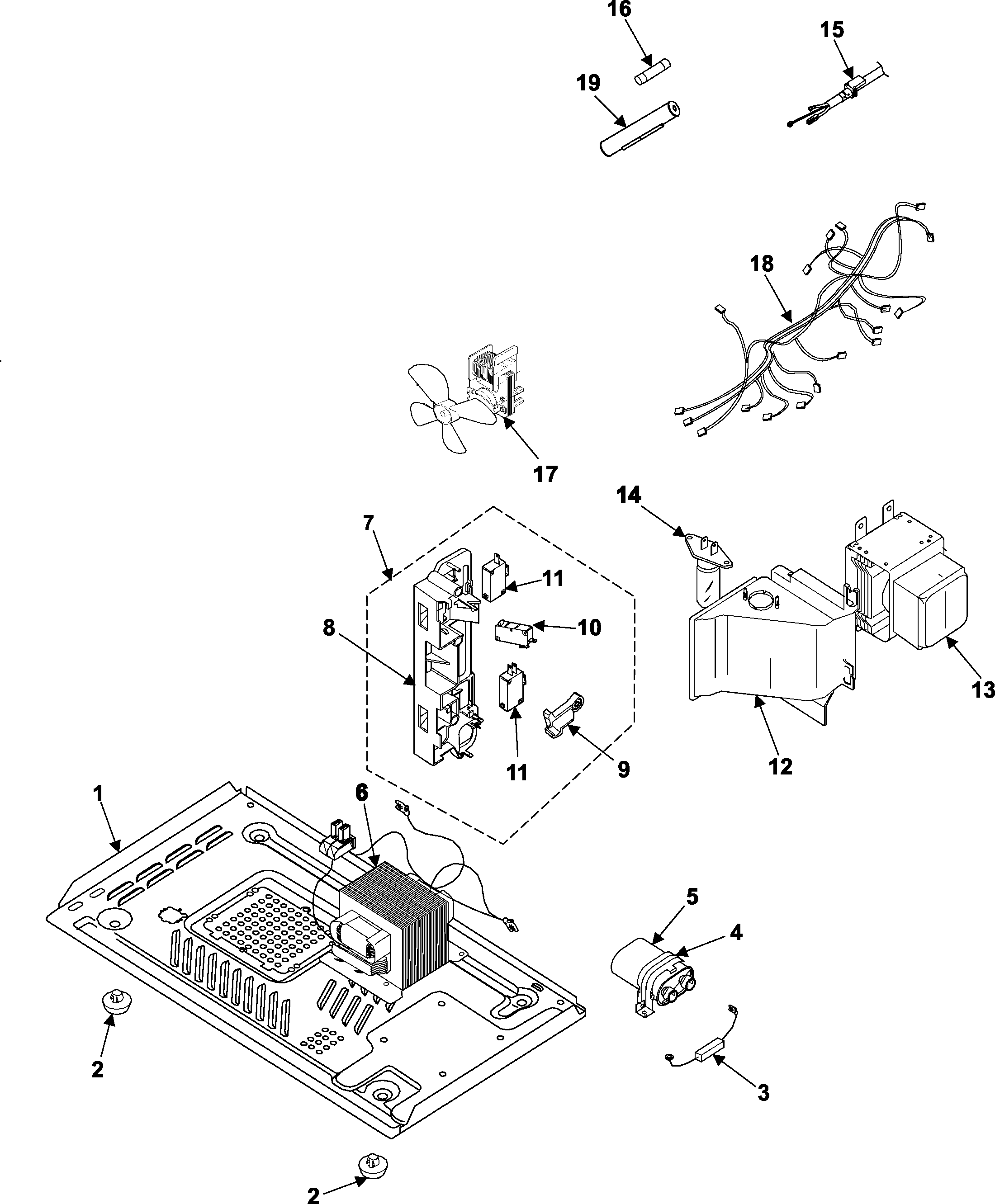

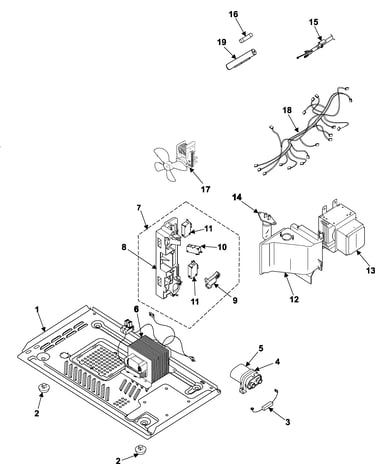

Internal control/latch asy/base diagram

Fuse

Part #3601-001197

Replaced by #3601-001197

?
Manufacturer substitution
This part replaces 3601-001197. Substitute parts can look different from the original.
$27.23
In Stock
Lamp 4713-001150
#14

Internal control/latch asy/base diagram

Lamp

Part #4713-001150

Replaced by #4713-001102

?
Manufacturer substitution
This part replaces 4713-001150. Substitute parts can look different from the original.
This item is not returnable
$16.93 |
11% OFF Phone Price : $18.93
In Stock
Microwave Turntable DE31-10154A
#4

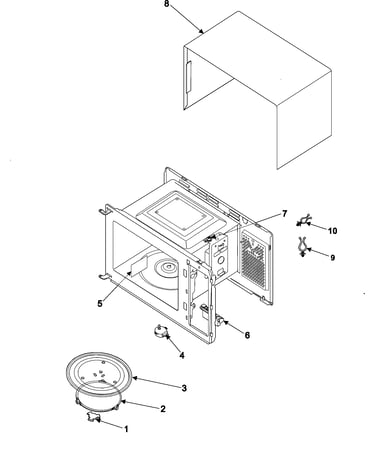

Body/cavity/elements diagram

Microwave turntable

Part #DE31-10154A

$27.62
In Stock
Spring Key DE61-00132A
#8

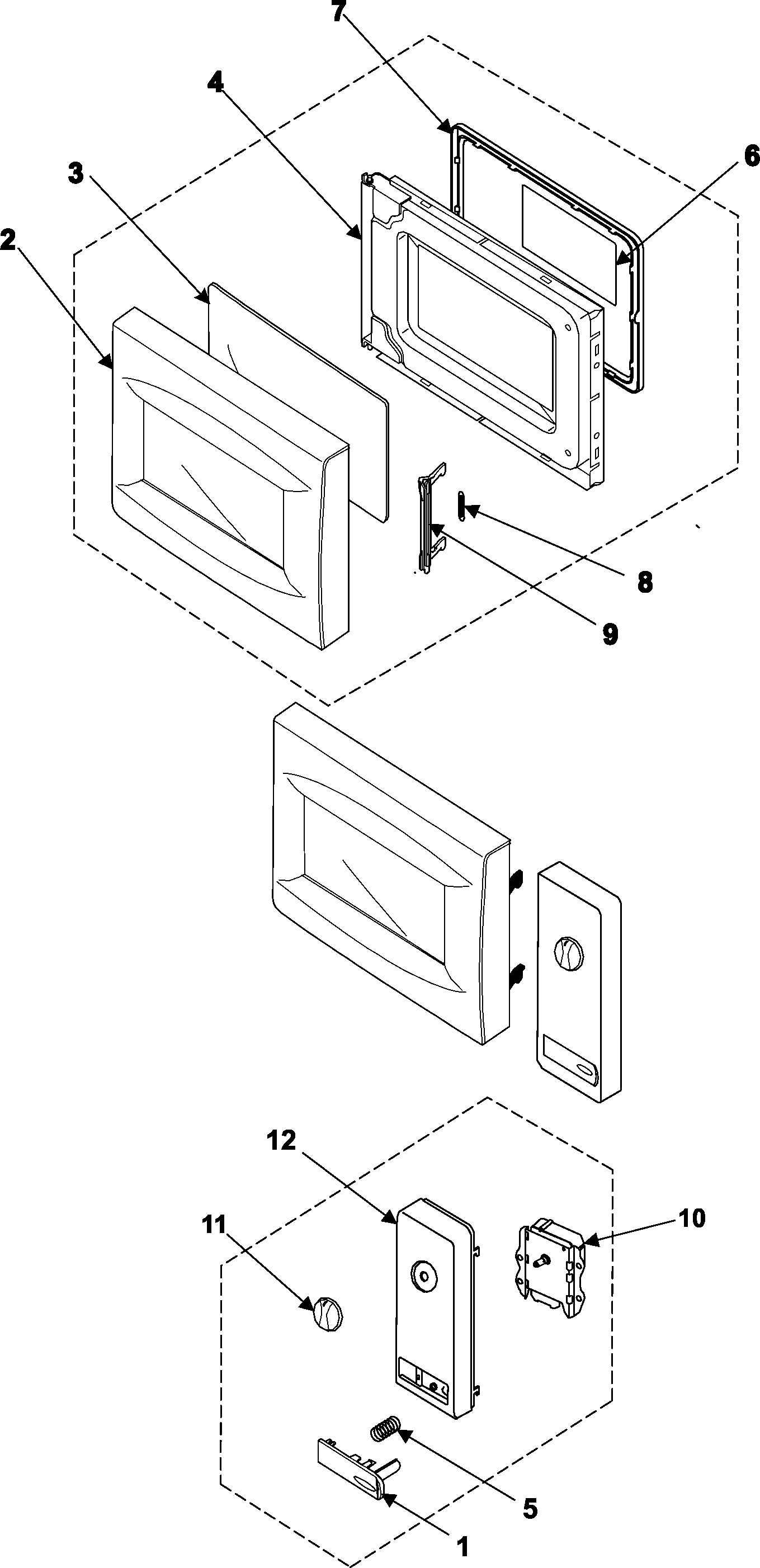

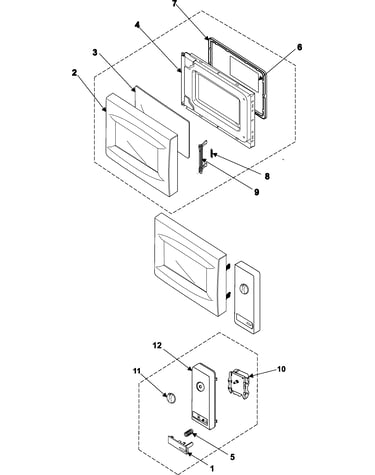

Control panel/door assembly diagram

Spring key

Part #DE61-00132A

This item is not returnable
$2.16
In Stock
Lever DE66-00088A
#9

Internal control/latch asy/base diagram

Lever

Part #DE66-00088A

$16.94
In Stock
Bracket DE61-00139A
#4

Internal control/latch asy/base diagram

Bracket

Part #DE61-00139A

This item is not returnable
$2.43
In Stock
Lever DE66-90113A
#6

Body/cavity/elements diagram

Lever

Part #DE66-90113A

$24.93
In Stock
Spring DE61-70076A
#5

Control panel/door assembly diagram

Spring

Part #DE61-70076A

$17.54
In Stock
Complete Door DE64-00182A
#7

Control panel/door assembly diagram

Complete door

Part #DE64-00182A

This item is not returnable
$6.06
In Stock
Foot DE61-40066A
#2

Internal control/latch asy/base diagram

Foot

Part #DE61-40066A

This item is not returnable
$2.59
In Stock
