Craftsman
Reciprocating Saw

Model # 315172301 Official Craftsman sabre saw

Here are the diagrams and repair parts for Official Craftsman 315172301 sabre saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

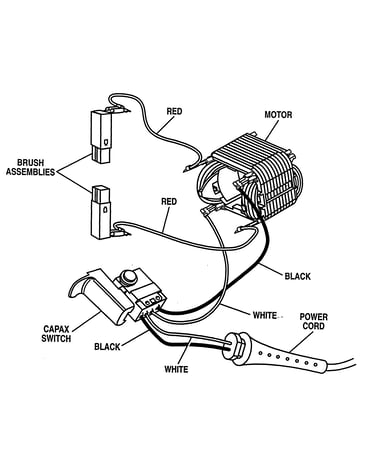

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Lead Black 979611-003
#13

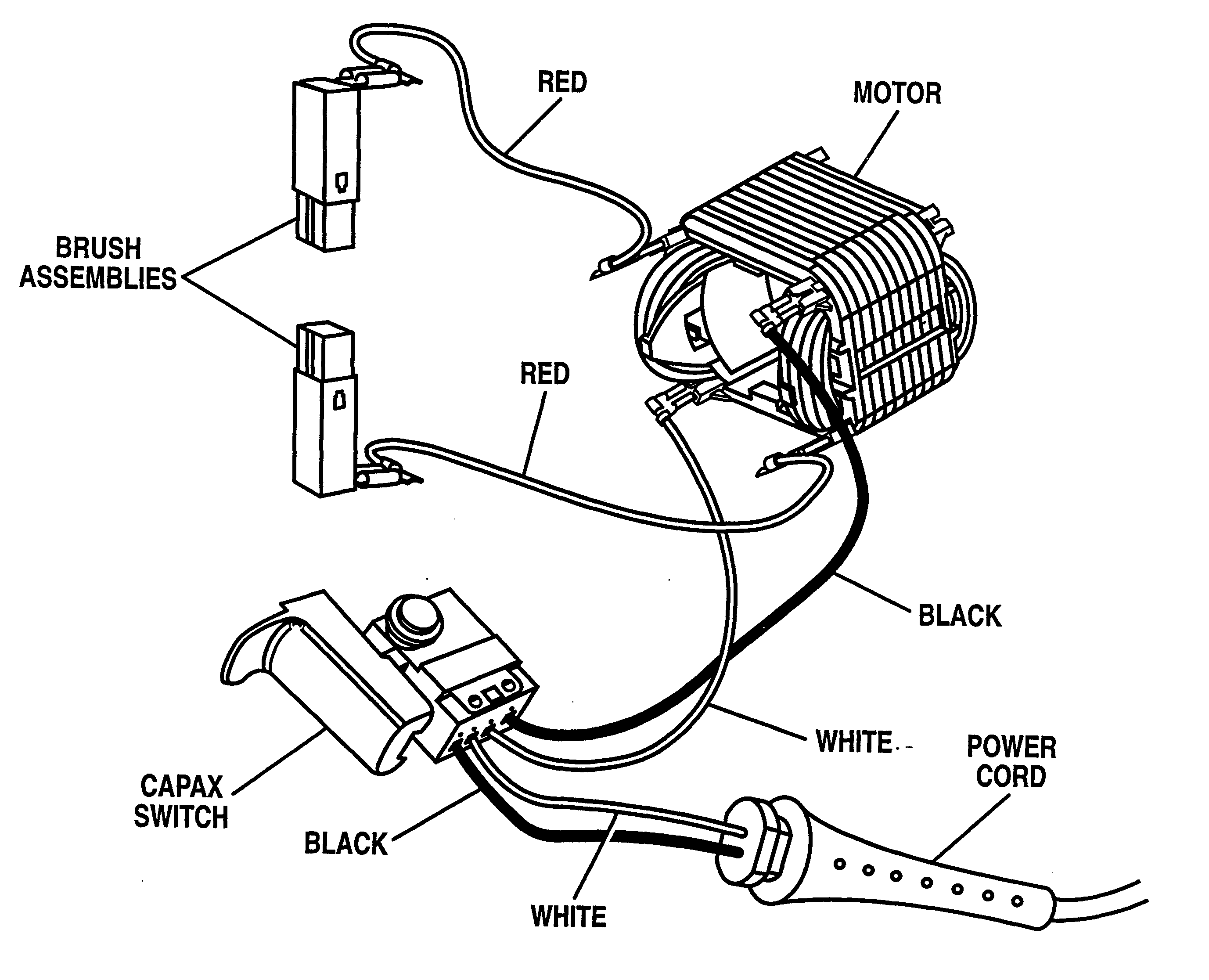

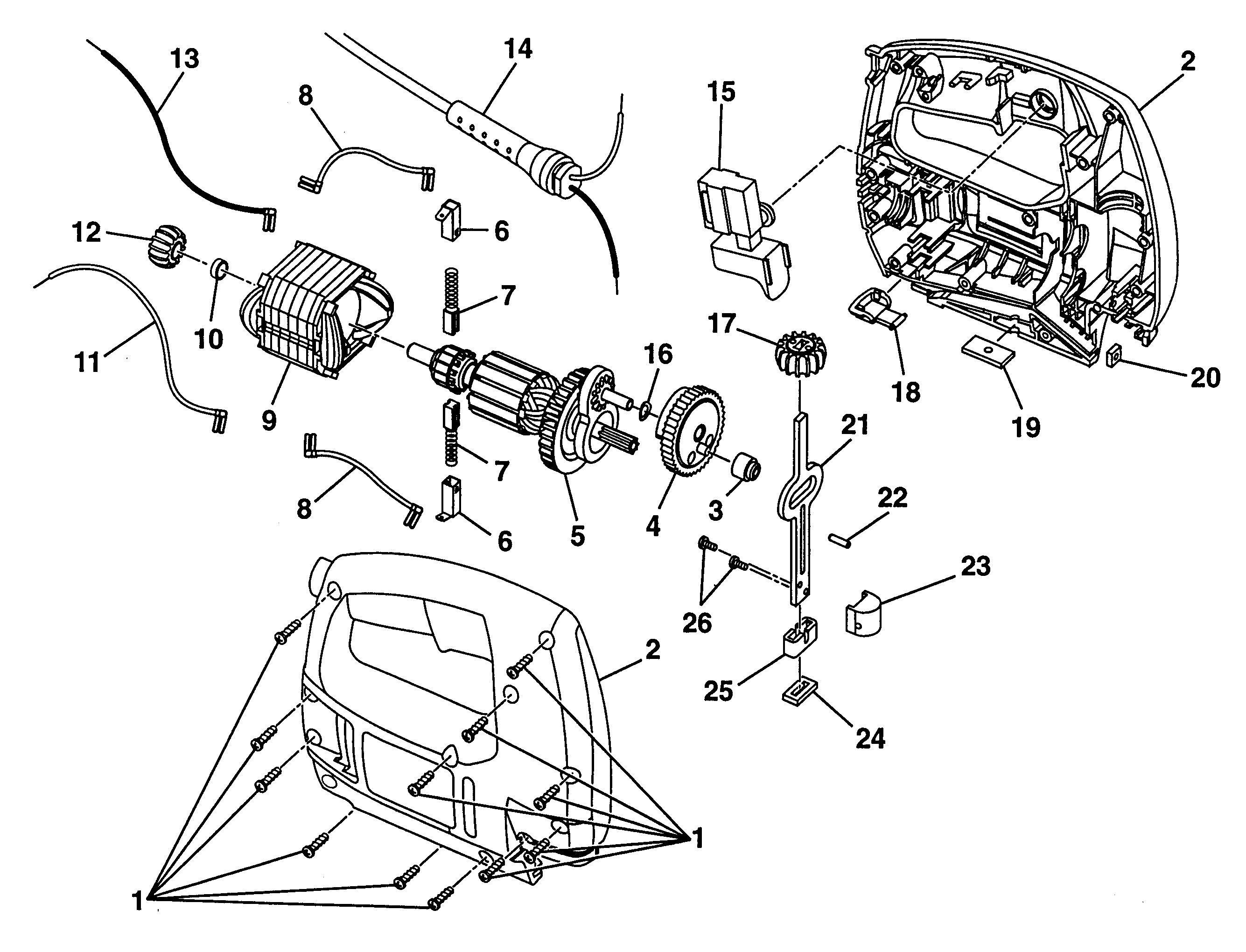

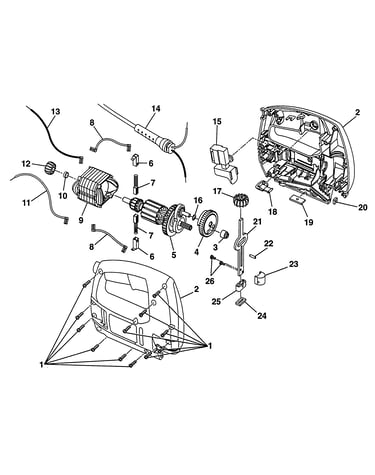

Motor diagram

Lead black

Part #979611-003

The manufacturer no longer makes this part, and there's no substitute part

Shield 977284-001
#8

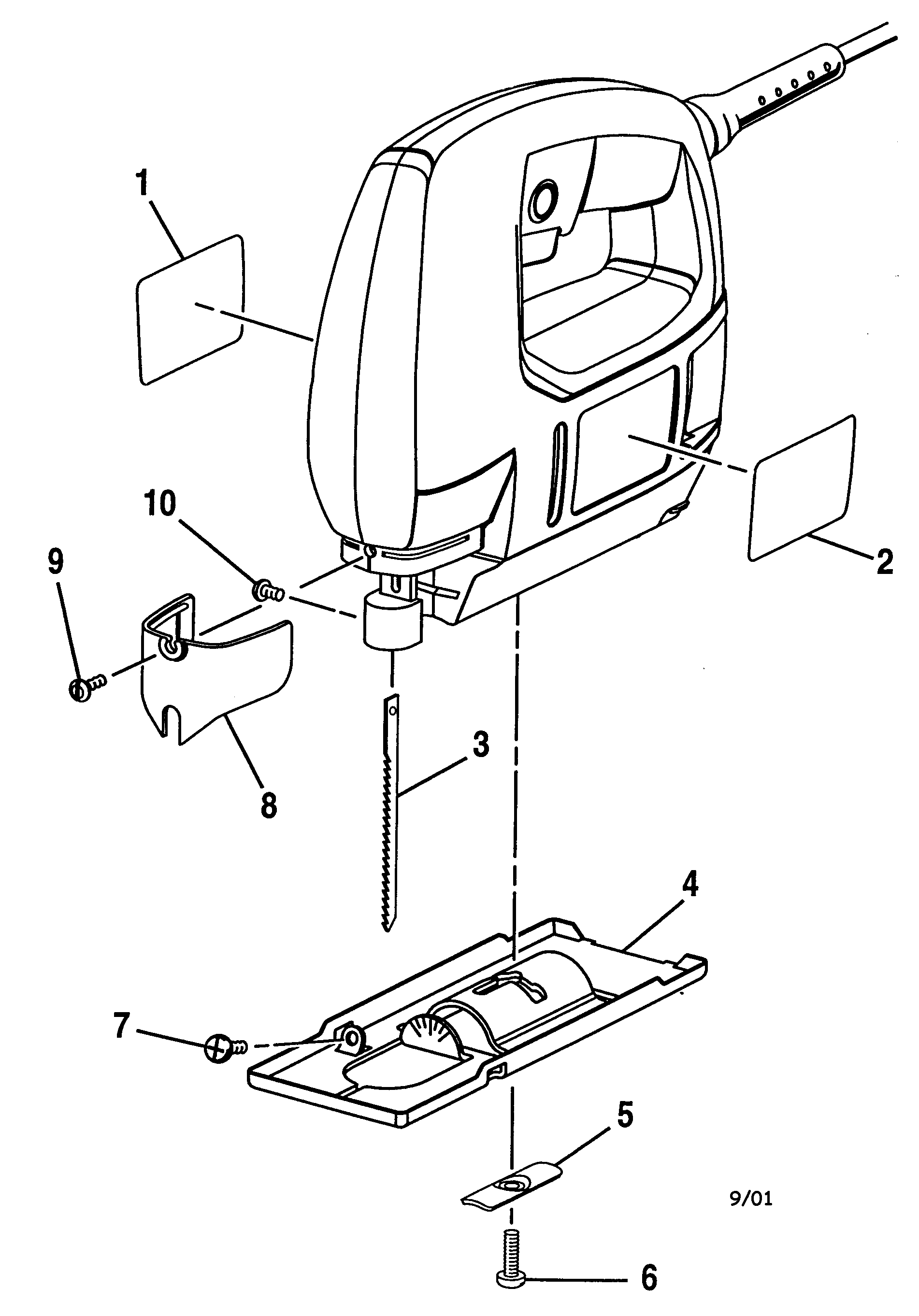

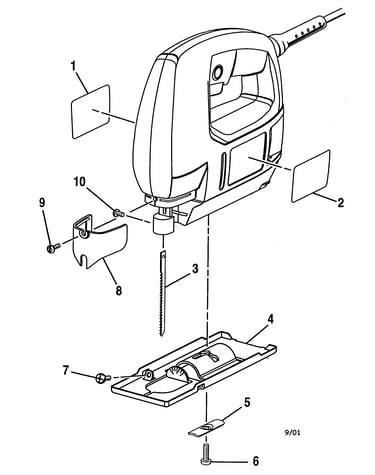

Housing diagram

Shield

Part #977284-001

The manufacturer no longer makes this part, and there's no substitute part

Field 981618-001
#9

Motor diagram

Field

Part #981618-001

The manufacturer no longer makes this part, and there's no substitute part

Roller 623924-019
#22

Motor diagram

Roller

Part #623924-019

The manufacturer no longer makes this part, and there's no substitute part

Screw 613931-001
#10

Housing diagram

Screw

Part #613931-001

The manufacturer no longer makes this part, and there's no substitute part

Brush Tube 612255-002
#6

Motor diagram

Brush tube

Part #612255-002

The manufacturer no longer makes this part, and there's no substitute part

Door 974765-001
#18

Motor diagram

Door

Part #974765-001

The manufacturer no longer makes this part, and there's no substitute part

Bearing 976872-001
#3

Motor diagram

Bearing

Part #976872-001

The manufacturer no longer makes this part, and there's no substitute part

Optional Edge Guide 606551-003
#11

Housing diagram

Optional edge guide

Part #606551-003

The manufacturer no longer makes this part, and there's no substitute part

Square Nut 709863-804
#20

Motor diagram

Square nut

Part #709863-804

The manufacturer no longer makes this part, and there's no substitute part
