Model # ZR700A Official Canon digital camera

Here are the diagrams and repair parts for Official Canon ZR700A digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

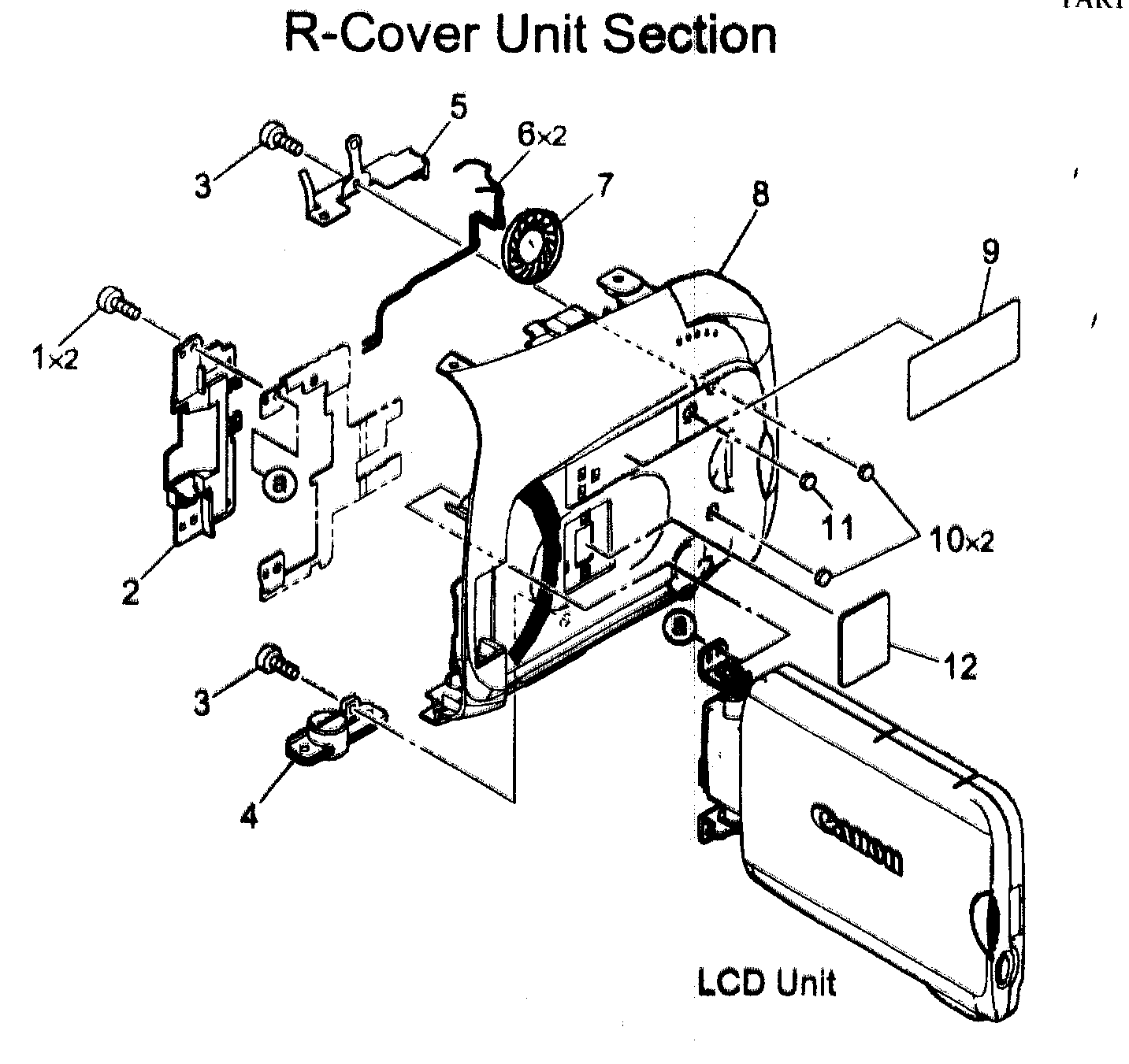

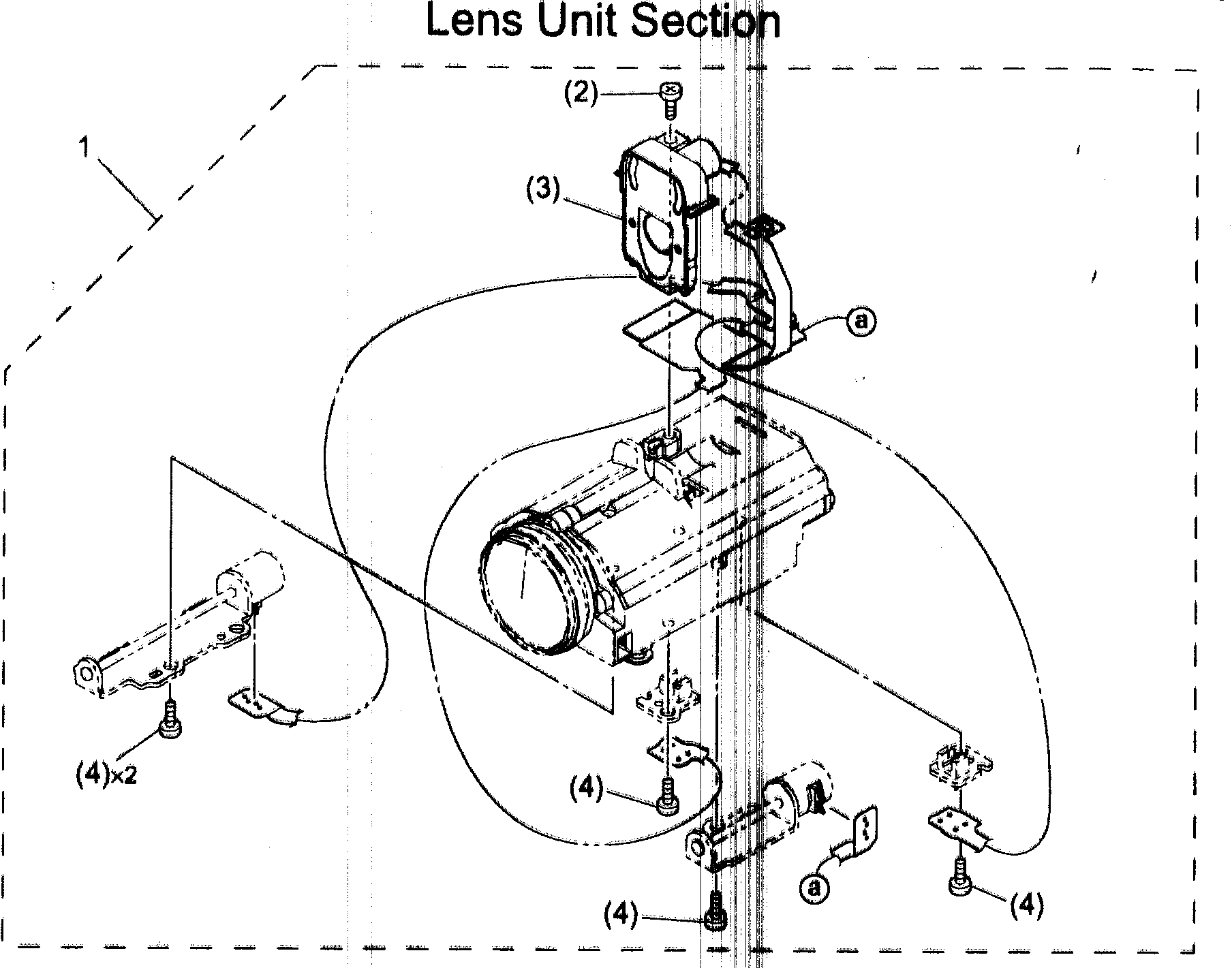

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Idler Assembly DF1-1703-000
#NI

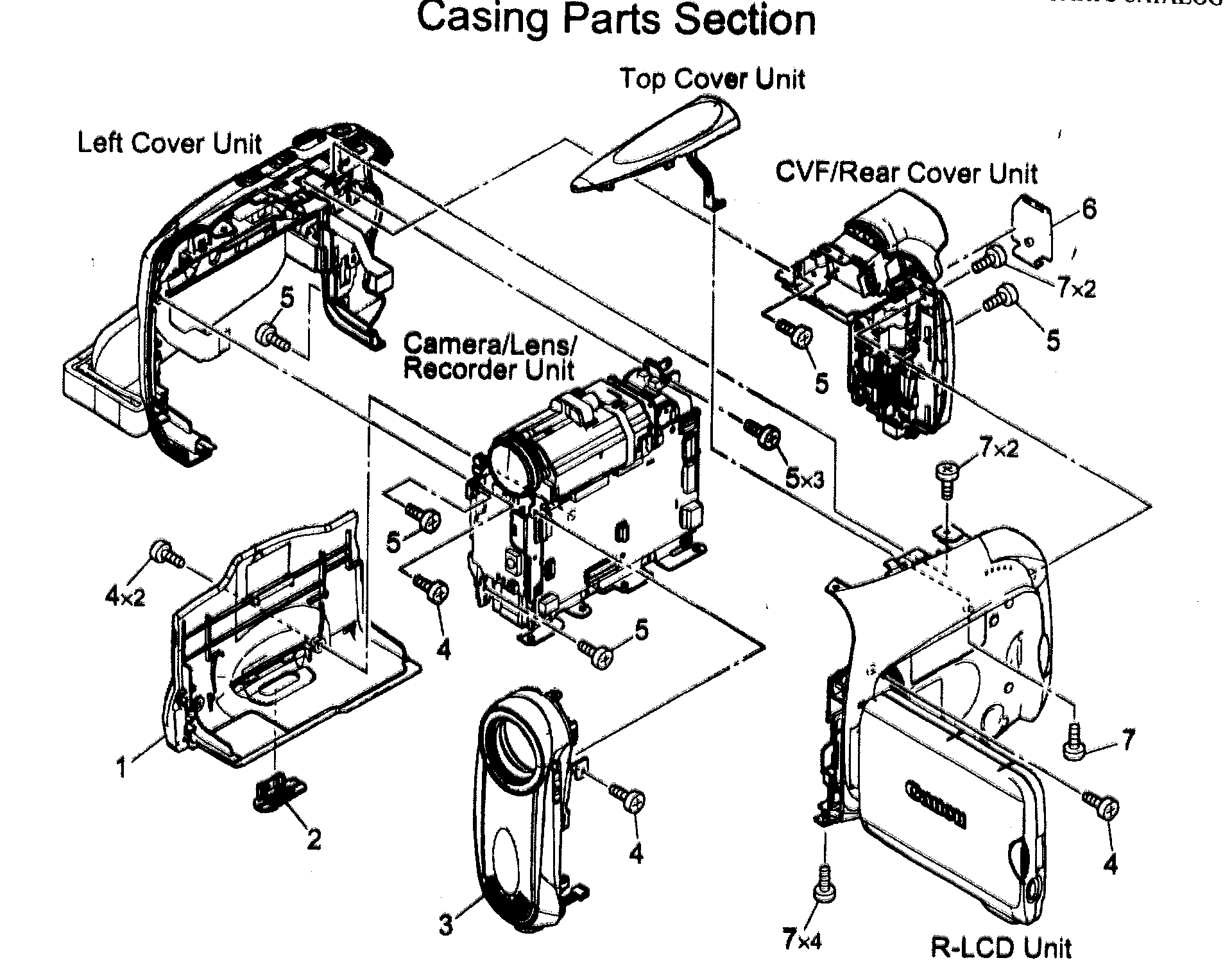

Casing parts diagram

Idler assembly

Part #DF1-1703-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Button DA3-3978-000
#11

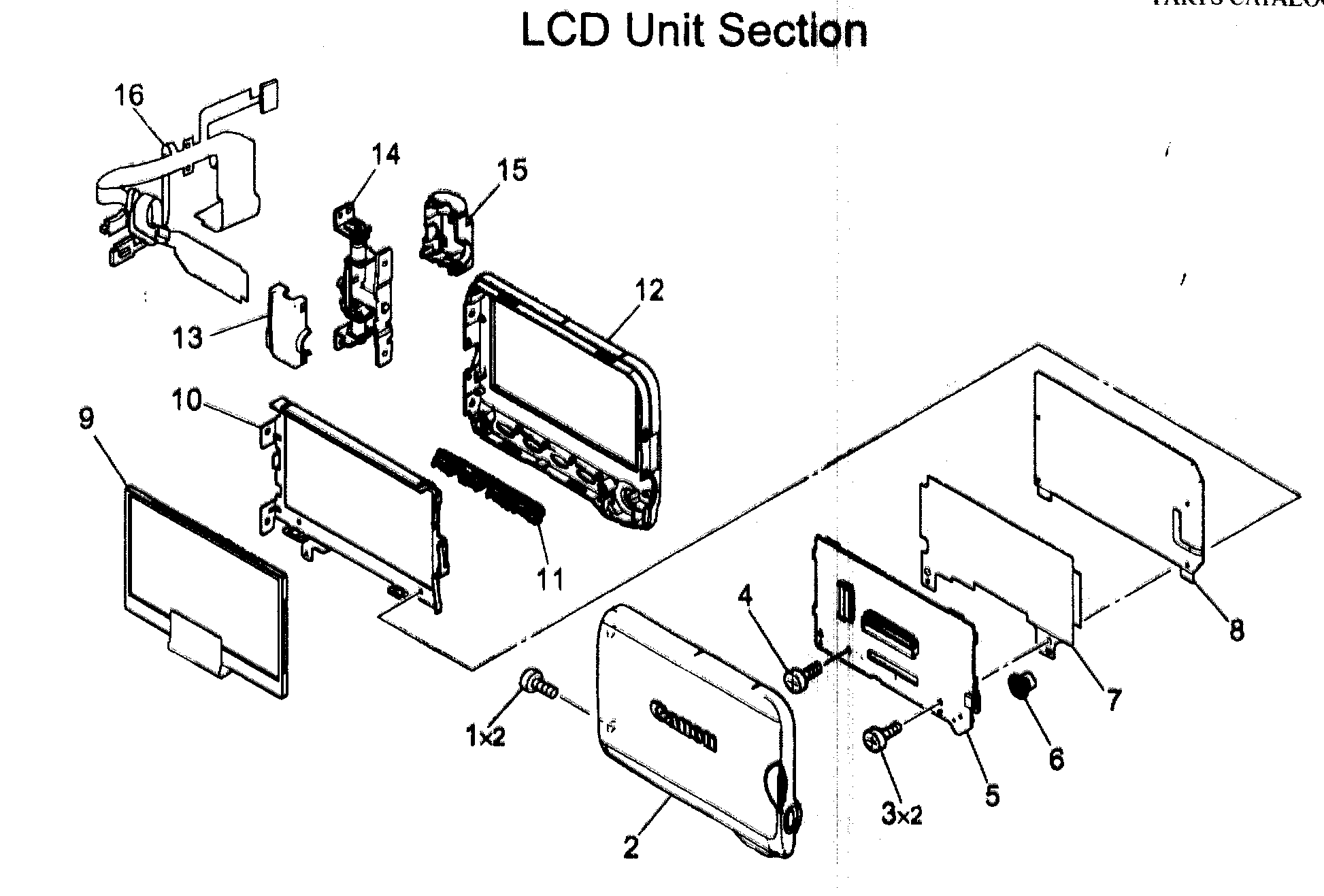

Lcd unit diagram

Canon button

Part #DA3-3978-000

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly DG3-1446-000
#5

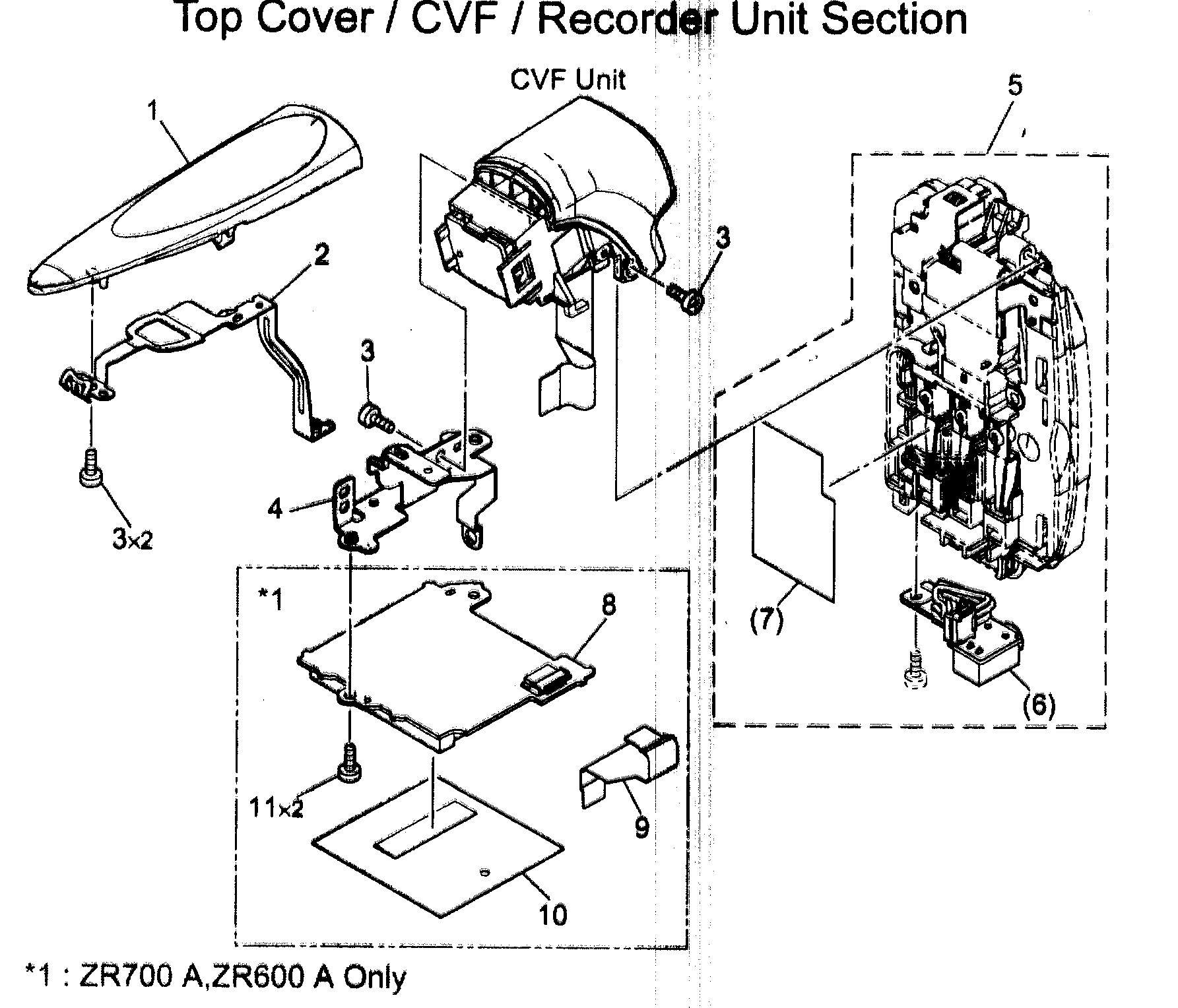

Top assy diagram

Cover assembly

Part #DG3-1446-000

The manufacturer no longer makes this part, and there's no substitute part

Motor DG1-4503-000
#NI

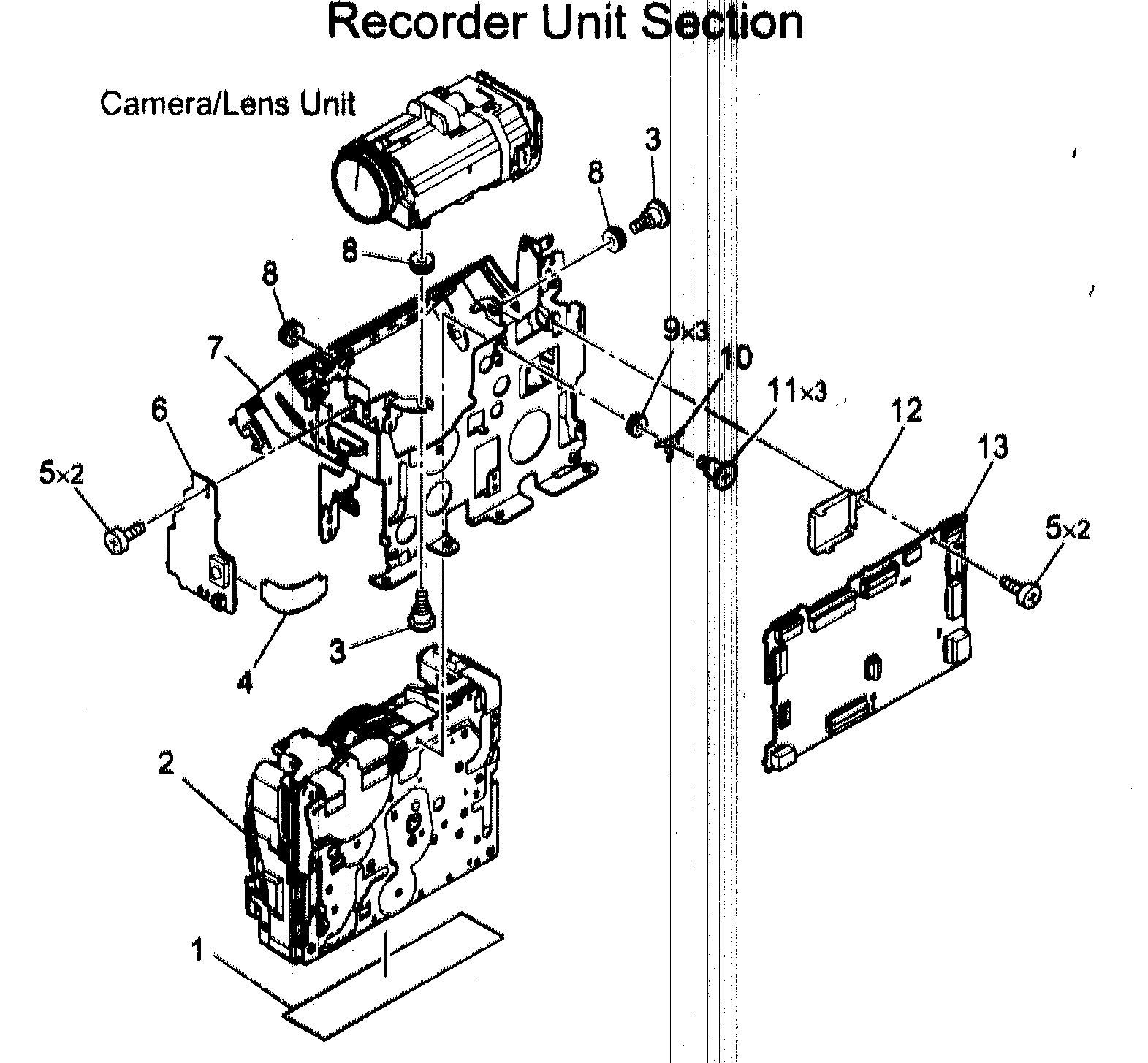

Casing parts diagram

Motor

Part #DG1-4503-000

The manufacturer no longer makes this part, and there's no substitute part

Drum Assembly DY1-8500-000
#NI

Casing parts diagram

Drum assembly

Part #DY1-8500-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Cover DA3-3902-000
#2

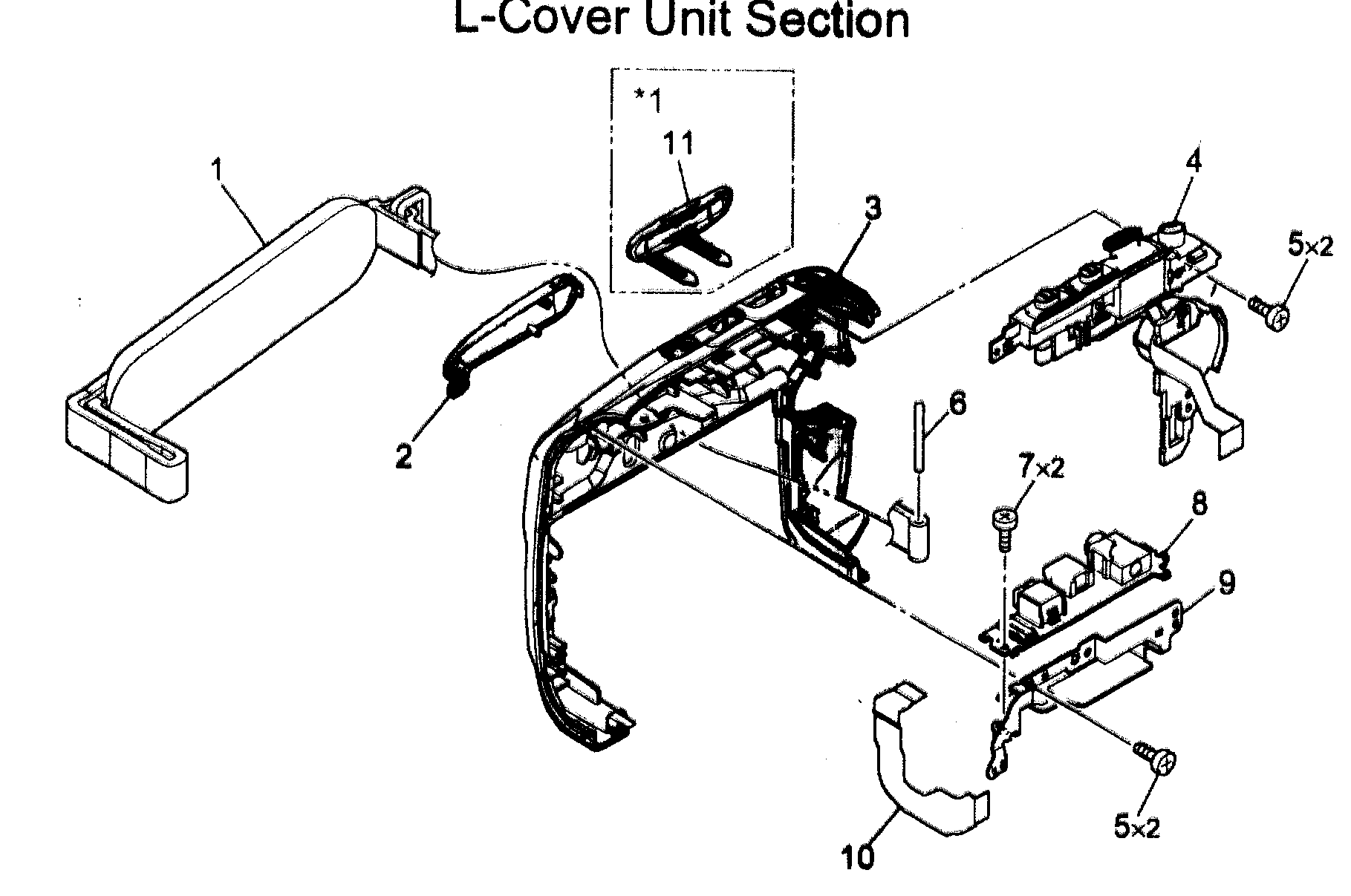

L-cover parts diagram

Canon cover

Part #DA3-3902-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Eyecup DA3-3931-000
#16

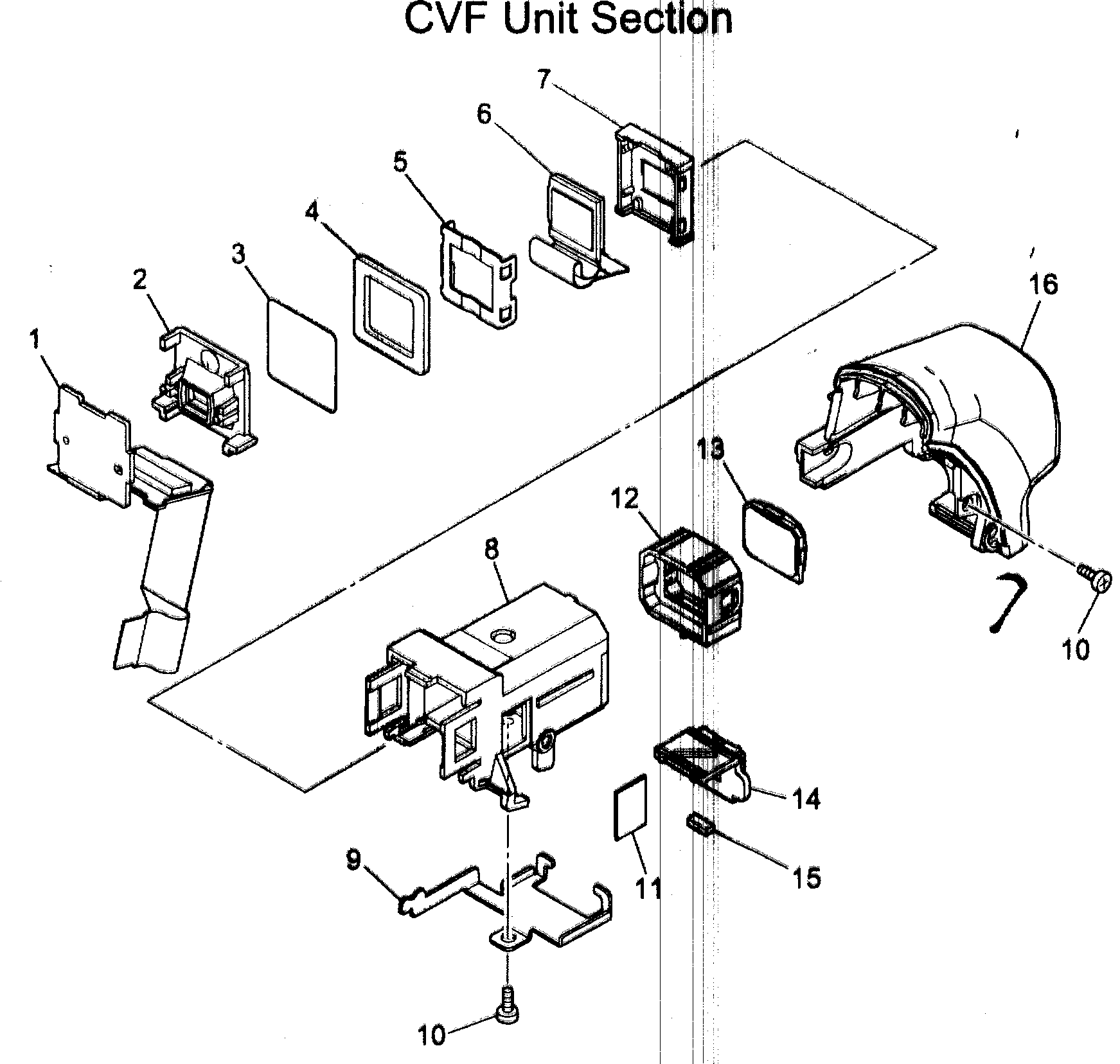

Cvf assy diagram

Canon eyecup

Part #DA3-3931-000

The manufacturer no longer makes this part, and there's no substitute part

Gear DA2-2197-000
#NI

Casing parts diagram

Gear

Part #DA2-2197-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA3-3932-000
#8

Cvf assy diagram

Cover

Part #DA3-3932-000

The manufacturer no longer makes this part, and there's no substitute part

Filter DH9-3044-000
#2

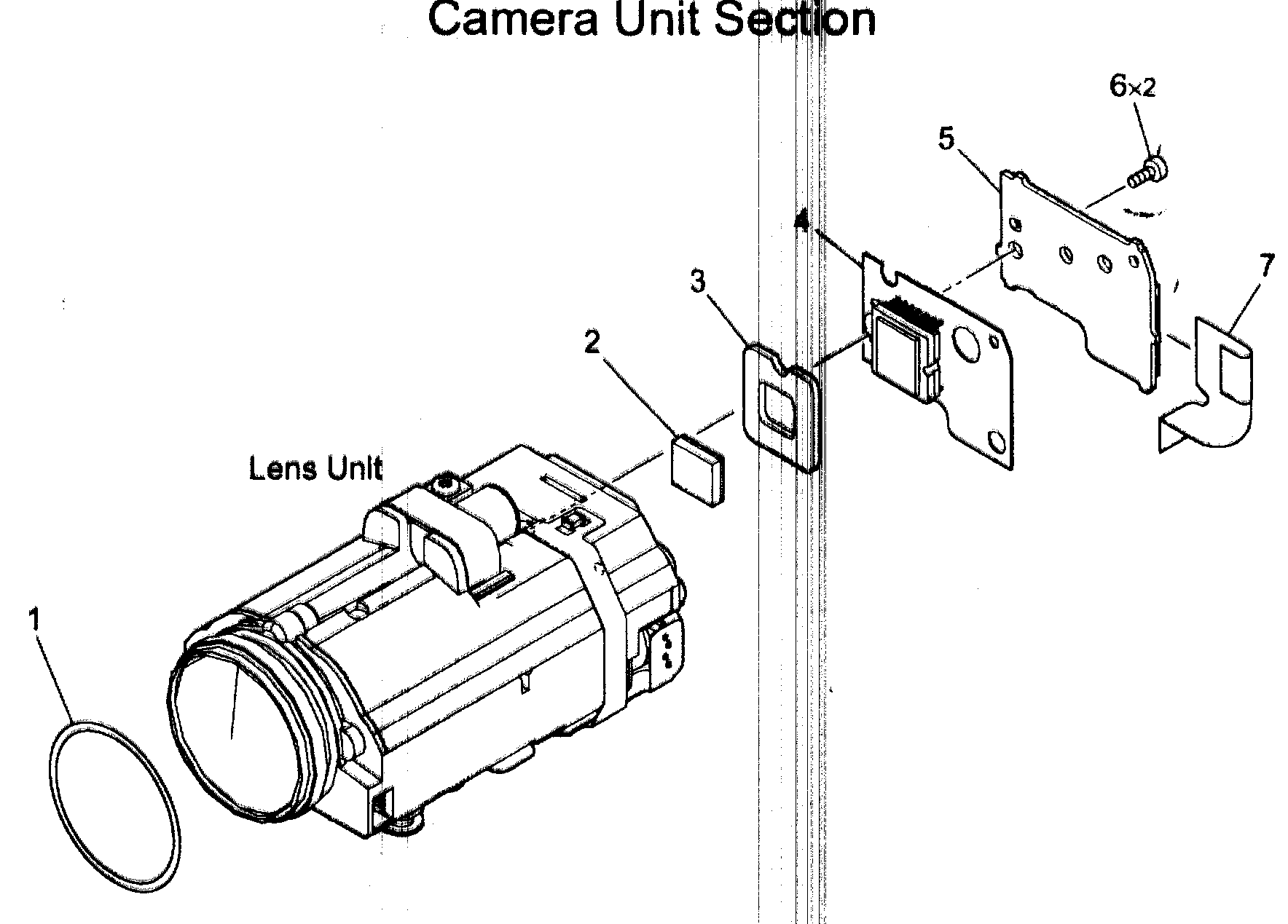

Camera assy diagram

Filter

Part #DH9-3044-000

The manufacturer no longer makes this part, and there's no substitute part
