Room Air Conditioner

Model # AW0819/XAA Official Samsung air conditioner

Here are the diagrams and repair parts for Official Samsung AW0819/XAA air conditioner, as well as links to manuals and error code tables, if available.

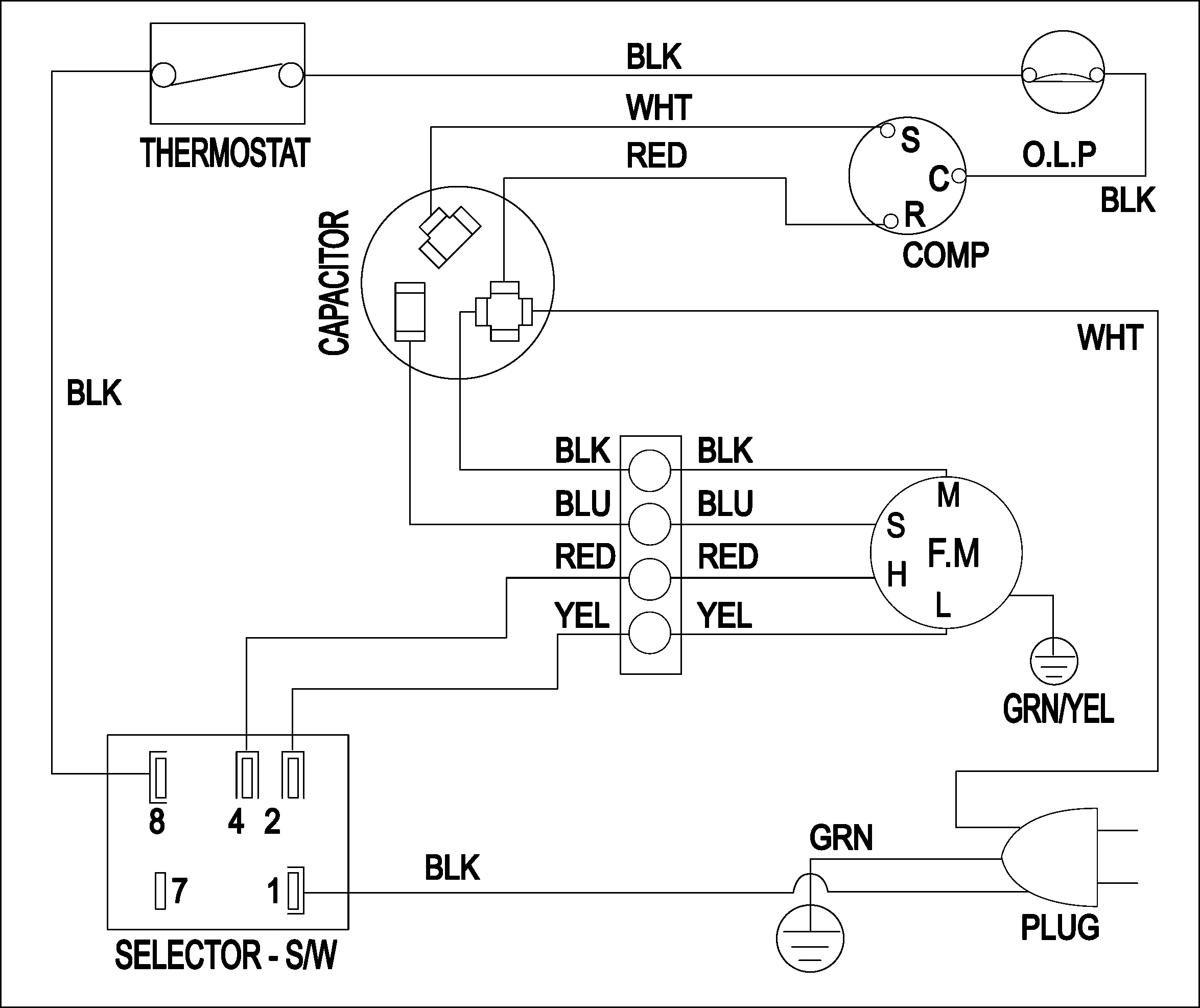

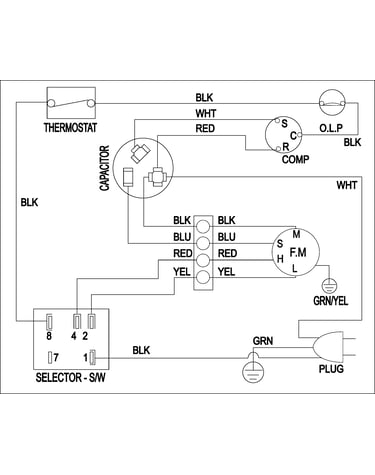

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forAW0819/XAA Air Conditioner

  • Base Assembly DB90-20212A
    #17

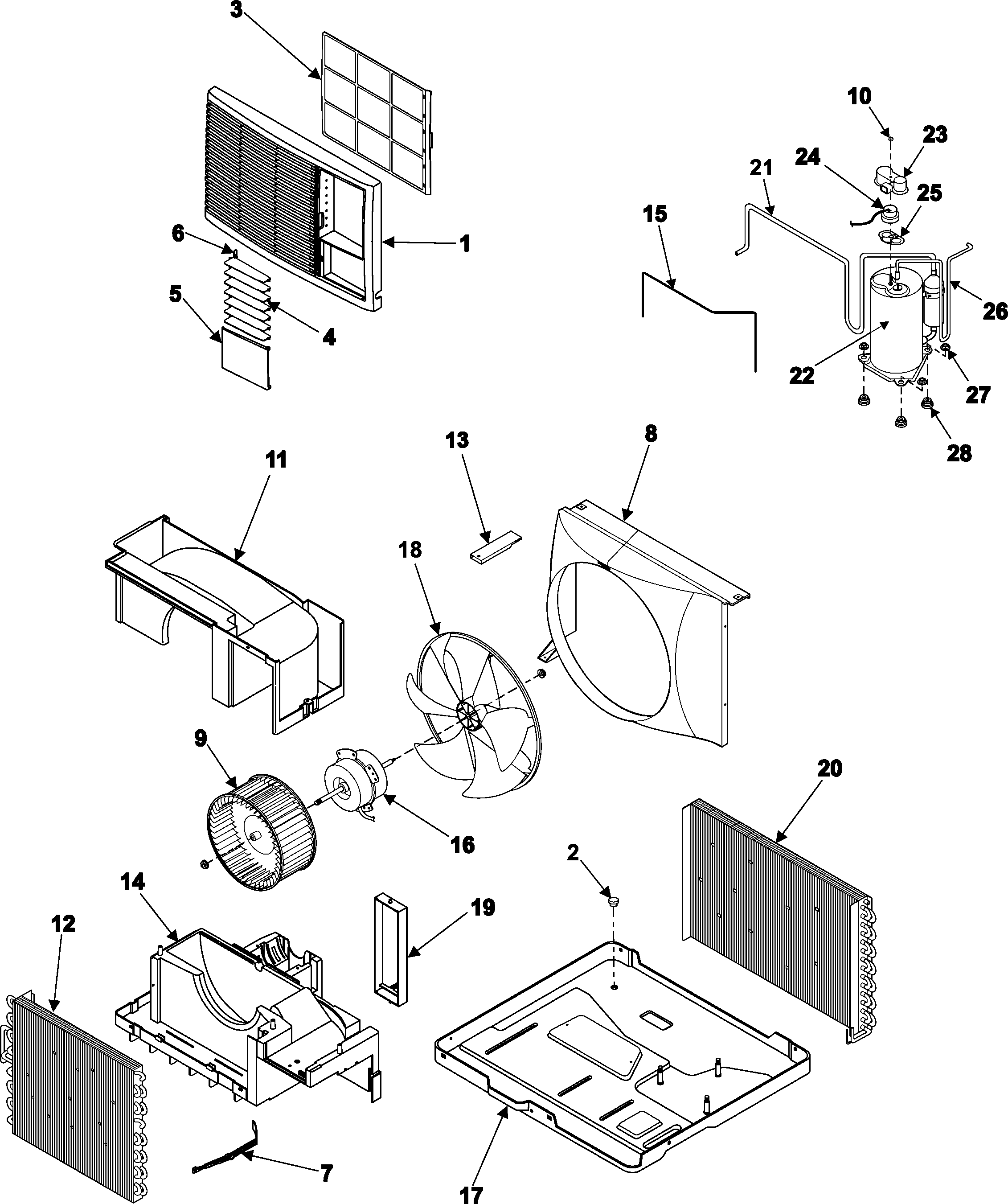

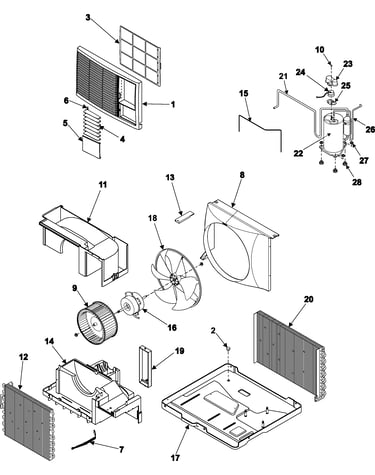

    Chassis assembly diagram

    Base assembly

    Part #DB90-20212A

    $36.11
    In Stock
  • Fan Motor DB31-00004F
    #16

    Chassis assembly diagram

    Fan motor

    Part #DB31-00004F

    $196.20
    In Stock
  • Cabinet DB90-10675A
    #2

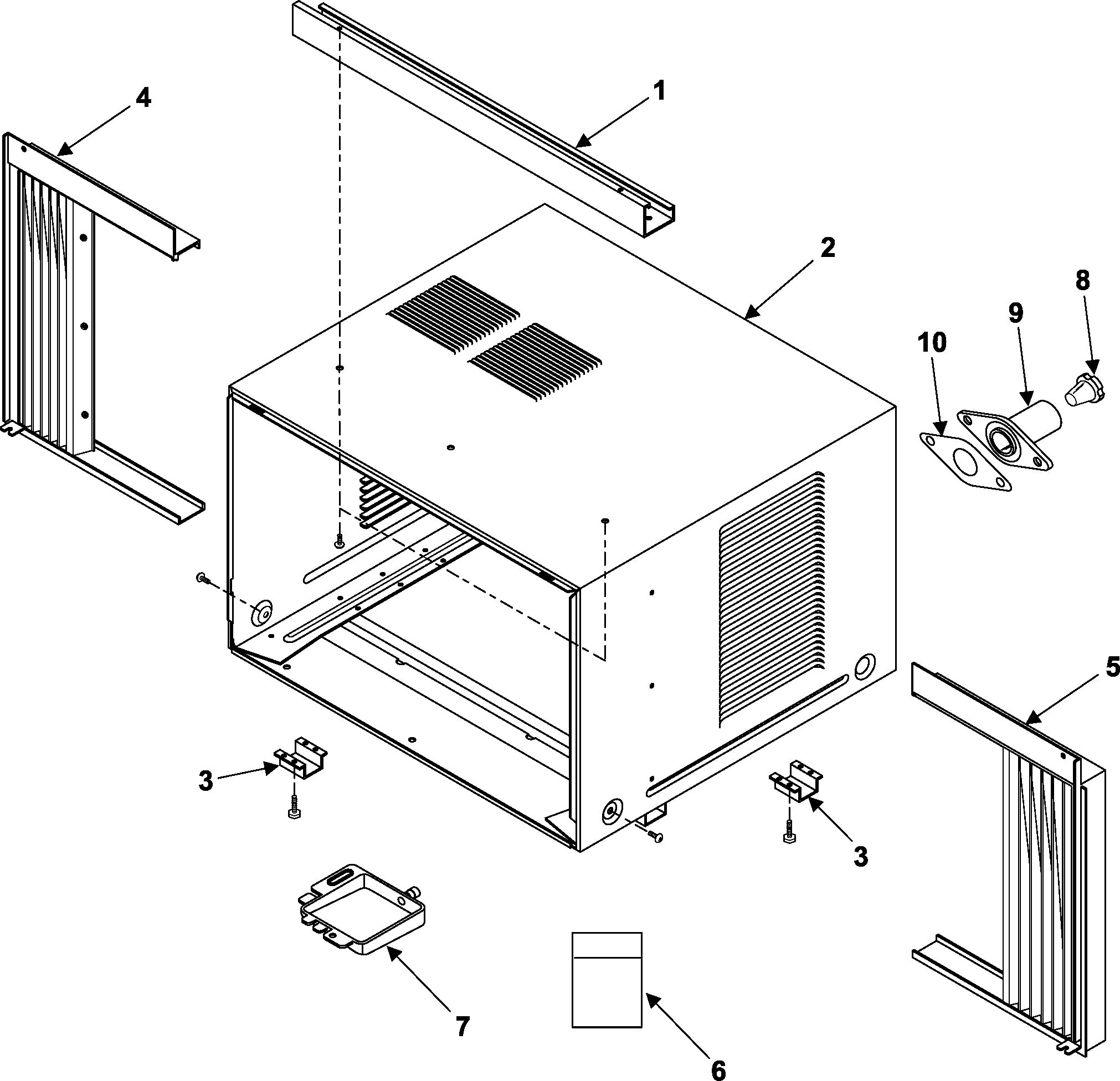

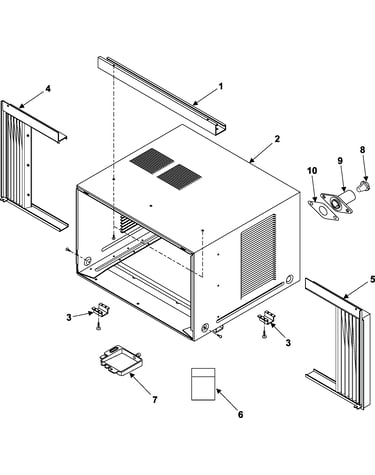

    Outer case assembly diagram

    Cabinet

    Part #DB90-10675A

    $69.58
    In Stock
  • Knob DB64-50138B
    #11

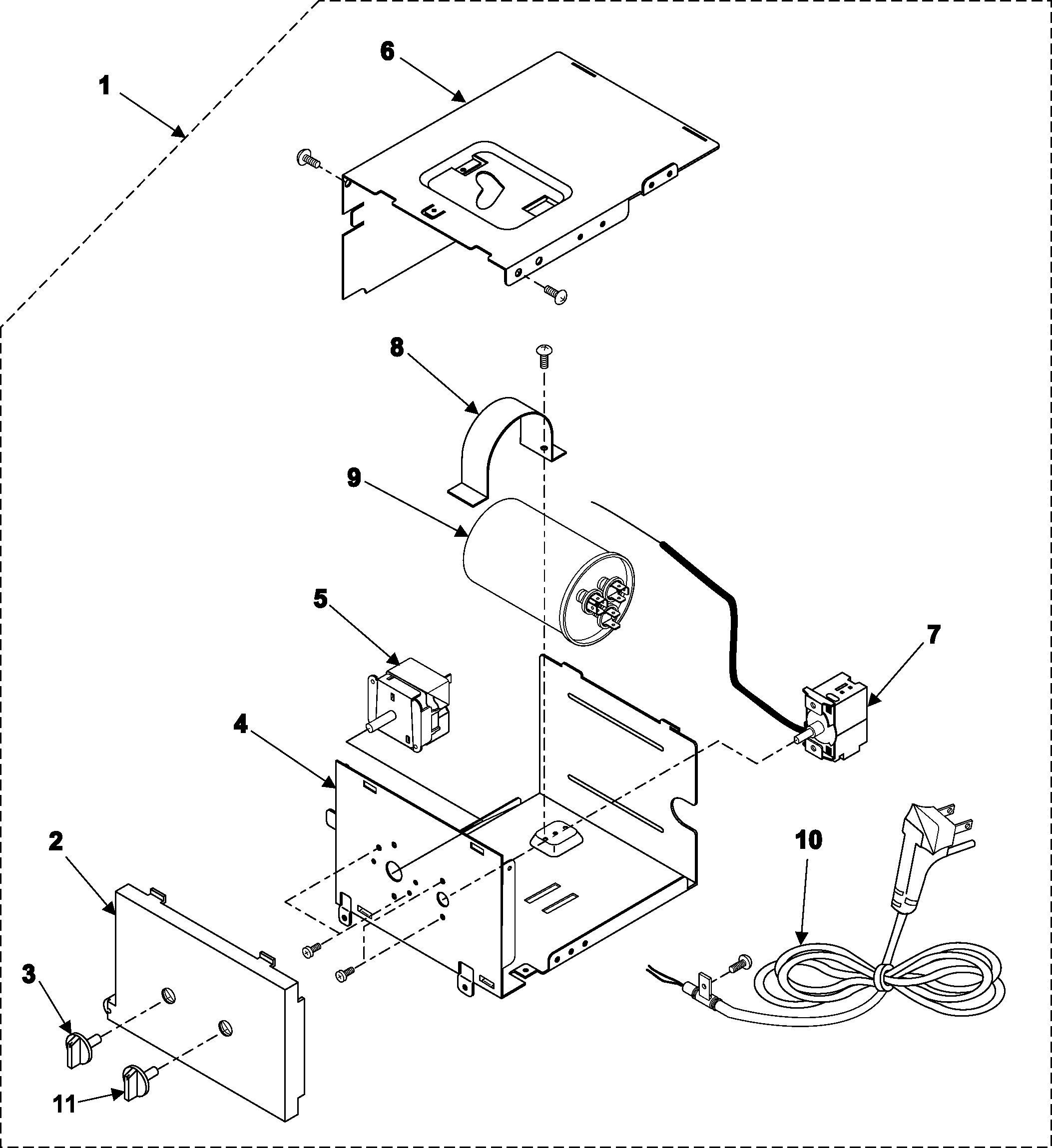

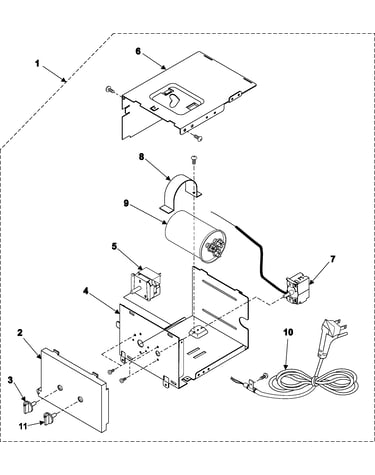

    Control assembly diagram

    Knob

    Part #DB64-50138B

    $13.66
    In Stock
  • Tub DB73-20137A
    #10

    Outer case assembly diagram

    Tub

    Part #DB73-20137A

    This item is not returnable
    $5.11
    In Stock
  • Flange Nut DB60-00001A
    #10

    Chassis assembly diagram

    Flange nut

    Part #DB60-00001A

    This item is not returnable
    $4.26
    In Stock
  • Control Panel DB64-70111A
    #2

    Control assembly diagram

    Control panel

    Part #DB64-70111A

    $18.77
    In Stock
  • Cap DB63-10388A
    #2

    Chassis assembly diagram

    Cap

    Part #DB63-10388A

    This item is not returnable
    $2.86
    In Stock
  • Cap DB63-10365A
    #8

    Outer case assembly diagram

    Cap

    Part #DB63-10365A

    This item is not returnable
    $2.16
    In Stock
  • Bracket DB61-30219A
    #3

    Outer case assembly diagram

    Bracket

    Part #DB61-30219A

    $9.37
    In Stock
