Wall Oven/Microwave Combo

Model # RM275PXL0 Official Whirlpool 30" electric built-in oven with microwave

Here are the diagrams and repair parts for Official Whirlpool RM275PXL0 30" electric built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

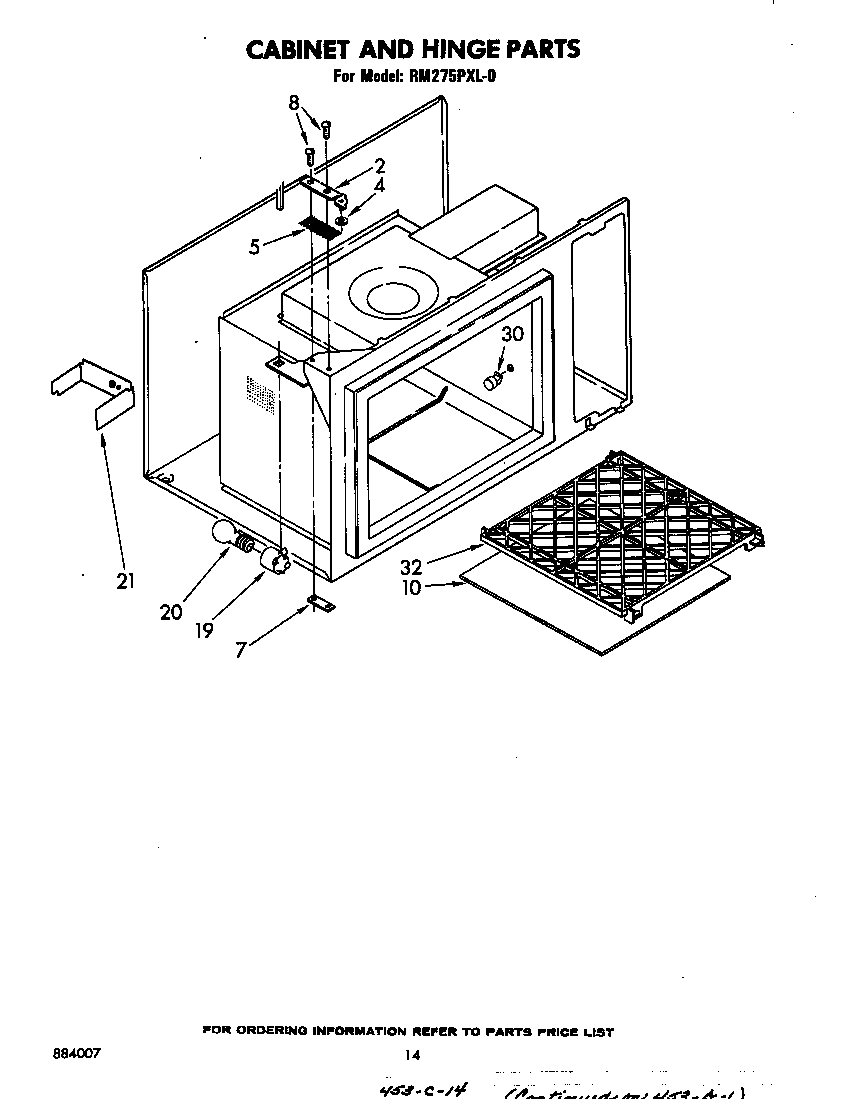

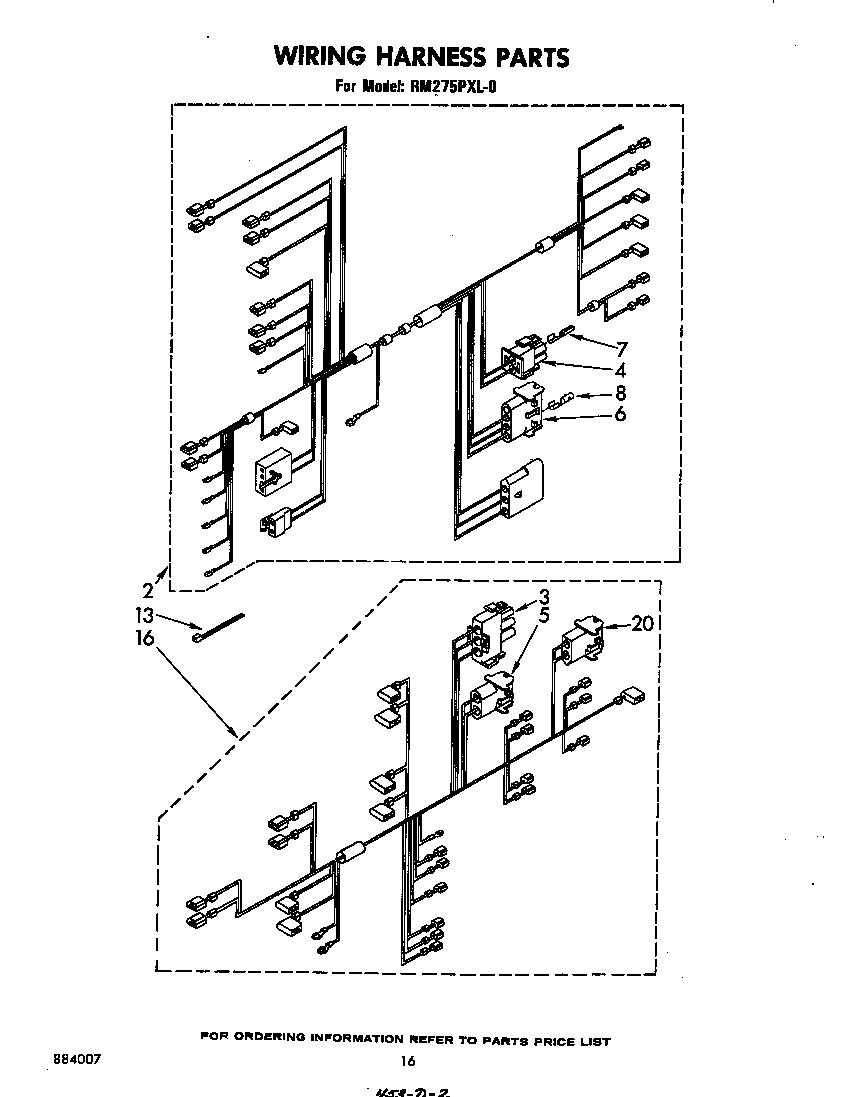

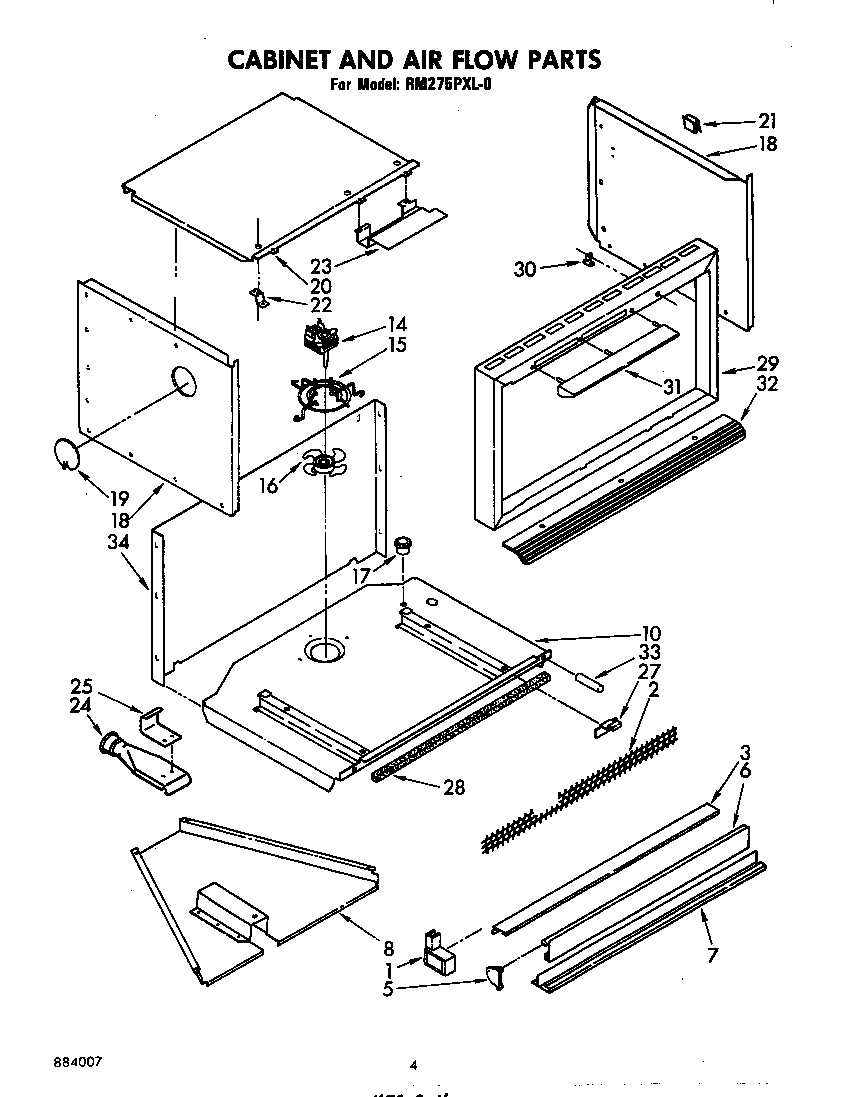

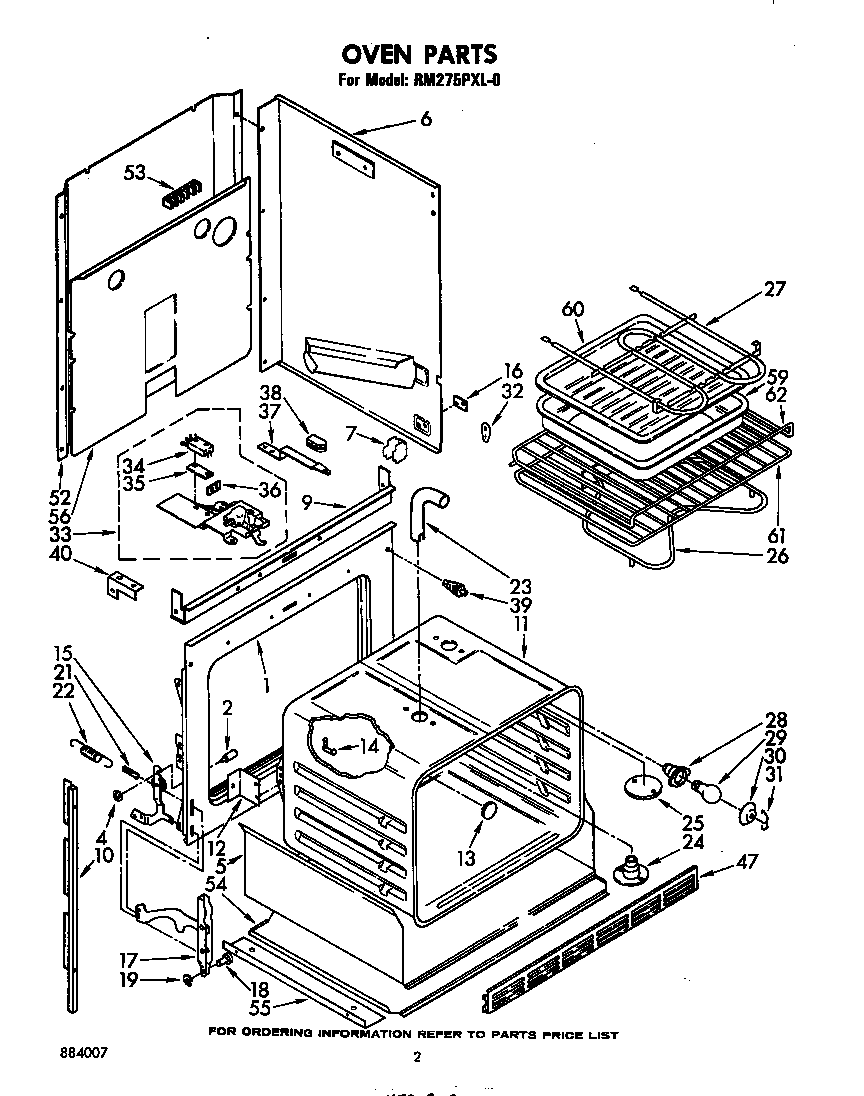

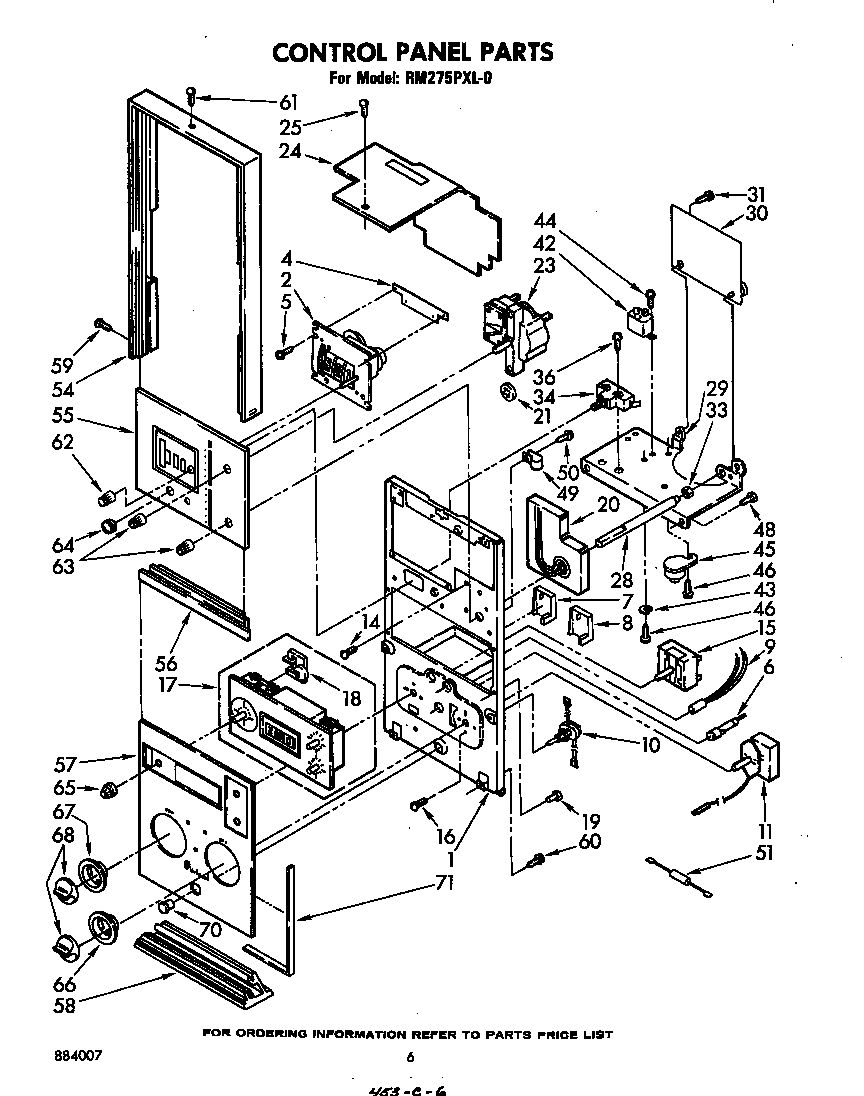

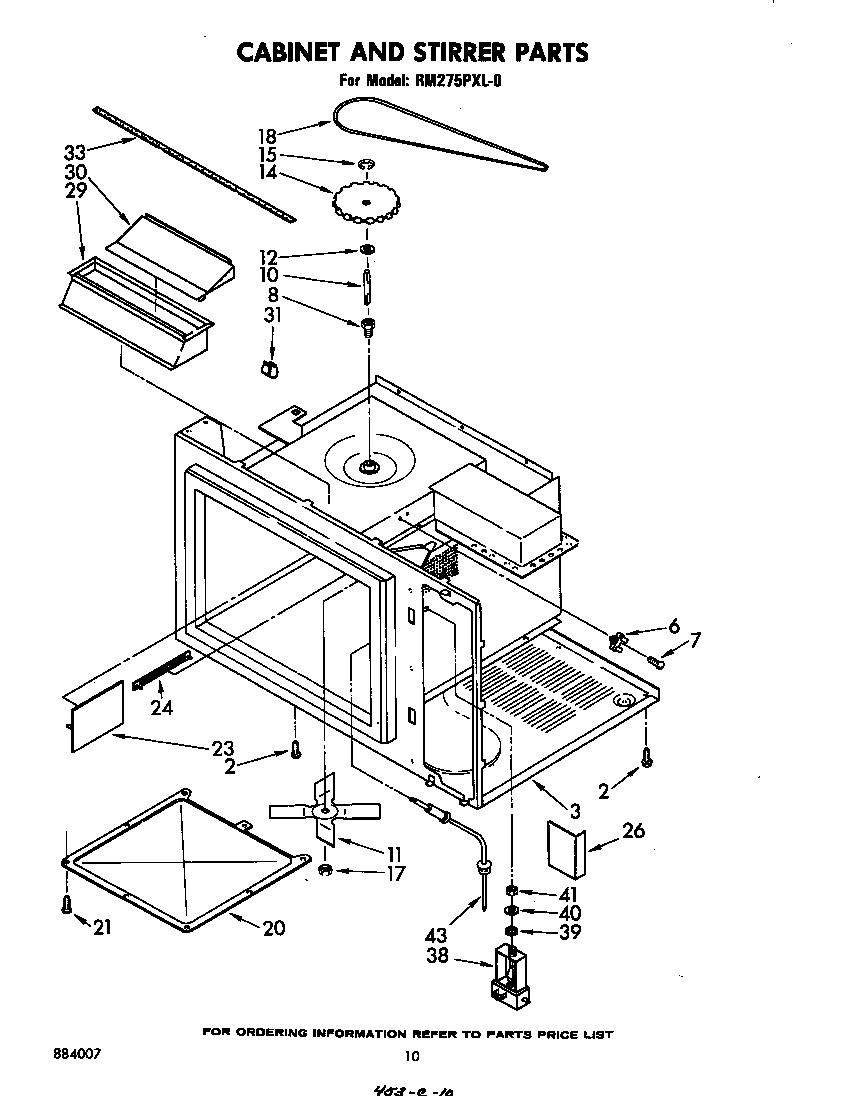

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 334 parts  |
Light Bulb 311255
Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Appliance Touch-up Paint 72017

#NI

All parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Screw 253549
Screw

Part #253549

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 253549. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clip 90296
#14A

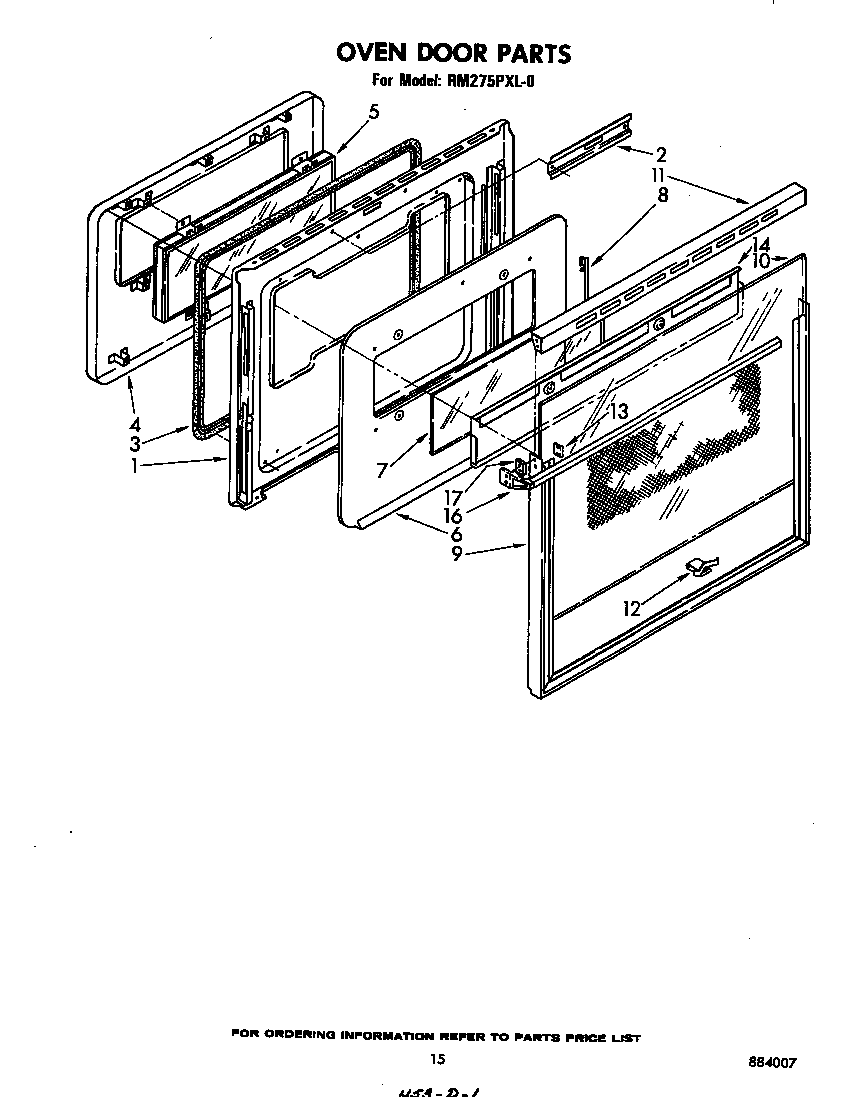

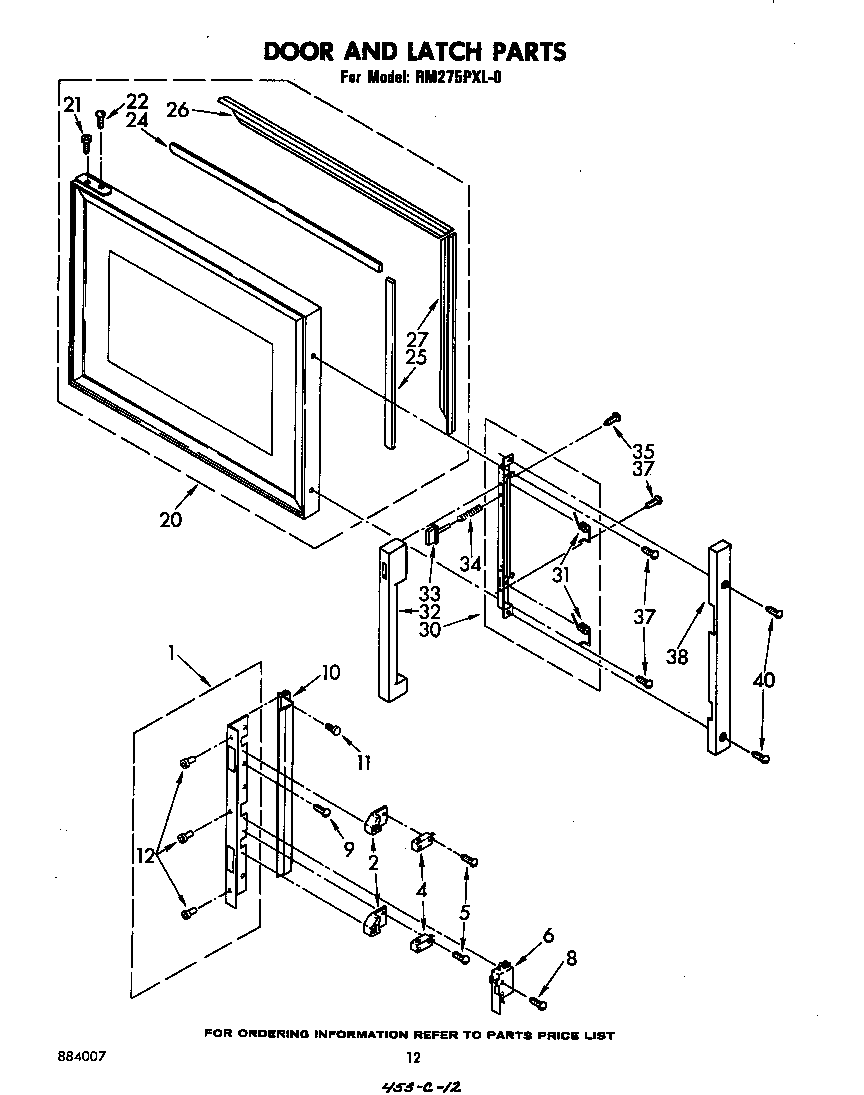

Oven door diagram

Clip

Part #90296

Replaced by #WP90296

?
Manufacturer substitution
This part replaces 90296. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Touch-up Paint (black) 72032

#NI

All parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Adhesive 482338

#NI

All parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Line Fuse 311167
#22

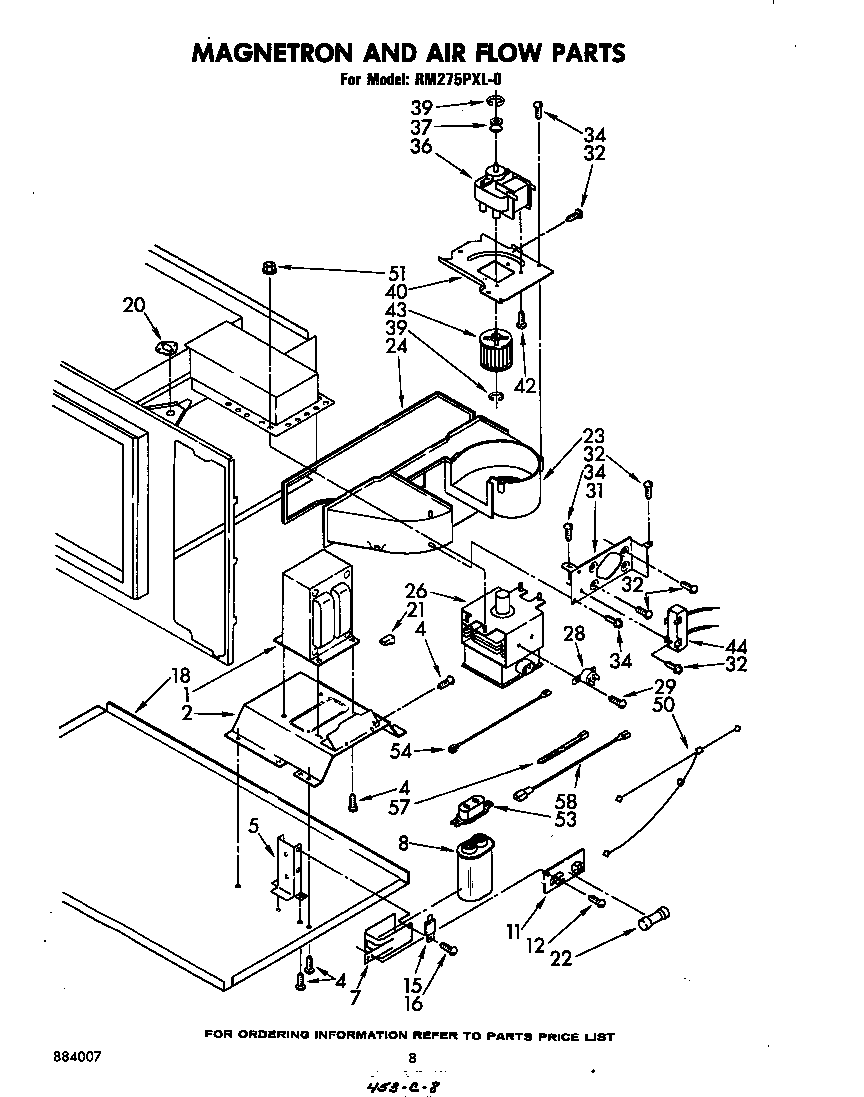

Magnetron and airflow diagram

Line fuse

Part #311167

Replaced by #WPW10017410

?
Manufacturer substitution
This part replaces 311167. Substitute parts can look different from the original.
This item is not returnable
$11.89 |
14% OFF Phone Price : $13.89
In Stock
Screw 311938
#12

Magnetron and airflow diagram

Screw

Part #311938

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 311938. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Insulation 240132

#NI

All parts diagram

Insulation

Part #240132

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 240132. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Insulation 261514

#NI

All parts diagram

Insulation

Part #261514

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 261514. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
