Model # TFG27ZFTCWH Official GE side-by-side refrigerator

Here are the diagrams and repair parts for Official GE TFG27ZFTCWH side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

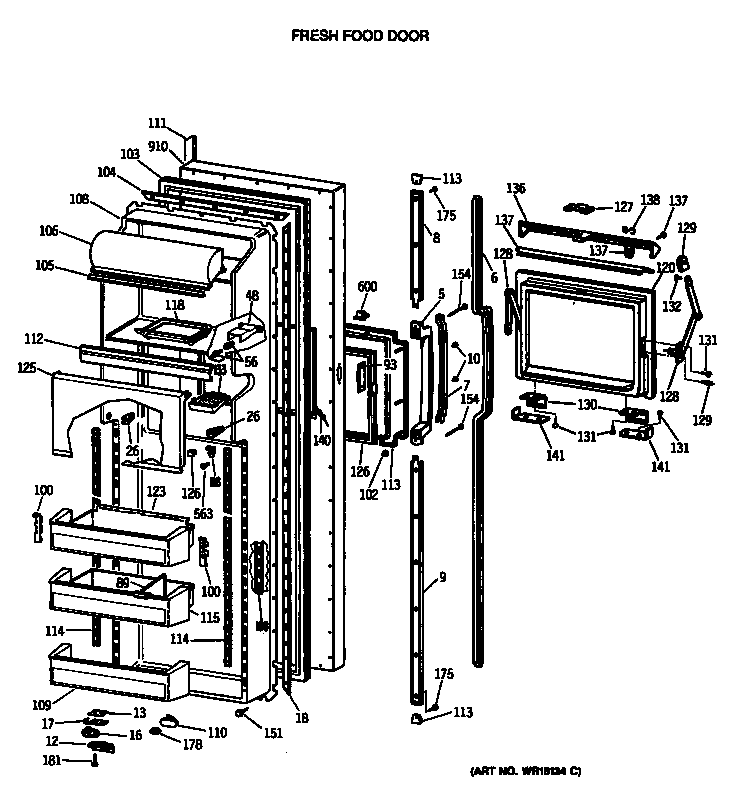

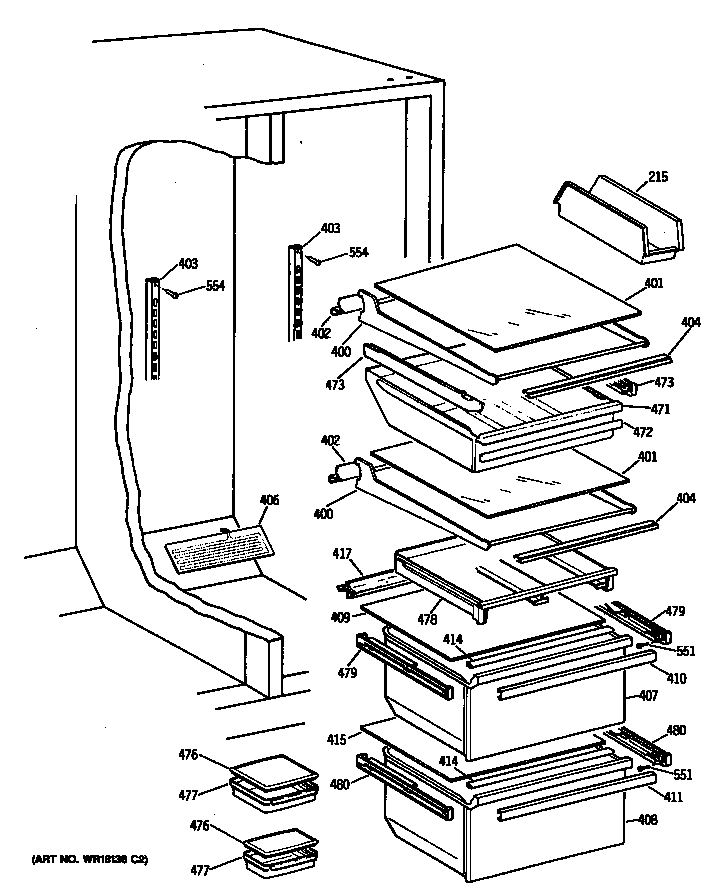

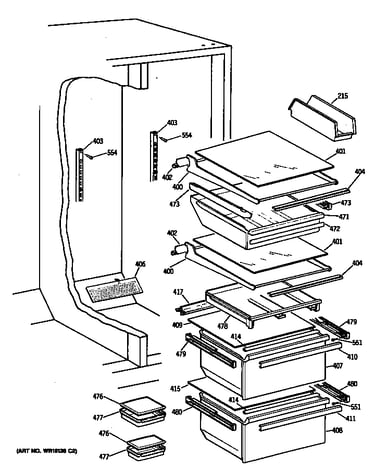

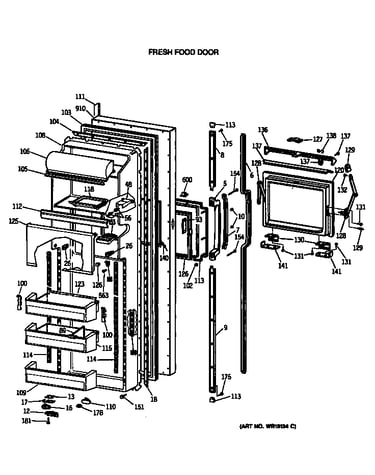

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 383 parts  |
Dryer Assembly WR86X86
#740

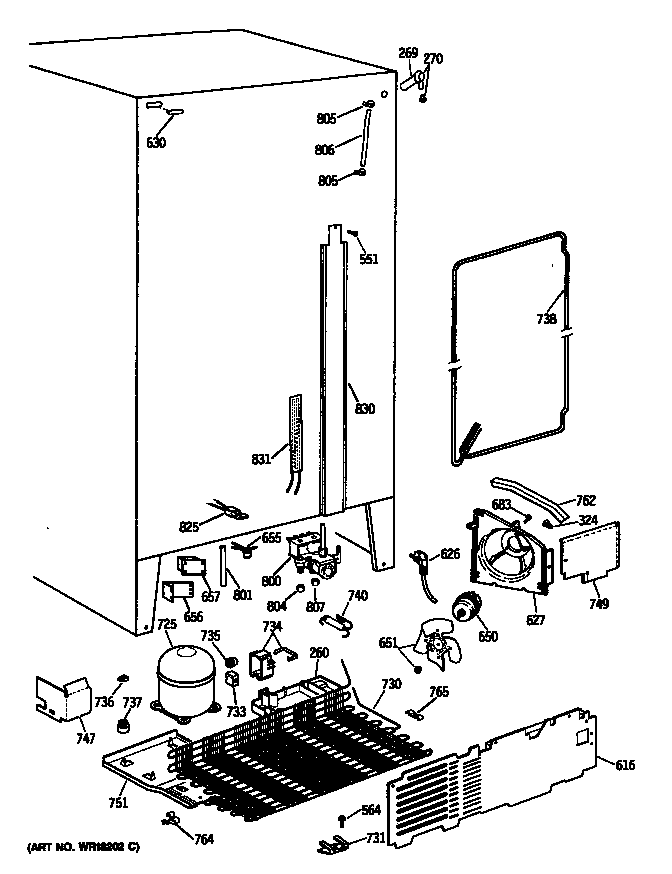

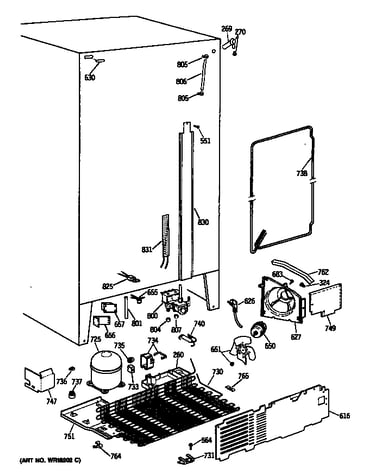

Compressor diagram

Dryer assembly

Part #WR86X86

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Water Tube Fitting And Nut Kit WR2X8545
#80B

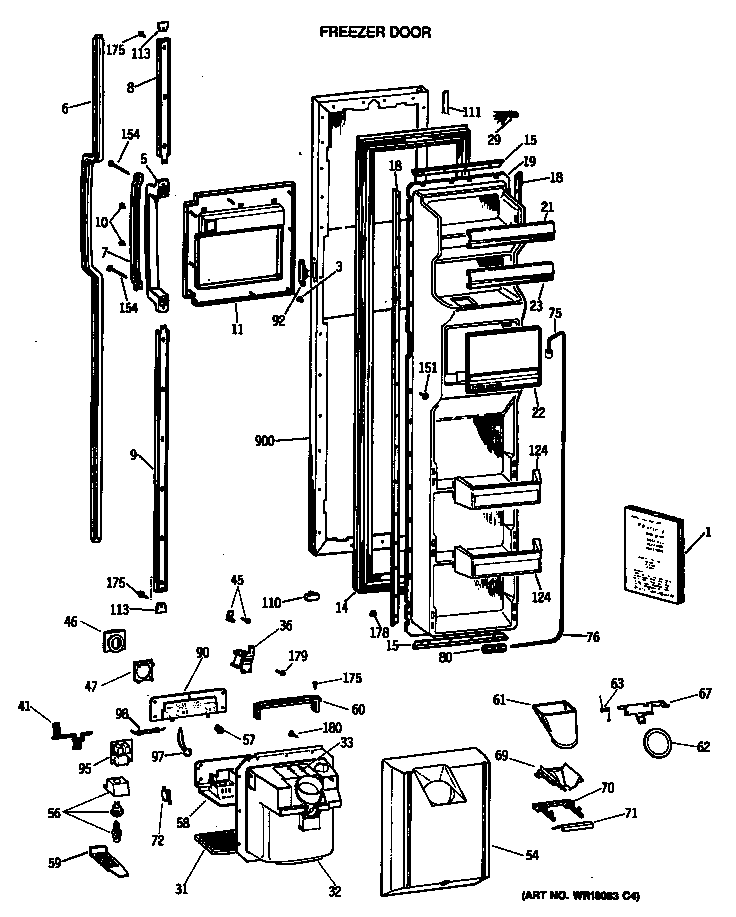

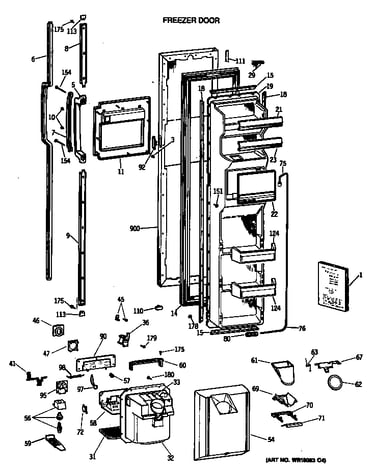

Freezer door diagram

Refrigerator water tube fitting and nut kit

Part #WR2X8545

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR2X8545. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Nut&union As WR2X4048
#807

Compressor diagram

Nut&union as

Part #WR2X4048

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR2X4048. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces Wr50x0122, Wr50x10014, Wr50x128) WR50X122
#240

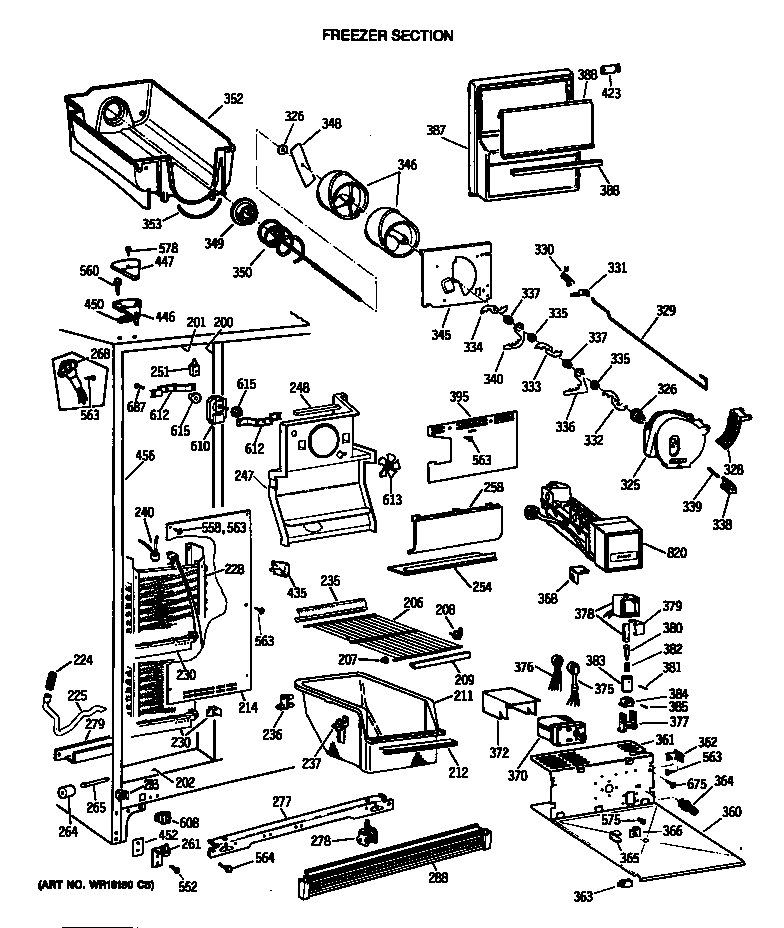

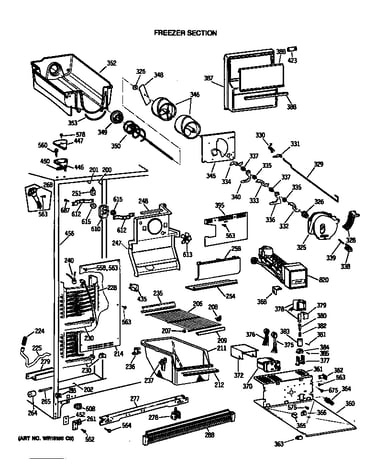

Freezer section diagram

Refrigerator defrost bi-metal thermostat (replaces wr50x0122, wr50x10014, wr50x128)

Part #WR50X122

BEST SELLER
$37.61 |
14% OFF Phone Price : $43.61
In Stock
Refrigerator Tube WR17X3104
#812

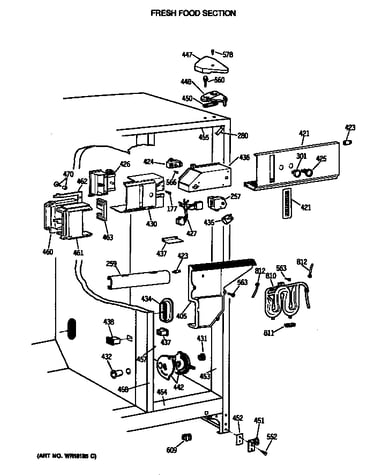

Fresh food section diagram

Refrigerator tube

Part #WR17X3104

Replaced by #WR17X2891

?
Manufacturer substitution
This part replaces WR17X3104. Substitute parts can look different from the original.
BEST SELLER
$24.41 |
20% OFF Phone Price : $30.41
In Stock
Refrigerator Spring WR2X4258
#382

Freezer section diagram

Refrigerator spring

Part #WR2X4258

Replaced by #WR62X26536

?
Manufacturer substitution
This part replaces WR2X4258. Substitute parts can look different from the original.
BEST SELLER
$57.88 |
9% OFF Phone Price : $63.88
In Stock
Refrigerator Ice Dispenser Solenoid Plunger WR17X1064
#380

Freezer section diagram

Refrigerator ice dispenser solenoid plunger

Part #WR17X1064

Replaced by #WR62X26536

?
Manufacturer substitution
This part replaces WR17X1064. Substitute parts can look different from the original.
BEST SELLER
$57.88 |
9% OFF Phone Price : $63.88
In Stock
Shroud WR17X1063
#379

Freezer section diagram

Shroud

Part #WR17X1063

Replaced by #WR62X26536

?
Manufacturer substitution
This part replaces WR17X1063. Substitute parts can look different from the original.
BEST SELLER
$57.88 |
9% OFF Phone Price : $63.88
In Stock
Refrigerator Ice Dispenser Solenoid Collar WR17X1065
#383

Freezer section diagram

Refrigerator ice dispenser solenoid collar

Part #WR17X1065

Replaced by #WR62X26536

?
Manufacturer substitution
This part replaces WR17X1065. Substitute parts can look different from the original.
BEST SELLER
$57.88 |
9% OFF Phone Price : $63.88
In Stock
Refrigerator Ice Dispenser Solenoid Stirrup Pin WR2X4259
#385

Freezer section diagram

Refrigerator ice dispenser solenoid stirrup pin

Part #WR2X4259

Replaced by #WR62X26536

?
Manufacturer substitution
This part replaces WR2X4259. Substitute parts can look different from the original.
BEST SELLER
$57.88 |
9% OFF Phone Price : $63.88
In Stock
