Model # 48JZ048115300 Official Carrier central package

Here are the diagrams and repair parts for Official Carrier 48JZ048115300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

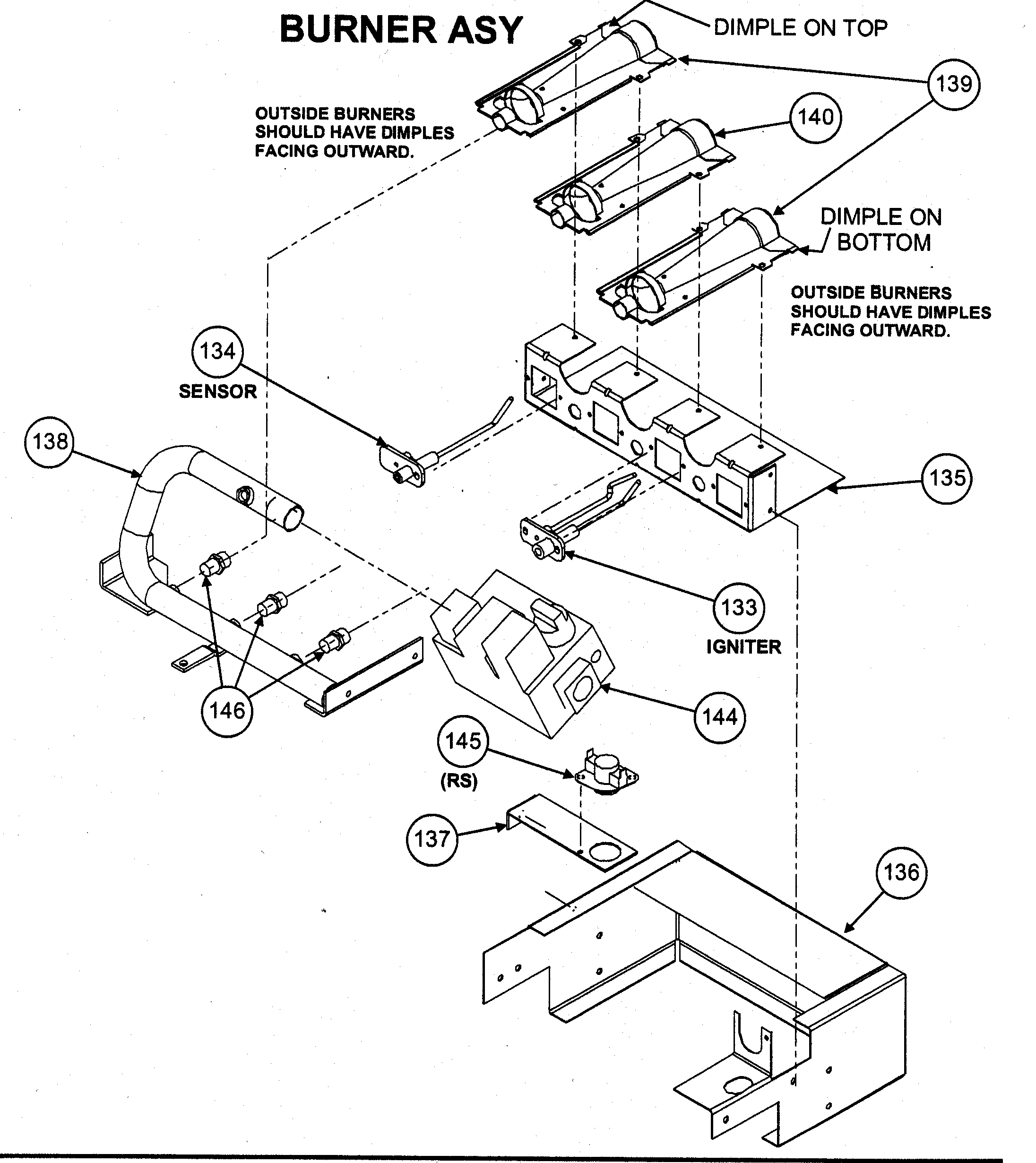

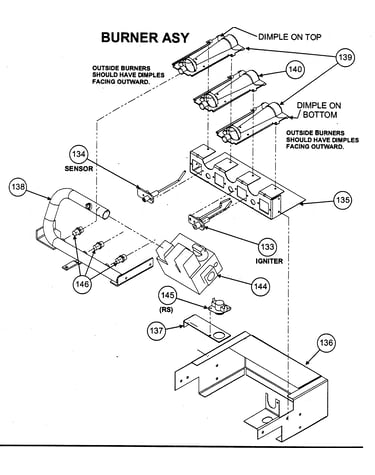

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |

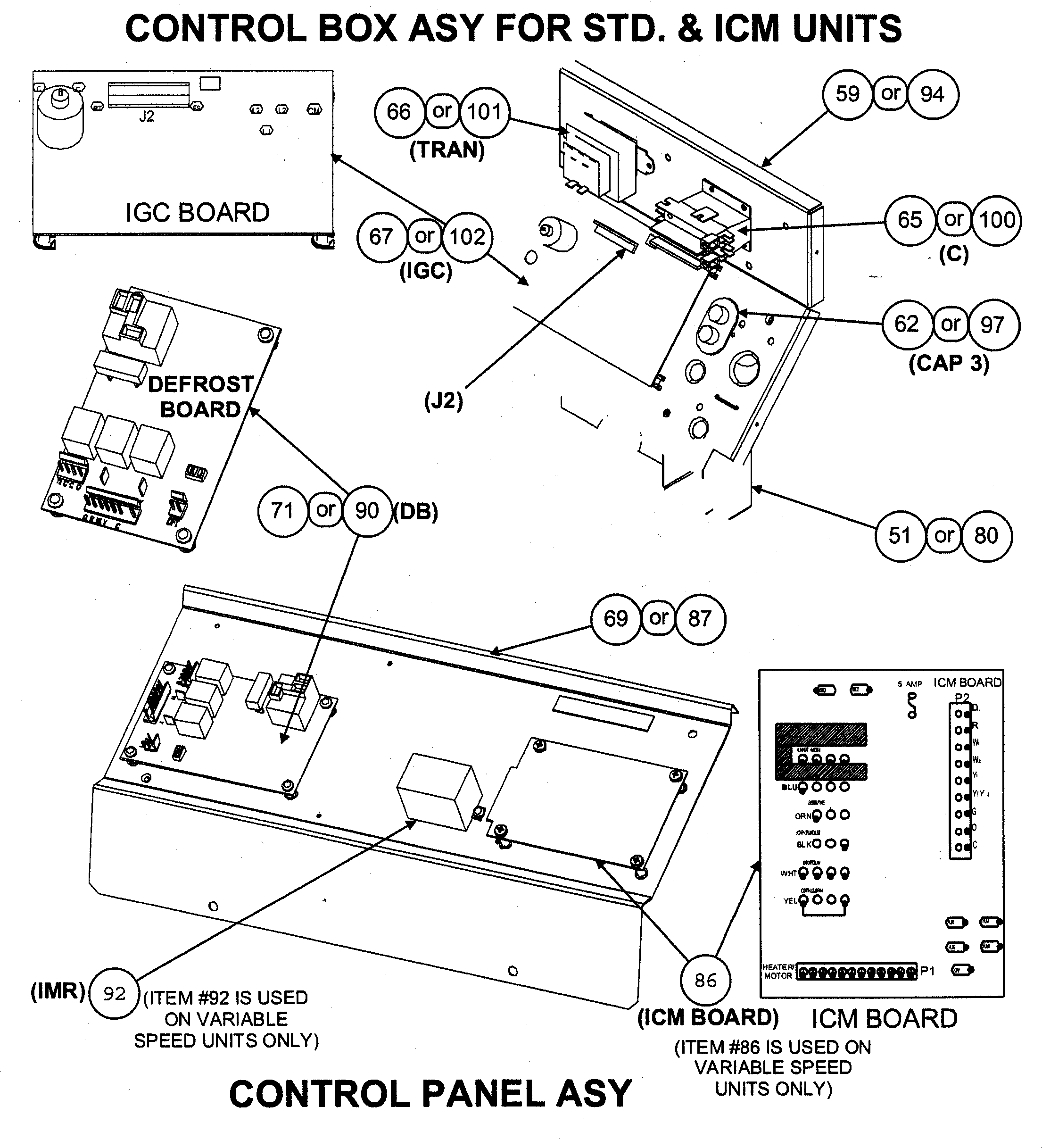

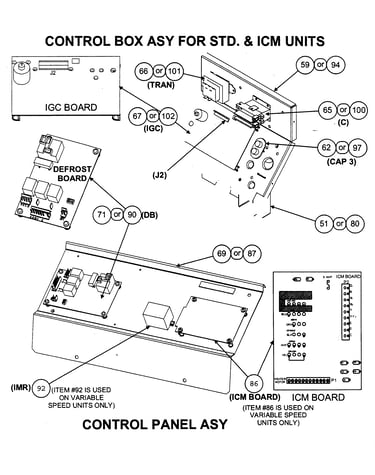

Contactor HN51JD024
Contactor

Part #HN51JD024

The manufacturer no longer makes this part, and there's no substitute part

Top, Evap 48GS400244
#12

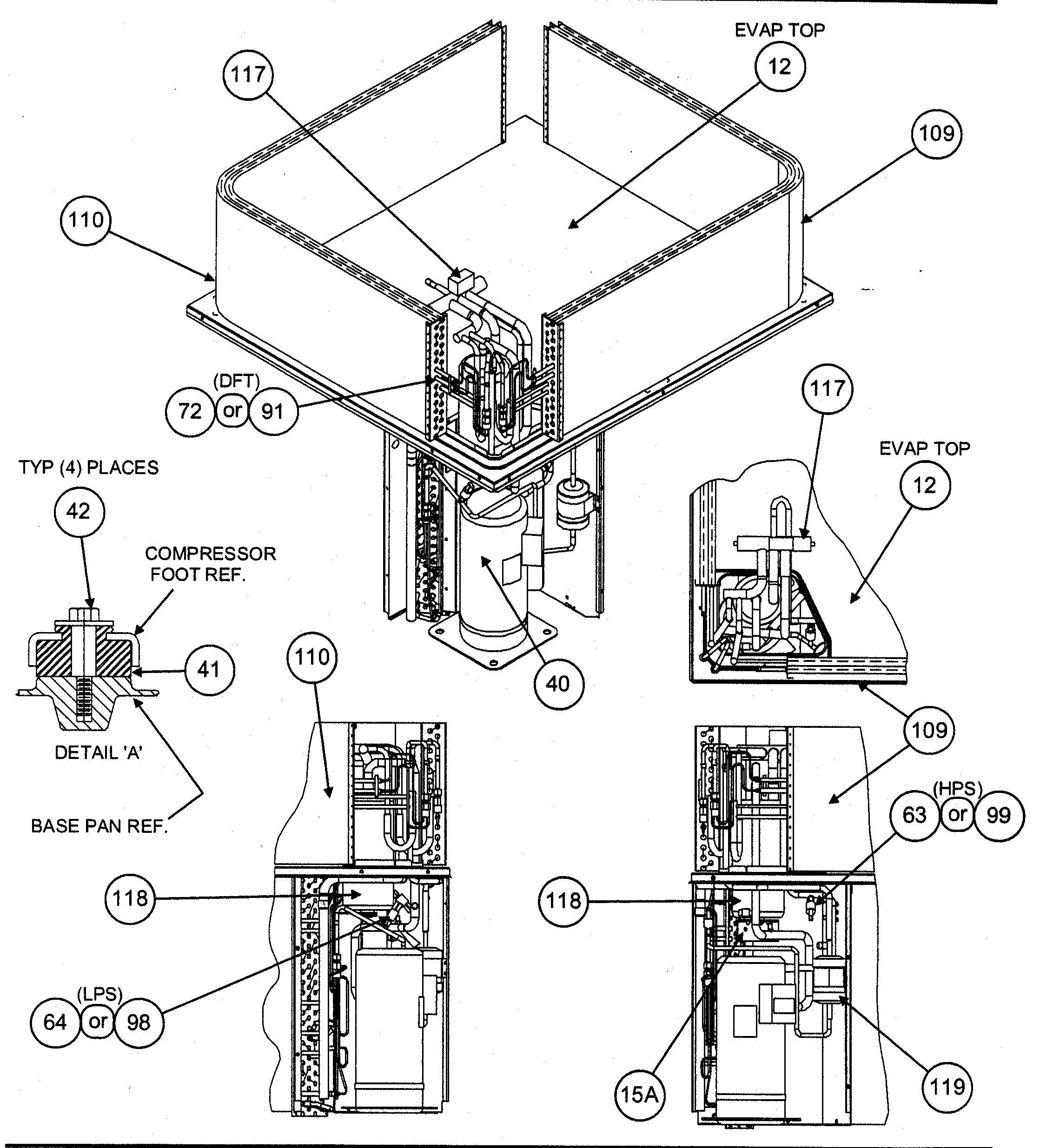

Evap view diagram

Top, evap

Part #48GS400244

$427.15
In Stock

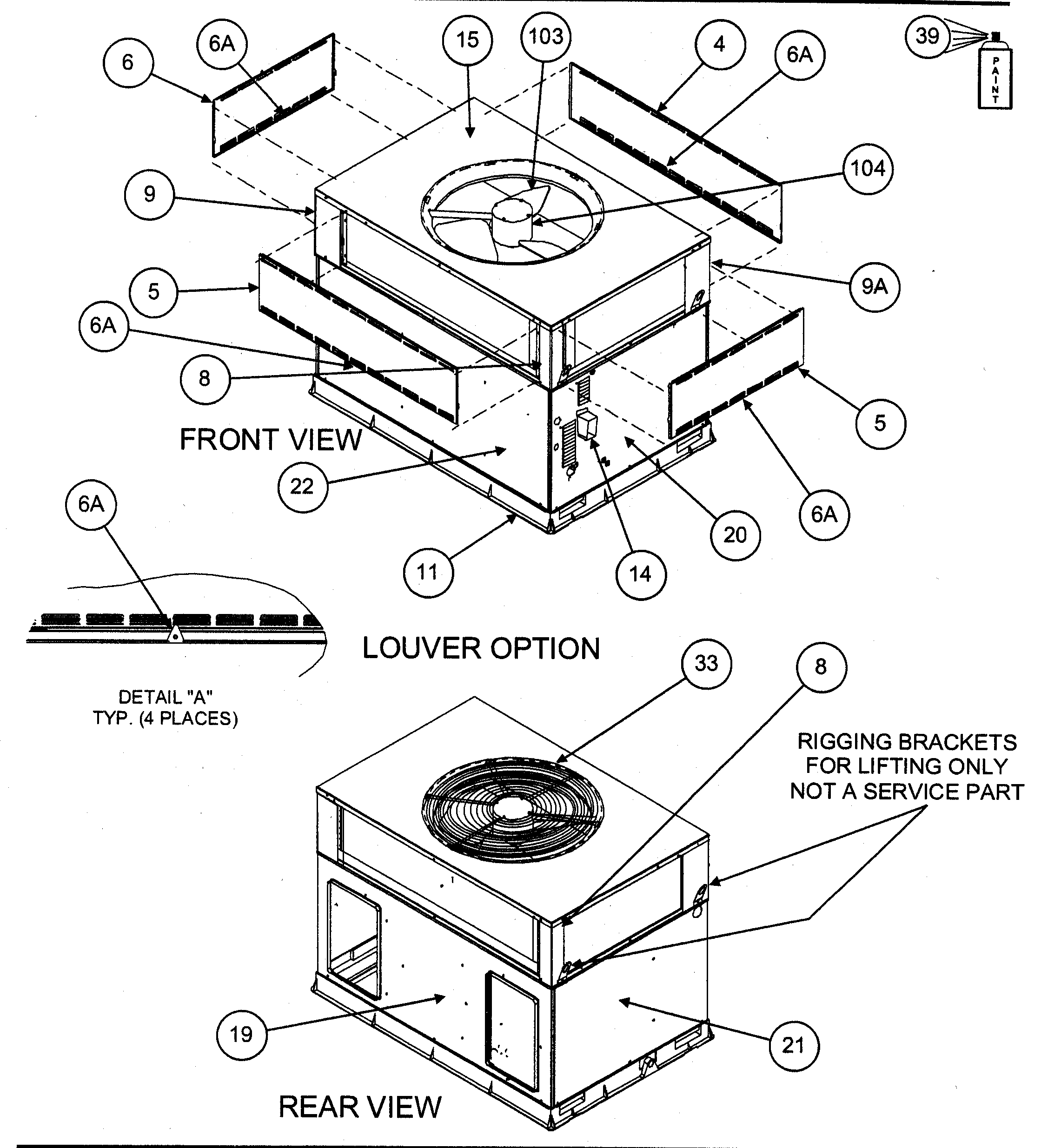

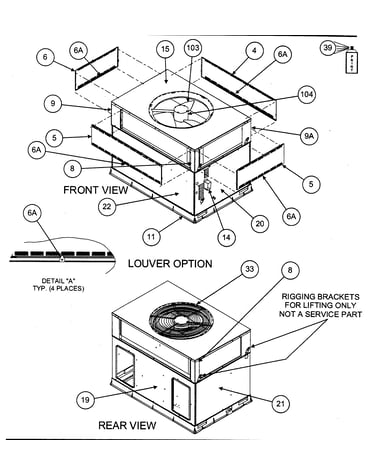

Grille 50HJ501200
Grille

Part #50HJ501200

$163.72
In Stock
Mtr Mnt Band P251-0078
Mtr mnt band

Part #P251-0078

$24.58
In Stock

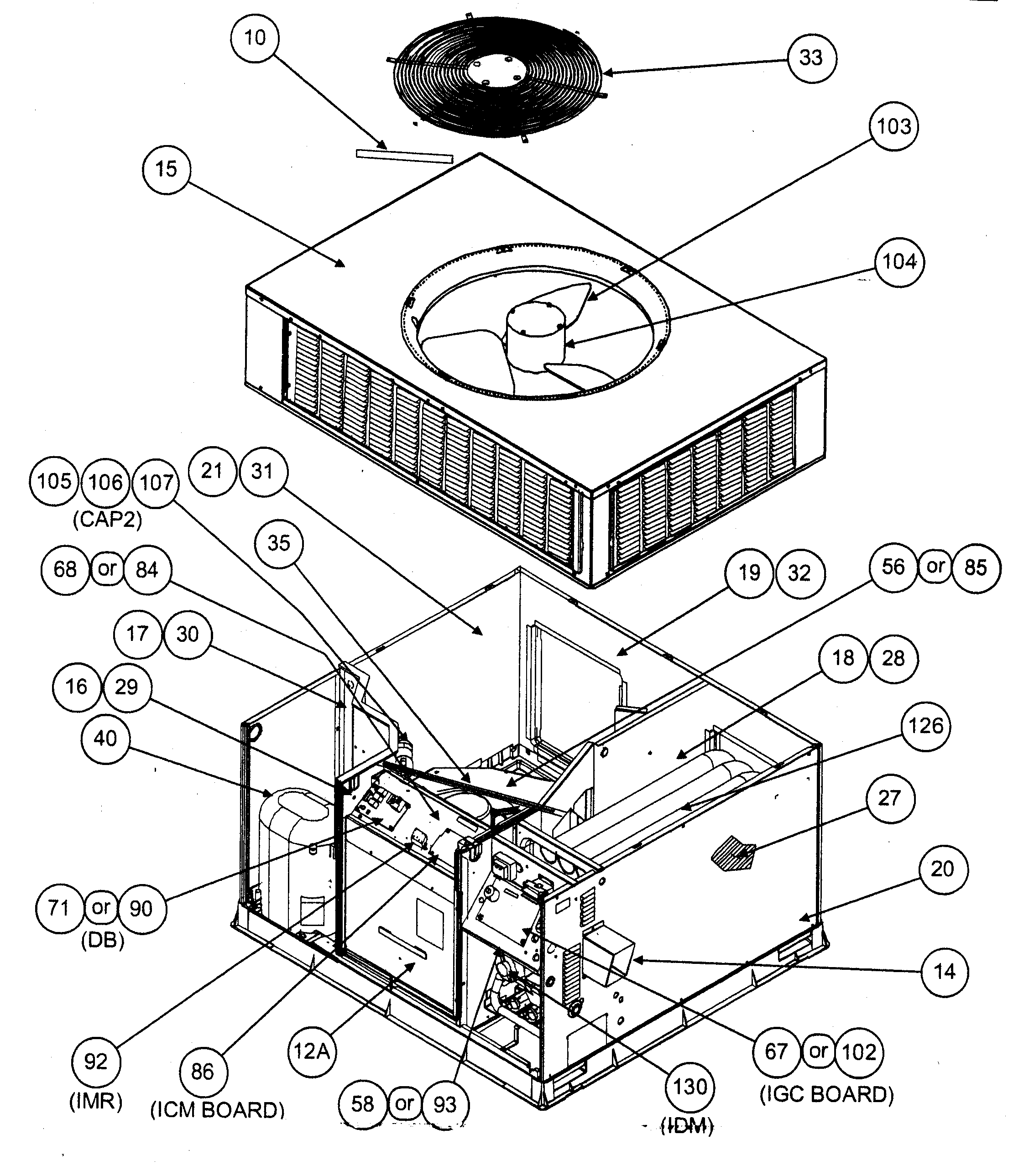

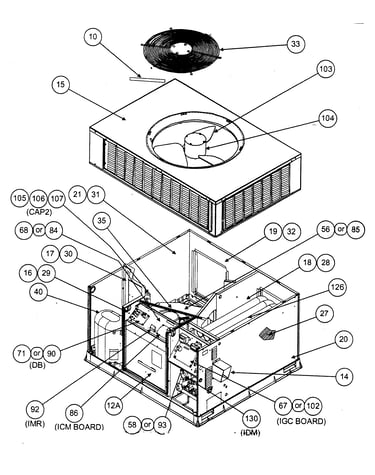

Capacitor P291-6053
#105

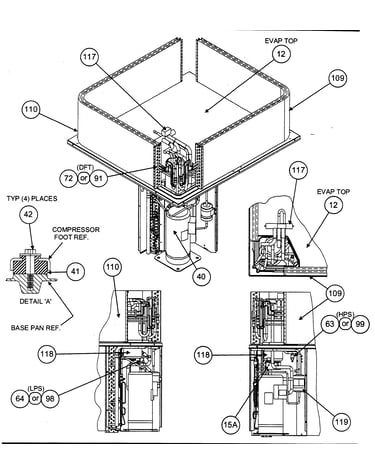

Evap view diagram

Capacitor

Part #P291-6053

$27.31
In Stock
Plate 50SS500879
#34

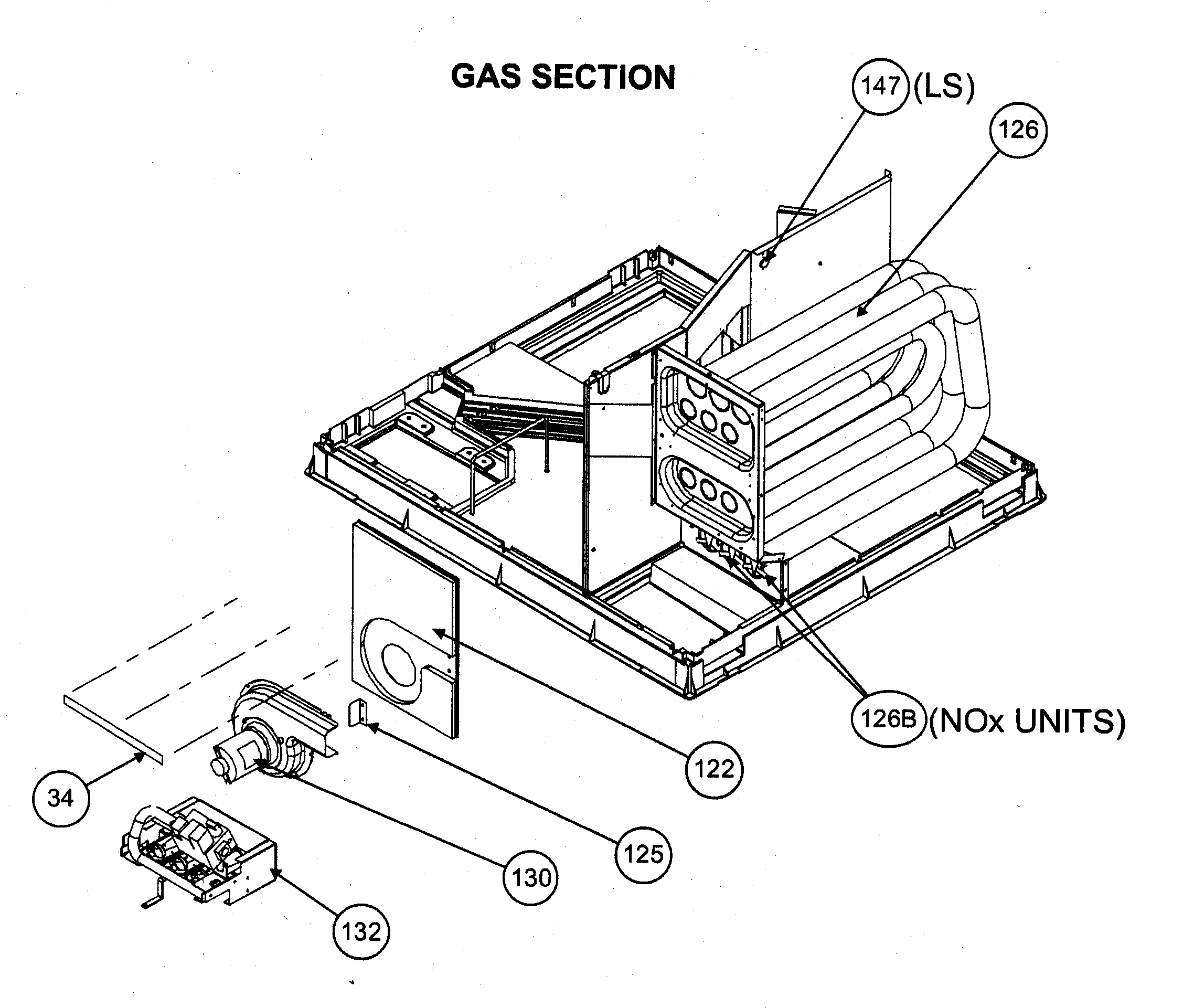

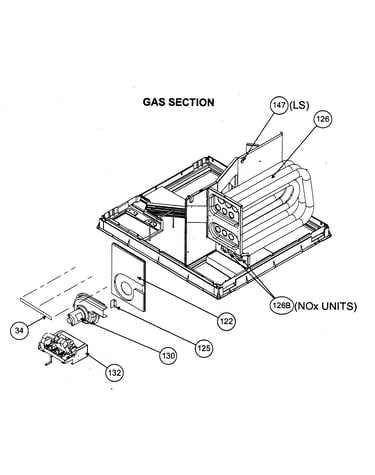

Gas section diagram

Plate

Part #50SS500879

$558.65
In Stock
Wheel Blwr LA22RC001
#83

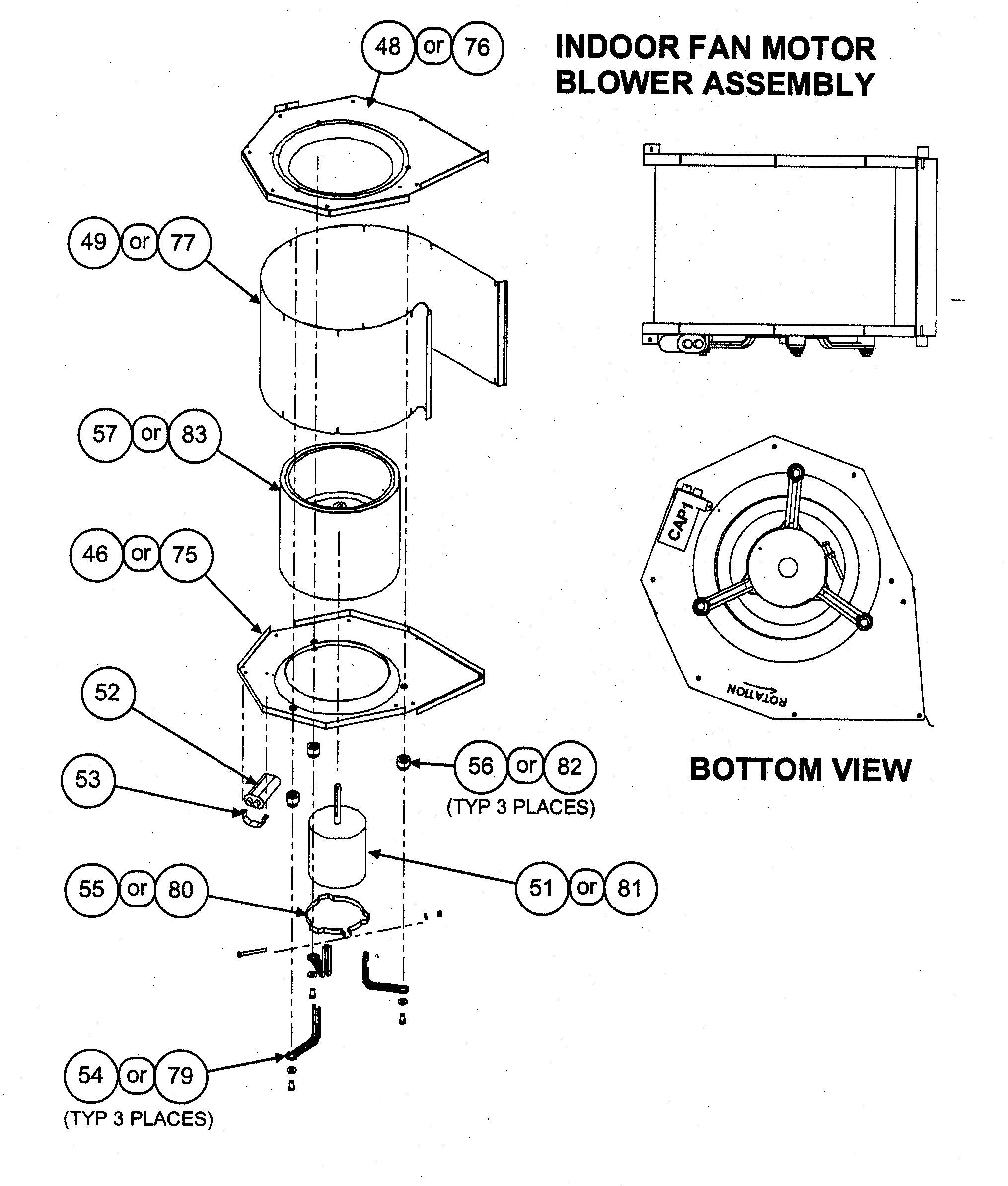

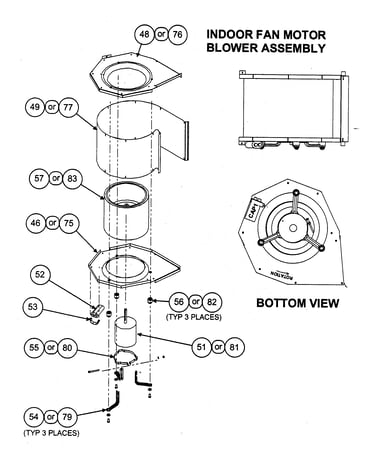

Blower assy diagram
