Gas Walk-Behind Mower

Model # 917386180 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917386180 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Washer 61537
#84

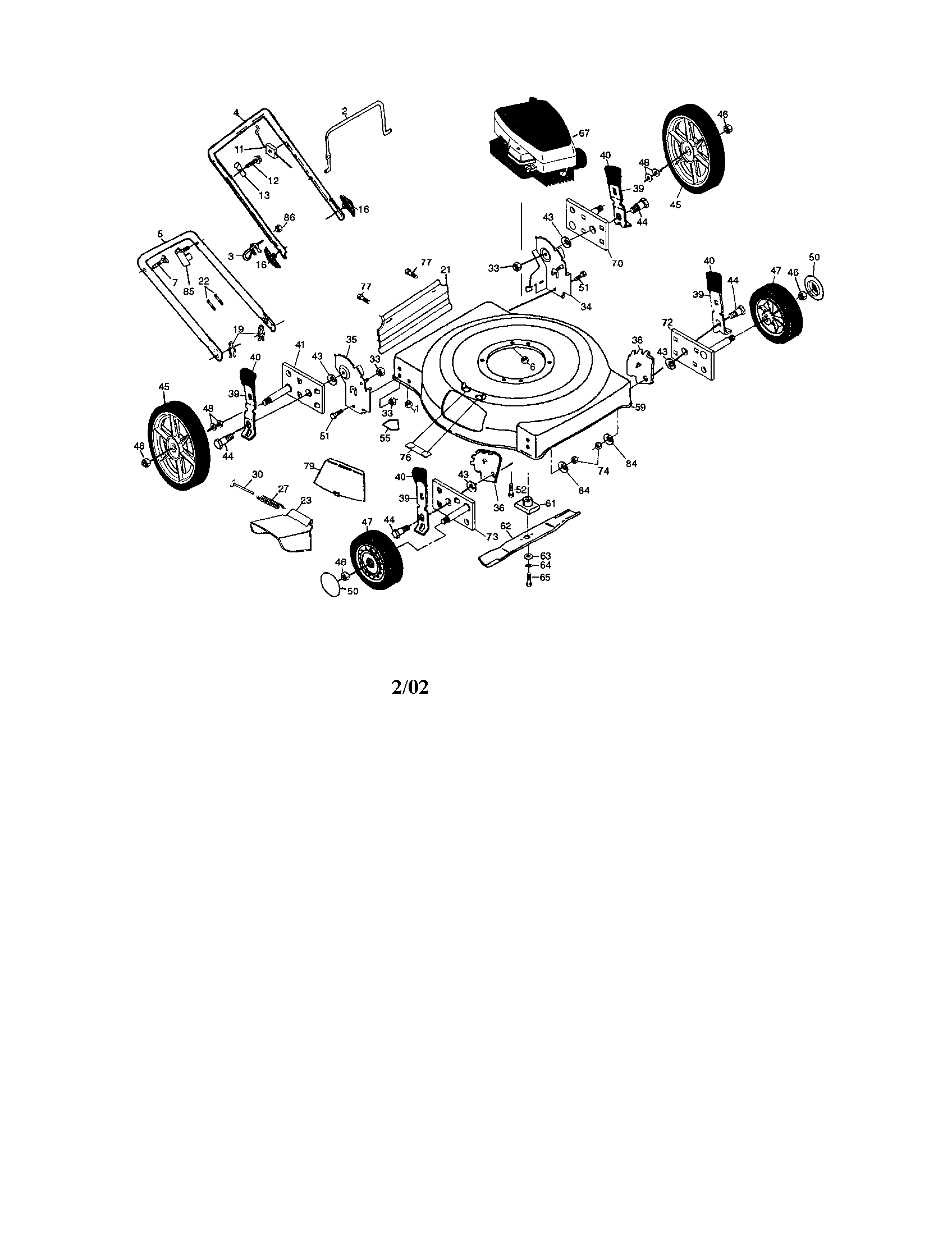

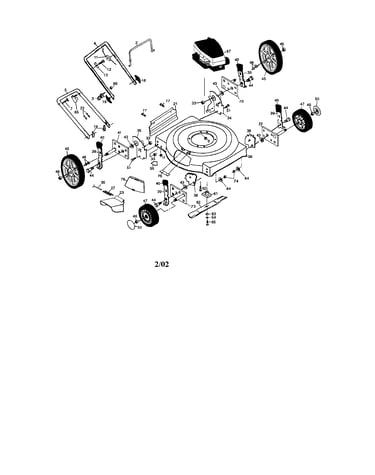

Rotary lawn mower diagram

Washer

Part #61537

Replaced by #596134901

?
Manufacturer substitution
This part replaces 61537. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Lawn Mower Blade Adapter 851514
#61

Rotary lawn mower diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Nut 132004
#86

Rotary lawn mower diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Rope Guide 179585
#3

Rotary lawn mower diagram

Rope guide

Part #179585

Replaced by #586122501

?
Manufacturer substitution
This part replaces 179585. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Selector 170143
#40

Rotary lawn mower diagram

Selector

Part #170143

Replaced by #532087877

?
Manufacturer substitution
This part replaces 170143. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Cable Bracket 86899X004
#13

Rotary lawn mower diagram

Lawn mower cable bracket

Part #86899X004

Replaced by #532430034

?
Manufacturer substitution
This part replaces 86899X004. Substitute parts can look different from the original.
$10.26
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#63

Rotary lawn mower diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Tower Lawn Tractor Bolt (replaces 532002274, 532057968, 74760412x008) 74760412
#77

Rotary lawn mower diagram

Tower lawn tractor bolt (replaces 532002274, 532057968, 74760412x008)

Part #74760412

Replaced by #874760412

?
Manufacturer substitution
This part replaces 74760412. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn & Garden Equipment Screw 851084
#65

Rotary lawn mower diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532851084

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Wheel.14x2.p 181383
#45

Rotary lawn mower diagram

Wheel.14x2.p

Part #181383

Replaced by #583103101

?
Manufacturer substitution
This part replaces 181383. Substitute parts can look different from the original.
$55.37 |
10% OFF Phone Price : $61.37
In Stock
