Model # ZBD6700G00BB Official GE dishwasher

Here are the diagrams and repair parts for Official GE ZBD6700G00BB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |
Clamp 1.1" D WD01X10053
#319

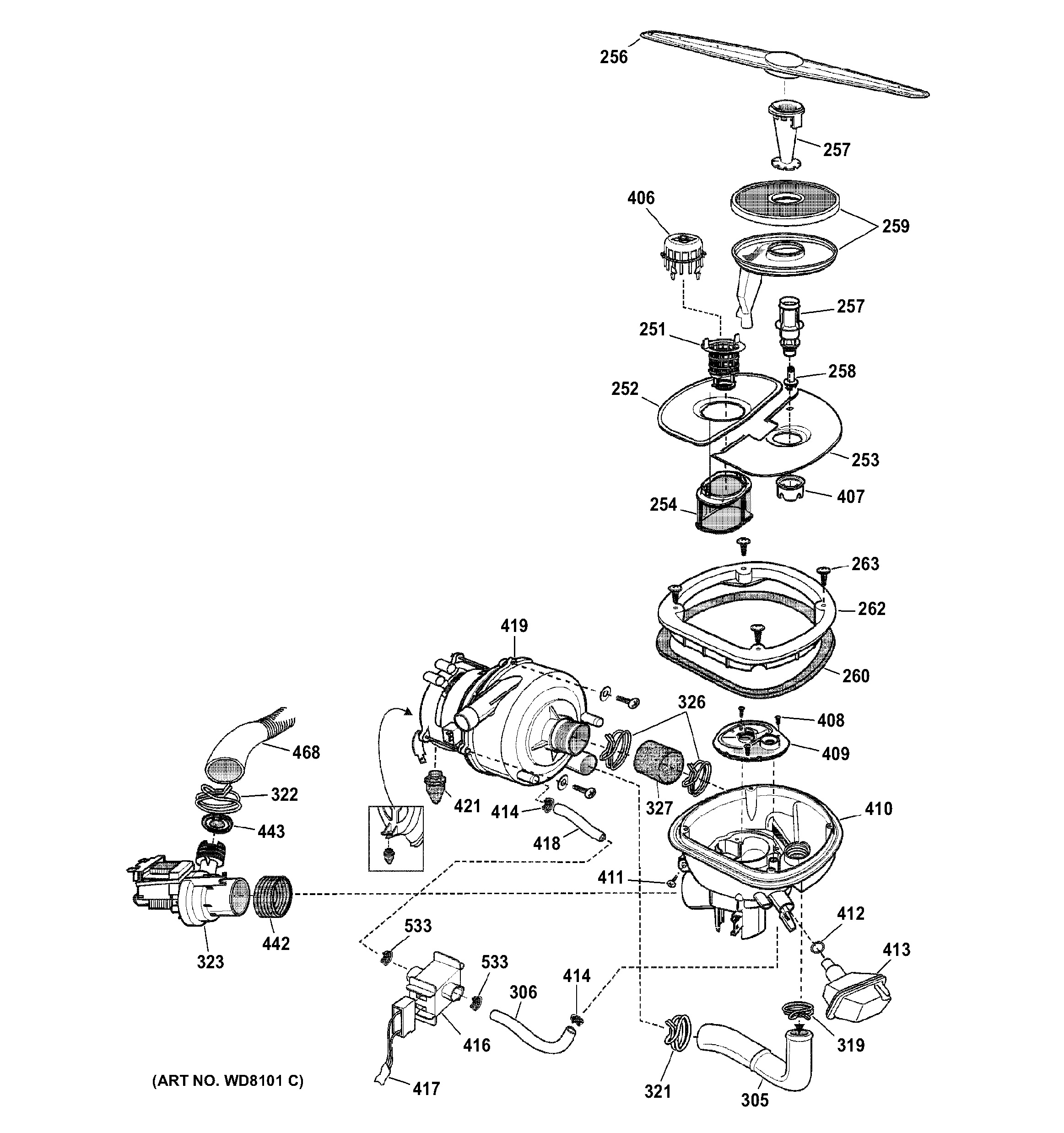

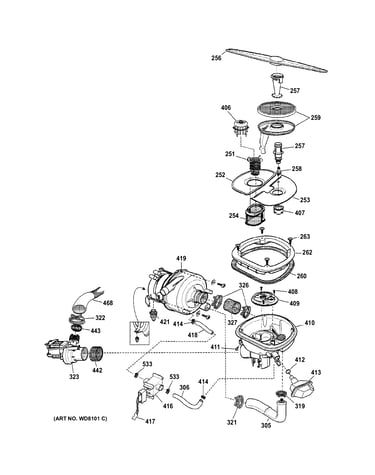

Sump assembly diagram

Clamp 1.1" d

Part #WD01X10053

Replaced by #WD01X24246

?
Manufacturer substitution
This part replaces WD01X10053. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wheel Axle WD01X10047
#214

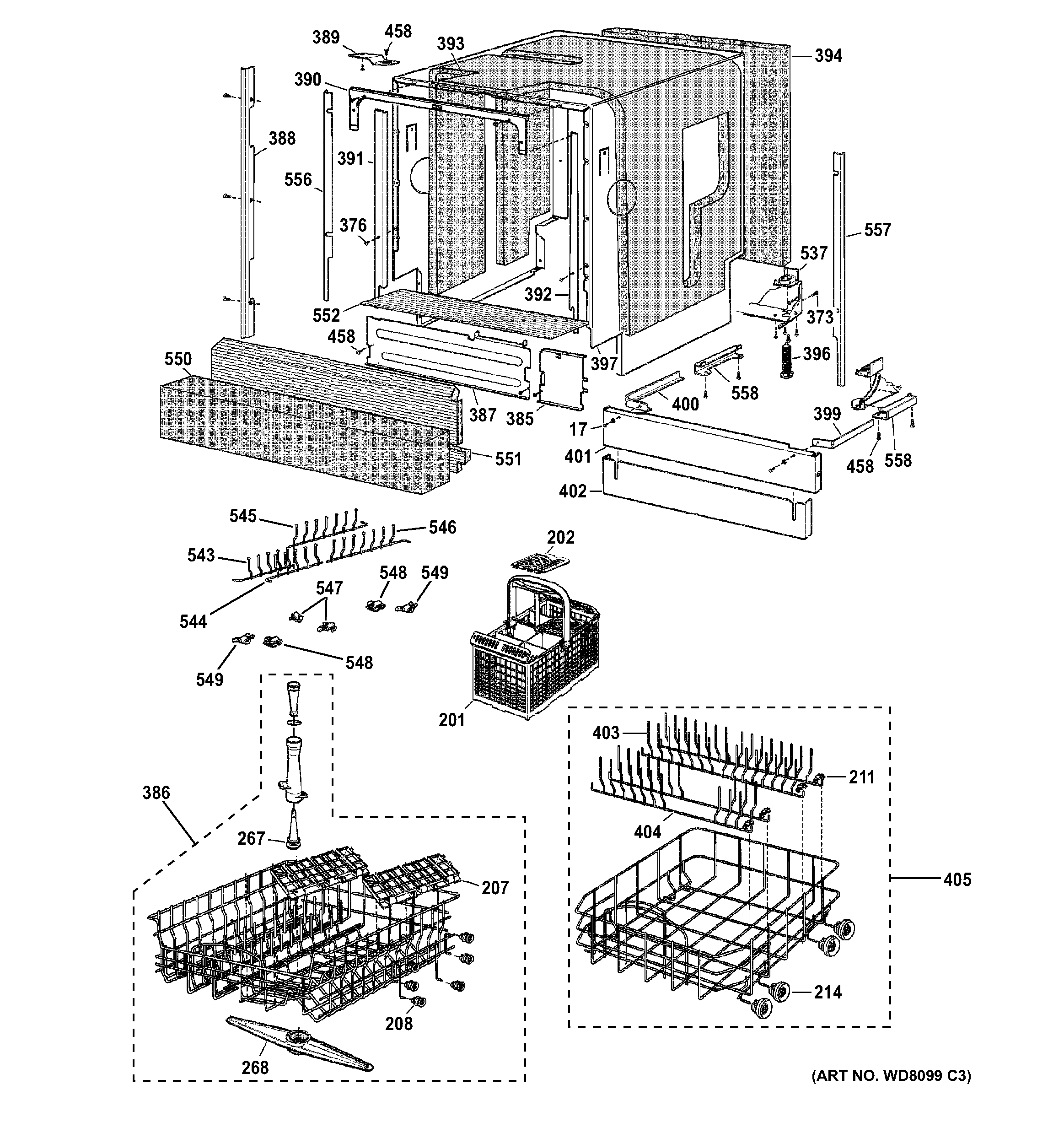

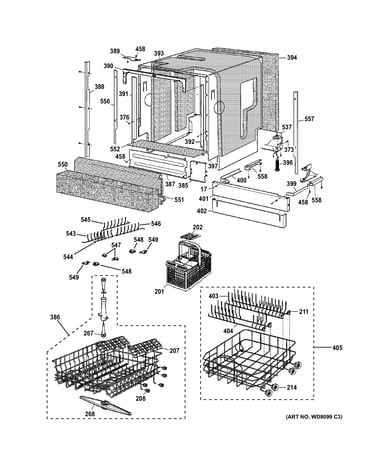

Basket & wrap assembly diagram

Wheel axle

Part #WD01X10047

$17.35
In Stock
Clamp 1.15" WD01X10054
#320

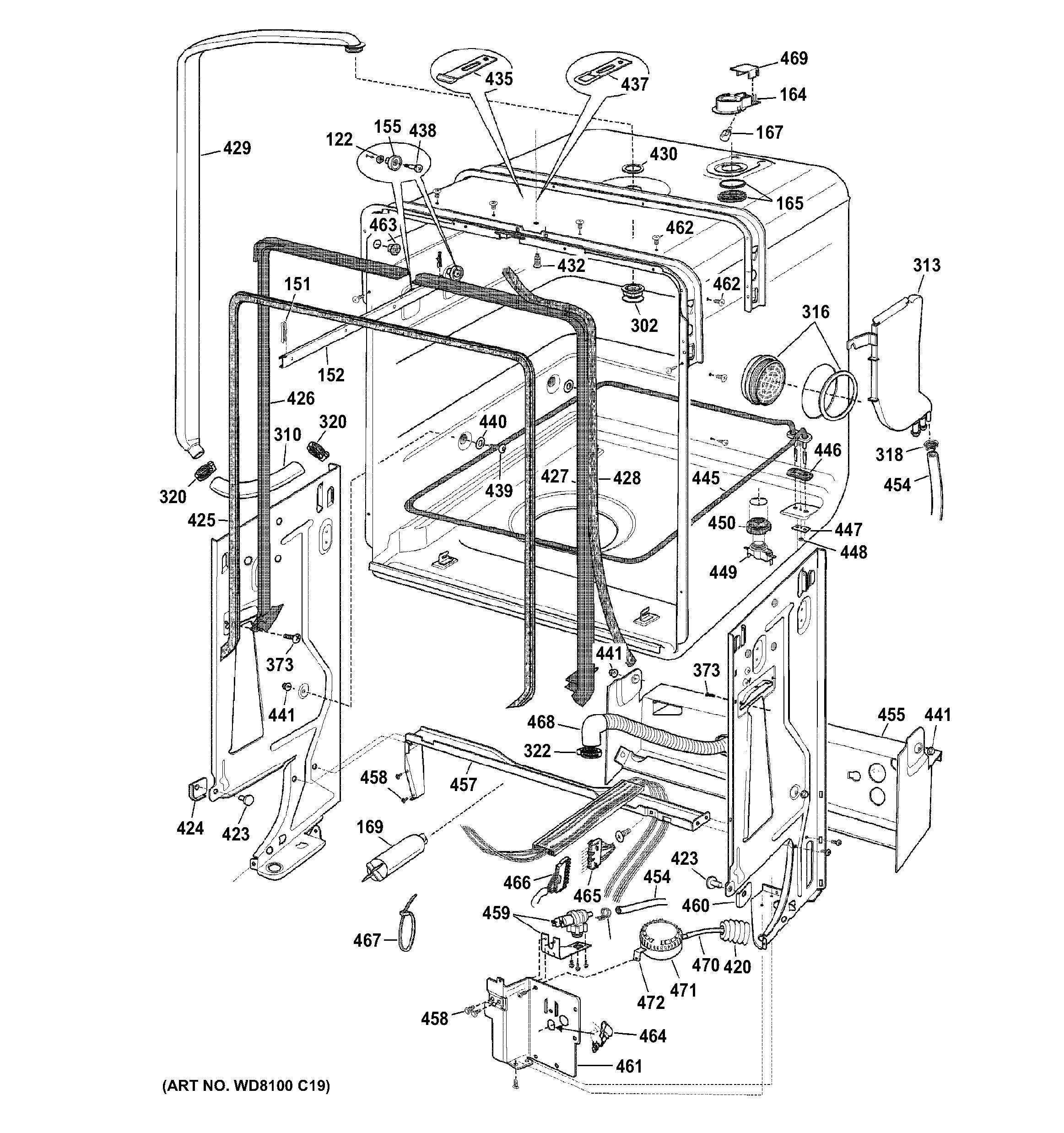

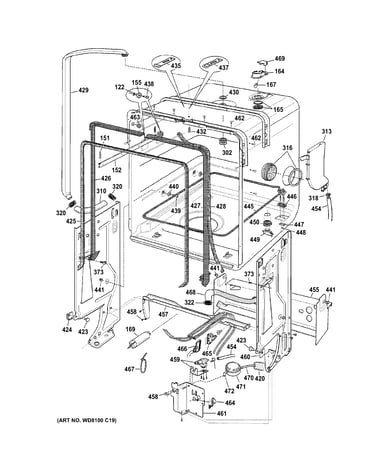

Liner assembly diagram

Clamp 1.15"

Part #WD01X10054

This item is not returnable
$5.49
In Stock
O-ring D/lin WD01X10034
#122

Liner assembly diagram

O-ring d/lin

Part #WD01X10034

Replaced by #WD1X10034

?
Manufacturer substitution
This part replaces WD01X10034. Substitute parts can look different from the original.
$18.49
In Stock
Screw No. 7 WD02X10029
#70

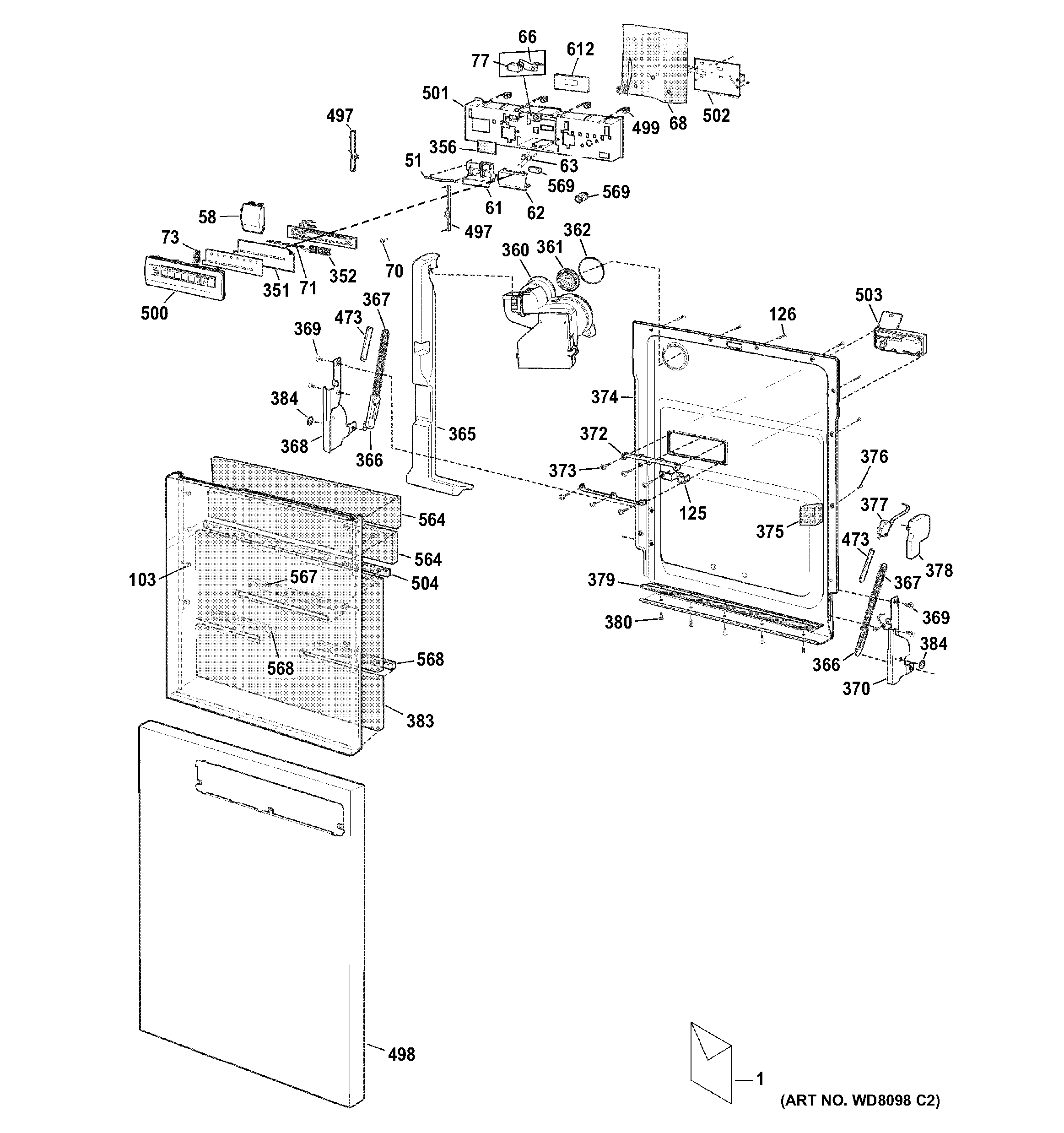

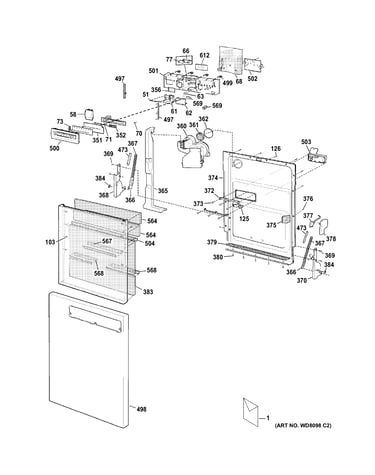

Escutcheon & door assembly diagram

Screw no. 7

Part #WD02X10029

Replaced by #WD2X10029

?
Manufacturer substitution
This part replaces WD02X10029. Substitute parts can look different from the original.
$16.99
In Stock
Inlet Valve WD15X10006
#459

Liner assembly diagram

Inlet valve

Part #WD15X10006

Replaced by #WD15X10004

?
Manufacturer substitution
This part replaces WD15X10006. Substitute parts can look different from the original.
$71.76 |
8% OFF Phone Price : $77.76
In Stock
Zbd6400 + Mo 49-5904
#1

Escutcheon & door assembly diagram

Zbd6400 + mo

Part #49-5904

Replaced by #49-5904-2

?
Manufacturer substitution
This part replaces 49-5904. Substitute parts can look different from the original.
$17.99
In Stock
Thermistor Bracket WD01X10060
#125

Escutcheon & door assembly diagram

Thermistor bracket

Part #WD01X10060

Replaced by #WD1X10060

?
Manufacturer substitution
This part replaces WD01X10060. Substitute parts can look different from the original.
This item is not returnable
$7.49
In Stock
Zbd6400 + Mo 49-5905
#1

Escutcheon & door assembly diagram

Zbd6400 + mo

Part #49-5905

Replaced by #49-5905-2

?
Manufacturer substitution
This part replaces 49-5905. Substitute parts can look different from the original.
$17.99
In Stock
Screw No. 8 WD02X10026
#17

Basket & wrap assembly diagram

Screw no. 8

Part #WD02X10026

Replaced by #WD2X10026

?
Manufacturer substitution
This part replaces WD02X10026. Substitute parts can look different from the original.
$27.99
In Stock
