Jenn-Air
Gas Cooktop

Model # CCGP2720PG Official Jenn-Air gas cooktop

Here are the diagrams and repair parts for Official Jenn-Air CCGP2720PG gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

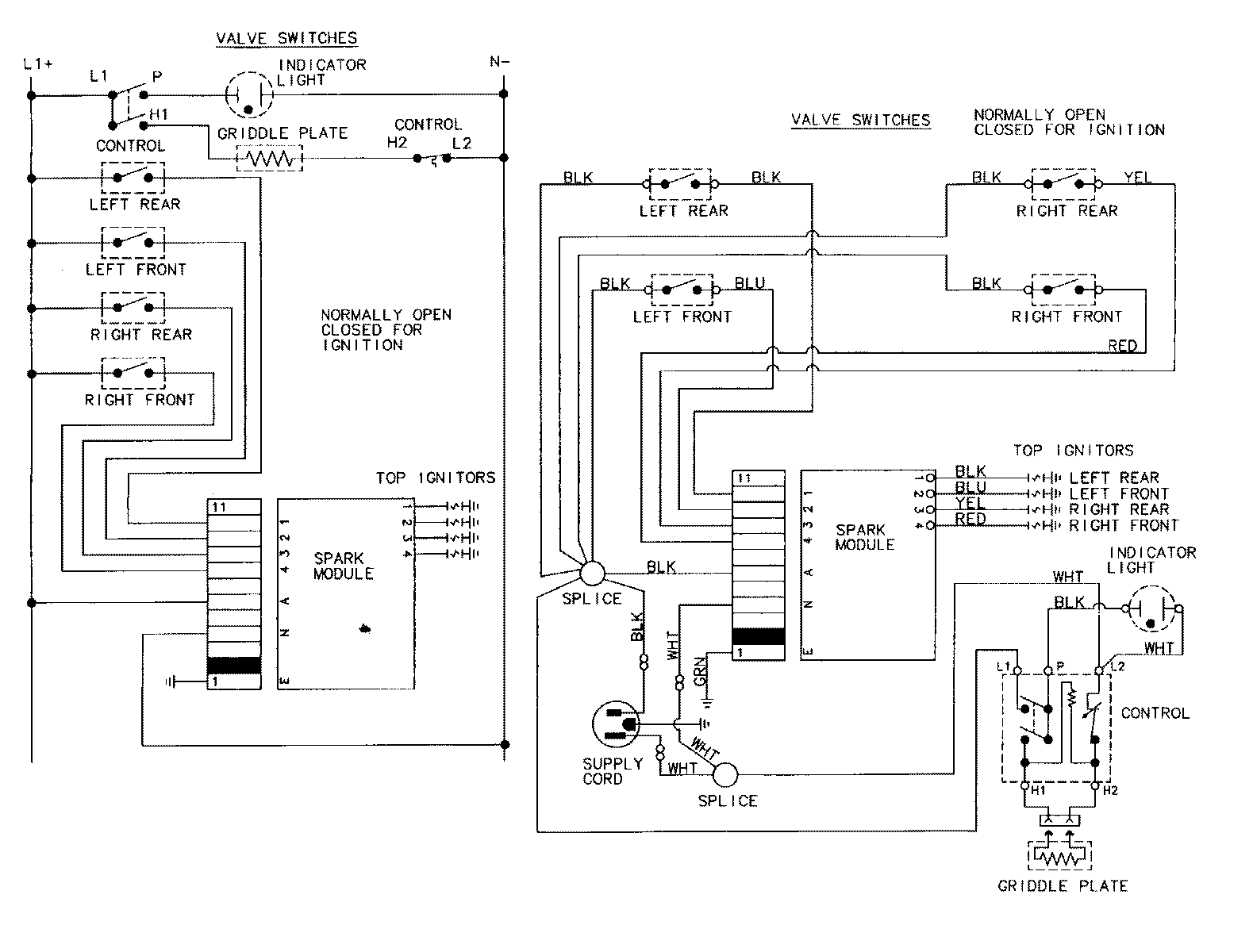

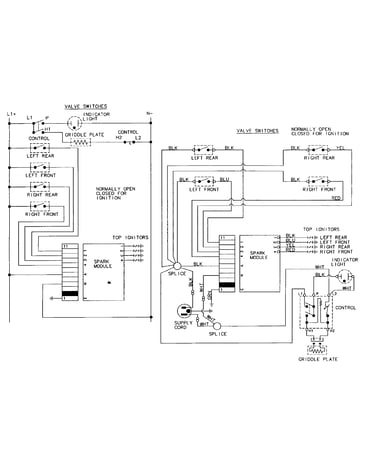

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Spark Module 71002783
#2A

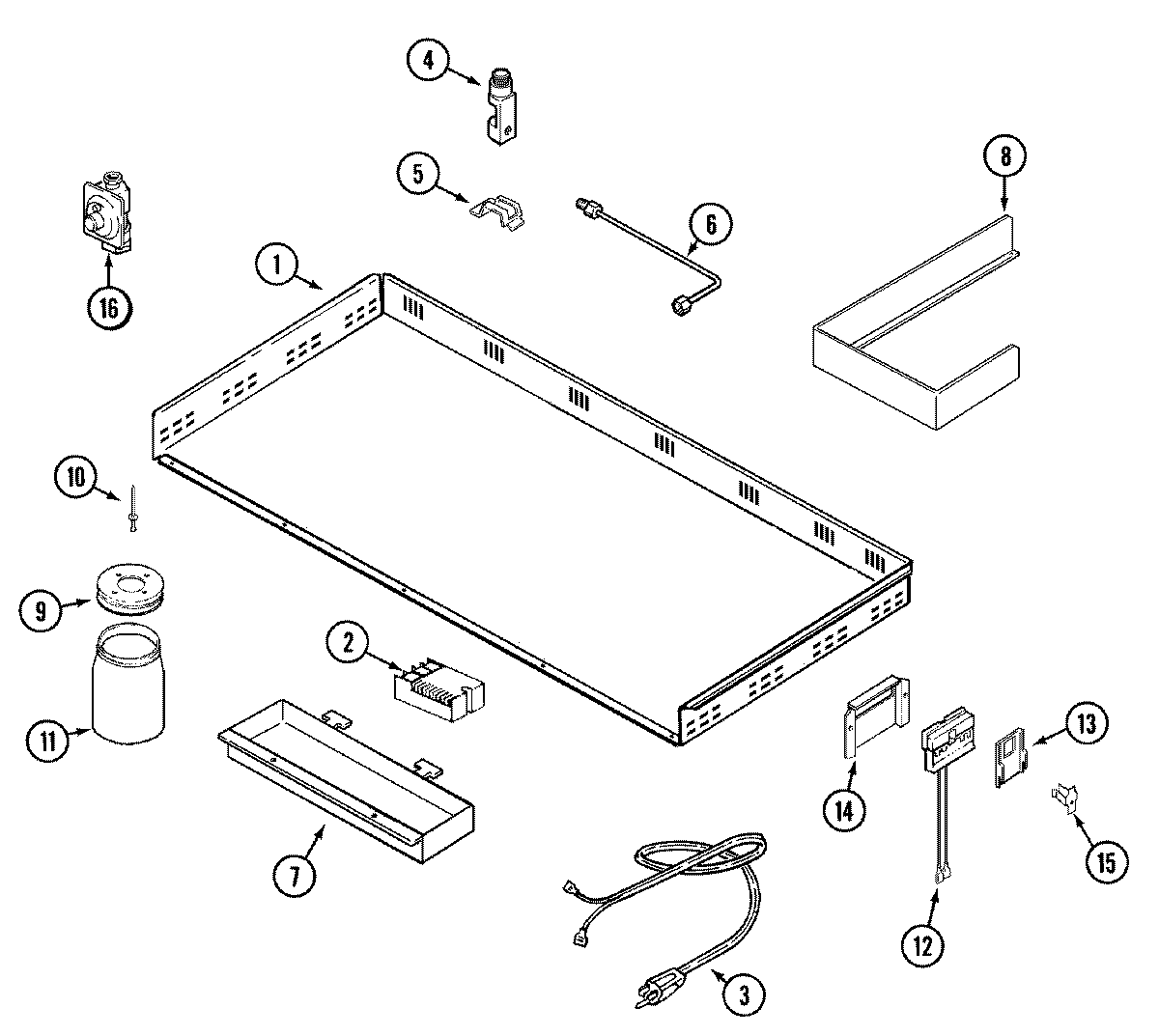

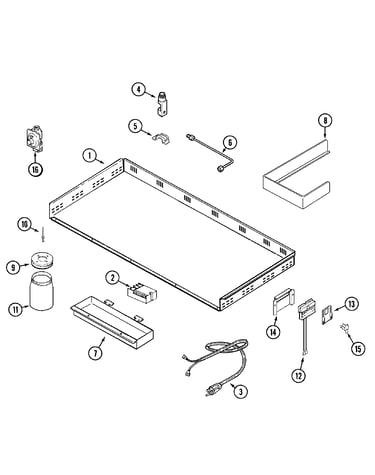

Burner box diagram

Spark module

Part #71002783

Replaced by #WPW10475147

?
Manufacturer substitution
This part replaces 71002783. Substitute parts can look different from the original.
BEST SELLER
$185.65 |
6% OFF Phone Price : $197.65
In Stock
Screw (#8ab) 71001183
Screw (#8ab)

Part #71001183

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 71001183. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Indicator Lens 7730P011-60
#11

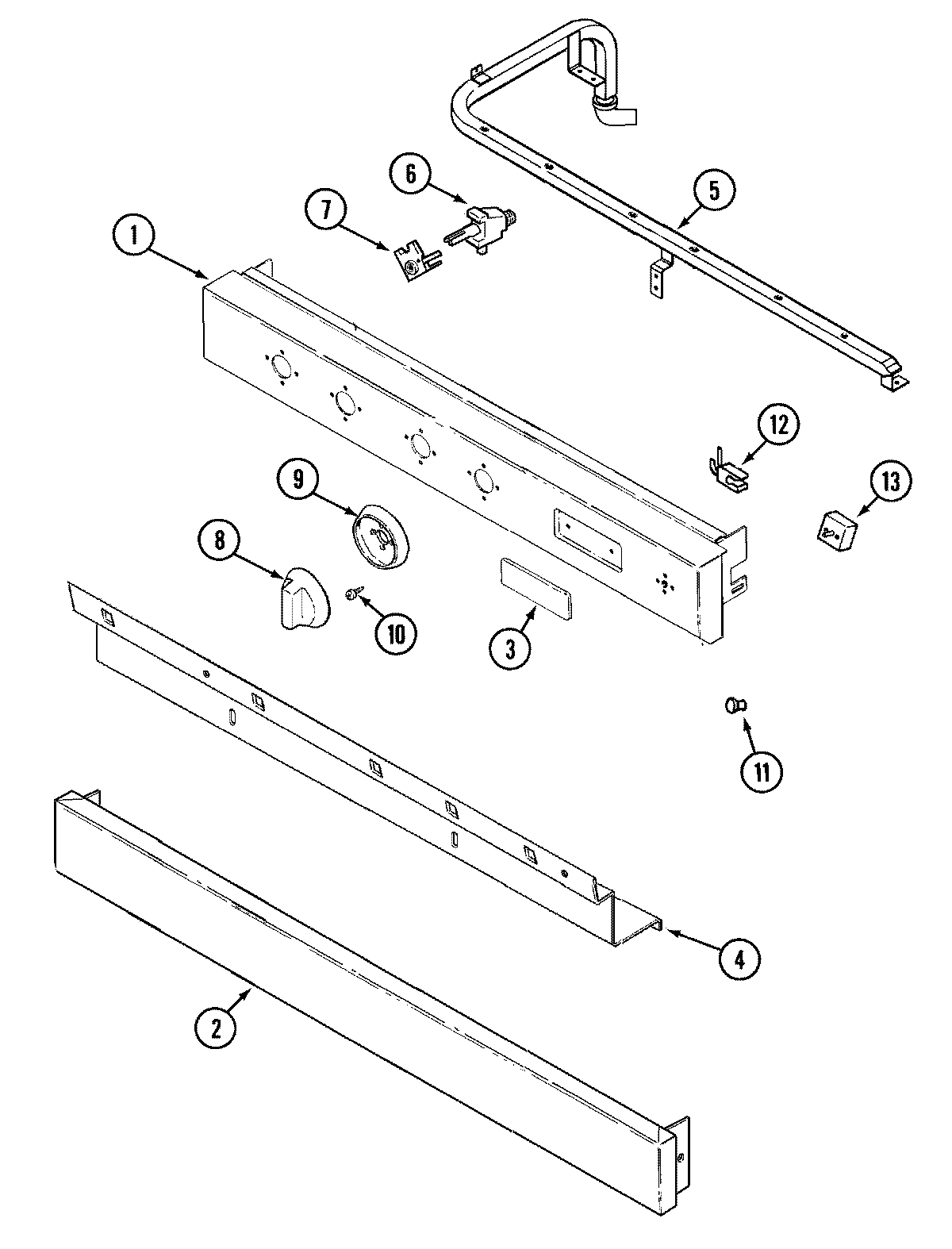

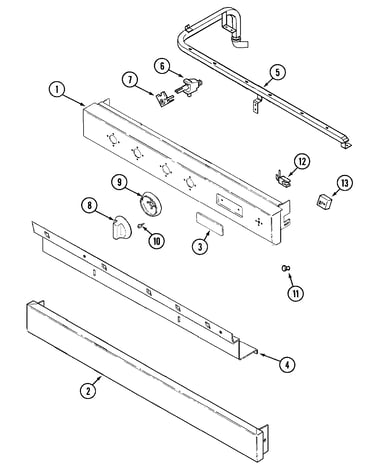

Control panel diagram

Indicator lens

Part #7730P011-60

Replaced by #WP7730P011-60

?
Manufacturer substitution
This part replaces 7730P011-60. Substitute parts can look different from the original.
This item is not returnable
$4.99 |
17% OFF Phone Price : $5.99
In Stock
Pressure Regulator 704545
#16

Burner box diagram

Pressure regulator

Part #704545

Replaced by #W11106948

?
Manufacturer substitution
This part replaces 704545. Substitute parts can look different from the original.
$107.45 |
10% OFF Phone Price : $119.45
In Stock
Valve Switch 71002670
#7

Control panel diagram

Valve switch

Part #71002670

Replaced by #WP74005954

?
Manufacturer substitution
This part replaces 71002670. Substitute parts can look different from the original.
$54.01 |
10% OFF Phone Price : $60.01
In Stock
Palnut 715500
#3

Control panel diagram

Palnut

Part #715500

Replaced by #7103P166-60

?
Manufacturer substitution
This part replaces 715500. Substitute parts can look different from the original.
$11.01
In Stock
Range Burner Control Knob 71001057
#8

Control panel diagram

Range burner control knob

Part #71001057

Replaced by #WP71001057

?
Manufacturer substitution
This part replaces 71001057. Substitute parts can look different from the original.
This item is not returnable
$23.16 |
21% OFF Phone Price : $29.16
In Stock
Rivet, Jar L 707128
#10

Burner box diagram

Rivet, jar l

Part #707128

Replaced by #WP210720

?
Manufacturer substitution
This part replaces 707128. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Cooktop Griddle Control Switch 71003132
#13

Control panel diagram

Cooktop griddle control switch

Part #71003132

Replaced by #W11168859

?
Manufacturer substitution
This part replaces 71003132. Substitute parts can look different from the original.
$104.75 |
10% OFF Phone Price : $116.75
In Stock
Screw 706112
#15

Burner box diagram

Screw

Part #706112

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces 706112. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
