Model # ZDIS15CGSS Official GE ice cube maker

Here are the diagrams and repair parts for Official GE ZDIS15CGSS ice cube maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

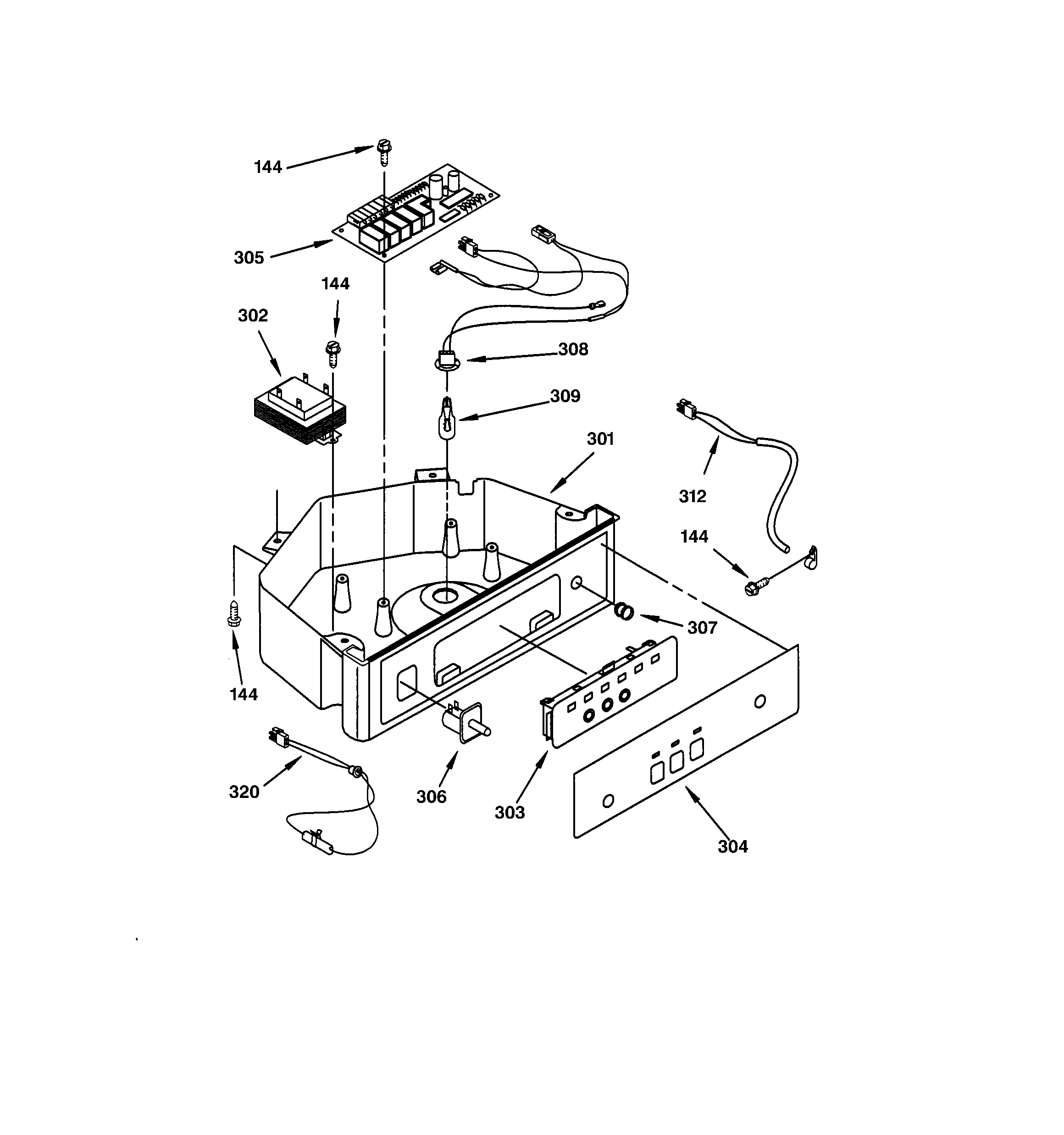

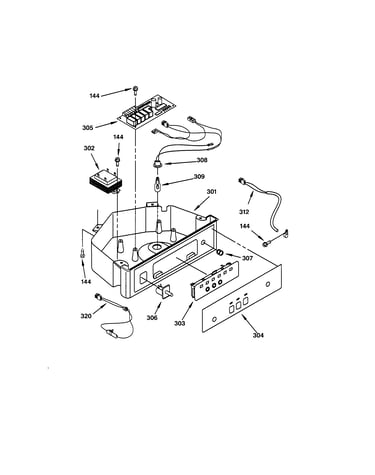

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Dryer Filter WR86X0096
#740

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Ice Maker Fill Tube (replaces Swr17x1948, Wr17x0969, Wr17x1059, Wr17x1125, Wr17x12313, Wr17x1356, Wr17x5404, Wr17x5566, Wr17x969, Wr29x5036) WR17X1948
#108

Evaporator, ice cutter & water part diagram

Refrigerator ice maker fill tube (replaces swr17x1948, wr17x0969, wr17x1059, wr17x1125, wr17x12313, wr17x1356, wr17x5404, wr17x5566, wr17x969, wr29x5036)

Part #WR17X1948

This item is not returnable
$10.84 |
16% OFF Phone Price : $12.84
In Stock

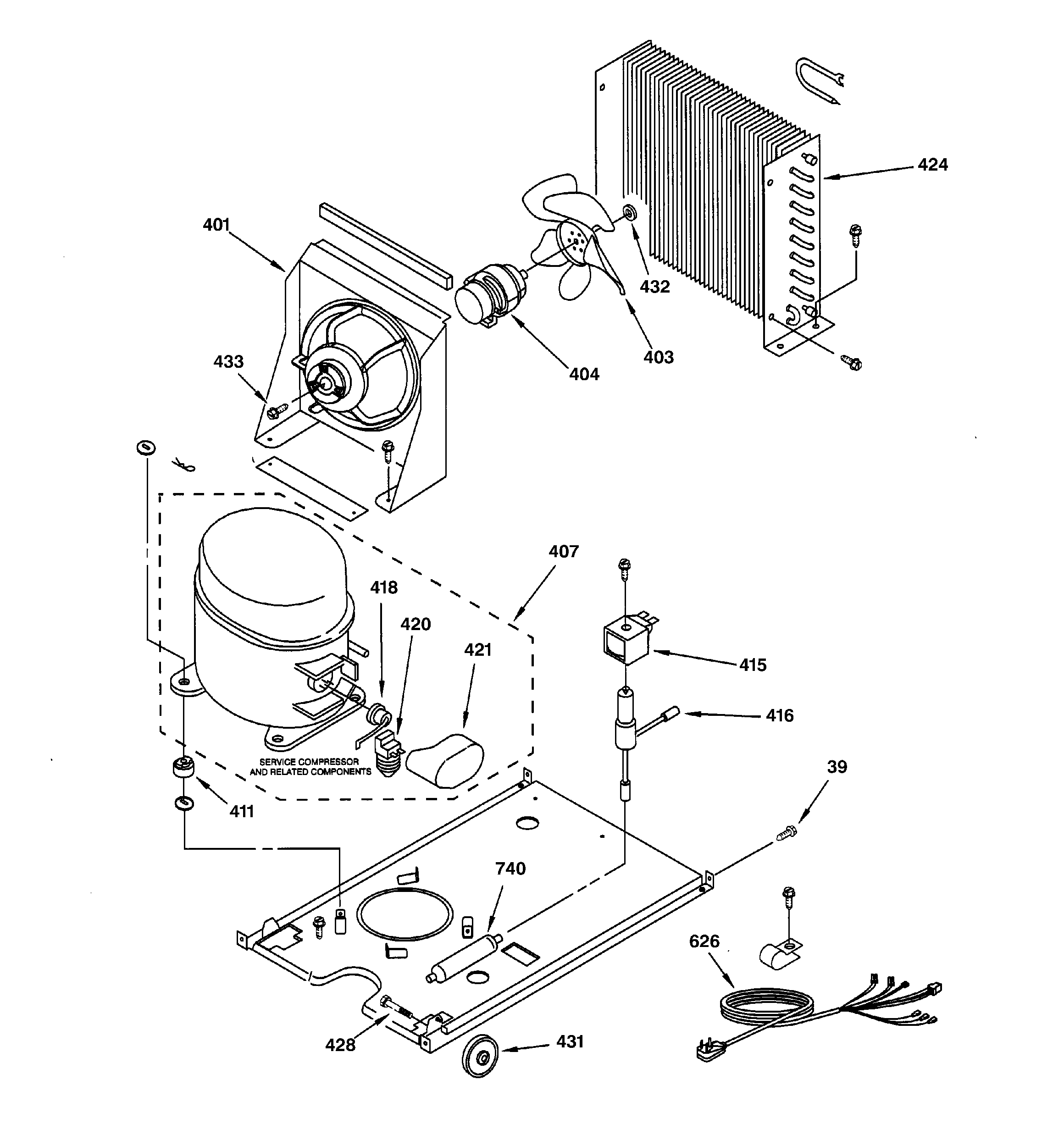

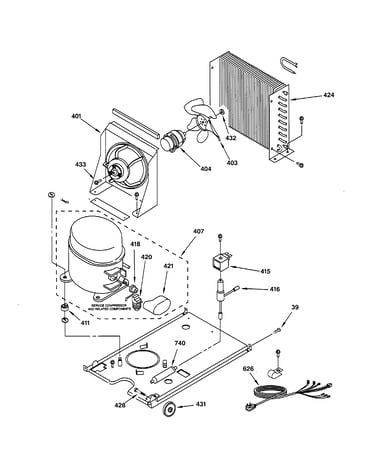

Cord Pwr Asm WR23X0420
#626

Unit parts diagram

Cord pwr asm

Part #WR23X0420

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0420. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock

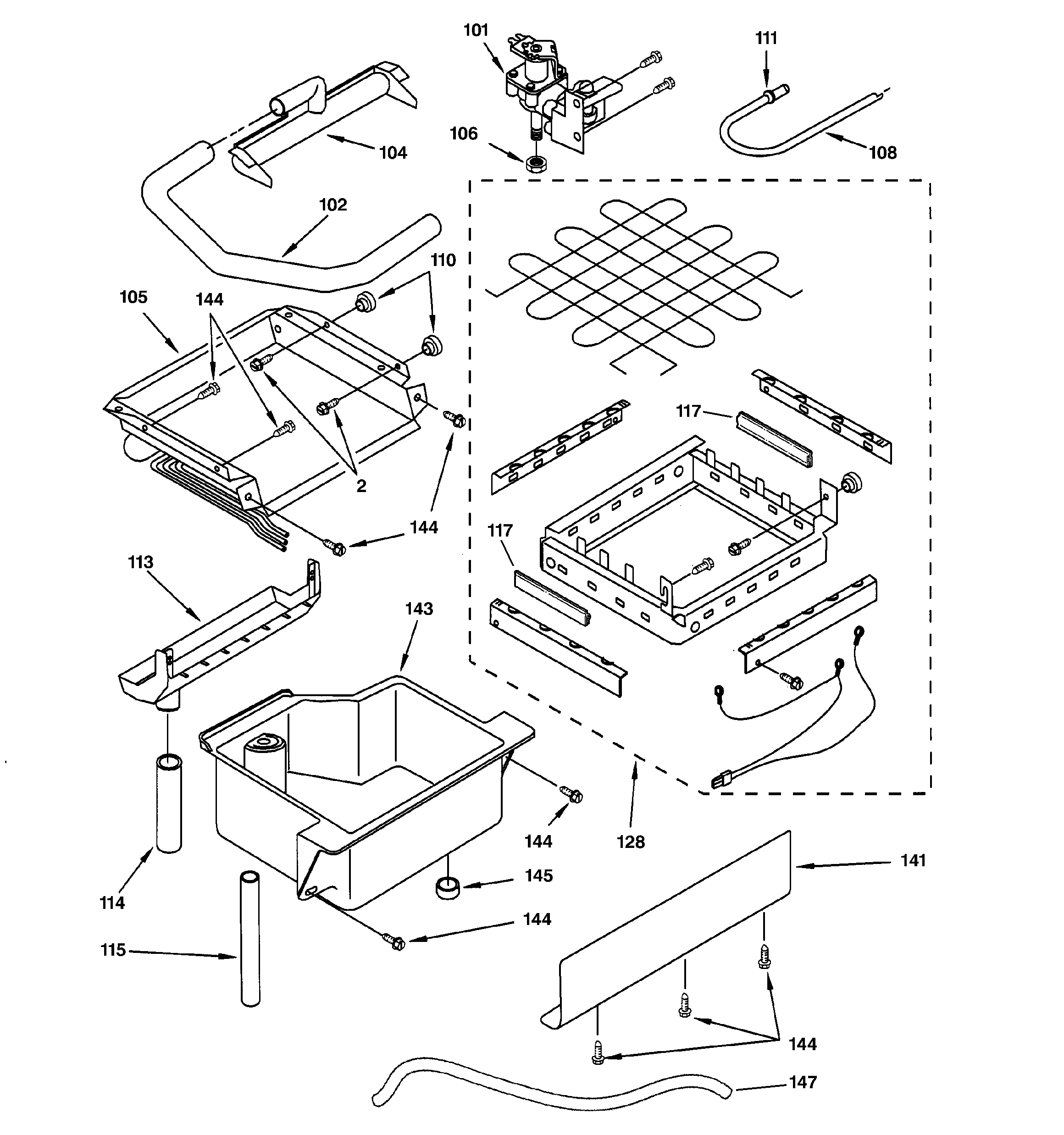

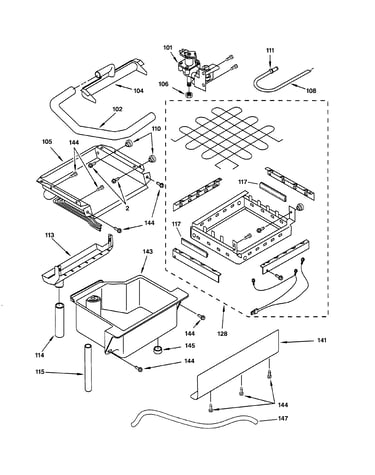

Grid Asm. Co WR29X10016
#128

Evaporator, ice cutter & water part diagram

Grid asm. co

Part #WR29X10016

Replaced by #WR29X10073

?
Manufacturer substitution
This part replaces WR29X10016. Substitute parts can look different from the original.
$328.36 |
$12.00 OFF Phone Price : $340.36
In Stock

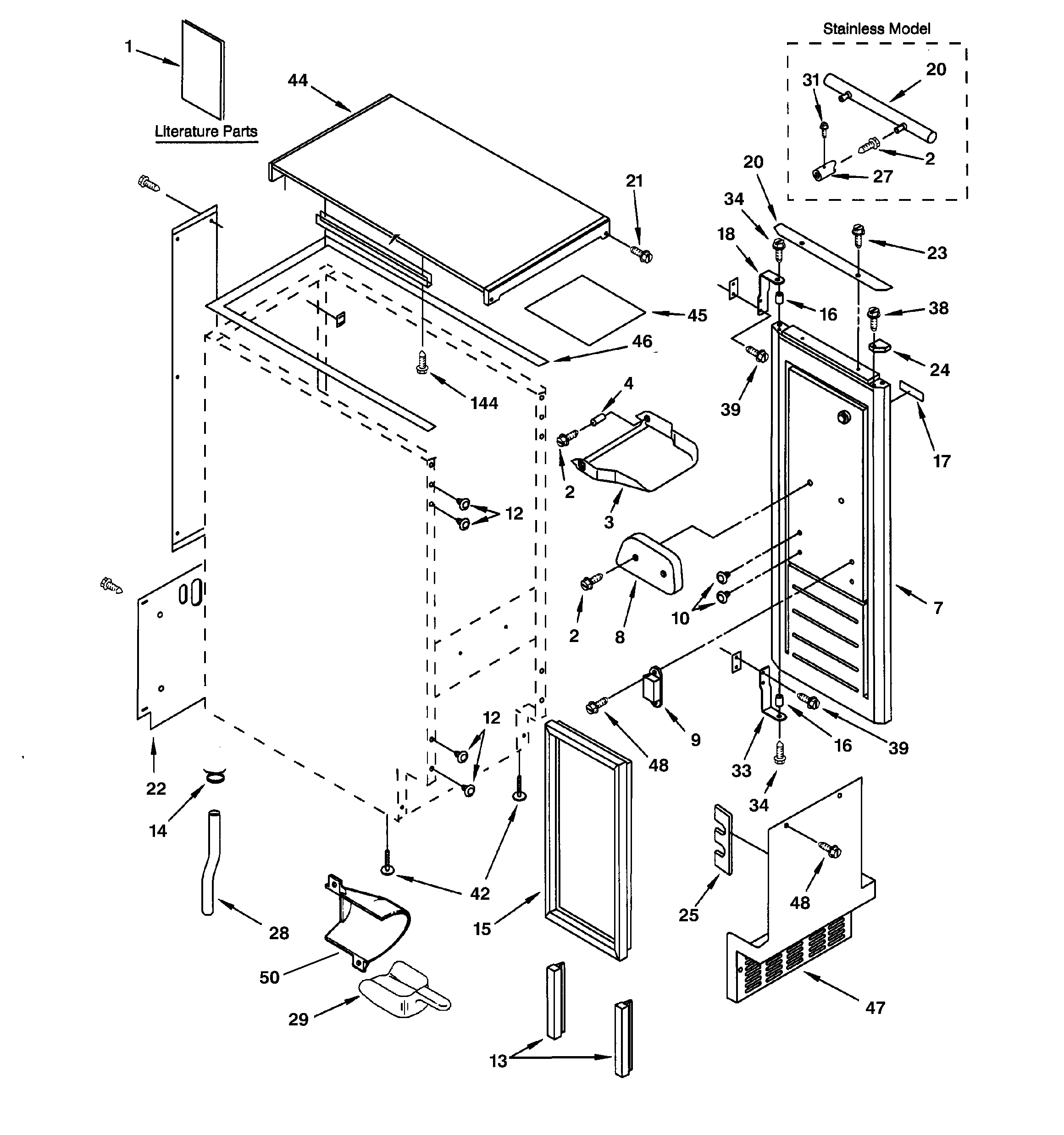

Refrigerator Door Stop, Bottom Right, Top Left WR02X10376
#16

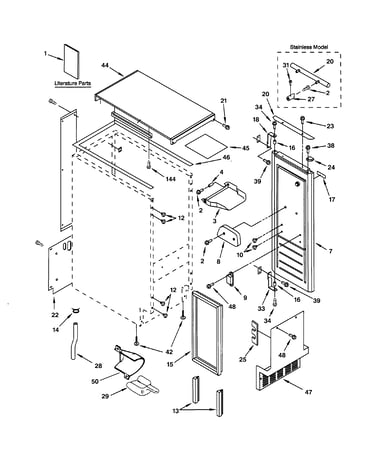

Cabinet, liner & door parts diagram

Refrigerator door stop, bottom right, top left

Part #WR02X10376

$53.29 |
10% OFF Phone Price : $59.29
In Stock

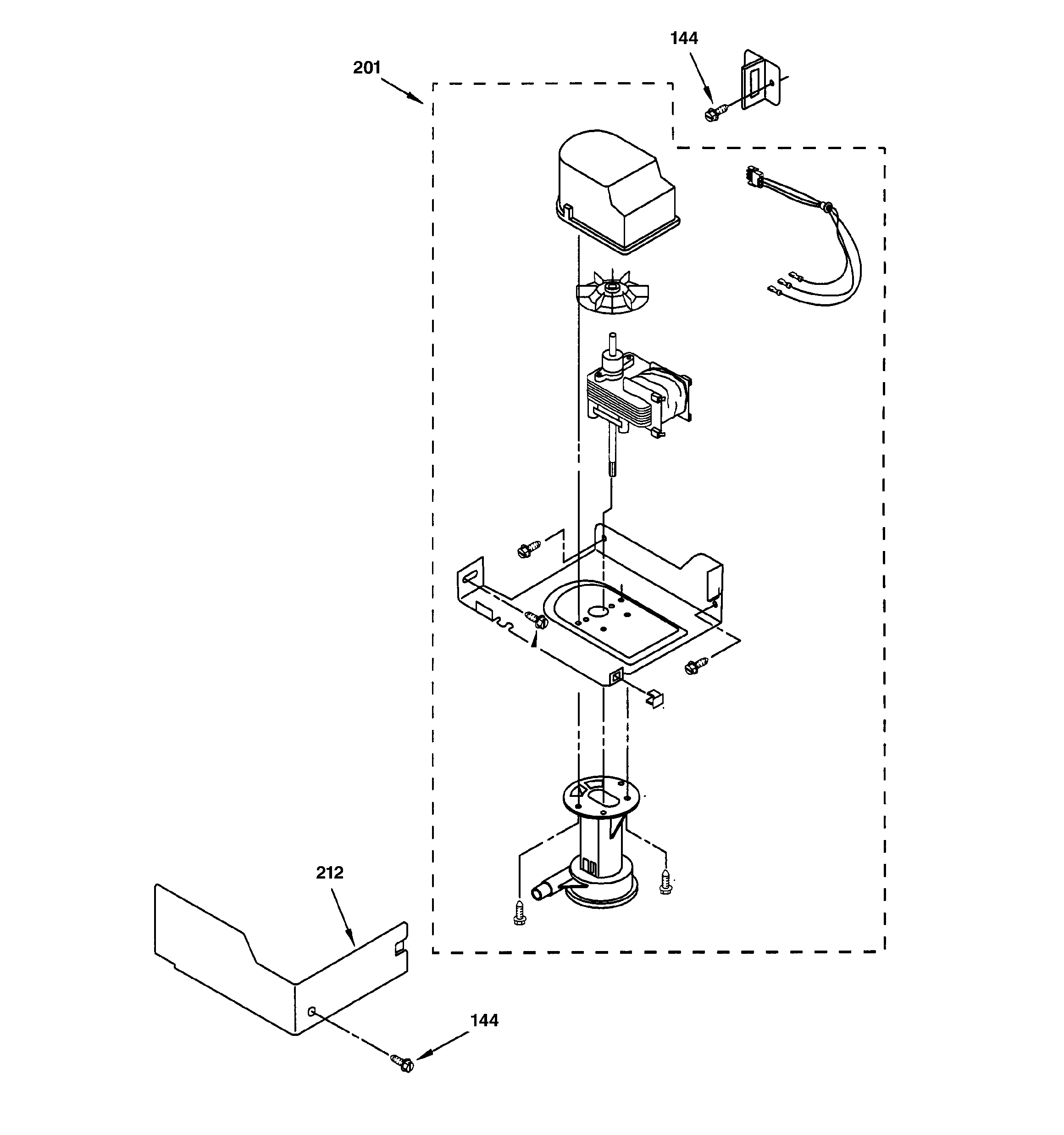

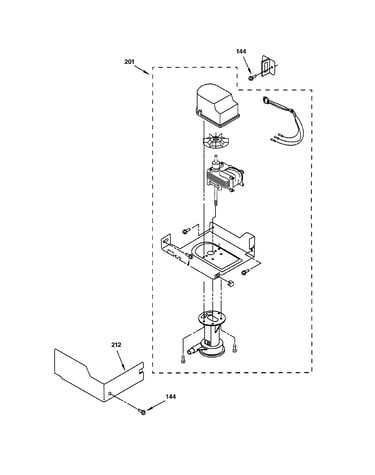

Ice Maker Recirculation Pump Cover WR02X10383
