Frigidaire
Upright Freezer

Model # BKFH17F1SW1 Official Frigidaire upright freezer

Here are the diagrams and repair parts for Official Frigidaire BKFH17F1SW1 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Dryer Filter 297396820
#4

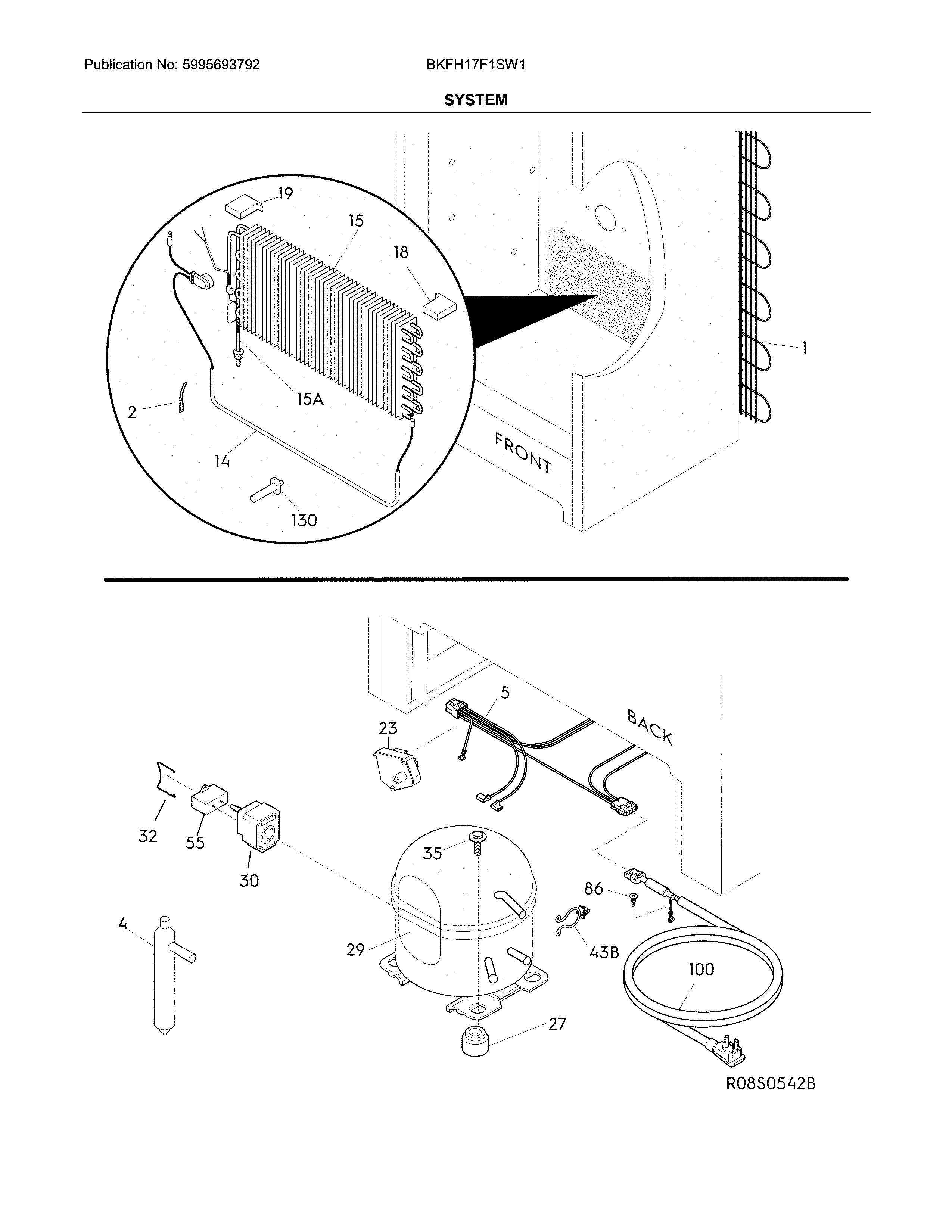

System diagram

Dryer filter

Part #297396820

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 297396820. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Evaporator 297414900
#15

System diagram

Freezer evaporator

Part #297414900

Replaced by #297414901

?
Manufacturer substitution
This part replaces 297414900. Substitute parts can look different from the original.
BEST SELLER
$90.05 |
6% OFF Phone Price : $96.05
In Stock
White-westinghouse Freezer Heat Exchanger (replaces 5304504767, 5304506363, 7297217900) 297217900
#15A

System diagram

White-westinghouse freezer heat exchanger (replaces 5304504767, 5304506363, 7297217900)

Part #297217900

BEST SELLER
$60.21 |
9% OFF Phone Price : $66.21
In Stock
Control 5304501379
#21

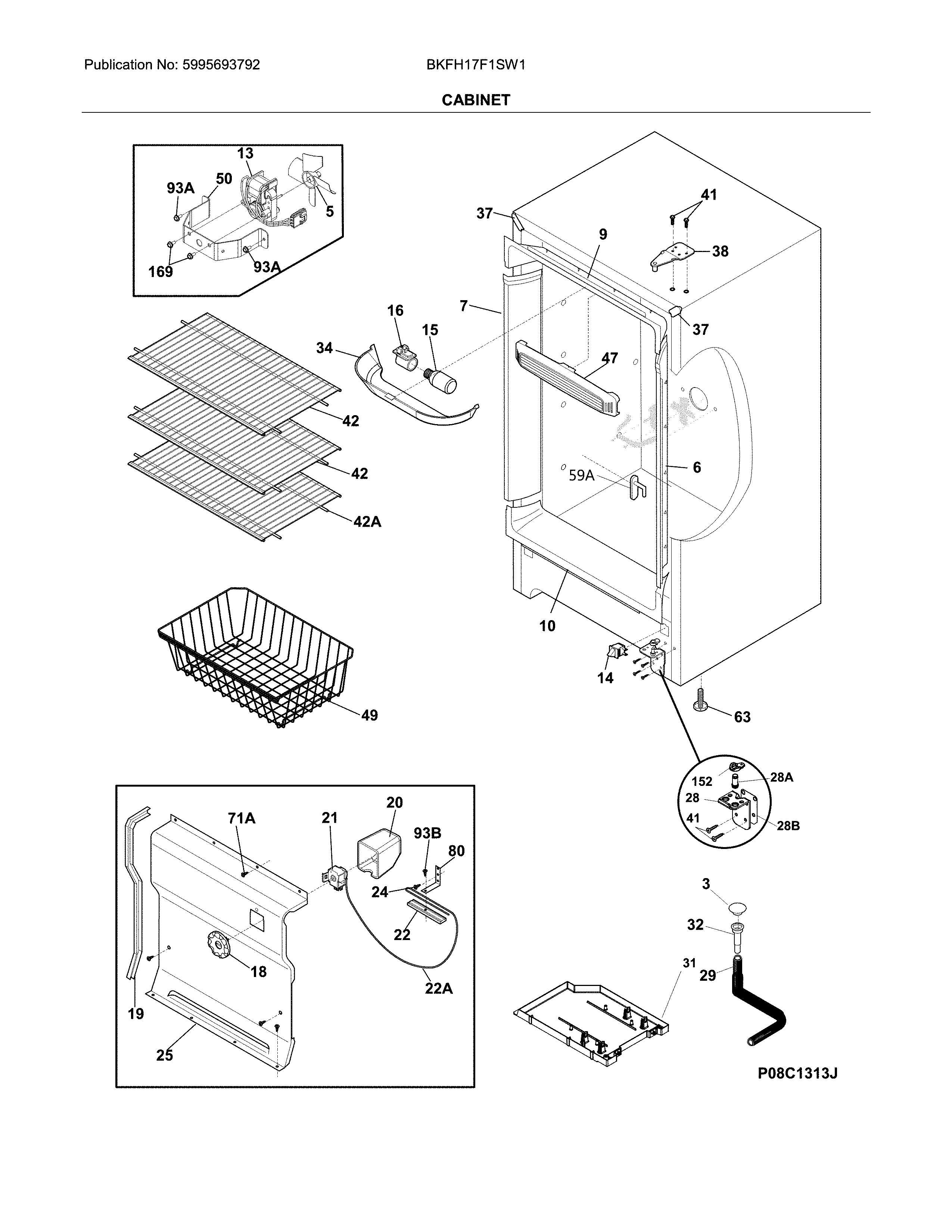

Cabinet diagram

Control

Part #5304501379

Replaced by #5304513033

?
Manufacturer substitution
This part replaces 5304501379. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$55.21 |
10% OFF Phone Price : $61.21
In Stock
Freezer Gasket And Liner Fastener Kit 5304406520
#NI

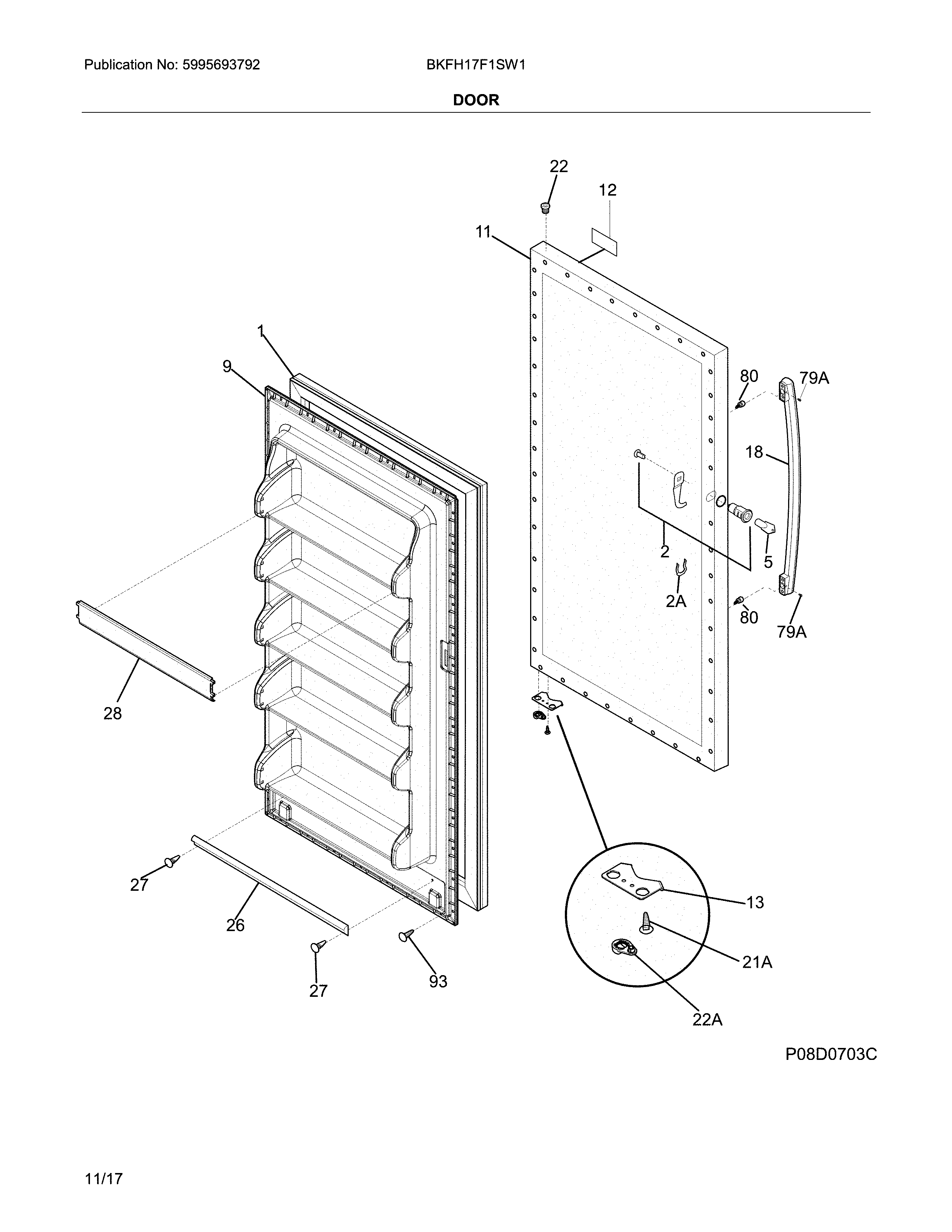

Door diagram

Freezer gasket and liner fastener kit

Part #5304406520

BEST SELLER
$34.42 |
15% OFF Phone Price : $40.42
In Stock
Freezer Door Gasket, 32-7/8 X 61-1/4-in (replaces 216522376, 5304506127) 5304505529
#1

Door diagram

Freezer door gasket, 32-7/8 x 61-1/4-in (replaces 216522376, 5304506127)

Part #5304505529

BEST SELLER
$176.99 |
6% OFF Phone Price : $188.99
In Stock
Freezer Door Switch (replaces 216998000, 7216822900) 216822900
#14

Cabinet diagram

Freezer door switch (replaces 216998000, 7216822900)

Part #216822900

BEST SELLER
$52.89 |
10% OFF Phone Price : $58.89
In Stock
Universal/multiflex (frigidaire) Refrigerator Door Handle Screw (replaces 218755503, 241531502, 7218755504) 218755504
#80

Door diagram

Universal/multiflex (frigidaire) refrigerator door handle screw (replaces 218755503, 241531502, 7218755504)

Part #218755504

BEST SELLER
$15.46 |
11% OFF Phone Price : $17.46
In Stock
Refrigerator Strap 5308000110
#2

System diagram

Refrigerator strap

Part #5308000110

BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Freezer Run Capacitor (replaces 216985010) 297286802
#55

System diagram

Freezer run capacitor (replaces 216985010)

Part #297286802

BEST SELLER
$38.69 |
13% OFF Phone Price : $44.69
In Stock
