GE
Room Air Conditioner

Model # AEQ05LSQ1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AEQ05LSQ1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Room Sensor WJ27X10103
#45

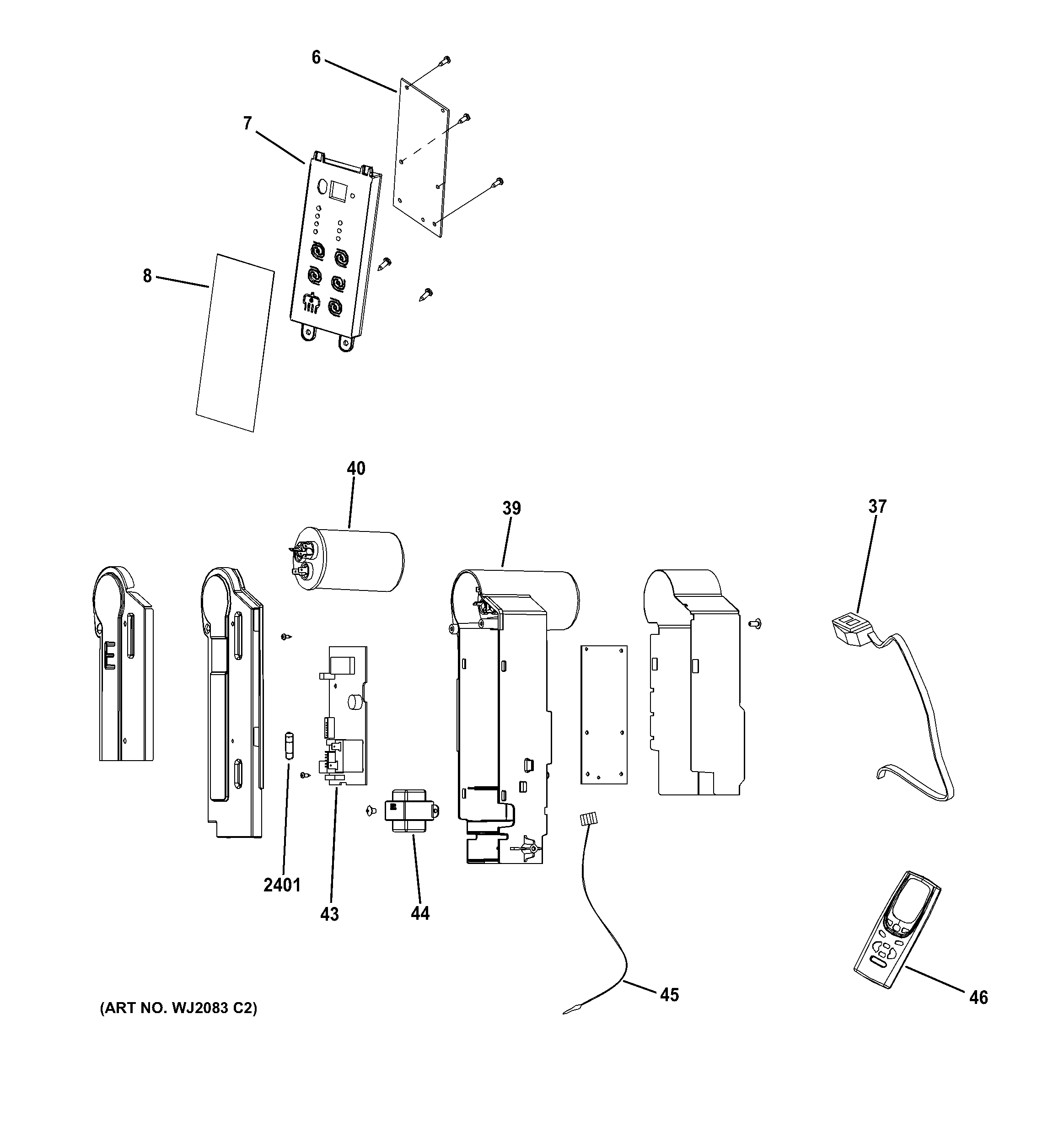

Control parts diagram

Room sensor

Part #WJ27X10103

Replaced by #WJ27X10122

?
Manufacturer substitution
This part replaces WJ27X10103. Substitute parts can look different from the original.
This item is not returnable
$10.98 |
15% OFF Phone Price : $12.98
In Stock
Remote WJ26X10354
#46

Control parts diagram

Remote

Part #WJ26X10354

Replaced by #WJ26X20522

?
Manufacturer substitution
This part replaces WJ26X10354. Substitute parts can look different from the original.
$53.70 |
10% OFF Phone Price : $59.70
In Stock
Room Air Conditioner Air Filter WJ85X10173
#5

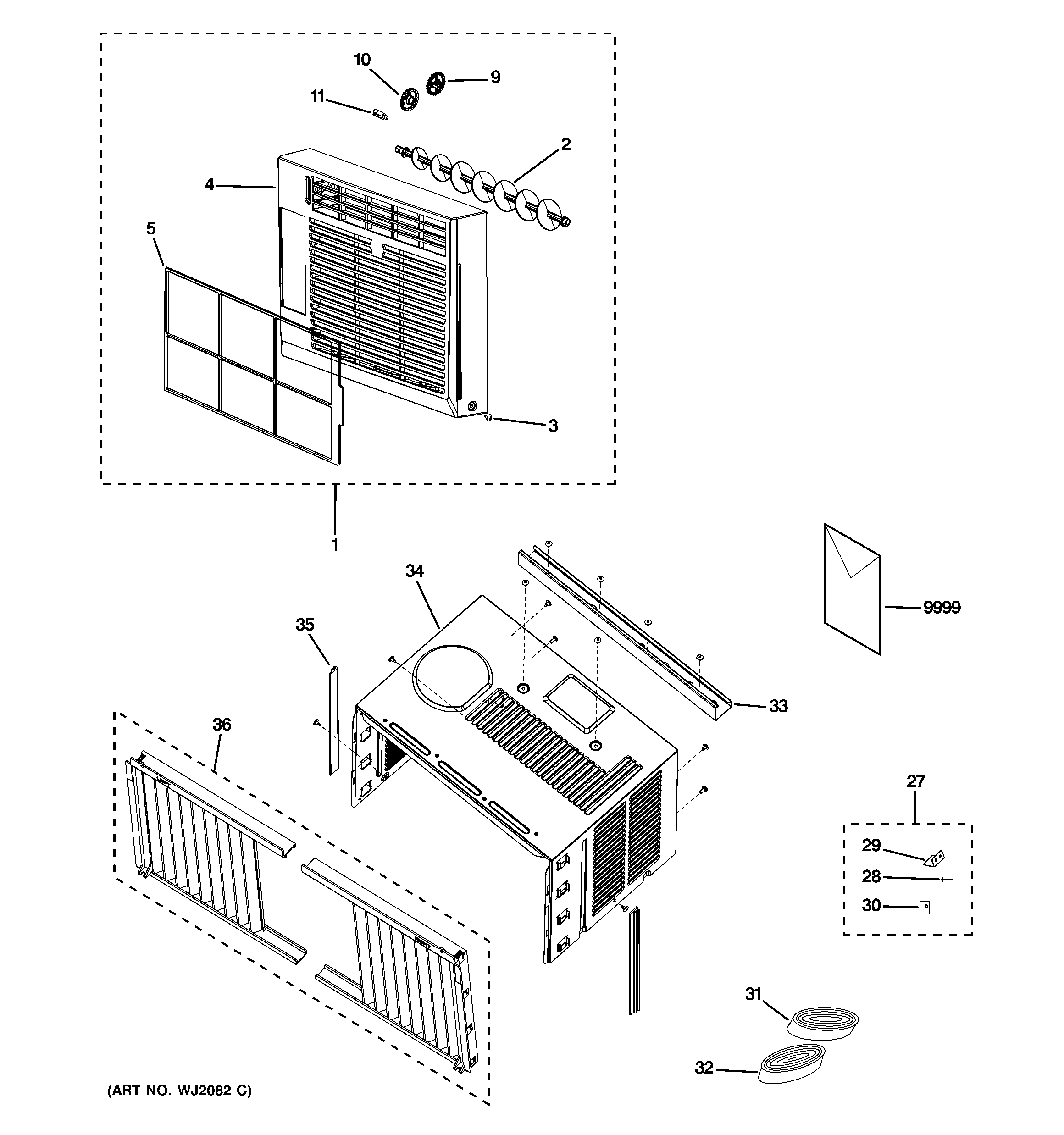

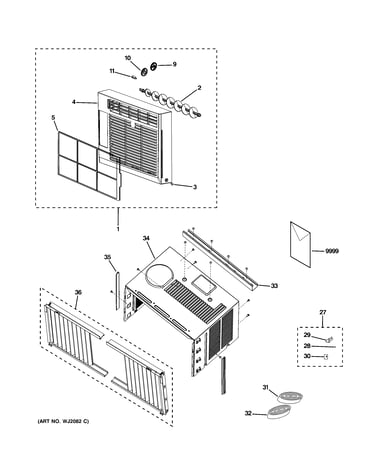

Grille & chassis parts diagram

Room air conditioner air filter

Part #WJ85X10173

This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Screw WJ01X10351
#28

Grille & chassis parts diagram

Screw

Part #WJ01X10351

$8.11
In Stock
Curtain WJ71X10672
#36

Grille & chassis parts diagram

Curtain

Part #WJ71X10672

$23.89 |
20% OFF Phone Price : $29.89
In Stock
Nut WJ01X10345
#14

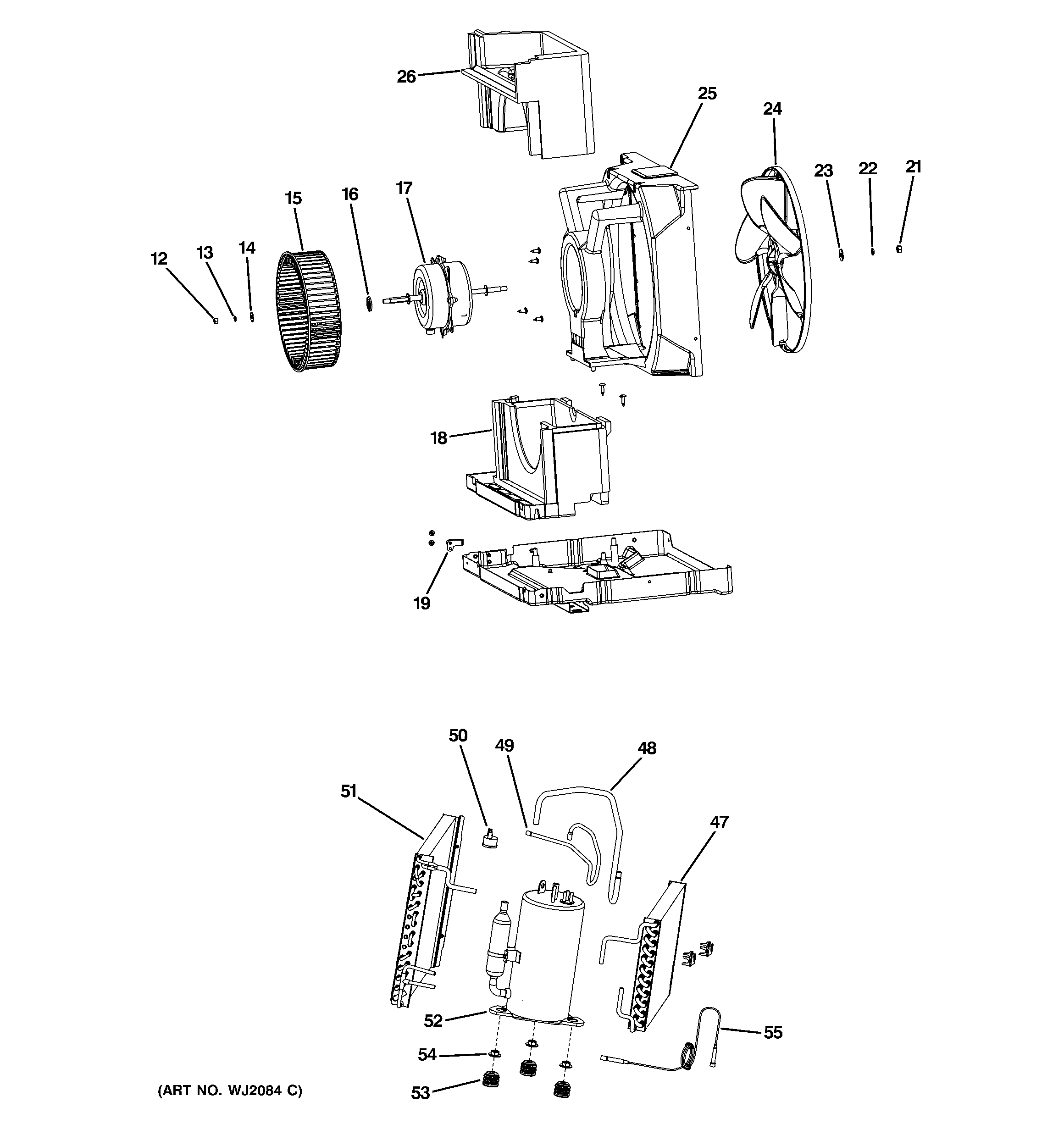

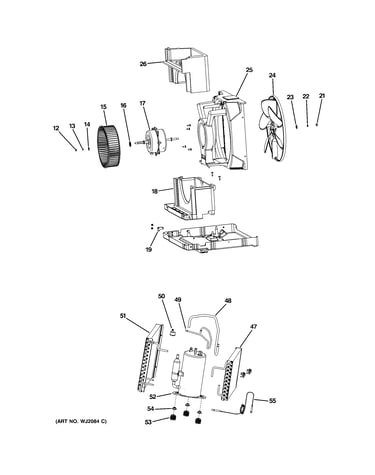

Base pan & unit parts diagram

Nut

Part #WJ01X10345

$10.11
In Stock
Gasket Seal WJ43X10073
#31

Grille & chassis parts diagram

Gasket seal

Part #WJ43X10073

$10.93 |
15% OFF Phone Price : $12.93
In Stock
Washer WJ01X10313
#22

Base pan & unit parts diagram

Washer

Part #WJ01X10313

$7.69 |
12% OFF Phone Price : $8.69
In Stock
Power Cord WJ35X10172
#37

Control parts diagram

Power cord

Part #WJ35X10172

$106.85
In Stock
Gasket Seal WJ43X10074
#32

Grille & chassis parts diagram

Gasket seal

Part #WJ43X10074

$9.83
In Stock
