Samsung
Electric Range

Model # NE59J7630SG/AA-02 Official Samsung electric freestanding range

Here are the diagrams and repair parts for Official Samsung NE59J7630SG-AA-02 electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

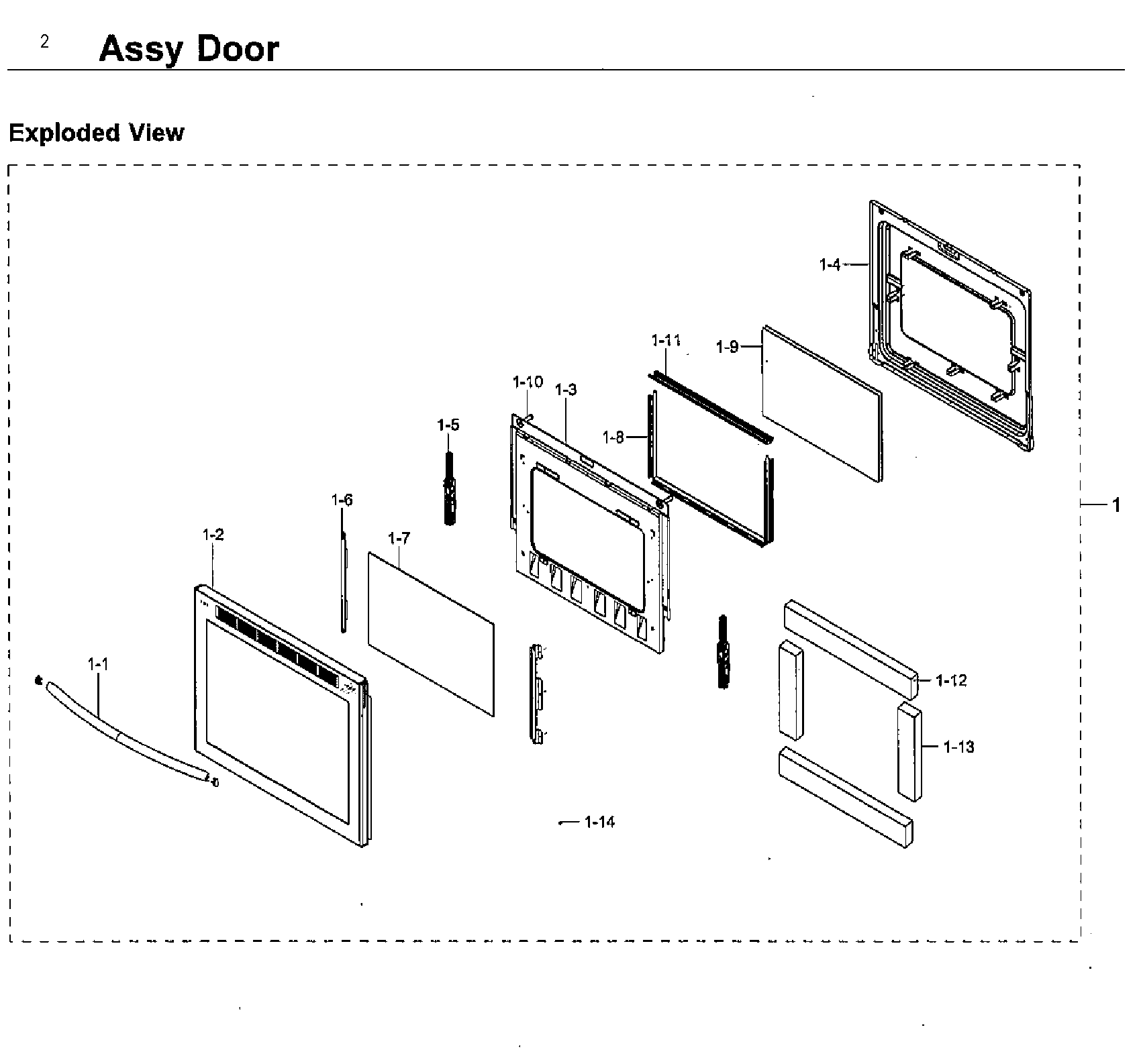

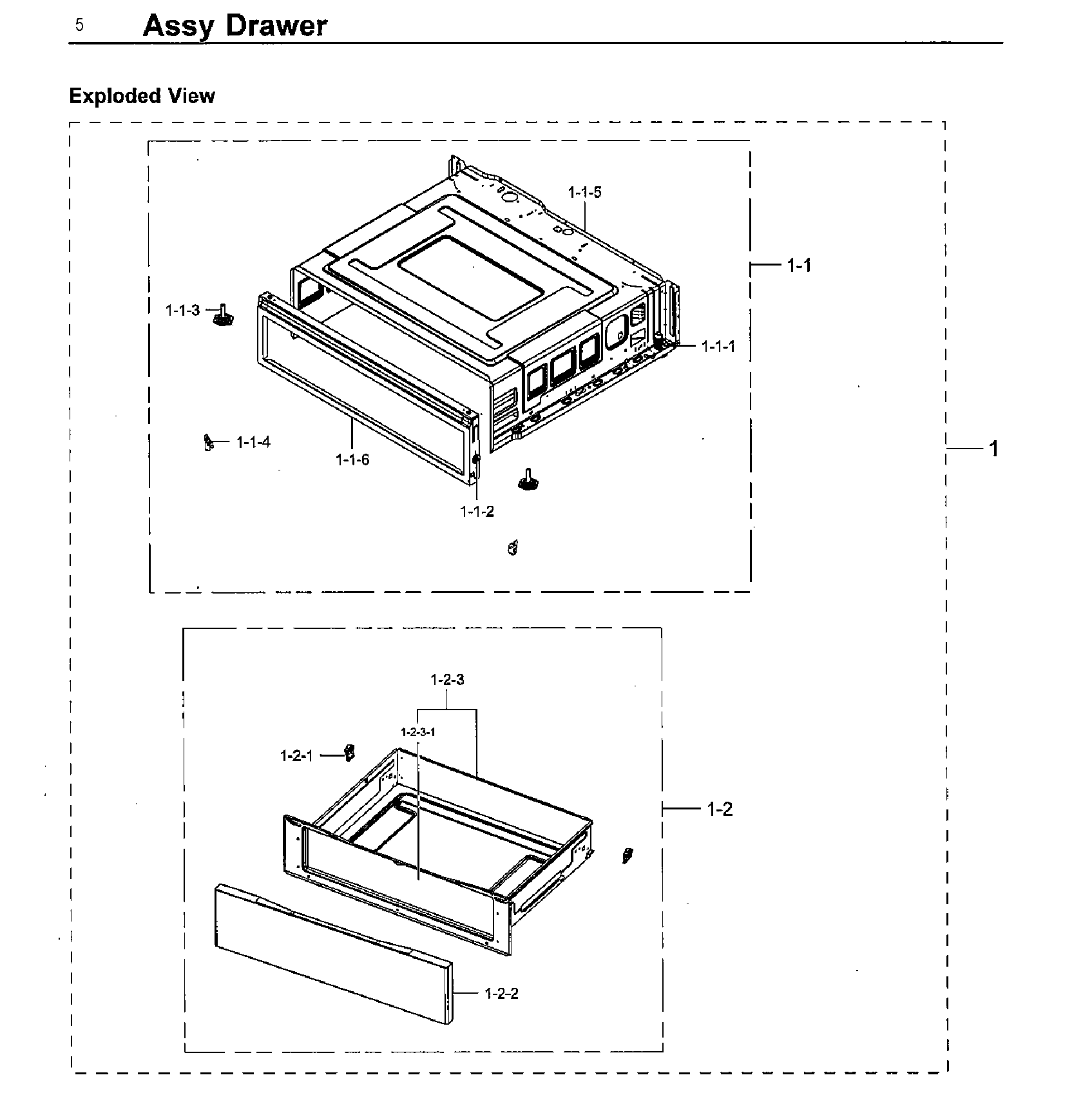

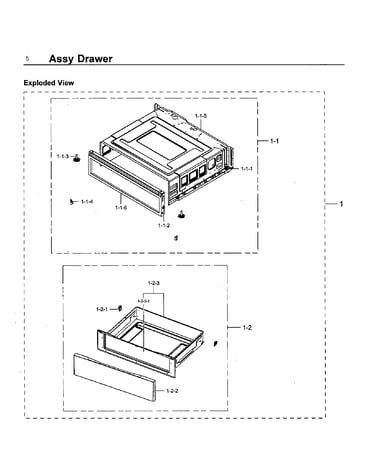

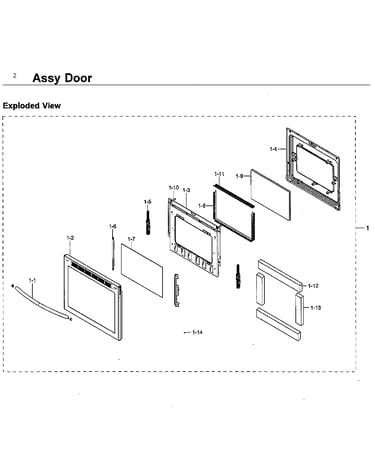

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Range Surface Element Control Switch Dg44-01006a DG44-01006A
#1-7

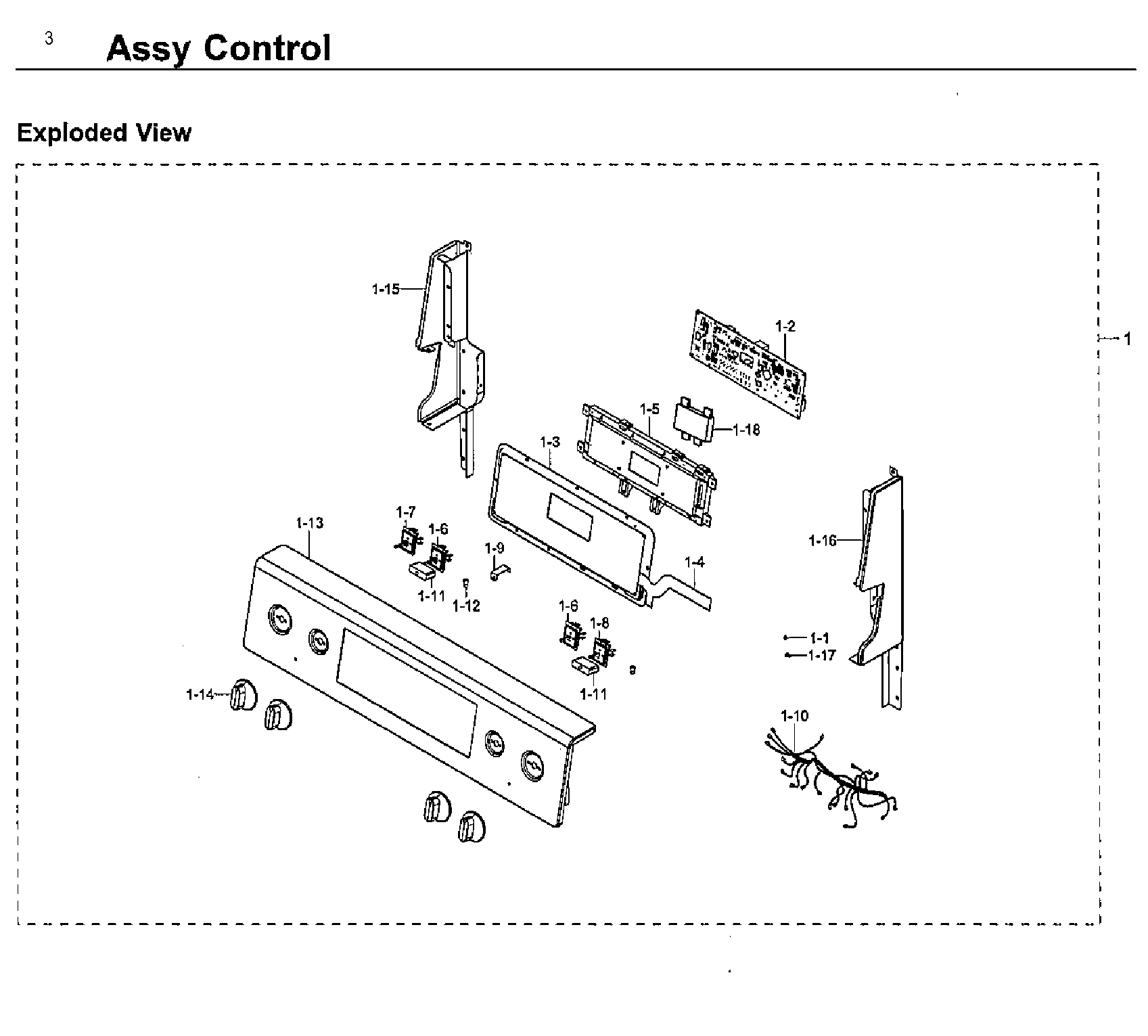

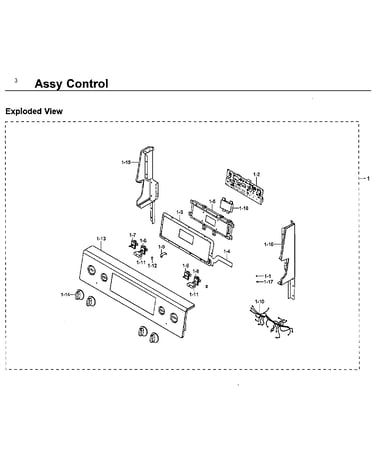

Control diagram

Range surface element control switch dg44-01006a

Part #DG44-01006A

BEST SELLER
$117.18 |
9% OFF Phone Price : $129.18
Back Order
Range Oven Temperature Sensor (replaces Dg32-00002a) DG32-00002B
#33

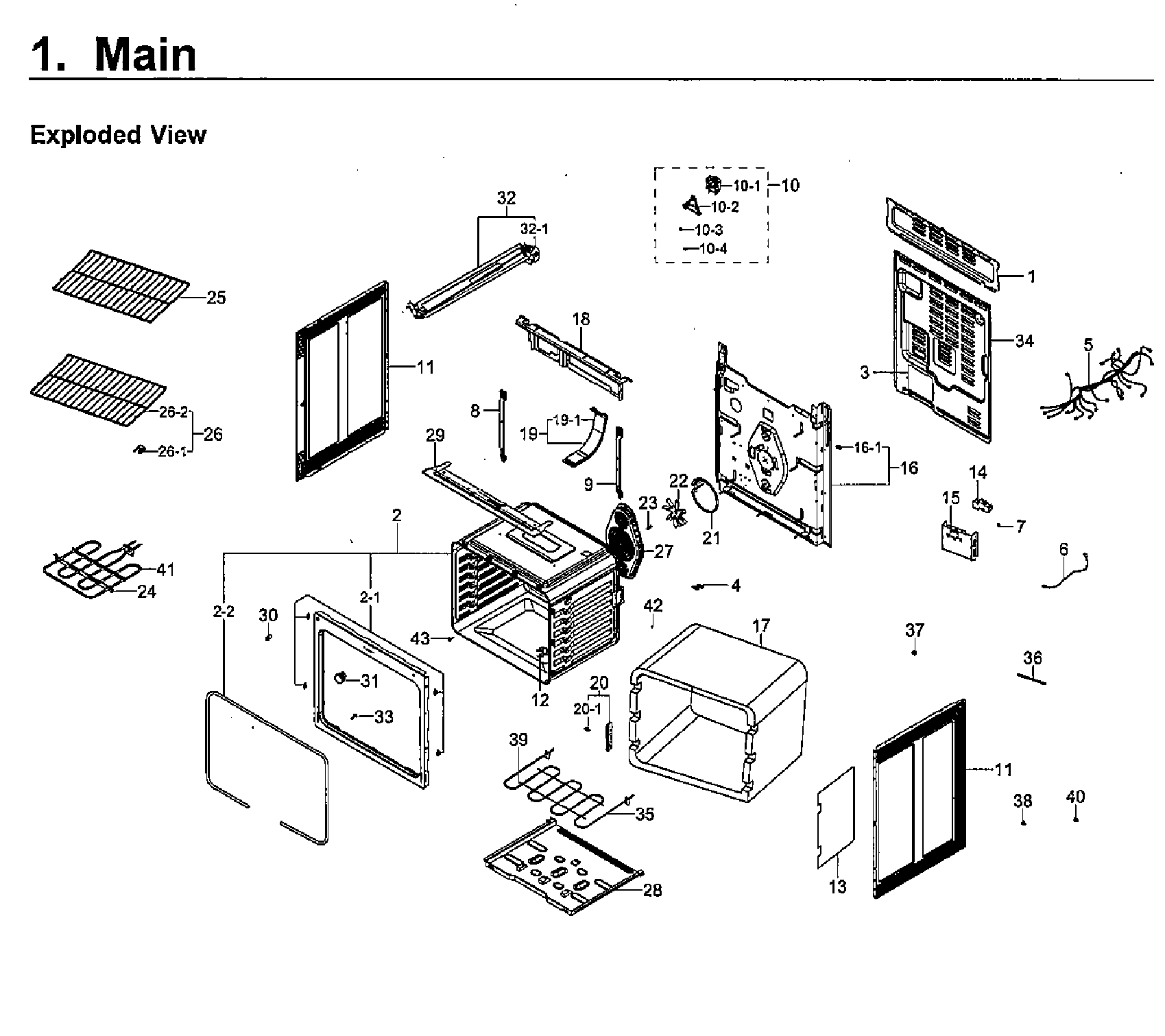

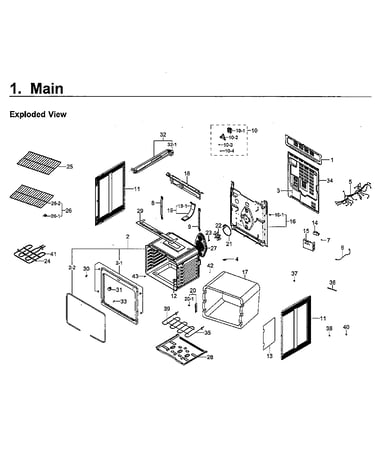

Main asy diagram

Range oven temperature sensor (replaces dg32-00002a)

Part #DG32-00002B

BEST SELLER
$96.18 |
11% OFF Phone Price : $108.18
In Stock
Range Surface Element Control Switch DG44-01009A
#1-6

Control diagram

Range surface element control switch

Part #DG44-01009A

BEST SELLER
$110.07 |
10% OFF Phone Price : $122.07
Back Order
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
#32-1

Main asy diagram

Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$18.27 |
10% OFF Phone Price : $20.27
Back Order
Range Convection Fan Motor Assembly (replaces Dg96-00110a) DG96-00110E
#10

Main asy diagram

Range convection fan motor assembly (replaces dg96-00110a)

Part #DG96-00110E

BEST SELLER
$113.10 |
10% OFF Phone Price : $125.10
In Stock
Range Radiant Surface Element, 6-in DG47-00060A
#1-2

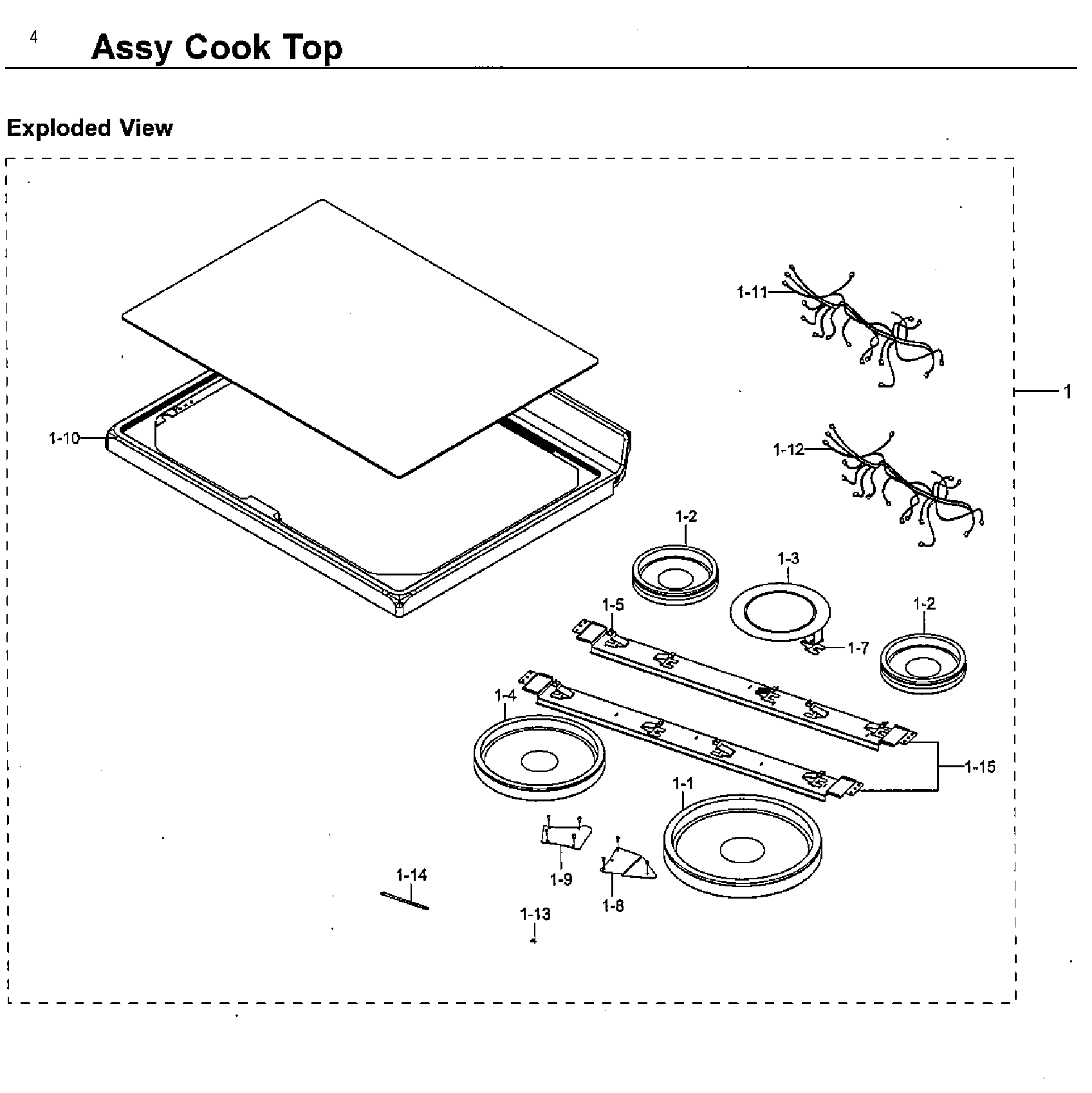

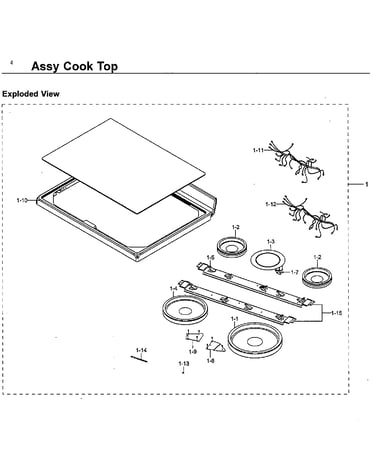

Cooktop diagram

Range radiant surface element, 6-in

Part #DG47-00060A

BEST SELLER
$142.77 |
8% OFF Phone Price : $154.77
In Stock
Range High-limit Thermostat DE47-20037A
Range high-limit thermostat

Part #DE47-20037A

BEST SELLER
$18.39 |
10% OFF Phone Price : $20.39
In Stock
Range Oven Door Switch DG34-00006A
#30

Main asy diagram

Range oven door switch

Part #DG34-00006A

BEST SELLER
This item is not returnable
$35.15 |
15% OFF Phone Price : $41.15
In Stock
Range Dual Radiant Surface Element DG47-00067A
#1-4

Cooktop diagram

Range dual radiant surface element

Part #DG47-00067A

BEST SELLER
$169.71 |
7% OFF Phone Price : $181.71
In Stock
Range Convection Fan Blade DG67-00018A
#22

Main asy diagram

Range convection fan blade

Part #DG67-00018A

BEST SELLER
$15.04 |
12% OFF Phone Price : $17.04
In Stock
